IslandPathversion 1.0

IslandPath Analysis: Sulfurimonas denitrificans DSM 1251

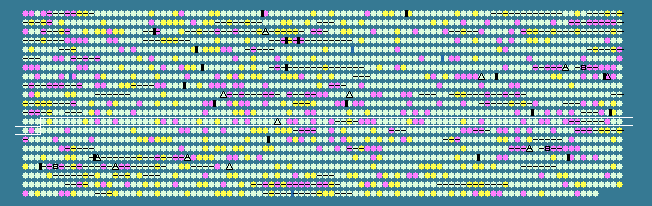

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.46 STD DEV: 3.28
Sulfurimonas denitrificans DSM 1251, complete genome - 1..2201561
2096 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1204	 34.68	0	1273978..1275015	-	345	78777406	ddl	Suden_1208	-	D-alanyl-alanine synthetase A
1205	 38.45	+1	1275028..1275594	-	188	78777407	ruvA	Suden_1209	-	Holliday junction DNA helicase motor protein
1206	 32.65	0	1275591..1277495	-	634	78777408	-	Suden_1210	-	hypothetical protein
1207	 32.48	0	1277601..1279007	+	468	78777409	-	Suden_1211	-	virulence factor MVIN-like
1208	 36.69	0	1278994..1280394	+	466	78777410	cysS	Suden_1212	-	cysteinyl-tRNA synthetase
1209	 36.26	0	1280399..1281595	-	398	78777411	-	Suden_1213	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1210	 34.73	0	1281673..1282602	+	309	78777412	-	Suden_1214	-	hypothetical protein
1211	 39.96	+1	1282568..1283125	-	185	78777413	-	Suden_1215	-	DJ-1
1212	 32.84	0	1283375..1284181	+	268	78777414	-	Suden_1216	-	UbiA prenyltransferase
1213	 30.51	-1	1284178..1284567	+	129	78777415	-	Suden_1217	-	hypothetical protein
1214	 36.74	0	1284570..1285862	+	430	78777416	-	Suden_1218	-	FAD linked oxidase-like
1215	 36.20	0	1285859..1286590	+	243	78777417	-	Suden_1219	-	short chain dehydrogenase
1216	 30.41	-1	1286587..1288059	+	490	78777418	-	Suden_1220	-	glycosyltransferase
1217	 36.79	0	1288056..1288634	+	192	78777419	-	Suden_1221	-	phosphoserine phosphatase
1218	 33.46	0	1288776..1289564	+	262	78777420	-	Suden_1222	-	Alpha/beta hydrolase fold
1219	 37.26	0	1289588..1291753	+	721	78777421	-	Suden_1223	-	heavy metal translocating P-type ATPase
1220	 36.26	0	1292006..1293064	+	352	78777422	-	Suden_1224	-	dihydroorotate dehydrogenase 2
1221	 33.02	0	1293066..1294361	+	431	78777423	-	Suden_1225	-	peptidase M16-like
1222	 37.70	0	1294366..1295259	+	297	78777424	-	Suden_1226	-	dihydrodipicolinate synthase
1223	 40.10	+1	1295261..1296043	+	260	78777425	-	Suden_1227	-	7-alpha-hydroxysteroid dehydrogenase
1224	 29.15	-1	1296087..1296995	+	302	78777426	hemD	Suden_1228	-	uroporphyrinogen-III synthase
1225	 31.65	0	1297065..1297598	+	177	78777427	-	Suden_1229	-	hypothetical protein
1226	 29.30	-1	1297595..1297867	-	90	78777428	-	Suden_1230	-	heat shock protein DnaJ-like
1227	 34.24	0	1297864..1298637	-	257	78777429	-	Suden_1231	-	glycerophosphoryl diester phosphodiesterase
1228	 33.50	0	1298641..1299849	-	402	78777430	-	Suden_1232	-	phospholipid/glycerol acyltransferase
1229	 36.58	0	1299950..1300504	+	184	78777431	-	Suden_1233	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1230	 37.99	+1	1300501..1301553	+	350	78777432	-	Suden_1234	-	peptidase M50, putative membrane-associated zinc metallopeptidase
1231	 33.93	0	1301557..1302231	+	224	78777433	-	Suden_1235	-	hypothetical protein
1232	 36.23	0	1302249..1303007	-	252	78777434	-	Suden_1236	-	carbonate dehydratase
1233	 38.01	+1	1303139..1304377	+	412	78777435	-	Suden_1237	-	HI0933-like protein
1234	 33.33	0	1304370..1304921	-	183	78777436	-	Suden_1238	-	thiamine monophosphate synthase
1235	 35.34	0	1305097..1307193	+	698	78777437	-	Suden_1239	-	anaerobic ribonucleoside triphosphate reductase
1236	 30.07	-1	1307443..1308024	+	193	78777438	-	Suden_1240	-	putative radical-activating enzyme
1237	 35.27	0	1308070..1309773	+	567	78777439	-	Suden_1241	-	ferredoxin--nitrite reductase
1238	 30.41	-1	1309760..1310443	-	227	78777440	-	Suden_1242	-	two component transcriptional regulator
1239	 32.92	0	1310427..1311638	-	403	78777441	-	Suden_1243	-	PAS/PAC sensor signal transduction histidine kinase
1240	 34.88	0	1311643..1314351	-	902	78777442	-	Suden_1244	-	DNA polymerase I
1241	 36.24	0	1314464..1315150	-	228	78777443	-	Suden_1245	-	hypothetical protein
1242	 33.73	0	1315180..1315689	-	169	78777444	-	Suden_1246	-	hypothetical protein
1243	 35.01	0	1315959..1316795	-	278	78777445	-	Suden_1247	-	Phage integrase
1244	 32.19	0	1316798..1317757	-	319	78777446	-	Suden_1248	-	hypothetical protein
1245	 30.95	-1	1317798..1318385	-	195	78777447	-	Suden_1249	-	hypothetical protein
1246	 30.24	-1	1318513..1318803	+	96	78777448	gatC	Suden_1250	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
1247	 35.27	0	1318864..1319946	+	360	78777449	-	Suden_1251	-	pilus retraction protein PilT
1248	 31.69	0	1319975..1320946	-	323	78777450	-	Suden_1252	-	hypothetical protein
1249	 30.39	-1	1320954..1322177	-	407	78777451	-	Suden_1253	-	hypothetical protein
1250	 35.78	0	1322134..1323318	-	394	78777452	-	Suden_1254	-	acetylornithine aminotransferase
1251	 34.95	0	1323315..1325048	-	577	78777453	-	Suden_1255	-	molybdopterin oxidoreductase
1252	 29.57	-1	1325041..1325838	-	265	78777454	-	Suden_1256	-	hypothetical protein
1253	 33.44	0	1325963..1326913	+	316	78777455	-	Suden_1257	-	response regulator receiver (CheY-like) modulated CheW protein
1254	 37.31	0	1326951..1328282	-	443	78777456	-	Suden_1258	-	pyruvate carboxylase/oxaloacetate decarboxylase biotin carboxyl carrier subunit alpha
1255	 38.02	+1	1328287..1330098	-	603	78777457	-	Suden_1259	-	pyruvate carboxylase/oxaloacetate decarboxylase beta subunit
1256	 34.58	0	1330107..1330346	-	79	78777458	-	Suden_1260	-	pyruvate carboxylase/oxaloacetate decarboxylase gamma subunit
1257	 27.84	-2	1330499..1330789	+	96	78777459	-	Suden_1261	-	hypothetical protein
1258	 29.45	-1	1330854..1331162	+	102	78777460	-	Suden_1262	-	hypothetical protein
1259	 24.26	-2	1331333..1331839	-	168	78777461	-	Suden_1263	-	hypothetical protein
1260	 32.59	0	1331939..1333831	-	630	78777462	-	Suden_1264	-	heat shock protein 90
1261	 32.37	0	1334110..1334937	+	275	78777463	-	Suden_1265	-	hypothetical protein
1262	 35.49	0	1334950..1335273	+	107	78777464	-	Suden_1266	-	hypothetical protein
1263	 33.48	0	1335270..1336667	-	465	78777465	-	Suden_1267	-	RNA-metabolising metallo-beta-lactamase
1264	 35.03	0	1336856..1338796	+	646	78777466	-	Suden_1268	-	ABC transporter-related protein
1265	 38.59	+1	1338813..1340162	-	449	78777467	-	Suden_1269	-	3-deoxy-7-phosphoheptulonate synthase
1266	 30.83	-1	1340288..1341244	+	318	78777468	-	Suden_1270	-	diguanylate cyclase
1267	 30.11	-1	1341244..1341894	+	216	78777469	-	Suden_1271	-	colicin V production protein
1268	 32.49	0	1341896..1342372	+	158	78777470	-	Suden_1272	-	ferric uptake regulator family protein
1269	 33.60	0	1342393..1343907	+	504	78777471	lysS	Suden_1273	-	lysyl-tRNA synthetase
1270	 37.74	0	1343910..1345157	+	415	78777472	glyA	Suden_1274	-	serine hydroxymethyltransferase
1271	 32.60	0	1345167..1345709	+	180	78777473	-	Suden_1275	-	hypothetical protein
1272	 33.63	0	1345781..1346464	+	227	78777474	-	Suden_1276	-	hypothetical protein
1273	 34.54	0	1346510..1347913	+	467	78777475	-	Suden_1277	-	anthranilate synthase
1274	 38.01	+1	1347996..1348787	+	263	78777476	aroE	Suden_1278	-	shikimate 5-dehydrogenase
1275	 36.37	0	1348784..1349803	-	339	78777477	-	Suden_1279	-	aldo/keto reductase
1276	 34.46	0	1349827..1352496	-	889	78777478	-	Suden_1280	-	glycosyl transferase family protein
1277	 30.96	-1	1352560..1355046	-	828	78777479	-	Suden_1281	-	resistance-nodulation-cell division family transporter
1278	 32.09	0	1355053..1355616	-	187	78777480	-	Suden_1282	-	toluene tolerance
1279	 33.85	0	1355658..1356437	-	259	78777481	-	Suden_1283	-	VacJ-like lipoprotein
1280	 32.63	0	1356439..1357008	-	189	78777482	recR	Suden_1284	-	recombination protein RecR
1281	 33.76	0	1357013..1358173	-	386	78777483	-	Suden_1285	-	MltA
1282	 36.90	0	1358273..1359394	+	373	78777484	-	Suden_1286	-	chaperone DnaJ
1283	 37.50	0	1359664..1360143	-	159	78777485	-	Suden_1287	-	rhodanese-like protein
1284	 29.87	-1	1360240..1360614	+	124	78777486	-	Suden_1288	-	ArsR family transcriptional regulator
1285	 34.01	0	1360659..1361249	+	196	78777487	-	Suden_1289	-	hypothetical protein
1286	 33.87	0	1361246..1362544	-	432	78777488	-	Suden_1290	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
1287	 27.59	-2	1362541..1362888	-	115	78777489	-	Suden_1291	-	hypothetical protein
1288	 30.12	-1	1363055..1364518	+	487	78777490	-	Suden_1292	-	hypothetical protein
1289	 36.78	0	1364520..1365881	+	453	78777491	-	Suden_1293	-	cell division protein FtsA
1290	 37.89	+1	1365892..1367010	+	372	78777492	-	Suden_1294	-	cell division protein FtsZ
1291	 30.77	-1	1367081..1367509	+	142	78777493	-	Suden_1295	-	hypothetical protein
1292	 29.22	-1	1367525..1368181	+	218	78777494	-	Suden_1296	-	CRP/FNR family transcriptional regulator
1293	 25.11	-2	1368185..1369120	+	311	78777495	-	Suden_1297	-	hypothetical protein
1294	 35.99	0	1369244..1371841	+	865	78777496	-	Suden_1298	-	nitrous-oxide reductase
1295	 34.48	0	1372029..1372811	+	260	78777497	-	Suden_1299	-	hypothetical protein
1296	 32.27	0	1372814..1374031	+	405	78777498	-	Suden_1300	-	periplasmic copper-binding
1297	 37.11	0	1374035..1374775	+	246	78777499	-	Suden_1301	-	4Fe-4S ferredoxin, iron-sulfur binding
1298	 30.88	-1	1374786..1375397	+	203	78777500	-	Suden_1302	-	hypothetical protein
1299	 35.73	0	1375400..1375900	+	166	78777501	-	Suden_1303	-	hypothetical protein
1300	 33.33	0	1375915..1376820	+	301	78777502	-	Suden_1304	-	NapH/MauN family ferredoxin-type protein
1301	 35.37	0	1376824..1377462	+	212	78777503	-	Suden_1305	-	ABC transporter-related protein
1302	 30.89	-1	1377449..1377898	+	149	78777504	-	Suden_1306	-	hypothetical protein
1303	 32.37	0	1377910..1378737	+	275	78777505	-	Suden_1307	-	putative ABC-2 type transport system permease protein
34.46	MEAN

3.28	STD DEV
