IslandPathversion 1.0

IslandPath Analysis: Sulfurimonas denitrificans DSM 1251

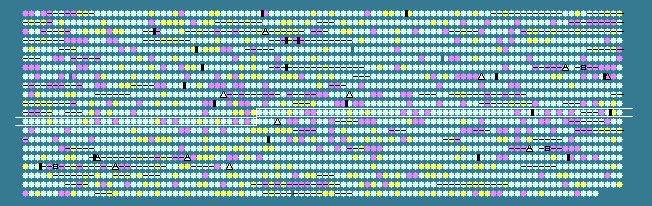

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.46 STD DEV: 3.28
Sulfurimonas denitrificans DSM 1251, complete genome - 1..2201561
2096 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1140	 36.83	0	1200388..1200816	-	142	78777342	-	Suden_1144	-	CoA-binding
1141	 36.30	0	1200883..1202331	-	482	78777343	-	Suden_1145	-	Sodium/sulphate symporter
1142	 33.49	0	1202556..1203203	+	215	78777344	-	Suden_1146	-	superfamily II DNA/RNA helicase-like
1143	 36.06	0	1203215..1203985	-	256	78777345	-	Suden_1147	-	hypothetical protein
1144	 34.91	0	1203954..1205222	-	422	78777346	-	Suden_1148	-	RNA polymerase factor sigma-54
1145	 38.59	+1	1205238..1205960	-	240	78777347	-	Suden_1149	-	ABC transporter-related protein
1146	 31.16	-1	1205948..1206361	-	137	78777348	-	Suden_1150	-	hypothetical protein
1147	 36.47	0	1206358..1207344	-	328	78777349	-	Suden_1151	-	anthranilate phosphoribosyl transferase
1148	 29.32	-1	1207341..1207589	-	82	78777350	-	Suden_1152	-	RNA-binding S4
1149	 25.84	-2	1207736..1208242	+	168	78777351	-	Suden_1153	-	flagellar basal body-associated protein FliL
1150	 32.56	0	1208298..1210868	+	856	78777352	-	Suden_1154	-	diguanylate cyclase/phosphodiesterase
1151	 35.95	0	1210904..1211821	-	305	78777353	-	Suden_1155	-	putative manganese-dependent inorganic pyrophosphatase
1152	 34.54	0	1211967..1213292	+	441	78777354	-	Suden_1156	-	phospholipase D/transphosphatidylase
1153	 33.33	0	1213305..1214036	+	243	78777355	-	Suden_1157	-	hypothetical protein
1154	 33.49	0	1214033..1214662	-	209	78777356	-	Suden_1158	-	nitroreductase
1155	 38.33	+1	1214732..1215631	+	299	78777357	-	Suden_1159	-	auxin efflux carrier
1156	 34.00	0	1215642..1216088	+	148	78777358	-	Suden_1160	-	SecC motif-containing protein
1157	 36.62	0	1216085..1217179	-	364	78777359	-	Suden_1161	-	tRNA 2-selenouridine synthase
1158	 39.92	+1	1217179..1218210	-	343	78777360	-	Suden_1162	-	selenide water dikinase
1159	 36.69	0	1218234..1221062	-	942	78777361	uvrA	Suden_1163	-	excinuclease ABC subunit A
1160	 34.01	0	1221069..1221809	-	246	78777362	-	Suden_1164	-	hypothetical protein
1161	 33.81	0	1221942..1222364	+	140	78777363	-	Suden_1165	-	hypothetical protein
1162	 33.93	0	1222365..1222700	+	111	78777364	-	Suden_1166	-	flagellar motor switch protein
1163	 32.43	0	1222700..1223587	+	295	78777365	-	Suden_1167	-	hypothetical protein
1164	 30.87	-1	1223584..1224720	-	378	78777366	-	Suden_1168	-	hypothetical protein
1165	 36.47	0	1224714..1225670	-	318	78777367	-	Suden_1169	-	dihydrouridine synthase TIM-barrel protein nifR3
1166	 29.50	-1	1225677..1226693	-	338	78777368	-	Suden_1170	-	hypothetical protein
1167	 35.90	0	1226703..1227053	-	116	78777369	-	Suden_1171	-	TraR/DksA family transcriptional regulator
1168	 30.72	-1	1227070..1227528	-	152	78777370	-	Suden_1172	-	hypothetical protein
1169	 31.73	0	1227528..1228088	-	186	78777371	-	Suden_1173	-	thiamine monophosphate synthase
1170	 37.71	0	1228088..1228933	-	281	78777372	-	Suden_1174	-	acetyl-CoA carboxylase subunit beta
1171	 37.16	0	1229079..1230464	-	461	78777373	gltD	Suden_1175	-	glutamate synthase subunit beta
1172	 36.46	0	1230467..1234906	-	1479	78777374	-	Suden_1176	-	glutamate synthase (NADPH) large subunit
1173	 31.56	0	1235084..1235704	+	206	78777375	-	Suden_1177	-	hypothetical protein
1174	 33.27	0	1235764..1237356	+	530	78777376	-	Suden_1178	-	methyl-accepting chemotaxis sensory transducer
1175	 34.59	0	1237362..1237916	-	184	78777377	-	Suden_1179	-	tellurite resistance protein TehB
1176	 34.64	0	1237927..1239075	-	382	78777378	-	Suden_1180	-	carboxynorspermidine decarboxylase
1177	 37.64	0	1239079..1240263	-	394	78777379	-	Suden_1181	-	saccharopine dehydrogenase
1178	 32.89	0	1240367..1242172	-	601	78777380	-	Suden_1182	-	phospholipid/glycerol acyltransferase
1179	 33.89	0	1242186..1242905	-	239	78777381	-	Suden_1183	-	hypothetical protein
1180	 35.12	0	1243069..1244301	+	410	78777382	-	Suden_1184	-	hypothetical protein
1181	 32.93	0	1244392..1244892	+	166	78777383	-	Suden_1185	-	hypothetical protein
1182	 31.25	0	1244934..1245365	+	143	78777384	-	Suden_1186	-	hypothetical protein
1183	 30.16	-1	1245349..1245789	+	146	78777385	-	Suden_1187	-	hypothetical protein
1184	 31.80	0	1245769..1246680	-	303	78777386	-	Suden_1188	-	ApbE-like lipoprotein
1185	 35.86	0	1246723..1247751	-	342	78777387	-	Suden_1189	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
1186	 33.90	0	1248438..1250543	+	701	78777388	-	Suden_1190	-	ABC transporter-related protein
1187	 33.33	0	1250540..1251814	+	424	78777389	-	Suden_1191	-	Type I secretion membrane fusion protein, HlyD
1188	 29.25	-1	1251957..1252910	+	317	78777390	-	Suden_1192	-	hypothetical protein
1189	 32.42	0	1252925..1254013	+	362	78777391	-	Suden_1193	-	MotA/TolQ/ExbB proton channel
1190	 30.38	-1	1254018..1254728	+	236	78777392	-	Suden_1194	-	hypothetical protein
1191	 31.68	0	1254728..1257502	+	924	78777393	-	Suden_1195	-	Outer membrane efflux protein
1192	 30.64	-1	1257499..1259574	+	691	78777394	-	Suden_1196	-	diguanylate phosphodiesterase
1193	 32.92	0	1259585..1260064	+	159	78777395	-	Suden_1197	-	hypothetical protein
1194	 36.51	0	1260061..1260972	+	303	78777396	-	Suden_1198	-	Sel1 repeat-containing protein
1195	 35.80	0	1260976..1261785	-	269	78777397	-	Suden_1199	-	putative signal transduction protein
1196	 37.02	0	1261963..1267557	-	1864	78777398	-	Suden_1200	-	hemolysin-type calcium-binding region
1197	 30.77	-1	1267764..1268192	-	142	78777399	-	Suden_1201	-	GCN5-related N-acetyltransferase
1198	 33.44	0	1268189..1269169	-	326	78777400	-	Suden_1202	-	hypothetical protein
1199	 38.18	+1	1269409..1269903	-	164	78777401	-	Suden_1203	-	histidine triad (HIT) protein
1200	 36.92	0	1270025..1271308	-	427	78777402	-	Suden_1204	-	TRAP dicarboxylate transporter, DctM subunit
1201	 33.95	0	1271305..1271790	-	161	78777403	-	Suden_1205	-	tripartite ATP-independent periplasmic transporter DctQ
1202	 32.43	0	1271796..1273241	-	481	78777404	-	Suden_1206	-	cytoplasmic peptidoglycan synthetases-like
1203	 34.28	0	1273241..1273978	-	245	78777405	-	Suden_1207	-	Alpha/beta hydrolase fold
1204	 34.68	0	1273978..1275015	-	345	78777406	ddl	Suden_1208	-	D-alanyl-alanine synthetase A
1205	 38.45	+1	1275028..1275594	-	188	78777407	ruvA	Suden_1209	-	Holliday junction DNA helicase motor protein
1206	 32.65	0	1275591..1277495	-	634	78777408	-	Suden_1210	-	hypothetical protein
1207	 32.48	0	1277601..1279007	+	468	78777409	-	Suden_1211	-	virulence factor MVIN-like
1208	 36.69	0	1278994..1280394	+	466	78777410	cysS	Suden_1212	-	cysteinyl-tRNA synthetase
1209	 36.26	0	1280399..1281595	-	398	78777411	-	Suden_1213	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1210	 34.73	0	1281673..1282602	+	309	78777412	-	Suden_1214	-	hypothetical protein
1211	 39.96	+1	1282568..1283125	-	185	78777413	-	Suden_1215	-	DJ-1
1212	 32.84	0	1283375..1284181	+	268	78777414	-	Suden_1216	-	UbiA prenyltransferase
1213	 30.51	-1	1284178..1284567	+	129	78777415	-	Suden_1217	-	hypothetical protein
1214	 36.74	0	1284570..1285862	+	430	78777416	-	Suden_1218	-	FAD linked oxidase-like
1215	 36.20	0	1285859..1286590	+	243	78777417	-	Suden_1219	-	short chain dehydrogenase
1216	 30.41	-1	1286587..1288059	+	490	78777418	-	Suden_1220	-	glycosyltransferase
1217	 36.79	0	1288056..1288634	+	192	78777419	-	Suden_1221	-	phosphoserine phosphatase
1218	 33.46	0	1288776..1289564	+	262	78777420	-	Suden_1222	-	Alpha/beta hydrolase fold
1219	 37.26	0	1289588..1291753	+	721	78777421	-	Suden_1223	-	heavy metal translocating P-type ATPase
1220	 36.26	0	1292006..1293064	+	352	78777422	-	Suden_1224	-	dihydroorotate dehydrogenase 2
1221	 33.02	0	1293066..1294361	+	431	78777423	-	Suden_1225	-	peptidase M16-like
1222	 37.70	0	1294366..1295259	+	297	78777424	-	Suden_1226	-	dihydrodipicolinate synthase
1223	 40.10	+1	1295261..1296043	+	260	78777425	-	Suden_1227	-	7-alpha-hydroxysteroid dehydrogenase
1224	 29.15	-1	1296087..1296995	+	302	78777426	hemD	Suden_1228	-	uroporphyrinogen-III synthase
1225	 31.65	0	1297065..1297598	+	177	78777427	-	Suden_1229	-	hypothetical protein
1226	 29.30	-1	1297595..1297867	-	90	78777428	-	Suden_1230	-	heat shock protein DnaJ-like
1227	 34.24	0	1297864..1298637	-	257	78777429	-	Suden_1231	-	glycerophosphoryl diester phosphodiesterase
1228	 33.50	0	1298641..1299849	-	402	78777430	-	Suden_1232	-	phospholipid/glycerol acyltransferase
1229	 36.58	0	1299950..1300504	+	184	78777431	-	Suden_1233	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1230	 37.99	+1	1300501..1301553	+	350	78777432	-	Suden_1234	-	peptidase M50, putative membrane-associated zinc metallopeptidase
1231	 33.93	0	1301557..1302231	+	224	78777433	-	Suden_1235	-	hypothetical protein
1232	 36.23	0	1302249..1303007	-	252	78777434	-	Suden_1236	-	carbonate dehydratase
1233	 38.01	+1	1303139..1304377	+	412	78777435	-	Suden_1237	-	HI0933-like protein
1234	 33.33	0	1304370..1304921	-	183	78777436	-	Suden_1238	-	thiamine monophosphate synthase
1235	 35.34	0	1305097..1307193	+	698	78777437	-	Suden_1239	-	anaerobic ribonucleoside triphosphate reductase
1236	 30.07	-1	1307443..1308024	+	193	78777438	-	Suden_1240	-	putative radical-activating enzyme
1237	 35.27	0	1308070..1309773	+	567	78777439	-	Suden_1241	-	ferredoxin--nitrite reductase
1238	 30.41	-1	1309760..1310443	-	227	78777440	-	Suden_1242	-	two component transcriptional regulator
1239	 32.92	0	1310427..1311638	-	403	78777441	-	Suden_1243	-	PAS/PAC sensor signal transduction histidine kinase
34.46	MEAN

3.28	STD DEV
