IslandPath Analysis: Sulfurimonas denitrificans DSM 1251

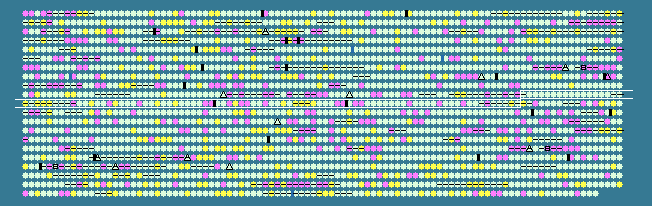

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.46 STD DEV: 3.28
Sulfurimonas denitrificans DSM 1251, complete genome - 1..2201561
2096 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
984	 35.12	0	1037393..1039351	-	652	78777186	-	Suden_0988	-	methyl-accepting chemotaxis sensory transducer
985	 34.35	0	1039923..1042085	+	720	78777187	-	Suden_0989	-	methyl-accepting chemotaxis sensory transducer
986	 36.95	0	1042136..1042522	-	128	78777188	-	Suden_0990	-	hypothetical protein
987	 35.86	0	1042691..1044712	+	673	78777189	glyS	Suden_0991	-	glycyl-tRNA synthetase subunit beta
988	 33.20	0	1044718..1045452	-	244	78777190	-	Suden_0992	-	hypothetical protein
989	 31.60	0	1045528..1045989	-	153	78777191	-	Suden_0993	-	globin
990	 32.21	0	1046036..1046746	-	236	78777192	-	Suden_0994	-	pseudouridylate synthase
991	 31.96	0	1046747..1047766	-	339	78777193	-	Suden_0995	-	permease YjgP/YjgQ
992	 36.03	0	1047766..1048581	-	271	78777194	-	Suden_0996	-	peptidase A24A-like
993	 36.58	0	1048581..1049258	-	225	78777195	-	Suden_0997	-	di-trans-poly-cis-decaprenylcistransferase
994	 36.25	0	1049255..1050523	-	422	78777196	-	Suden_0998	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
995	 34.51	0	1050690..1051796	+	368	78777197	-	Suden_0999	-	hypothetical protein
996	 37.80	+1	1051804..1052094	-	96	78777198	-	Suden_1000	-	Zinc finger, CDGSH-type
997	 33.33	0	1052195..1052749	+	184	78777199	-	Suden_1001	-	hypothetical protein
998	 35.88	0	1052933..1053364	+	143	78777200	-	Suden_1002	-	MotA/TolQ/ExbB proton channel
999	 31.75	0	1053342..1053719	+	125	78777201	-	Suden_1003	-	biopolymer transport protein ExbD/TolR
1000	 36.25	0	1053854..1054573	+	239	78777202	-	Suden_1004	-	TonB-like
1001	 38.81	+1	1054732..1056831	+	699	78777203	-	Suden_1005	-	TonB-dependent receptor
1002	 36.69	0	1056955..1058235	+	426	78777204	-	Suden_1006	-	TonB-dependent receptor
1003	 38.26	+1	1058560..1060263	-	567	78777205	-	Suden_1007	-	hemolysin activation/secretion protein-like
1004	 39.51	+1	1060275..1063316	-	1013	78777206	-	Suden_1008	-	GLUG
1005	 40.65	+1	1063306..1063674	-	122	78777207	-	Suden_1009	-	hypothetical protein
1006	 34.72	0	1063760..1065640	-	626	78777208	-	Suden_1010	-	signal transduction histidine kinase
1007	 33.33	0	1065640..1065948	-	102	78777209	-	Suden_1011	-	response regulator receiver domain-containing protein
1008	 33.64	0	1065960..1066289	-	109	78777210	-	Suden_1012	-	response regulator receiver domain-containing protein
1009	 30.93	-1	1066828..1067160	-	110	78777211	-	Suden_1013	-	hypothetical protein
1010	 35.33	0	1067454..1068758	-	434	78777212	-	Suden_1014	-	UDP-N-acetylglucosamine diphosphorylase
1011	 36.99	0	1068900..1069664	+	254	78777213	-	Suden_1015	-	MotA/TolQ/ExbB proton channel
1012	 39.42	+1	1069733..1070455	+	240	78777214	-	Suden_1016	-	OmpA/MotB
1013	 33.87	0	1070455..1071195	+	246	78777215	fliP	Suden_1017	-	flagellar biosynthesis protein FliP
1014	 33.96	0	1071210..1072319	+	369	78777216	-	Suden_1018	-	tRNA (uracil-5-)-methyltransferase
1015	 30.85	-1	1072367..1073773	+	468	78777217	-	Suden_1019	-	TrkA-C
1016	 38.00	+1	1073850..1074899	+	349	78777218	aroB	Suden_1020	-	3-dehydroquinate synthase
1017	 31.39	0	1074900..1076546	+	548	78777219	-	Suden_1021	-	MscS mechanosensitive ion channel
1018	 36.78	0	1076547..1077794	+	415	78777220	-	Suden_1022	-	MiaB-like tRNA modifying enzyme
1019	 34.37	0	1077781..1079424	+	547	78777221	-	Suden_1023	-	peptidase M41
1020	 29.50	-1	1079411..1079932	+	173	78777222	-	Suden_1024	-	hypothetical protein
1021	 36.91	0	1079942..1080472	+	176	78777223	mogA	Suden_1025	-	molybdenum cofactor biosynthesis protein
1022	 32.68	0	1080529..1081749	-	406	78777224	-	Suden_1026	-	periplasmic copper-binding
1023	 39.88	+1	1081947..1082450	-	167	78777225	-	Suden_1027	-	hypothetical protein
1024	 37.41	0	1082756..1083637	-	293	78777226	-	Suden_1028	-	succinate dehydrogenase/fumarate reductase subunit C
1025	 36.91	0	1083649..1084626	-	325	78777227	-	Suden_1029	-	succinate dehydrogenase/fumarate reductase subunit B
1026	 38.70	+1	1084636..1086348	-	570	78777228	-	Suden_1030	-	succinate dehydrogenase/fumarate reductase subunit A
1027	 32.13	0	1086706..1087533	+	275	78777229	-	Suden_1031	-	thiamine monophosphate kinase
1028	 32.77	0	1087552..1088625	+	357	78777230	truD	Suden_1032	-	tRNA pseudouridine synthase D
1029	 35.04	0	1088650..1089468	+	272	78777231	-	Suden_1033	-	phosphatidylserine decarboxylase
1030	 33.61	0	1089539..1089901	+	120	78777232	-	Suden_1034	-	response regulator receiver domain-containing protein
1031	 30.89	-1	1089913..1090527	+	204	78777233	-	Suden_1035	-	CheC, inhibitor of MCP methylation
1032	 29.05	-1	1090524..1091807	+	427	78777234	-	Suden_1036	-	diguanylate cyclase
1033	 34.38	0	1092096..1094201	+	701	78777235	-	Suden_1037	-	putative flagellin
1034	 35.41	0	1094287..1096506	+	739	78777236	-	Suden_1038	-	cell divisionFtsK/SpoIIIE
1035	 28.24	-1	1096506..1096898	+	130	78777237	-	Suden_1039	-	hypothetical protein
1036	 39.97	+1	1097022..1099568	+	848	78777238	-	Suden_1040	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1037	 28.20	-1	1099694..1102069	+	791	78777239	-	Suden_1041	-	diguanylate cyclase
1038	 30.81	-1	1102059..1102574	-	171	78777240	lolA	Suden_1042	-	outer-membrane lipoprotein carrier protein
1039	 34.54	0	1102751..1105324	+	857	78777241	secA	Suden_1043	-	preprotein translocase subunit SecA
1040	 34.33	0	1105321..1106523	+	400	78777242	-	Suden_1044	-	hypothetical protein
1041	 29.86	-1	1106526..1109291	-	921	78777243	-	Suden_1045	-	hypothetical protein
1042	 32.56	0	1109527..1110567	+	346	78777244	-	Suden_1046	-	aminodeoxychorismate lyase
1043	 36.89	0	1110707..1112896	+	729	78777245	-	Suden_1047	-	isocitrate dehydrogenase (NADP+)
1044	 38.75	+1	1113044..1114003	+	319	78777246	-	Suden_1048	-	malate dehydrogenase, NAD-dependent
1045	 37.93	+1	1114008..1115399	+	463	78777247	fumC	Suden_1049	-	fumarate hydratase
1046	 38.86	+1	1115421..1116596	+	391	78777248	-	Suden_1050	-	succinyl-CoA synthetase, beta subunit
1047	 41.01	+1	1116610..1117482	+	290	78777249	-	Suden_1051	-	succinyl-CoA synthetase alpha subunit
1048	 38.69	+1	1117673..1118008	+	111	78777250	oorD	Suden_1052	-	2-oxoglutarate-acceptor oxidoreductase subunit OorD
1049	 38.10	+1	1118008..1119141	+	377	78777251	oorA	Suden_1053	-	2-oxoglutarate-acceptor oxidoreductase subunit OorA
1050	 33.92	0	1119143..1120000	+	285	78777252	oorB	Suden_1054	-	2-oxoglutarate-acceptor oxidoreductase subunit OorB
1051	 35.50	0	1120012..1120566	+	184	78777253	oorC	Suden_1055	-	2-oxoglutarate-acceptor oxidoreductase subunit OorC
1052	 31.55	0	1120643..1121260	-	205	78777254	-	Suden_1056	-	TetR family transcriptional regulator
1053	 27.13	-2	1121981..1122238	+	85	78777255	-	Suden_1057	-	hypothetical protein
1054	 30.95	-1	1122665..1123210	+	181	78777256	-	Suden_1058	-	response regulator receiver domain-containing protein
1055	 33.03	0	1123630..1124928	+	432	78777257	-	Suden_1059	-	glutamyl-tRNA synthetase
1056	 30.18	-1	1124925..1125209	+	94	78777258	-	Suden_1060	-	hypothetical protein
1057	 29.67	-1	1125216..1125707	-	163	78777259	-	Suden_1061	-	hypothetical protein
1058	 34.33	0	1125804..1126307	+	167	78777260	-	Suden_1062	-	molybdopterin-guanine dinucleotide biosynthesis MobB region
1059	 36.18	0	1126312..1127154	+	280	78777261	-	Suden_1063	-	fructose-1,6-bisphosphatase
1060	 34.78	0	1127138..1127344	+	68	78777262	-	Suden_1064	-	hypothetical protein
1061	 36.69	0	1127367..1129301	+	644	78777263	-	Suden_1065	-	methionyl-tRNA synthetase
1062	 31.73	0	1129298..1130293	+	331	78777264	-	Suden_1066	-	hypothetical protein
1063	 37.13	0	1130304..1131437	+	377	78777265	-	Suden_1067	-	twin-arginine translocation pathway signal
1064	 33.01	0	1131459..1132691	+	410	78777266	-	Suden_1068	-	hypothetical protein
1065	 29.79	-1	1132669..1133346	-	225	78777267	-	Suden_1069	-	hypothetical protein
1066	 35.41	0	1133318..1133992	-	224	78777268	-	Suden_1070	-	ExsB
1067	 34.52	0	1134272..1134691	+	139	78777269	-	Suden_1071	-	putative metalloprotease
1068	 32.90	0	1134698..1135624	+	308	78777270	-	Suden_1072	-	K+-dependent Na+/Ca+ exchanger related-protein
1069	 35.48	0	1135661..1137475	-	604	78777271	-	Suden_1073	-	peptidoglycan glycosyltransferase
1070	 23.81	-2	1137472..1137870	-	132	78777272	-	Suden_1074	-	hypothetical protein
1071	 33.98	0	1137891..1138352	-	153	78777273	-	Suden_1075	-	acetyltransferase
1072	 32.69	0	1138342..1138959	-	205	78777274	-	Suden_1076	-	GTPase EngB
1073	 32.93	0	1138952..1139452	-	166	78777275	-	Suden_1077	-	OstA-like protein
1074	 29.65	-1	1139453..1139968	-	171	78777276	-	Suden_1078	-	hypothetical protein
1075	 35.21	0	1139974..1140453	-	159	78777277	-	Suden_1079	-	phosphatase kdsC
1076	 36.65	0	1140465..1141037	-	190	78777278	-	Suden_1080	-	imidazoleglycerol-phosphate dehydratase
1077	 33.95	0	1141039..1141851	-	270	78777279	-	Suden_1081	-	rare lipoprotein A
1078	 30.79	-1	1141874..1143013	-	379	78777280	-	Suden_1082	-	lytic transglycosylase, catalytic
1079	 34.36	0	1143107..1143883	-	258	78777281	-	Suden_1083	-	TatD-related deoxyribonuclease
1080	 33.59	0	1143886..1145427	-	513	78777282	-	Suden_1084	-	ATPase
1081	 35.67	0	1145476..1146330	-	284	78777283	-	Suden_1085	-	NAD(+) kinase
1082	 38.50	+1	1146459..1148201	+	580	78777284	aspS	Suden_1086	-	aspartyl-tRNA synthetase
1083	 36.32	0	1148260..1148829	+	189	78777285	adk	Suden_1087	-	adenylate kinase
34.46	MEAN

3.28	STD DEV
