IslandPath Analysis: Streptococcus pyogenes MGAS6180

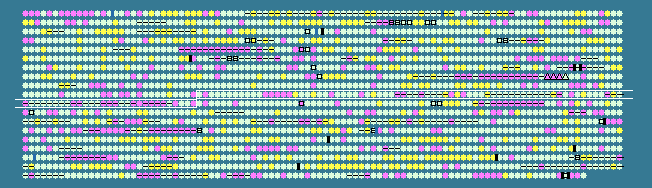

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.26   STD DEV: 3.98
Streptococcus pyogenes MGAS6180, complete genome - 1..1897573
1894 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
930	 34.81	0	951452..951856	-	134	71903597	spxA	M28_Spy0932	-	transcriptional regulator Spx
931	 34.08	-1	951899..952831	-	310	71903598	mreA	M28_Spy0933	-	bifunctional riboflavin kinase/FMN adenylyltransferase
932	 41.24	0	952860..953744	-	294	71903599	truB	M28_Spy0934	-	tRNA pseudouridine synthase B
933	 38.78	0	953860..955200	-	446	71903600	-	M28_Spy0935	-	hypothetical protein
934	 36.68	0	955297..956253	-	318	71903601	-	M28_Spy0936	-	integral membrane protein
935	 39.53	0	956264..956860	-	198	71903602	-	M28_Spy0937	-	type I restriction-modification system specificity subunit
936	 39.14	0	956952..959588	-	878	71903603	-	M28_Spy0938	-	ABC transporter permease protein
937	 40.76	0	959603..960316	-	237	71903604	-	M28_Spy0939	-	ABC transporter ATP-binding protein
938	 36.65	0	960422..960964	+	180	71903605	-	M28_Spy0940	-	TetR family transcriptional regulator
939	 35.42	0	960961..961104	-	47	71903606	-	M28_Spy0941	-	hypothetical protein
940	 34.89	0	961107..961748	-	213	71903607	-	M28_Spy0942	-	NAD-dependent K+ or Na+ uptake system component
941	 34.35	0	961911..962402	-	163	71903608	-	M28_Spy0943	-	Gls24 family general stress protein
942	 31.34	-1	962410..962610	-	66	71903609	-	M28_Spy0944	-	hypothetical protein
943	 33.89	-1	962651..963190	-	179	71903610	-	M28_Spy0945	-	Gls24 family general stress protein
944	 31.75	-1	963203..963391	-	62	71903611	-	M28_Spy0946	-	hypothetical protein
945	 33.82	-1	963402..964013	-	203	71903612	-	M28_Spy0947	-	hypothetical protein
946	 43.37	+1	964050..964298	-	82	71903613	-	M28_Spy0948	-	integral membrane protein
947	 41.10	0	964661..966979	-	772	71903614	pcrA	M28_Spy0949	-	DNA helicase II
948	 35.67	0	967347..967517	-	56	71903616	-	M28_Spy0951	-	hypothetical protein
949	 42.86	+1	967508..968830	+	440	71903615	-	M28_Spy0950	-	Na(+)-linked D-alanine glycine permease
950	 36.17	0	968950..970185	+	411	71903617	-	M28_Spy0952	-	cobalt-zinc-cadmium resistance protein czcD
951	 35.92	0	970555..971328	-	257	71903618	cfa	M28_Spy0953	-	cAMP factor
952	 33.21	-1	971698..972534	-	278	71903619	-	M28_Spy0954	-	histidine-binding protein
953	 39.37	0	972550..973179	-	209	71903620	-	M28_Spy0955	-	histidine transport ATP-binding protein P
954	 35.98	0	973189..973830	-	213	71903621	-	M28_Spy0956	-	histidine transport system permease protein M
955	 38.39	0	973937..974272	-	111	71903622	-	M28_Spy0957	-	PhnA
956	 41.32	0	974468..976282	-	604	71903623	glmS	M28_Spy0958	-	D-fructose-6-phosphate amidotransferase
957	 33.33	-1	976458..977015	-	185	71903624	sipC	M28_Spy0959	-	signal peptidase I
958	 40.25	0	977233..978735	-	500	71903625	pyk	M28_Spy0960	-	pyruvate kinase
959	 43.29	+1	978798..979811	-	337	71903626	pfkA	M28_Spy0961	-	6-phosphofructokinase
960	 37.77	0	979891..983001	-	1036	71903627	dnaE	M28_Spy0962	-	DNA polymerase III DnaE
961	 35.71	0	983096..983557	+	153	71903628	-	M28_Spy0963	-	GntR family transcriptional regulator
962	 35.19	0	983557..984255	+	232	71903629	-	M28_Spy0964	-	ABC transporter ATP-binding protein
963	 31.30	-1	984265..985050	+	261	71903630	-	M28_Spy0965	-	ABC transporter permease protein
964	 32.68	-1	985177..985791	-	204	71903631	-	M28_Spy0966	-	putative membrane-associated alkaline phosphatase
965	 41.27	0	986382..986570	-	62	71903632	-	M28_Spy0967	-	phage protein
966	 36.50	0	986810..987568	+	252	71903633	spd1	M28_Spy0968	-	streptococcal phage DNase1
967	 28.53	-2	987679..988386	+	235	71903634	speC	M28_Spy0969	-	exotoxin type C precursor
968	 38.28	0	988462..989796	-	444	71903635	-	M28_Spy0970	-	phage-associated lysin
969	 38.17	0	989908..990093	-	61	71903636	-	M28_Spy0971	-	phage protein
970	 37.71	0	990090..990386	-	98	71903637	-	M28_Spy0972	-	phage protein
971	 43.53	+1	990397..991014	-	205	71903638	-	M28_Spy0973	-	phage protein
972	 32.10	-1	991017..991178	-	53	71903639	-	M28_Spy0974	-	phage protein
973	 42.35	+1	991192..993087	-	631	71903640	-	M28_Spy0975	-	phage protein
974	 27.58	-2	993098..993427	-	109	71903641	-	M28_Spy0976	-	phage protein
975	 40.66	0	993414..994628	-	404	71903642	-	M28_Spy0977	-	phage protein
976	 41.12	0	994625..996679	-	684	71903643	-	M28_Spy0978	-	phage protein
977	 35.00	0	996676..997455	-	259	71903644	-	M28_Spy0979	-	phage protein
978	 44.09	+1	997487..1001122	-	1211	71903645	-	M28_Spy0980	-	phage protein
979	 35.19	0	1001137..1001460	-	107	71903646	-	M28_Spy0981	-	phage protein
980	 36.59	0	1001508..1001906	-	132	71903647	-	M28_Spy0982	-	phage protein
981	 37.67	0	1001915..1002583	-	222	71903648	-	M28_Spy0983	-	phage protein
982	 37.69	0	1002593..1002982	-	129	71903649	-	M28_Spy0984	-	phage protein
983	 38.25	0	1002979..1003344	-	121	71903650	-	M28_Spy0985	-	phage protein
984	 39.16	0	1003325..1003633	-	102	71903651	-	M28_Spy0986	-	phage protein
985	 37.98	0	1003630..1003995	-	121	71903652	-	M28_Spy0987	-	phage protein
986	 38.27	0	1003997..1004239	-	80	71903653	-	M28_Spy0988	-	phage protein
987	 39.43	0	1004249..1005331	-	360	71903654	-	M28_Spy0989	-	phage protein
988	 39.90	0	1005334..1005714	-	126	71903655	-	M28_Spy0990	-	phage protein
989	 42.73	+1	1005724..1006266	-	180	71903656	-	M28_Spy0991	-	phage protein
990	 33.33	-1	1006401..1006667	-	88	71903657	-	M28_Spy0992	-	phage protein
991	 39.05	0	1006670..1006984	-	104	71903658	-	M28_Spy0993	-	phage protein
992	 30.65	-1	1007054..1007239	-	61	71903659	-	M28_Spy0994	-	phage protein
993	 37.04	0	1007243..1008805	-	520	71903660	-	M28_Spy0995	-	phage protein
994	 41.85	0	1008786..1010288	-	500	71903661	-	M28_Spy0996	-	portal protein
995	 37.21	0	1010300..1011613	-	437	71903662	-	M28_Spy0997	-	terminase large subunit
996	 38.46	0	1011585..1012130	-	181	71903663	-	M28_Spy0998	-	phage terminase small subunit
997	 37.41	0	1012313..1012729	+	138	71903664	-	M28_Spy0999	-	phage protein
998	 28.63	-2	1013347..1014261	-	304	71903665	-	M28_Spy1000	-	phage protein
999	 42.79	+1	1014312..1014533	-	73	71903666	-	M28_Spy1001	-	phage protein
1000	 40.69	0	1014839..1015273	-	144	71903667	-	M28_Spy1002	-	ArpU family phage encoded transcriptional regulator
1001	 32.53	-1	1015722..1016216	-	164	71903668	-	M28_Spy1003	-	phage protein
1002	 37.48	0	1016206..1016904	-	232	71903669	-	M28_Spy1004	-	phage protein
1003	 40.00	0	1016840..1017124	-	94	71903670	-	M28_Spy1005	-	phage protein
1004	 37.95	0	1017121..1017315	-	64	71903671	-	M28_Spy1006	-	phage protein
1005	 36.25	0	1017288..1017527	-	79	71903672	-	M28_Spy1007	-	phage protein
1006	 34.96	0	1017524..1017769	-	81	71903673	-	M28_Spy1008	-	phage protein
1007	 37.54	0	1017766..1018122	-	118	71903674	-	M28_Spy1009	-	phage protein
1008	 38.25	0	1018106..1018390	-	94	71903675	-	M28_Spy1010	-	phage protein
1009	 34.13	-1	1018410..1019291	-	293	71903676	-	M28_Spy1011	-	phage protein
1010	 34.43	0	1019548..1021101	-	517	71903677	-	M28_Spy1012	-	phage protein
1011	 38.51	0	1021119..1021601	-	160	71903678	-	M28_Spy1013	-	phage protein
1012	 36.11	0	1021606..1022973	-	455	71903679	-	M28_Spy1014	-	phage DNA/RNA helicase
1013	 38.60	0	1023045..1023728	-	227	71903680	-	M28_Spy1015	-	phage protein
1014	 29.12	-2	1023725..1024009	-	94	71903681	-	M28_Spy1016	-	phage protein
1015	 31.28	-1	1024006..1024200	-	64	71903682	-	M28_Spy1017	-	phage protein
1016	 32.12	-1	1024200..1024529	-	109	71903683	-	M28_Spy1018	-	phage protein
1017	 36.96	0	1024610..1024747	-	45	71903684	-	M28_Spy1019	-	phage protein
1018	 37.37	0	1024744..1025040	-	98	71903685	-	M28_Spy1020	-	phage protein
1019	 32.85	-1	1025119..1025325	-	68	71903686	-	M28_Spy1021	-	phage protein
1020	 34.17	-1	1025471..1025710	+	79	71903687	-	M28_Spy1022	-	phage protein
1021	 32.38	-1	1025860..1026069	+	69	71903688	-	M28_Spy1023	-	phage protein
1022	 30.32	-1	1026274..1026837	+	187	71903689	-	M28_Spy1024	-	phage protein
1023	 28.07	-2	1026945..1027172	-	75	71903691	-	M28_Spy1026	-	phage protein
1024	 33.53	-1	1027135..1027632	+	165	71903690	-	M28_Spy1025	-	phage protein
1025	 35.24	0	1027621..1027830	-	69	71903692	-	M28_Spy1027	-	phage protein
1026	 31.67	-1	1027884..1028483	+	199	71903693	-	M28_Spy1028	-	phage protein
1027	 38.99	0	1028513..1028671	-	52	71903694	-	M28_Spy1029	-	phage protein
1028	 35.89	0	1029438..1030181	+	247	71903695	-	M28_Spy1030	-	phage transcriptional repressor
1029	 34.57	0	1030194..1031003	+	269	71903696	-	M28_Spy1031	-	phage protein
38.26	MEAN

3.98	STD DEV
