IslandPath Analysis: Streptococcus pyogenes MGAS6180

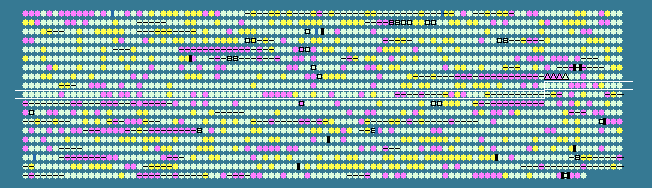

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.26 STD DEV: 3.98
Streptococcus pyogenes MGAS6180, complete genome - 1..1897573
1894 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
888	 35.15	0	906710..908143	-	477	71903555	-	M28_Spy0890	-	hypothetical protein
889	 40.75	0	908310..909872	+	520	71903556	guaA	M28_Spy0891	-	bifunctional GMP synthase/glutamine amidotransferase protein
890	 35.21	0	909914..911137	-	407	71903557	-	M28_Spy0892	-	UDP-N-acetylmuramoylpentapeptide-lysine N(6)-alanyltransferase
891	 36.81	0	911504..913084	-	526	71903558	-	M28_Spy0893	-	ABC transporter ATP-binding protein
892	 33.15	-1	913182..913739	-	185	71903559	pdxK	M28_Spy0894	-	hypothetical protein
893	 33.91	-1	913717..914583	-	288	71903560	-	M28_Spy0895	-	pyridoxamine kinase
894	 33.49	-1	914673..915941	+	422	71903561	-	M28_Spy0896	-	aminotransferase class-I
895	 35.85	0	916349..916705	-	118	71903562	rnhB	M28_Spy0897	-	anaerobic ribonucleoside-triphosphate reductase
896	 33.71	-1	917027..918604	-	525	71903563	-	M28_Spy0898	-	cardiolipin synthetase
897	 42.91	+1	918689..920359	-	556	71903564	fhs.1	M28_Spy0899	-	formate--tetrahydrofolate ligase
898	 38.73	0	920487..921506	-	339	71903565	lplA	M28_Spy0900	-	lipoate-protein ligase A
899	 40.36	0	921553..922434	-	293	71903566	-	M28_Spy0901	-	SIR2 family protein
900	 40.71	0	922427..923239	-	270	71903567	-	M28_Spy0902	-	hypothetical protein
901	 40.24	0	923232..923564	-	110	71903568	-	M28_Spy0903	-	glycine cleavage system H protein
902	 39.34	0	923606..924604	-	332	71903569	-	M28_Spy0904	-	luciferase-like monooxygenase
903	 40.67	0	924601..925800	-	399	71903570	-	M28_Spy0905	-	NADH-dependent flavin oxidoreductase yqiG
904	 39.67	0	925797..926648	-	283	71903571	-	M28_Spy0906	-	lipoate-protein ligase A
905	 36.51	0	926829..927521	+	230	71903572	dpfB	M28_Spy0907	-	phosphopantothenate--cysteine ligase
906	 35.90	0	927514..928059	+	181	71903573	dfp	M28_Spy0908	-	phosphopantothenoylcysteine decarboxylase
907	 33.16	-1	928105..928686	+	193	71903574	-	M28_Spy0909	-	transporter
908	 37.93	0	928861..930579	+	572	71903575	pgmA	M28_Spy0910	-	phosphoglucomutase
909	 38.60	0	930797..931765	-	322	71903576	-	M28_Spy0911	-	nucleoside transport system permease protein
910	 37.64	0	931755..932846	-	363	71903577	-	M28_Spy0912	-	nucleoside transport system permease protein
911	 37.40	0	932812..934362	-	516	71903578	-	M28_Spy0913	-	nucleoside transport ATP-binding protein
912	 38.65	0	934483..935535	-	350	71903579	-	M28_Spy0914	-	nucleoside-binding protein
913	 35.90	0	935629..936018	-	129	71903580	cdd	M28_Spy0915	-	cytidine deaminase
914	 33.01	-1	936669..937295	-	208	71903581	-	M28_Spy0916	-	16S rRNA m(2)G 1207 methyltransferase
915	 31.81	-1	937530..938450	+	306	71903582	coaA	M28_Spy0917	-	pantothenate kinase
916	 39.74	0	938519..938752	+	77	162139400	rpsT	M28_Spy0918	-	30S ribosomal protein S20
917	 31.50	-1	938877..940187	-	436	71903584	ciaH	M28_Spy0919	-	sensor protein
918	 31.85	-1	940180..940854	-	224	71903585	ciaR	M28_Spy0920	-	transcriptional regulatory protein
919	 36.53	0	941201..943798	-	865	71903586	pepN	M28_Spy0921	-	alanine aminopeptidase
920	 30.95	-1	943795..944004	-	69	71903587	-	M28_Spy0922	-	hypothetical protein
921	 35.32	0	943943..944596	-	217	71903588	phoU	M28_Spy0923	-	phosphate transport system protein
922	 39.11	0	944664..945425	-	253	71903589	pstB	M28_Spy0924	-	phosphate transport ATP-binding protein
923	 39.30	0	945435..946238	-	267	71903590	pstB2	M28_Spy0925	-	phosphate transport ATP-binding protein
924	 40.54	0	946254..947141	-	295	71903591	pstA	M28_Spy0926	-	phosphate transport system permease protein
925	 42.87	+1	947131..947979	-	282	71903592	pstC	M28_Spy0927	-	phosphate transport system permease protein
926	 38.29	0	948076..948942	-	288	71903593	pstS	M28_Spy0928	-	phosphate-binding protein
927	 40.66	0	949081..950391	-	436	71903594	-	M28_Spy0929	-	16S rRNA m(5)C 967 methyltransferase
928	 39.26	0	950394..951203	-	269	71903595	-	M28_Spy0930	-	myo-inositol-1(or 4)-monophosphatase
929	 33.33	-1	951172..951462	-	96	71903596	-	M28_Spy0931	-	hypothetical protein
930	 34.81	0	951452..951856	-	134	71903597	spxA	M28_Spy0932	-	transcriptional regulator Spx
931	 34.08	-1	951899..952831	-	310	71903598	mreA	M28_Spy0933	-	bifunctional riboflavin kinase/FMN adenylyltransferase
932	 41.24	0	952860..953744	-	294	71903599	truB	M28_Spy0934	-	tRNA pseudouridine synthase B
933	 38.78	0	953860..955200	-	446	71903600	-	M28_Spy0935	-	hypothetical protein
934	 36.68	0	955297..956253	-	318	71903601	-	M28_Spy0936	-	integral membrane protein
935	 39.53	0	956264..956860	-	198	71903602	-	M28_Spy0937	-	type I restriction-modification system specificity subunit
936	 39.14	0	956952..959588	-	878	71903603	-	M28_Spy0938	-	ABC transporter permease protein
937	 40.76	0	959603..960316	-	237	71903604	-	M28_Spy0939	-	ABC transporter ATP-binding protein
938	 36.65	0	960422..960964	+	180	71903605	-	M28_Spy0940	-	TetR family transcriptional regulator
939	 35.42	0	960961..961104	-	47	71903606	-	M28_Spy0941	-	hypothetical protein
940	 34.89	0	961107..961748	-	213	71903607	-	M28_Spy0942	-	NAD-dependent K+ or Na+ uptake system component
941	 34.35	0	961911..962402	-	163	71903608	-	M28_Spy0943	-	Gls24 family general stress protein
942	 31.34	-1	962410..962610	-	66	71903609	-	M28_Spy0944	-	hypothetical protein
943	 33.89	-1	962651..963190	-	179	71903610	-	M28_Spy0945	-	Gls24 family general stress protein
944	 31.75	-1	963203..963391	-	62	71903611	-	M28_Spy0946	-	hypothetical protein
945	 33.82	-1	963402..964013	-	203	71903612	-	M28_Spy0947	-	hypothetical protein
946	 43.37	+1	964050..964298	-	82	71903613	-	M28_Spy0948	-	integral membrane protein
947	 41.10	0	964661..966979	-	772	71903614	pcrA	M28_Spy0949	-	DNA helicase II
948	 35.67	0	967347..967517	-	56	71903616	-	M28_Spy0951	-	hypothetical protein
949	 42.86	+1	967508..968830	+	440	71903615	-	M28_Spy0950	-	Na(+)-linked D-alanine glycine permease
950	 36.17	0	968950..970185	+	411	71903617	-	M28_Spy0952	-	cobalt-zinc-cadmium resistance protein czcD
951	 35.92	0	970555..971328	-	257	71903618	cfa	M28_Spy0953	-	cAMP factor
952	 33.21	-1	971698..972534	-	278	71903619	-	M28_Spy0954	-	histidine-binding protein
953	 39.37	0	972550..973179	-	209	71903620	-	M28_Spy0955	-	histidine transport ATP-binding protein P
954	 35.98	0	973189..973830	-	213	71903621	-	M28_Spy0956	-	histidine transport system permease protein M
955	 38.39	0	973937..974272	-	111	71903622	-	M28_Spy0957	-	PhnA
956	 41.32	0	974468..976282	-	604	71903623	glmS	M28_Spy0958	-	D-fructose-6-phosphate amidotransferase
957	 33.33	-1	976458..977015	-	185	71903624	sipC	M28_Spy0959	-	signal peptidase I
958	 40.25	0	977233..978735	-	500	71903625	pyk	M28_Spy0960	-	pyruvate kinase
959	 43.29	+1	978798..979811	-	337	71903626	pfkA	M28_Spy0961	-	6-phosphofructokinase
960	 37.77	0	979891..983001	-	1036	71903627	dnaE	M28_Spy0962	-	DNA polymerase III DnaE
961	 35.71	0	983096..983557	+	153	71903628	-	M28_Spy0963	-	GntR family transcriptional regulator
962	 35.19	0	983557..984255	+	232	71903629	-	M28_Spy0964	-	ABC transporter ATP-binding protein
963	 31.30	-1	984265..985050	+	261	71903630	-	M28_Spy0965	-	ABC transporter permease protein
964	 32.68	-1	985177..985791	-	204	71903631	-	M28_Spy0966	-	putative membrane-associated alkaline phosphatase
965	 41.27	0	986382..986570	-	62	71903632	-	M28_Spy0967	-	phage protein
966	 36.50	0	986810..987568	+	252	71903633	spd1	M28_Spy0968	-	streptococcal phage DNase1
967	 28.53	-2	987679..988386	+	235	71903634	speC	M28_Spy0969	-	exotoxin type C precursor
968	 38.28	0	988462..989796	-	444	71903635	-	M28_Spy0970	-	phage-associated lysin
969	 38.17	0	989908..990093	-	61	71903636	-	M28_Spy0971	-	phage protein
970	 37.71	0	990090..990386	-	98	71903637	-	M28_Spy0972	-	phage protein
971	 43.53	+1	990397..991014	-	205	71903638	-	M28_Spy0973	-	phage protein
972	 32.10	-1	991017..991178	-	53	71903639	-	M28_Spy0974	-	phage protein
973	 42.35	+1	991192..993087	-	631	71903640	-	M28_Spy0975	-	phage protein
974	 27.58	-2	993098..993427	-	109	71903641	-	M28_Spy0976	-	phage protein
975	 40.66	0	993414..994628	-	404	71903642	-	M28_Spy0977	-	phage protein
976	 41.12	0	994625..996679	-	684	71903643	-	M28_Spy0978	-	phage protein
977	 35.00	0	996676..997455	-	259	71903644	-	M28_Spy0979	-	phage protein
978	 44.09	+1	997487..1001122	-	1211	71903645	-	M28_Spy0980	-	phage protein
979	 35.19	0	1001137..1001460	-	107	71903646	-	M28_Spy0981	-	phage protein
980	 36.59	0	1001508..1001906	-	132	71903647	-	M28_Spy0982	-	phage protein
981	 37.67	0	1001915..1002583	-	222	71903648	-	M28_Spy0983	-	phage protein
982	 37.69	0	1002593..1002982	-	129	71903649	-	M28_Spy0984	-	phage protein
983	 38.25	0	1002979..1003344	-	121	71903650	-	M28_Spy0985	-	phage protein
984	 39.16	0	1003325..1003633	-	102	71903651	-	M28_Spy0986	-	phage protein
985	 37.98	0	1003630..1003995	-	121	71903652	-	M28_Spy0987	-	phage protein
986	 38.27	0	1003997..1004239	-	80	71903653	-	M28_Spy0988	-	phage protein
987	 39.43	0	1004249..1005331	-	360	71903654	-	M28_Spy0989	-	phage protein
38.26	MEAN

3.98	STD DEV
