IslandPathversion 1.0

IslandPath Analysis: Streptococcus pyogenes MGAS6180

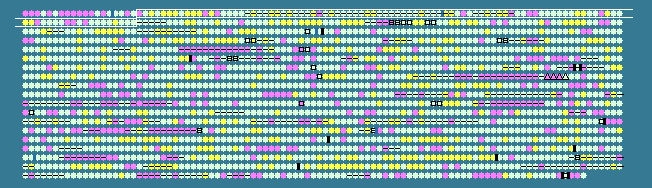

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.26 STD DEV: 3.98
Streptococcus pyogenes MGAS6180, complete genome - 1..1897573
1894 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
20	 30.86	-1	35298..35540	+	80	71902687	acpP.1	M28_Spy0021	-	acyl carrier protein
21	 35.78	0	35661..36395	+	244	71902688	purC	M28_Spy0022	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
22	 44.52	+1	36471..40244	+	1257	71902689	purL	M28_Spy0023	-	phosphoribosylformylglycinamidine synthase
23	 38.56	0	40348..41859	+	503	71902690	purF	M28_Spy0024	-	amidophosphoribosyltransferase
24	 43.60	+1	41887..42909	+	340	71902691	purM	M28_Spy0025	-	phosphoribosylaminoimidazole synthetase
25	 46.67	+2	43077..43631	+	184	71902692	purN	M28_Spy0026	-	phosphoribosylglycinamide formyltransferase
26	 47.09	+2	43815..45362	+	515	71902693	purH	M28_Spy0027	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
27	 39.64	0	45420..46544	-	374	71902694	-	M28_Spy0028	-	autolysin
28	 46.57	+2	46650..48062	+	470	71902695	purD	M28_Spy0029	-	phosphoribosylamine--glycine ligase
29	 48.53	+2	48220..48831	+	203	71902696	purE	M28_Spy0030	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
30	 49.46	+2	48782..49891	+	369	71902697	purK	M28_Spy0031	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
31	 30.72	-1	49860..51311	+	483	71902698	-	M28_Spy0032	-	hypothetical protein
32	 45.09	+1	51331..52623	+	430	71902699	purB	M28_Spy0033	-	adenylosuccinate lyase
33	 29.39	-2	52754..53665	+	303	71902700	-	M28_Spy0034	-	transcriptional regulator
34	 39.31	0	53819..54889	+	356	71902701	ruvB	M28_Spy0035	-	Holliday junction DNA helicase B
35	 35.62	0	55027..55464	+	145	71902702	-	M28_Spy0036	-	protein tyrosine phosphatase
36	 36.07	0	55487..55888	+	133	71902703	-	M28_Spy0037	-	hypothetical protein
37	 36.54	0	55885..57660	+	591	71902704	-	M28_Spy0038	-	acyltransferase
38	 40.33	0	57969..60611	+	880	71902705	-	M28_Spy0039	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
39	 42.48	+1	60863..61879	+	338	71902706	adhA	M28_Spy0040	-	alcohol dehydrogenase
40	 41.40	0	62267..63556	+	429	71902707	-	M28_Spy0041	-	Na+ driven multidrug efflux pump
41	 40.13	0	63755..64063	+	102	71902708	rpsJ	M28_Spy0042	-	30S ribosomal protein S10
42	 41.79	0	64311..64937	+	208	71902709	rplC	M28_Spy0043	-	50S ribosomal protein L3
43	 42.47	+1	64961..65584	+	207	71902710	rplD	M28_Spy0044	-	50S ribosomal protein L4
44	 37.71	0	65584..65880	+	98	71902711	rplW	M28_Spy0045	-	50S ribosomal protein L23
45	 43.53	+1	65898..66731	+	277	71902712	rplB	M28_Spy0046	-	50S ribosomal protein L2
46	 40.50	0	66871..67149	+	92	162139417	rpsS	M28_Spy0047	-	30S ribosomal protein S19
47	 39.71	0	67165..67509	+	114	71902714	rplV	M28_Spy0048	-	50S ribosomal protein L22
48	 41.59	0	67522..68175	+	217	71902715	rpsC	M28_Spy0049	-	30S ribosomal protein S3
49	 43.24	+1	68179..68592	+	137	71902716	rplP	M28_Spy0050	-	50S ribosomal protein L16
50	 34.78	0	68602..68808	+	68	71902717	rpmC	M28_Spy0051	-	50S ribosomal protein L29
51	 37.93	0	68834..69094	+	86	71902718	rpsQ	M28_Spy0052	-	30S ribosomal protein S17
52	 44.17	+1	69119..69487	+	122	71902719	rplN	M28_Spy0053	-	50S ribosomal protein L14
53	 36.93	0	69566..69871	+	101	71902720	rplX	M28_Spy0054	-	50S ribosomal protein L24
54	 40.52	0	69895..70437	+	180	71902721	rplE	M28_Spy0055	-	50S ribosomal protein L5
55	 39.25	0	70453..70638	+	61	71902722	rpsN	M28_Spy0056	-	30S ribosomal protein S14
56	 36.84	0	70789..71187	+	132	71902723	rpsH	M28_Spy0057	-	30S ribosomal protein S8
57	 39.48	0	71390..71926	+	178	71902724	rplF	M28_Spy0058	-	50S ribosomal protein L6
58	 45.94	+1	72031..72387	+	118	162139416	rplR	M28_Spy0059	-	50S ribosomal protein L18
59	 42.42	+1	72406..72900	+	164	71902726	rpsE	M28_Spy0060	-	30S ribosomal protein S5
60	 37.16	0	72915..73097	+	60	71902727	rpmD	M28_Spy0061	-	50S ribosomal protein L30
61	 39.68	0	73312..73752	+	146	71902728	rplO	M28_Spy0062	-	50S ribosomal protein L15
62	 36.63	0	73769..75073	+	434	162139415	secY	M28_Spy0063	-	preprotein translocase subunit SecY
63	 39.44	0	75223..75861	+	212	71902730	adk	M28_Spy0064	-	adenylate kinase
64	 38.10	0	75925..76197	+	90	71902731	infA	M28_Spy0065	-	translation initiation factor IF-1
65	 37.61	0	76223..76339	+	38	71902732	rpmJ	M28_Spy0066	-	50S ribosomal protein L36
66	 39.34	0	76357..76722	+	121	71902733	rpsM	M28_Spy0067	-	30S ribosomal protein S13
67	 44.01	+1	76740..77123	+	127	71902734	rpsK	M28_Spy0068	-	30S ribosomal protein S11
68	 38.02	0	77169..78107	+	312	71902735	rpoA	M28_Spy0069	-	DNA-directed RNA polymerase subunit alpha
69	 40.57	0	78122..78508	+	128	71902736	rplQ	M28_Spy0070	-	50S ribosomal protein L17
70	 36.30	0	79104..79238	-	44	71902737	-	M28_Spy0071	-	hypothetical protein
71	 42.47	+1	85750..85935	+	61	71902738	-	M28_Spy0072	-	hypothetical protein
72	 42.72	+1	86573..86881	+	102	71902739	-	M28_Spy0073	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
73	 38.60	0	86921..87148	+	75	71902740	-	M28_Spy0074	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
74	 34.46	0	87258..87701	+	147	71902741	adcR	M28_Spy0075	-	MarR family transcriptional regulator
75	 41.25	0	87705..88424	+	239	71902742	adcC	M28_Spy0076	-	high-affinity zinc uptake system ATP-binding protein
76	 38.71	0	88378..89232	+	284	71902743	adcB	M28_Spy0077	-	high-affinity zinc uptake system membrane protein
77	 40.62	0	89272..89655	-	127	71902744	-	M28_Spy0078	-	bis(5'-nucleosyl)-tetraphosphatase (asymmetrical)
78	 41.77	0	89706..90962	-	418	71902745	tyrS	M28_Spy0079	-	tyrosyl-tRNA synthetase
79	 40.29	0	91054..93366	+	770	71902746	pbp1b	M28_Spy0080	-	multimodular transpeptidase-transglycosylase PBP 1B
80	 42.98	+1	93630..97196	+	1188	71902747	rpoB	M28_Spy0081	-	DNA-directed RNA polymerase subunit beta
81	 43.93	+1	97287..100928	+	1213	71902748	rpoC	M28_Spy0082	-	DNA-directed RNA polymerase subunit beta'
82	 34.43	0	101080..101445	+	121	71902749	-	M28_Spy0083	-	putative DNA binding protein
83	 37.59	0	101538..102476	+	312	71902750	comYA	M28_Spy0084	-	ComG operon protein 1
84	 35.07	0	102355..103446	+	363	71902751	comYB	M28_Spy0085	-	ComG operon protein 2
85	 33.94	-1	103448..103774	+	108	71902752	comYC	M28_Spy0086	-	ComG operon protein 3
86	 34.27	-1	103749..104177	+	142	71902753	-	M28_Spy0087	-	ComG operon protein 4
87	 37.54	0	104134..104418	+	94	71902754	-	M28_Spy0088	-	hypothetical protein
88	 35.17	0	104411..104845	+	144	71902755	comYD	M28_Spy0089	-	ComG operon protein 6
89	 35.47	0	104829..105155	+	108	71902756	-	M28_Spy0090	-	ComG operon protein 6
90	 38.04	0	105208..106206	+	332	71902757	-	M28_Spy0091	-	adenine-specific methyltransferase
91	 39.01	0	106265..107461	+	398	71902758	ackA	M28_Spy0092	-	acetate kinase
92	 35.92	0	107648..107956	+	102	71902759	-	M28_Spy0093	-	hypothetical protein
93	 43.45	+1	108039..108809	-	256	71902760	proC	M28_Spy0094	-	pyrroline-5-carboxylate reductase
94	 45.41	+1	108857..109924	-	355	71902761	pepA	M28_Spy0095	-	glutamyl aminopeptidase
95	 38.18	0	110034..110198	-	54	71902762	-	M28_Spy0096	-	hypothetical protein
96	 37.76	0	110380..110673	+	97	71902763	-	M28_Spy0097	-	hypothetical protein
97	 34.59	0	110670..110987	+	105	71902764	trx.1	M28_Spy0098	-	thioredoxin
98	 42.42	+1	111005..111631	+	208	71902765	-	M28_Spy0099	-	tRNA-binding domain-containing protein
99	 38.89	0	111783..112178	+	131	71902766	ssb	M28_Spy0100	-	single-strand DNA-binding protein
100	 39.86	0	112439..113128	-	229	71902767	-	M28_Spy0101	-	deoxyadenosine kinase
101	 45.81	+1	113100..114149	-	349	71902768	-	M28_Spy0102	-	tRNA-dihydrouridine synthase
102	 42.15	0	114064..114936	-	290	71902769	hslO	M28_Spy0103	-	Hsp33-like chaperonin
103	 33.94	-1	115083..116576	-	497	71902770	rofA	M28_Spy0104	-	transcriptional regulator
104	 40.68	0	116807..118657	+	616	71902771	sfb1	M28_Spy0105	-	fibronectin binding protein 1
105	 38.28	0	118945..119793	+	282	71902772	-	M28_Spy0106	-	sortase
106	 35.74	0	120079..122322	+	747	71902773	cpa	M28_Spy0107	-	collagen-binding protein
107	 37.74	0	122315..122836	+	173	71902774	-	M28_Spy0108	-	signal peptidase I
108	 34.66	0	122843..123895	+	350	71902775	-	M28_Spy0109	-	hypothetical protein
109	 32.66	-1	123896..124636	+	246	71902776	eftLSL.B	M28_Spy0110	-	hypothetical protein
110	 36.67	0	124581..125240	+	219	71902777	-	M28_Spy0111	-	hypothetical protein
111	 34.08	-1	125399..126604	-	401	71902778	-	M28_Spy0112	-	AraC family transcriptional regulator
112	 38.83	0	126989..130483	+	1164	71902779	prtF2	M28_Spy0113	-	fibronectin binding protein
113	 35.14	0	130749..131246	-	165	71902780	-	M28_Spy0114	-	hypothetical protein
114	 39.58	0	131734..133173	+	479	71902781	atoE	M28_Spy0115	-	short-chain fatty acids transporter
115	 36.84	0	133243..134154	-	303	71902782	-	M28_Spy0116	-	LysR family transcriptional regulator
116	 42.19	0	134275..135459	+	394	71902783	-	M28_Spy0117	-	acetyl-CoA acetyltransferase
117	 39.47	0	135414..136130	+	238	71902784	atoD.2	M28_Spy0118	-	acetate CoA-transferase alpha subunit
118	 39.97	0	136133..136780	+	215	71902785	-	M28_Spy0119	-	acetyl-CoA:acetoacetyl-CoA transferase beta subunit
119	 35.39	0	136901..137581	-	226	71902786	-	M28_Spy0120	-	putative DNA-binding protein
38.26	MEAN

3.98	STD DEV
