IslandPath Analysis: Streptococcus pyogenes MGAS6180

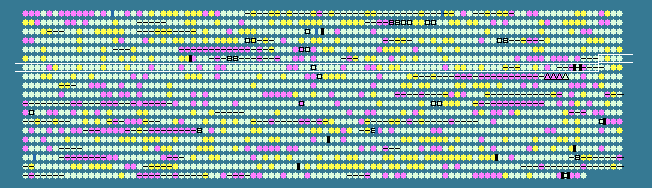

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.26 STD DEV: 3.98
Streptococcus pyogenes MGAS6180, complete genome - 1..1897573
1894 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
597	 37.66	0	620723..621253	+	176	71903264	infC	M28_Spy0598	-	translation initiation factor IF-3
598	 42.42	+1	621295..621492	+	65	71903265	rpmI	M28_Spy0599	-	50S ribosomal protein L35
599	 41.67	0	621551..621910	+	119	71903266	rplT	M28_Spy0600	-	50S ribosomal protein L20
600	 35.00	0	622201..624417	-	738	71903267	-	M28_Spy0601	-	phosphoglycerol transferase
601	 37.37	0	624519..625682	+	387	71903268	-	M28_Spy0602	-	methyltransferase
602	 37.41	0	625679..626365	+	228	71903269	aroD	M28_Spy0603	-	3-dehydroquinate dehydratase
603	 41.73	0	626459..627625	+	388	71903270	aroF	M28_Spy0604	-	chorismate synthase
604	 39.77	0	627686..628027	+	113	71903271	-	M28_Spy0605	-	hypothetical protein
605	 31.91	-1	628016..628156	-	46	71903272	-	M28_Spy0606	-	hypothetical protein
606	 43.46	+1	628249..629601	+	450	71903273	gor	M28_Spy0607	-	glutathione reductase
607	 40.14	0	629689..630981	-	430	71903274	folC.2	M28_Spy0608	-	dihydrofolate synthase
608	 40.69	0	630987..631448	-	153	71903275	-	M28_Spy0609	-	hypothetical protein
609	 41.38	0	631662..632804	+	380	71903276	nifS1	M28_Spy0610	-	cysteine desulfhydrase
610	 41.98	0	632816..634030	+	404	71903277	thiI	M28_Spy0611	-	thiamine biosynthesis protein ThiI
611	 37.12	0	634068..635360	+	430	71903278	capA	M28_Spy0612	-	capsule biosynthesis protein
612	 39.05	0	635574..635888	+	104	71903279	rplU	M28_Spy0613	-	50S ribosomal protein L21
613	 37.00	0	635900..636226	+	108	71903280	-	M28_Spy0614	-	hypothetical protein
614	 42.18	0	636254..636547	+	97	71903281	rpmA	M28_Spy0615	-	50S ribosomal protein L27
615	 35.96	0	636905..637819	+	304	71903282	-	M28_Spy0616	-	LysR family transcriptional regulator
616	 36.38	0	637816..638274	+	152	71903283	lsp	M28_Spy0617	-	lipoprotein signal peptidase
617	 41.53	0	638264..639154	+	296	71903284	-	M28_Spy0618	-	ribosomal large subunit pseudouridine synthase D
618	 41.76	0	639549..640070	+	173	71903285	pyrR	M28_Spy0619	-	pyrimidine regulatory protein PyrR
619	 38.81	0	640086..641345	+	419	71903286	pyrP	M28_Spy0620	-	uracil permease
620	 39.39	0	641352..642341	+	329	71903287	pyrB	M28_Spy0621	-	aspartate carbamoyltransferase catalytic subunit
621	 39.98	0	642385..643467	+	360	71903288	carA	M28_Spy0622	-	carbamoyl phosphate synthase small subunit
622	 30.30	-1	643439..643636	+	65	71903289	-	M28_Spy0623	-	hypothetical protein
623	 37.96	0	643713..646889	+	1058	162139406	carB	M28_Spy0624	-	carbamoyl phosphate synthase large subunit
624	 36.40	0	647096..648367	+	423	71903291	-	M28_Spy0625	-	periplasmic component of efflux system
625	 35.30	0	648367..649077	+	236	71903292	-	M28_Spy0626	-	ABC transporter ATP-binding protein
626	 35.54	0	649089..650309	+	406	71903293	-	M28_Spy0627	-	ABC transporter permease protein
627	 31.64	-1	650521..652296	+	591	71903294	-	M28_Spy0628	-	glycerophosphoryl diester phosphodiesterase
628	 38.83	0	652423..652695	+	90	71903295	rpsP	M28_Spy0629	-	30S ribosomal protein S16
629	 35.00	0	652705..652944	+	79	71903296	-	M28_Spy0630	-	RNA binding protein
630	 25.93	-2	652953..653060	+	35	71903297	-	M28_Spy0631	-	hypothetical protein
631	 35.88	0	653876..656902	+	1008	71903298	-	M28_Spy0632	-	cell surface protein
632	 36.32	0	656922..657323	+	133	71903299	-	M28_Spy0633	-	putative cytoplasmic protein
633	 33.90	-1	657513..658388	-	291	71903300	czcD	M28_Spy0634	-	cobalt-zinc-cadmium resistance protein
634	 30.51	-1	658515..659045	+	176	71903301	-	M28_Spy0635	-	TetR family transcriptional regulator
635	 39.11	0	659260..659778	+	172	71903302	rimM	M28_Spy0636	-	16S rRNA-processing protein
636	 40.57	0	659768..660499	+	243	71903303	trmD	M28_Spy0637	-	tRNA (guanine-N(1)-)-methyltransferase
637	 36.86	0	660499..661491	+	330	71903304	trxB	M28_Spy0638	-	thioredoxin reductase
638	 39.75	0	661670..662728	+	352	71903305	-	M28_Spy0639	-	regulatory protein
639	 39.50	0	662741..663664	+	307	71903306	apbA	M28_Spy0640	-	2-dehydropantoate 2-reductase
640	 35.29	0	663920..664633	+	237	71903307	fruR	M28_Spy0641	-	fructose repressor
641	 40.02	0	664630..665541	+	303	71903308	fruB	M28_Spy0642	-	1-phosphofructokinase
642	 41.71	0	665538..667484	+	648	71903309	fruA	M28_Spy0643	-	PTS system, fructose-specific IIABC component
643	 37.00	0	667577..668176	+	199	71903310	mur1.1	M28_Spy0644	-	autolysin
644	 38.42	0	668328..669035	+	235	71903311	mur1.2	M28_Spy0645	-	autolysin
645	 30.83	-1	669513..669632	-	39	71903312	-	M28_Spy0647	-	hypothetical protein
646	 27.62	-2	669607..669816	-	69	71903313	-	M28_Spy0648	-	exotoxin type J fragment
647	 37.13	0	669992..671017	-	341	71903314	mac	M28_Spy0649	-	IgG-degrading protease
648	 41.24	0	671521..671697	+	58	71903315	-	M28_Spy0650	-	nucleoside diphosphate kinase
649	 34.91	0	671925..672305	+	126	71903316	-	M28_Spy0651	-	transposase
650	 37.22	0	672305..673153	+	282	71903317	-	M28_Spy0652	-	degV family protein
651	 40.28	0	673278..674486	+	402	71903318	papS	M28_Spy0653	-	tRNA CCA-pyrophosphorylase
652	 39.24	0	674483..676360	+	625	71903319	-	M28_Spy0654	-	ABC transporter ATP-binding protein uup
653	 35.95	0	676617..676769	+	50	71903320	-	M28_Spy0655	-	hypothetical protein
654	 30.14	-2	676778..676996	+	72	71903321	-	M28_Spy0656	-	hypothetical protein
655	 35.52	0	677252..677662	+	136	71903322	fms	M28_Spy0657	-	peptide deformylase
656	 35.33	0	677745..679796	-	683	71903323	-	M28_Spy0658	-	5'-nucleotidase
657	 34.87	0	679977..680627	+	216	71903324	-	M28_Spy0659	-	GTP pyrophosphokinase
658	 34.23	-1	680630..681298	+	222	71903325	-	M28_Spy0660	-	two-component response regulator
659	 34.76	0	681280..682539	+	419	71903326	-	M28_Spy0661	-	two component system histidine kinase
660	 42.78	+1	682832..683710	+	292	71903327	mvaK1	M28_Spy0662	-	mevalonate kinase
661	 40.32	0	683692..684636	+	314	71903328	mvaD	M28_Spy0663	-	diphosphomevalonate decarboxylase
662	 42.47	+1	684581..685642	+	353	71903329	mvaK2	M28_Spy0664	-	phosphomevalonate kinase
663	 42.31	+1	685539..686618	+	359	71903330	-	M28_Spy0665	-	isopentenyl pyrophosphate isomerase
664	 40.06	0	686848..688125	-	425	71903331	-	M28_Spy0666	-	3-hydroxy-3-methylglutaryl-coenzyme A reductase
665	 37.37	0	688112..689326	-	404	71903332	mvaS.1	M28_Spy0667	-	hydroxymethylglutaryl-CoA synthase
666	 35.00	0	689496..690335	+	279	162139405	thyA	M28_Spy0668	-	thymidylate synthase
667	 36.95	0	690415..690912	+	165	71903334	dyr	M28_Spy0669	-	dihydrofolate reductase
668	 35.09	0	690932..691102	+	56	71903335	-	M28_Spy0670	-	hypothetical protein
669	 38.54	0	691232..692461	+	409	71903336	clpX	M28_Spy0671	-	ATP-dependent protease ATP-binding subunit
670	 38.67	0	692471..693070	+	199	71903337	-	M28_Spy0672	-	GTPase EngB
671	 34.01	-1	693218..693961	+	247	71903338	-	M28_Spy0673	-	hypothetical protein
672	 38.71	0	694019..696118	-	699	71903339	clpL	M28_Spy0674	-	ATP-dependent protease ATP-binding subunit
673	 42.25	+1	696496..697179	+	227	71903340	rpiA	M28_Spy0675	-	ribose-5-phosphate isomerase A
674	 41.75	0	697256..698467	+	403	71903341	deoB	M28_Spy0676	-	phosphopentomutase
675	 41.16	0	698477..698923	+	148	71903342	arsC	M28_Spy0677	-	arsenate reductase family protein
676	 41.36	0	698907..699716	+	269	71903343	punA	M28_Spy0678	-	purine nucleoside phosphorylase
677	 42.15	0	700244..701014	+	256	71903344	deoD2	M28_Spy0679	-	purine nucleoside phosphorylase
678	 39.50	0	701001..701795	+	264	71903345	cpsX	M28_Spy0680	-	transcription regulator LytR
679	 39.51	0	701874..702779	-	301	71903346	cpsY	M28_Spy0681	-	LysR family transcriptional regulator
680	 36.50	0	703001..703537	+	178	71903347	-	M28_Spy0682	-	hypothetical protein
681	 41.85	0	703814..704506	+	230	71903348	pyrF	M28_Spy0683	-	orotidine 5'-phosphate decarboxylase
682	 39.37	0	704564..705193	+	209	71903349	pyrE	M28_Spy0684	-	orotate phosphoribosyltransferase
683	 42.06	0	705390..706844	+	484	71903350	amiC	M28_Spy0685	-	amidase
684	 37.11	0	706926..707825	+	299	71903351	-	M28_Spy0686	-	cystine-binding protein
685	 39.32	0	707854..708504	+	216	71903352	-	M28_Spy0687	-	cystine transport system permease protein
686	 42.05	0	708637..709290	+	217	71903353	ung	M28_Spy0688	-	uracil-DNA glycosylase
687	 40.43	0	709414..710682	+	422	71903354	pyrC	M28_Spy0689	-	dihydroorotase
688	 32.64	-1	710740..711462	-	240	71903355	-	M28_Spy0690	-	putative glycerol-3-phosphate acyltransferase PlsY
689	 41.47	0	711513..713465	+	650	71903356	parE	M28_Spy0691	-	DNA topoisomerase IV subunit B
690	 40.23	0	713550..716015	+	821	71903357	parC	M28_Spy0692	-	DNA topoisomerase IV subunit A
691	 40.17	0	716093..717160	+	355	71903358	bcaT	M28_Spy0693	-	branched-chain amino acid aminotransferase
692	 31.20	-1	717221..717454	+	77	71903359	-	M28_Spy0694	-	putative cytoplasmic protein
693	 41.13	0	717844..719049	+	401	71903360	rpsA	M28_Spy0695	-	30S ribosomal protein S1
694	 33.00	-1	719596..719898	-	100	71903361	-	M28_Spy0696	-	hypothetical protein
695	 37.89	0	720098..721084	+	328	71903362	-	M28_Spy0697	-	hypothetical protein
696	 40.62	0	721155..721346	+	63	71903363	-	M28_Spy0698	-	hypothetical protein
38.26	MEAN

3.98	STD DEV
