IslandPath Analysis: Streptococcus pyogenes MGAS6180

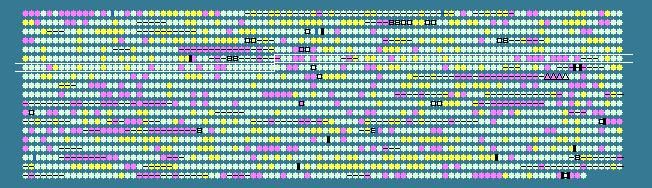

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.26 STD DEV: 3.98
Streptococcus pyogenes MGAS6180, complete genome - 1..1897573
1894 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
543	 33.78	-1	561278..561949	+	223	71903210	sagE	M28_Spy0544	-	streptolysin S putative self-immunity protein
544	 35.23	0	561946..562629	+	227	71903211	sagF	M28_Spy0545	-	streptolysin S biosynthesis protein
545	 36.04	0	562652..563575	+	307	71903212	sagG	M28_Spy0546	-	streptolysin S export ATP-binding protein
546	 32.54	-1	563584..564711	+	375	71903213	sagH	M28_Spy0547	-	streptolysin S export transmembrane protein
547	 32.80	-1	564708..565826	+	372	71903214	sagI	M28_Spy0548	-	streptolysin S export transmembrane protein
548	 37.91	0	566400..569132	+	910	71903215	-	M28_Spy0549	-	endonuclease/exonuclease/phosphatase family protein
549	 32.93	-1	569410..569910	+	166	71903216	-	M28_Spy0550	-	hypothetical protein
550	 40.48	0	570104..572062	+	652	71903217	ligA	M28_Spy0551	-	NAD-dependent DNA ligase LigA
551	 37.44	0	572076..573098	+	340	71903218	-	M28_Spy0552	-	putative lipid kinase
552	 38.38	0	573490..573687	+	65	71903219	atpE	M28_Spy0553	-	F0F1 ATP synthase subunit C
553	 38.49	0	573722..574438	+	238	71903220	atpB	M28_Spy0554	-	F0F1 ATP synthase subunit A
554	 38.18	0	574456..574950	+	164	71903221	atpF	M28_Spy0555	-	F0F1 ATP synthase subunit B
555	 34.08	-1	574950..575486	+	178	71903222	atpH	M28_Spy0556	-	F0F1 ATP synthase subunit delta
556	 42.15	0	575502..577010	+	502	71903223	atpA	M28_Spy0557	-	F0F1 ATP synthase subunit alpha
557	 37.67	0	577026..577901	+	291	71903224	atpG	M28_Spy0558	-	F0F1 ATP synthase subunit gamma
558	 42.86	+1	578063..579469	+	468	71903225	atpD	M28_Spy0559	-	F0F1 ATP synthase subunit beta
559	 42.21	0	579482..579898	+	138	71903226	atpC	M28_Spy0560	-	F0F1 ATP synthase subunit epsilon
560	 35.27	0	580164..580421	+	85	71903227	-	M28_Spy0561	-	hypothetical protein
561	 41.51	0	580486..581757	+	423	71903228	murA	M28_Spy0562	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
562	 33.33	-1	581761..581949	+	62	71903229	epuA	M28_Spy0563	-	EpuA
563	 41.62	0	581973..582563	+	196	71903230	-	M28_Spy0564	-	DNA-entry nuclease
564	 43.56	+1	582547..582849	+	100	71903231	endA	M28_Spy0565	-	DNA-entry nuclease
565	 41.48	0	583132..584175	+	347	162139408	pheS	M28_Spy0566	-	phenylalanyl-tRNA synthetase subunit alpha
566	 42.01	0	584370..586790	+	806	71903233	pheT	M28_Spy0567	-	phenylalanyl-tRNA synthetase subunit beta
567	 39.61	0	586864..587277	+	137	71903234	-	M28_Spy0568	-	salt-stress induced protein
568	 39.02	0	587270..587656	+	128	71903235	-	M28_Spy0569	-	hypothetical protein
569	 35.56	0	587729..588805	+	358	71903236	-	M28_Spy0570	-	ABC transporter permease protein
570	 41.37	0	588812..589483	+	223	71903237	-	M28_Spy0571	-	ABC transporter ATP-binding protein
571	 44.12	+1	589588..590505	-	305	71903238	-	M28_Spy0572	-	neutral zinc metallopeptidase family protein
572	 34.86	0	590656..593871	+	1071	71903239	rexB	M28_Spy0573	-	ATP-dependent nuclease subunit B
573	 36.22	0	593832..597500	+	1222	71903240	rexA	M28_Spy0574	-	ATP-dependent nuclease subunit A
574	 35.36	0	597616..598452	+	278	71903241	-	M28_Spy0575	-	arginine-binding protein
575	 36.72	0	598593..598769	+	58	162139407	rpsU	M28_Spy0576	-	30S ribosomal protein S21
576	 35.81	0	598897..599259	-	120	71903243	mscL	M28_Spy0577	-	large-conductance mechanosensitive channel
577	 38.57	0	599389..601203	+	604	71903244	dnaG	M28_Spy0578	-	DNA primase
578	 38.56	0	601212..602321	+	369	71903245	rpoD	M28_Spy0579	-	RNA polymerase sigma factor RpoD
579	 39.82	0	602557..602895	+	112	71903246	-	M28_Spy0580	-	putative cytoplasmic protein
580	 40.33	0	602973..603887	+	304	71903247	rmlD	M28_Spy0581	-	dTDP-4-dehydrorhamnose reductase
581	 39.22	0	604006..605160	+	384	71903248	rgpAc	M28_Spy0582	-	alpha-(1,2)-rhamnosyltransferase
582	 37.62	0	605150..606082	+	310	71903249	rgpBc	M28_Spy0583	-	alpha-L-Rha alpha-1,3-L-rhamnosyltransferase
583	 33.96	-1	606085..606888	+	267	71903250	rgpCc	M28_Spy0584	-	polysaccharide export ABC transporter permease protein
584	 34.99	0	606888..608093	+	401	71903251	rgpDc	M28_Spy0585	-	polysaccharide export ATP-binding protein
585	 32.44	-1	608118..609125	+	335	71903252	rgpEc	M28_Spy0586	-	glycosyltransferase
586	 31.67	-1	609122..610867	+	581	71903253	rgpFc	M28_Spy0587	-	alpha-L-Rha alpha-1,2-L-rhamnosyltransferase
587	 32.00	-1	610864..613338	+	824	71903254	-	M28_Spy0588	-	phosphoglycerol transferase
588	 35.92	0	613517..614212	+	231	71903255	-	M28_Spy0589	-	glycosyltransferase involved in cell wall biogenesis
589	 26.90	-2	614214..614555	+	113	71903256	-	M28_Spy0590	-	hypothetical protein
590	 29.99	-2	614548..615834	+	428	71903257	amrA	M28_Spy0591	-	transcriptional activator
591	 30.06	-2	615815..617311	+	498	71903258	-	M28_Spy0592	-	hypothetical protein
592	 38.92	0	617393..618628	+	411	71903259	pepT	M28_Spy0593	-	peptidase T
593	 31.90	-1	618669..619157	+	162	71903260	ebsA	M28_Spy0594	-	pore forming protein
594	 37.37	0	619144..619341	-	65	71903261	-	M28_Spy0595	-	ferredoxin
595	 38.57	0	619390..619866	+	158	71903262	-	M28_Spy0596	-	hypothetical protein
596	 40.23	0	619881..620561	+	226	71903263	cmk	M28_Spy0597	-	cytidylate kinase
597	 37.66	0	620723..621253	+	176	71903264	infC	M28_Spy0598	-	translation initiation factor IF-3
598	 42.42	+1	621295..621492	+	65	71903265	rpmI	M28_Spy0599	-	50S ribosomal protein L35
599	 41.67	0	621551..621910	+	119	71903266	rplT	M28_Spy0600	-	50S ribosomal protein L20
600	 35.00	0	622201..624417	-	738	71903267	-	M28_Spy0601	-	phosphoglycerol transferase
601	 37.37	0	624519..625682	+	387	71903268	-	M28_Spy0602	-	methyltransferase
602	 37.41	0	625679..626365	+	228	71903269	aroD	M28_Spy0603	-	3-dehydroquinate dehydratase
603	 41.73	0	626459..627625	+	388	71903270	aroF	M28_Spy0604	-	chorismate synthase
604	 39.77	0	627686..628027	+	113	71903271	-	M28_Spy0605	-	hypothetical protein
605	 31.91	-1	628016..628156	-	46	71903272	-	M28_Spy0606	-	hypothetical protein
606	 43.46	+1	628249..629601	+	450	71903273	gor	M28_Spy0607	-	glutathione reductase
607	 40.14	0	629689..630981	-	430	71903274	folC.2	M28_Spy0608	-	dihydrofolate synthase
608	 40.69	0	630987..631448	-	153	71903275	-	M28_Spy0609	-	hypothetical protein
609	 41.38	0	631662..632804	+	380	71903276	nifS1	M28_Spy0610	-	cysteine desulfhydrase
610	 41.98	0	632816..634030	+	404	71903277	thiI	M28_Spy0611	-	thiamine biosynthesis protein ThiI
611	 37.12	0	634068..635360	+	430	71903278	capA	M28_Spy0612	-	capsule biosynthesis protein
612	 39.05	0	635574..635888	+	104	71903279	rplU	M28_Spy0613	-	50S ribosomal protein L21
613	 37.00	0	635900..636226	+	108	71903280	-	M28_Spy0614	-	hypothetical protein
614	 42.18	0	636254..636547	+	97	71903281	rpmA	M28_Spy0615	-	50S ribosomal protein L27
615	 35.96	0	636905..637819	+	304	71903282	-	M28_Spy0616	-	LysR family transcriptional regulator
616	 36.38	0	637816..638274	+	152	71903283	lsp	M28_Spy0617	-	lipoprotein signal peptidase
617	 41.53	0	638264..639154	+	296	71903284	-	M28_Spy0618	-	ribosomal large subunit pseudouridine synthase D
618	 41.76	0	639549..640070	+	173	71903285	pyrR	M28_Spy0619	-	pyrimidine regulatory protein PyrR
619	 38.81	0	640086..641345	+	419	71903286	pyrP	M28_Spy0620	-	uracil permease
620	 39.39	0	641352..642341	+	329	71903287	pyrB	M28_Spy0621	-	aspartate carbamoyltransferase catalytic subunit
621	 39.98	0	642385..643467	+	360	71903288	carA	M28_Spy0622	-	carbamoyl phosphate synthase small subunit
622	 30.30	-1	643439..643636	+	65	71903289	-	M28_Spy0623	-	hypothetical protein
623	 37.96	0	643713..646889	+	1058	162139406	carB	M28_Spy0624	-	carbamoyl phosphate synthase large subunit
624	 36.40	0	647096..648367	+	423	71903291	-	M28_Spy0625	-	periplasmic component of efflux system
625	 35.30	0	648367..649077	+	236	71903292	-	M28_Spy0626	-	ABC transporter ATP-binding protein
626	 35.54	0	649089..650309	+	406	71903293	-	M28_Spy0627	-	ABC transporter permease protein
627	 31.64	-1	650521..652296	+	591	71903294	-	M28_Spy0628	-	glycerophosphoryl diester phosphodiesterase
628	 38.83	0	652423..652695	+	90	71903295	rpsP	M28_Spy0629	-	30S ribosomal protein S16
629	 35.00	0	652705..652944	+	79	71903296	-	M28_Spy0630	-	RNA binding protein
630	 25.93	-2	652953..653060	+	35	71903297	-	M28_Spy0631	-	hypothetical protein
631	 35.88	0	653876..656902	+	1008	71903298	-	M28_Spy0632	-	cell surface protein
632	 36.32	0	656922..657323	+	133	71903299	-	M28_Spy0633	-	putative cytoplasmic protein
633	 33.90	-1	657513..658388	-	291	71903300	czcD	M28_Spy0634	-	cobalt-zinc-cadmium resistance protein
634	 30.51	-1	658515..659045	+	176	71903301	-	M28_Spy0635	-	TetR family transcriptional regulator
635	 39.11	0	659260..659778	+	172	71903302	rimM	M28_Spy0636	-	16S rRNA-processing protein
636	 40.57	0	659768..660499	+	243	71903303	trmD	M28_Spy0637	-	tRNA (guanine-N(1)-)-methyltransferase
637	 36.86	0	660499..661491	+	330	71903304	trxB	M28_Spy0638	-	thioredoxin reductase
638	 39.75	0	661670..662728	+	352	71903305	-	M28_Spy0639	-	regulatory protein
639	 39.50	0	662741..663664	+	307	71903306	apbA	M28_Spy0640	-	2-dehydropantoate 2-reductase
640	 35.29	0	663920..664633	+	237	71903307	fruR	M28_Spy0641	-	fructose repressor
641	 40.02	0	664630..665541	+	303	71903308	fruB	M28_Spy0642	-	1-phosphofructokinase
642	 41.71	0	665538..667484	+	648	71903309	fruA	M28_Spy0643	-	PTS system, fructose-specific IIABC component
38.26	MEAN

3.98	STD DEV
