IslandPathversion 1.0

IslandPath Analysis: Streptococcus pyogenes MGAS6180

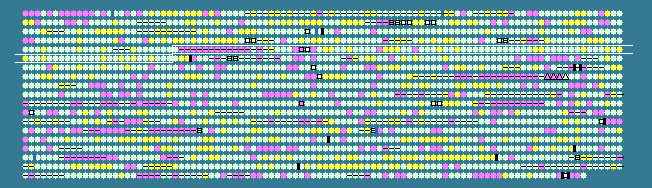

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.26 STD DEV: 3.98
Streptococcus pyogenes MGAS6180, complete genome - 1..1897573
1894 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
426	 36.86	0	434906..438445	+	1179	71903093	smc	M28_Spy0427	-	chromosome partition protein smc
427	 32.30	-1	438698..439570	-	290	71903094	-	M28_Spy0428	-	transcriptional regulator
428	 27.72	-2	439769..440695	+	308	71903095	aroE.2	M28_Spy0429	-	shikimate 5-dehydrogenase
429	 26.16	-2	440692..441528	+	278	71903096	-	M28_Spy0430	-	putative cytoplasmic protein
430	 33.60	-1	441506..442264	+	252	71903097	-	M28_Spy0431	-	hypothetical protein
431	 30.80	-1	442257..443243	+	328	71903098	-	M28_Spy0432	-	hypothetical protein
432	 29.58	-2	443253..444452	+	399	71903099	metK1	M28_Spy0433	-	S-adenosylmethionine synthetase
433	 29.51	-2	444436..445404	+	322	71903100	-	M28_Spy0434	-	hypothetical protein
434	 28.48	-2	445459..446448	+	329	71903101	-	M28_Spy0435	-	glycosyltransferase
435	 26.22	-2	446851..447117	+	88	71903102	-	M28_Spy0436	-	hypothetical protein
436	 30.40	-1	447141..448298	+	385	71903103	-	M28_Spy0437	-	UDP-glucose 6-dehydrogenase
437	 30.44	-1	448415..449590	+	391	71903104	mefE	M28_Spy0438	-	macrolide-efflux protein
438	 30.95	-1	449693..449902	-	69	71903105	-	M28_Spy0439	-	transcriptional regulator
439	 36.47	0	449892..451550	-	552	71903106	-	M28_Spy0440	-	chromosome segregation ATPase
440	 33.33	-1	451541..451765	-	74	71903107	-	M28_Spy0441	-	hypothetical protein
441	 37.36	0	451765..452658	-	297	71903108	-	M28_Spy0442	-	hypothetical protein
442	 48.02	+2	452674..452850	+	58	71903109	-	M28_Spy0443	-	putative cytoplasmic protein
443	 37.27	0	452878..453207	+	109	71903110	-	M28_Spy0444	-	RelB-domain-containing protein
444	 39.22	0	453207..453512	+	101	71903111	-	M28_Spy0445	-	ParE-domain-containing protein
445	 38.99	0	453645..453803	+	52	71903112	-	M28_Spy0446	-	putative cytoplasmic protein
446	 27.78	-2	453908..454681	+	257	71903113	-	M28_Spy0447	-	hypothetical protein
447	 33.33	-1	455123..455854	-	243	71903114	-	M28_Spy0448	-	transposase
448	 36.76	0	455974..456294	-	106	71903115	-	M28_Spy0449	-	transposase
449	 34.48	0	456376..456549	-	57	71903116	-	M28_Spy0450	-	hypothetical protein
450	 39.97	0	456553..457350	+	265	71903117	-	M28_Spy0451	-	HAD superfamily hydrolase
451	 43.03	+1	457354..458178	+	274	71903118	-	M28_Spy0452	-	HAD superfamily hydrolase
452	 43.39	+1	458178..459728	+	516	71903119	ftsY	M28_Spy0453	-	cell division protein
453	 38.89	0	459782..461149	-	455	71903120	-	M28_Spy0454	-	multidrug resistance protein B
454	 35.82	0	461477..462319	+	280	71903121	licT	M28_Spy0455	-	BigG family transcription antiterminator
455	 43.37	+1	462321..464183	+	620	71903122	-	M28_Spy0456	-	PTS system, beta-glucoside-specific IIABC component
456	 41.54	0	464202..465626	+	474	71903123	bglA	M28_Spy0457	-	6-phospho-beta-glucosidase
457	 41.07	0	465725..466564	-	279	71903124	-	M28_Spy0458	-	hypothetical protein
458	 40.20	0	466540..467442	-	300	71903125	-	M28_Spy0459	-	hypothetical protein
459	 34.85	0	467576..467773	+	65	71903126	-	M28_Spy0460	-	hypothetical protein
460	 24.81	-2	467871..467999	-	42	71903128	-	M28_Spy0462	-	hypothetical protein
461	 42.99	+1	467979..470111	+	710	71903127	-	M28_Spy0461	-	transcription accessory protein
462	 42.03	0	470053..470535	+	160	71903129	-	M28_Spy0463	-	hypothetical protein
463	 42.12	0	470599..470871	+	90	71903130	-	M28_Spy0464	-	stress-responsive transcriptional regulator PspC
464	 39.48	0	471176..472168	+	330	162139410	ptsK	M28_Spy0465	-	HPr kinase/phosphorylase
465	 36.79	0	472165..472944	+	259	71903132	lgt	M28_Spy0466	-	prolipoprotein diacylglyceryl transferase
466	 32.84	-1	472966..473373	+	135	71903133	-	M28_Spy0467	-	hypothetical protein
467	 35.78	0	473345..473794	+	149	71903134	-	M28_Spy0468	-	hypothetical protein
468	 36.84	0	473954..474238	-	94	71903135	-	M28_Spy0469	-	hypothetical protein
469	 39.48	0	474437..475363	+	308	71903136	-	M28_Spy0470	-	U32 family peptidase
470	 44.68	+1	475465..476751	+	428	71903137	-	M28_Spy0471	-	U32 family peptidase
471	 39.44	0	476968..477180	+	70	71903138	-	M28_Spy0472	-	putative cytoplasmic protein
472	 38.30	0	477277..477417	-	46	71903139	-	M28_Spy0473	-	hypothetical protein
473	 42.10	0	477553..479058	-	501	71903140	lysS	M28_Spy0474	-	lysyl-tRNA synthetase
474	 39.31	0	479220..480122	+	300	71903141	-	M28_Spy0475	-	HAD superfamily hydrolase
475	 39.58	0	480230..480853	-	207	71903142	-	M28_Spy0476	-	phosphoglycerate mutase
476	 37.29	0	481194..481673	-	159	71903143	-	M28_Spy0477	-	transcriptional regulator
477	 39.90	0	481763..482371	-	202	71903144	-	M28_Spy0478	-	thiamine transporter
478	 36.28	0	482595..483443	-	282	71903145	-	M28_Spy0479	-	N-acetylmuramoyl-L-alanine amidase
479	 40.67	0	483768..484271	+	167	71903146	-	M28_Spy0480	-	integral membrane protein
480	 36.98	0	484255..484638	+	127	71903147	-	M28_Spy0481	-	hypothetical protein
481	 39.35	0	484685..485083	-	132	71903148	-	M28_Spy0482	-	glutathione peroxidase
482	 41.65	0	485156..487030	-	624	71903149	pepF	M28_Spy0483	-	oligoendopeptidase F
483	 39.09	0	487099..489912	+	937	71903150	ppc	M28_Spy0484	-	phosphoenolpyruvate carboxylase
484	 36.63	0	490052..491356	+	434	71903151	ftsW	M28_Spy0485	-	cell division protein
485	 37.59	0	491373..491513	-	46	71903152	-	M28_Spy0486	-	putative cytoplasmic protein
486	 43.86	+1	491710..492906	+	398	162139409	tuf	M28_Spy0487	-	elongation factor Tu
487	 42.29	+1	493147..493905	+	252	71903154	tpiA	M28_Spy0488	-	triosephosphate isomerase
488	 36.33	0	494004..495239	-	411	71903155	-	M28_Spy0489	-	methicillin resistance expression factor
489	 39.29	0	495226..496467	-	413	71903156	murM	M28_Spy0490	-	UDP-N-acetylmuramoylpentapeptide-lysine N(6)-alanyltransferase
490	 40.99	0	496452..497261	-	269	71903157	-	M28_Spy0491	-	HAD superfamily hydrolase
491	 39.74	0	497412..497645	-	77	71903158	-	M28_Spy0492	-	putative cytoplasmic protein
492	 41.09	0	497717..499018	-	433	71903159	-	M28_Spy0493	-	dGTP triphosphohydrolase
493	 39.02	0	499100..499486	+	128	71903160	-	M28_Spy0494	-	putative cytoplasmic protein
494	 42.21	0	499716..502397	+	893	71903161	pacL	M28_Spy0495	-	calcium-transporting ATPase
495	 36.05	0	502481..503512	-	343	71903162	regR	M28_Spy0496	-	LacI family transcription regulator
496	 40.71	0	503540..505465	-	641	71903163	-	M28_Spy0497	-	oligohyaluronate lyase
497	 38.89	0	505533..506414	-	293	71903164	agaD	M28_Spy0498	-	PTS system, N-acetylgalactosamine-specific IID component
498	 43.55	+1	506341..507123	-	260	71903165	-	M28_Spy0499	-	PTS system, N-acetylgalactosamine-specific IIC component
499	 41.31	0	507142..507630	-	162	71903166	agaV	M28_Spy0500	-	PTS system, N-acetylgalactosamine-specific IIB component
500	 43.17	+1	507666..508865	-	399	71903167	-	M28_Spy0501	-	unsaturated glucuronyl hydrolase
501	 42.24	0	508865..509302	-	145	71903168	-	M28_Spy0502	-	PTS system, N-acetylgalactosamine-specific IIA component
502	 41.51	0	509637..510431	+	264	71903169	idnO	M28_Spy0503	-	gluconate 5-dehydrogenase
503	 41.74	0	510456..511097	+	213	71903170	-	M28_Spy0504	-	hypothetical protein
504	 43.80	+1	511087..512127	+	346	71903171	-	M28_Spy0505	-	2-dehydro-3-deoxygluconokinase
505	 41.59	0	512114..512767	+	217	71903172	kgdA	M28_Spy0506	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
506	 36.99	0	513057..513713	+	218	71903173	-	M28_Spy0507	-	beta-phosphoglucomutase
507	 36.73	0	514358..515533	+	391	71903174	-	M28_Spy0508	-	iron-sulfur cluster-binding protein
508	 39.55	0	515687..516700	+	337	71903175	prfB	M28_Spy0509	-	peptide chain release factor 2
509	 40.69	0	516719..517411	+	230	71903176	ftsE	M28_Spy0510	-	cell division ATP-binding protein
510	 35.83	0	517374..518333	+	319	71903177	ftsX	M28_Spy0511	-	cell division protein
511	 36.91	0	518643..519341	-	232	71903178	-	M28_Spy0512	-	hydroxyacylglutathione hydrolase
512	 39.27	0	519482..520273	+	263	71903179	-	M28_Spy0513	-	acetoin reductase
513	 38.01	0	520381..522882	+	833	71903180	dinG	M28_Spy0514	-	bifunctional ATP-dependent DNA helicase/DNA polymerase III subunit epsilon
514	 42.21	0	523217..524410	+	397	71903181	aspC	M28_Spy0515	-	aspartate aminotransferase
515	 38.01	0	524440..525786	+	448	71903182	asnC	M28_Spy0516	-	asparaginyl-tRNA synthetase
516	 41.64	0	526201..527091	+	296	71903183	-	M28_Spy0517	-	hypothetical protein
517	 41.92	0	527088..528065	+	325	71903184	-	M28_Spy0518	-	transporter
518	 39.69	0	528062..528973	+	303	71903185	-	M28_Spy0519	-	putative cytoplasmic protein
519	 42.85	+1	529106..530503	+	465	71903186	pepD	M28_Spy0520	-	dipeptidase
520	 38.63	0	530655..532202	+	515	71903187	-	M28_Spy0521	-	high-affinity zinc uptake system protein ZnuA precursor
521	 37.70	0	532341..533072	+	243	71903188	-	M28_Spy0522	-	GntR family transcriptional regulator
522	 42.42	+1	533092..534291	+	399	71903189	agaS	M28_Spy0523	-	galactosamine-6-phosphate deaminase (isomerizing)
523	 41.00	0	534388..534648	-	86	71903190	rpmE2	M28_Spy0524	-	50S ribosomal protein L31 type B
524	 41.51	0	534763..535704	-	313	71903191	-	M28_Spy0525	-	phosphoesterase, DHH family protein
525	 40.00	0	536098..536547	+	149	71903192	-	M28_Spy0526	-	flavodoxin
38.26	MEAN

3.98	STD DEV
