IslandPathversion 1.0

IslandPath Analysis: Streptococcus pyogenes MGAS6180

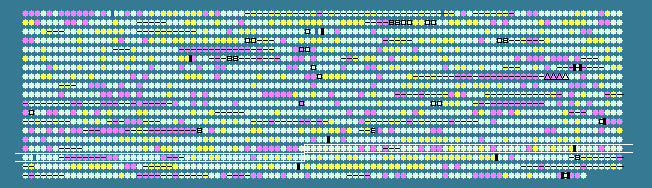

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.26 STD DEV: 3.98
Streptococcus pyogenes MGAS6180, complete genome - 1..1897573
1894 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1548	 37.42	0	1550936..1551595	+	219	71904215	spi	M28_Spy1553	-	signal peptidase I
1549	 41.54	0	1551653..1554016	+	787	71904216	recD	M28_Spy1554	-	exodeoxyribonuclease V alpha chain
1550	 36.65	0	1554107..1554589	+	160	71904217	-	M28_Spy1555	-	hypothetical protein
1551	 41.74	0	1554682..1555776	-	364	71904218	dinP	M28_Spy1556	-	DNA polymerase IV
1552	 41.70	0	1555958..1558312	+	784	71904219	pfl	M28_Spy1557	-	formate acetyltransferase
1553	 37.12	0	1558492..1559442	-	316	71904220	-	M28_Spy1558	-	penicillin-binding protein
1554	 35.06	0	1559427..1560179	-	250	71904221	-	M28_Spy1559	-	C3-degrading proteinase
1555	 38.26	0	1560441..1561373	+	310	71904222	-	M28_Spy1560	-	hypothetical protein
1556	 38.08	0	1561709..1562656	-	315	71904223	glpF.2	M28_Spy1561	-	aquaporin
1557	 29.93	-2	1562727..1562873	-	48	71904224	-	M28_Spy1562	-	universal stress protein
1558	 38.48	0	1563059..1564360	-	433	71904225	norA	M28_Spy1563	-	quinolone resistance norA protein
1559	 31.94	-1	1564361..1565080	+	239	71904226	srv	M28_Spy1564	-	Crp family transcriptional regulator
1560	 39.64	0	1565102..1567384	+	760	71904227	pepXP	M28_Spy1565	-	x-prolyl-dipeptidyl aminopeptidase
1561	 34.23	-1	1567464..1567685	-	73	71904228	-	M28_Spy1566	-	Cro/CI family transcriptional regulator
1562	 34.93	0	1567855..1568229	+	124	71904229	-	M28_Spy1567	-	transcriptional regulator
1563	 40.33	0	1568422..1568721	+	99	71904230	-	M28_Spy1568	-	hypothetical protein
1564	 40.95	0	1568778..1569512	-	244	71904231	-	M28_Spy1569	-	MerR family transcriptional regulator
1565	 39.55	0	1569659..1570285	-	208	71904232	dnaQ	M28_Spy1570	-	DNA polymerase III subunit epsilon
1566	 38.83	0	1570295..1570876	-	193	71904233	-	M28_Spy1571	-	putative cytoplasmic protein
1567	 32.32	-1	1571029..1571520	-	163	71904234	-	M28_Spy1572	-	hypothetical protein
1568	 35.00	0	1571517..1571756	-	79	71904235	-	M28_Spy1573	-	ABC transporter ATP-binding protein
1569	 27.38	-2	1571803..1572138	-	111	71904236	-	M28_Spy1574	-	ABC transporter ATP-binding protein
1570	 28.91	-2	1572135..1574123	-	662	71904237	-	M28_Spy1575	-	ABC transporter permease
1571	 36.96	0	1574225..1574500	-	91	71904238	-	M28_Spy1576	-	hypothetical protein
1572	 42.74	+1	1574785..1575954	+	389	71904239	-	M28_Spy1577	-	NAD(FAD)-utilizing dehydrogenase
1573	 37.50	0	1576049..1576720	-	223	71904240	deoC	M28_Spy1578	-	deoxyribose-phosphate aldolase
1574	 36.13	0	1576750..1577964	-	404	71904241	nupC	M28_Spy1579	-	nucleoside permease
1575	 40.90	0	1577973..1578752	-	259	71904242	udp	M28_Spy1580	-	uridine phosphorylase
1576	 35.97	0	1578992..1579750	+	252	71904243	crgR	M28_Spy1581	-	GntR family transcriptional regulator
1577	 44.81	+1	1579971..1580240	+	89	71904244	rpsN	M28_Spy1582	-	30S ribosomal protein S14
1578	 41.59	0	1580411..1581439	-	342	71904245	-	M28_Spy1583	-	O-sialoglycoprotein endopeptidase
1579	 34.21	-1	1581429..1581884	-	151	71904246	-	M28_Spy1584	-	ribosomal-protein-alanine acetyltransferase
1580	 39.75	0	1581856..1582587	-	243	71904247	-	M28_Spy1585	-	glycoprotease family protein
1581	 36.02	0	1582808..1583068	+	86	71904248	-	M28_Spy1586	-	hypothetical protein
1582	 39.93	0	1583070..1584752	+	560	71904249	-	M28_Spy1587	-	Zn-dependent hydrolase
1583	 37.71	0	1584980..1586326	-	448	71904250	glnA	M28_Spy1588	-	glutamine synthetase
1584	 37.37	0	1586364..1586735	-	123	71904251	-	M28_Spy1589	-	MerR family transcriptional regulator
1585	 30.43	-1	1586802..1587353	-	183	71904252	-	M28_Spy1590	-	hypothetical protein
1586	 41.94	0	1587616..1588812	-	398	71904253	pgk	M28_Spy1591	-	phosphoglycerate kinase
1587	 35.20	0	1589005..1589859	-	284	71904254	lppC	M28_Spy1592	-	acid phosphatase
1588	 41.02	0	1590133..1590978	-	281	71904255	-	M28_Spy1593	-	membrane protease family protein
1589	 41.86	0	1591215..1592879	-	554	71904256	-	M28_Spy1594	-	kinase
1590	 37.43	0	1592879..1593244	-	121	71904257	asp	M28_Spy1595	-	putative alkaline-shock protein
1591	 39.15	0	1593396..1593584	-	62	71904258	rpmB	M28_Spy1596	-	50S ribosomal protein L28
1592	 41.84	0	1593966..1594847	-	293	71904259	fba	M28_Spy1597	-	fructose-bisphosphate aldolase
1593	 38.83	0	1595193..1596119	-	308	71904260	-	M28_Spy1598	-	alpha/beta hydrolase
1594	 40.69	0	1596287..1597891	-	534	71904261	pyrG	M28_Spy1599	-	CTP synthetase
1595	 36.46	0	1598148..1598723	-	191	162139393	rpoE	M28_Spy1600	-	DNA-directed RNA polymerase subunit delta
1596	 36.69	0	1598935..1600305	-	456	71904263	tig	M28_Spy1601	-	trigger factor
1597	 34.16	-1	1600539..1601384	+	281	71904264	-	M28_Spy1602	-	mechanosensitive ion channel
1598	 40.29	0	1601449..1602009	-	186	71904265	-	M28_Spy1603	-	hypothetical protein
1599	 39.70	0	1602023..1602493	-	156	71904266	-	M28_Spy1604	-	hypothetical protein
1600	 35.56	0	1602483..1603247	-	254	71904267	thiD	M28_Spy1605	-	phosphomethylpyrimidine kinase
1601	 36.00	0	1603237..1603986	-	249	71904268	truA	M28_Spy1606	-	tRNA pseudouridine synthase A
1602	 36.94	0	1604171..1604752	-	193	71904269	comX.2	M28_Spy1607	-	competence-specific sigma factor
1603	 36.30	0	1610144..1610278	+	44	71904270	-	M28_Spy1608	-	hypothetical protein
1604	 39.46	0	1610442..1611584	-	380	71904271	-	M28_Spy1609	-	glycerate kinase
1605	 39.01	0	1611865..1614843	+	992	71904272	hsdR	M28_Spy1610	-	type I restriction-modification system restriction subunit
1606	 35.61	0	1614856..1616043	+	395	71904273	hsdS	M28_Spy1611	-	type I restriction-modification system specificity subunit
1607	 36.75	0	1616056..1617636	+	526	71904274	hsdM	M28_Spy1612	-	type I restriction-modification system methylation subunit
1608	 32.29	-1	1617846..1618037	-	63	71904276	-	M28_Spy1614	-	hypothetical protein
1609	 26.67	-2	1618012..1618131	+	39	71904275	-	M28_Spy1613	-	hypothetical protein
1610	 30.69	-1	1618188..1618793	-	201	71904277	salR	M28_Spy1615	-	transcriptional regulatory protein
1611	 29.62	-2	1618774..1620336	-	520	71904278	-	M28_Spy1616	-	sensory transduction protein kinase
1612	 30.66	-1	1620376..1622283	-	635	71904279	salY	M28_Spy1617	-	ABC transporter permease protein
1613	 31.84	-1	1622285..1623022	-	245	71904280	-	M28_Spy1618	-	ABC transporter ATP-binding protein
1614	 33.33	-1	1623019..1623498	-	159	71904281	salX	M28_Spy1619	-	lantibiotic transport ATP-binding protein
1615	 30.75	-1	1623554..1625179	-	541	71904282	salB	M28_Spy1620	-	serine (threonine) dehydratase
1616	 33.97	-1	1625261..1625416	-	51	71904283	salA	M28_Spy1621	-	lantibiotic salivaricin A
1617	 38.31	0	1625919..1627325	-	468	71904284	lacG	M28_Spy1622	-	6-phospho-beta-galactosidase
1618	 38.52	0	1627398..1629095	-	565	71904285	lacE	M28_Spy1623	-	PTS system, lactose-specific IIBC component
1619	 36.79	0	1629095..1629412	-	105	71904286	lacF	M28_Spy1624	-	PTS system, lactose-specific IIA component
1620	 37.80	0	1629436..1630419	-	327	71904287	lacD.2	M28_Spy1625	-	tagatose 1,6-diphosphate aldolase
1621	 35.91	0	1630422..1631351	-	309	71904288	lacC.2	M28_Spy1626	-	tagatose-6-phosphate kinase
1622	 37.60	0	1631397..1631912	-	171	71904289	lacB.2	M28_Spy1627	-	galactose-6-phosphate isomerase subunit LacB
1623	 38.46	0	1631947..1632375	-	142	71904290	lacA.2	M28_Spy1628	-	galactose-6-phosphate isomerase subunit LacA
1624	 33.98	-1	1632821..1633594	+	257	71904291	lacR.2	M28_Spy1629	-	lactose phosphotransferase system repressor
1625	 34.18	-1	1634294..1634530	+	78	71904292	-	M28_Spy1630	-	DNA-damage-inducible protein J
1626	 33.33	-1	1634520..1634855	+	111	71904293	-	M28_Spy1631	-	putative cytoplasmic protein
1627	 41.23	0	1635136..1635477	+	113	71904294	-	M28_Spy1632	-	DNA integration/recombination/invertion protein
1628	 35.33	0	1635838..1635987	+	49	71904295	-	M28_Spy1633	-	DNA integration/recombination/invertion protein
1629	 45.04	+1	1636120..1636512	-	130	71904296	rpsI	M28_Spy1634	-	30S ribosomal protein S9
1630	 41.16	0	1636533..1636979	-	148	162139392	rplM	M28_Spy1635	-	50S ribosomal protein L13
1631	 41.55	0	1637197..1637403	-	68	71904298	-	M28_Spy1636	-	Cro/CI family transcriptional regulator
1632	 42.21	0	1637400..1638131	-	243	71904299	-	M28_Spy1637	-	hypothetical protein
1633	 42.51	+1	1638234..1639094	-	286	71904300	-	M28_Spy1638	-	DegV family protein
1634	 36.22	0	1639191..1639709	-	172	71904301	-	M28_Spy1639	-	putative cytoplasmic protein
1635	 38.63	0	1639713..1640486	-	257	71904302	-	M28_Spy1640	-	23S rRNA methyltransferase
1636	 37.22	0	1640506..1641303	-	265	71904303	-	M28_Spy1641	-	hypothetical protein
1637	 39.13	0	1641499..1641912	-	137	71904304	-	M28_Spy1642	-	hypothetical protein
1638	 41.00	0	1641905..1643248	-	447	71904305	cysS	M28_Spy1643	-	cysteinyl-tRNA synthetase
1639	 30.30	-1	1643276..1643506	-	76	71904306	-	M28_Spy1644	-	hypothetical protein
1640	 41.39	0	1643519..1643791	-	90	71904307	-	M28_Spy1645	-	putative cytoplasmic protein
1641	 43.30	+1	1643985..1644566	-	193	71904308	cysE	M28_Spy1646	-	serine acetyltransferase
1642	 39.97	0	1644575..1645327	-	250	71904309	-	M28_Spy1647	-	hypothetical protein
1643	 44.87	+1	1645320..1647452	-	710	71904310	-	M28_Spy1648	-	polynucleotide phosphorylase/polyadenylase
1644	 41.12	0	1647732..1648463	-	243	71904311	-	M28_Spy1649	-	putative translaldolase
1645	 44.13	+1	1648473..1649852	-	459	71904312	ulaA	M28_Spy1650	-	ascorbate-specific PTS system enzyme IIC
1646	 37.58	0	1649879..1650184	-	101	71904313	-	M28_Spy1651	-	PTS system, IIB component
1647	 40.59	0	1650156..1652318	-	720	71904314	-	M28_Spy1652	-	PTS system, mannitol (cryptic)-specific IIA component
38.26	MEAN

3.98	STD DEV
