IslandPathversion 1.0

IslandPath Analysis: Streptococcus pyogenes MGAS6180

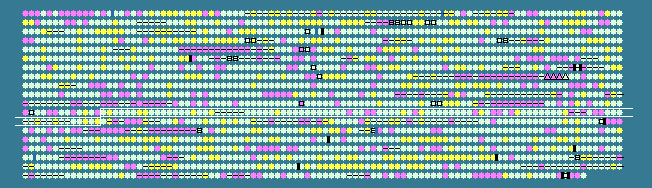

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.26 STD DEV: 3.98
Streptococcus pyogenes MGAS6180, complete genome - 1..1897573
1894 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1114	 37.59	0	1121564..1123723	+	719	71903781	nrdE.2	M28_Spy1116	-	ribonucleotide-diphosphate reductase subunit alpha
1115	 42.86	+1	1123805..1123930	-	41	71903782	-	M28_Spy1117	-	hypothetical protein
1116	 36.04	0	1124056..1125015	+	319	71903783	nrdF	M28_Spy1118	-	ribonucleotide-diphosphate reductase subunit beta
1117	 41.32	0	1124990..1126303	+	437	71903784	-	M28_Spy1119	-	chloride channel protein
1118	 35.92	0	1127649..1128344	-	231	71903785	-	M28_Spy1123	-	CAAX amino protease
1119	 36.48	0	1128363..1129124	-	253	71903786	-	M28_Spy1124	-	hypothetical protein
1120	 42.86	+1	1129121..1129351	-	76	71903787	-	M28_Spy1125	-	Cro/CI family transcriptional regulator
1121	 42.31	+1	1129697..1132315	-	872	71903788	alaS	M28_Spy1126	-	alanyl-tRNA synthetase
1122	 36.17	0	1132702..1133757	-	351	71903789	prsA	M28_Spy1127	-	foldase protein PrsA
1123	 38.42	0	1133820..1134527	-	235	71903790	-	M28_Spy1128	-	O-methyltransferase
1124	 36.26	0	1134593..1135789	-	398	71903791	-	M28_Spy1129	-	oxalate/formate antiporter
1125	 38.98	0	1136165..1137970	-	601	71903792	pepB	M28_Spy1130	-	oligoendopeptidase F
1126	 37.38	0	1137983..1138945	-	320	71903793	-	M28_Spy1131	-	putative competence protein/transcription factor
1127	 41.56	0	1139240..1139956	-	238	71903794	-	M28_Spy1132	-	ribosomal small subunit pseudouridine synthase A
1128	 37.80	0	1140075..1140902	-	275	71903795	nagB	M28_Spy1133	-	glucosamine-6-phosphate isomerase
1129	 42.76	+1	1140981..1142009	+	342	71903796	queA	M28_Spy1134	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1130	 38.17	0	1142016..1143236	+	406	71903797	-	M28_Spy1135	-	putative cytoplasmic protein
1131	 39.42	0	1143350..1143940	-	196	71903798	-	M28_Spy1136	-	hypothetical protein
1132	 42.17	0	1143937..1144185	-	82	71903799	-	M28_Spy1137	-	hypothetical protein
1133	 38.46	0	1144241..1144396	-	51	71903800	-	M28_Spy1138	-	hypothetical protein
1134	 39.60	0	1144563..1145168	-	201	71903801	sodA	M28_Spy1139	-	superoxide dismutase
1135	 36.79	0	1145264..1146304	-	346	71903802	holA	M28_Spy1140	-	DNA polymerase III subunit delta
1136	 39.90	0	1146375..1148261	-	628	71903803	comEC.1	M28_Spy1141	-	ComE operon protein 3
1137	 36.67	0	1148258..1148617	-	119	71903804	comEC.2	M28_Spy1142	-	ComE operon protein 3
1138	 37.41	0	1148598..1149260	-	220	71903805	comEA	M28_Spy1143	-	ComE operon protein 1
1139	 40.54	0	1149459..1150277	-	272	71903807	-	M28_Spy1145	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
1140	 38.95	0	1150239..1151093	+	284	71903806	-	M28_Spy1144	-	methyltransferase
1141	 36.56	0	1151083..1151361	+	92	71903808	-	M28_Spy1146	-	hypothetical protein
1142	 40.03	0	1151385..1153385	-	666	71903809	-	M28_Spy1147	-	kup system potassium uptake protein
1143	 41.79	0	1153512..1155131	-	539	71903810	deaD	M28_Spy1148	-	ATP-dependent RNA helicase
1144	 40.00	0	1155438..1156982	-	514	71903811	prfC	M28_Spy1149	-	peptide chain release factor 3
1145	 36.35	0	1157230..1157925	-	231	71903812	-	M28_Spy1150	-	hypothetical protein
1146	 39.37	0	1158005..1159396	-	463	71903813	murF	M28_Spy1151	-	UDP-N-acetylmuramoylalanine-D-glutamyl-lysine--D-alanyl-D-alanine ligase
1147	 39.64	0	1159595..1160641	-	348	71903814	ddl	M28_Spy1152	-	D-alanyl-alanine synthetase A
1148	 41.04	0	1160742..1161338	-	198	71903815	recR	M28_Spy1153	-	recombination protein RecR
1149	 35.94	0	1161385..1161576	-	63	71903816	-	M28_Spy1154	-	penicillin-binding protein
1150	 37.64	0	1162136..1163017	-	293	71903817	-	M28_Spy1155	-	formate transporter
1151	 35.73	0	1163039..1163581	-	180	71903818	-	M28_Spy1156	-	hypothetical protein
1152	 34.87	0	1163742..1164263	-	173	71903819	-	M28_Spy1157	-	biotin repressor family transcriptional regulator
1153	 41.38	0	1164370..1165065	-	231	71903820	gpmA	M28_Spy1158	-	phosphoglyceromutase
1154	 41.56	0	1165292..1166239	+	315	71903821	pyrD	M28_Spy1159	-	dihydroorotate dehydrogenase 1A
1155	 29.89	-2	1166294..1166467	-	57	71903822	-	M28_Spy1160	-	hypothetical protein
1156	 40.42	0	1166539..1168401	-	620	71903823	-	M28_Spy1161	-	lead, cadmium, zinc and mercury transporting ATPase
1157	 40.58	0	1168755..1169030	-	91	71903824	-	M28_Spy1162	-	DNA-binding protein HU
1158	 32.14	-1	1169129..1169716	-	195	71903825	-	M28_Spy1163	-	hypothetical protein
1159	 32.87	-1	1169694..1170554	-	286	71903826	-	M28_Spy1164	-	lipase/acylhydrolase
1160	 37.91	0	1170529..1171380	-	283	71903827	-	M28_Spy1165	-	DegV family protein
1161	 36.52	0	1171596..1172537	-	313	71903828	-	M28_Spy1166	-	hypothetical protein
1162	 39.52	0	1172709..1174373	-	554	71903829	recN	M28_Spy1167	-	DNA repair protein
1163	 35.12	0	1174392..1174895	-	167	71903830	argR1	M28_Spy1168	-	arginine repressor
1164	 42.75	+1	1174849..1175676	-	275	71903831	-	M28_Spy1169	-	hemolysin
1165	 41.01	0	1175669..1176541	-	290	71903832	fps	M28_Spy1170	-	dimethylallyltransferase
1166	 34.72	0	1176541..1176756	-	71	71903833	xseB	M28_Spy1171	-	exodeoxyribonuclease VII small subunit
1167	 42.40	+1	1176734..1178089	-	451	71903834	xseA	M28_Spy1172	-	exodeoxyribonuclease VII large subunit
1168	 39.95	0	1178227..1179087	-	286	71903835	folD	M28_Spy1173	-	methenyltetrahydrofolate cyclohydrolase
1169	 37.73	0	1179289..1180992	-	567	71903836	-	M28_Spy1174	-	phosphoglucomutase
1170	 37.38	0	1181161..1182594	-	477	71903837	phr	M28_Spy1175	-	deoxyribodipyrimidine photolyase
1171	 40.79	0	1182719..1183456	-	245	71903838	artP	M28_Spy1176	-	arginine transport ATP-binding protein
1172	 39.74	0	1183453..1184139	-	228	71903839	artQ	M28_Spy1177	-	arginine transport system permease protein
1173	 38.53	0	1184266..1184496	-	76	71903840	-	M28_Spy1178	-	putative cytoplasmic protein
1174	 40.91	0	1184794..1187076	+	760	71903841	clpE	M28_Spy1179	-	ATP-dependent Clp protease ATP-binding subunit
1175	 39.25	0	1187204..1187659	+	151	71903842	mutT	M28_Spy1180	-	mutator protein (7,8-dihydro-8-oxoguanine-triphosphatase)
1176	 33.66	-1	1187710..1188012	+	100	71903843	-	M28_Spy1181	-	putative cytoplasmic protein
1177	 41.76	0	1188277..1191078	-	933	71903844	ileS	M28_Spy1182	-	isoleucyl-tRNA synthetase
1178	 36.89	0	1191351..1192109	-	252	71903845	divIVAS	M28_Spy1183	-	cell division initiation protein DivIVA
1179	 31.44	-1	1192119..1192910	-	263	71903846	-	M28_Spy1184	-	RNA binding protein
1180	 30.98	-1	1192910..1193164	-	84	71903847	-	M28_Spy1185	-	integral membrane protein
1181	 37.82	0	1193169..1193837	-	222	71903848	-	M28_Spy1186	-	putative cytoplasmic protein
1182	 33.93	-1	1193837..1194508	-	223	71903849	-	M28_Spy1187	-	pyridoxal-5'-phosphate family protein
1183	 42.35	+1	1194511..1195830	-	439	71903850	ftsZ	M28_Spy1188	-	cell division protein FtsZ
1184	 39.19	0	1195854..1197218	-	454	71903851	ftsA	M28_Spy1189	-	cell division protein
1185	 38.21	0	1197430..1198578	-	382	71903852	divIB	M28_Spy1190	-	cell division protein
1186	 41.21	0	1198579..1199682	-	367	71903853	murG	M28_Spy1191	-	N-acetylglucosaminyl transferase
1187	 40.62	0	1199661..1201019	-	452	71903854	murD	M28_Spy1192	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1188	 37.30	0	1201375..1201626	-	83	71903855	-	M28_Spy1193	-	hypothetical protein
1189	 41.64	0	1201748..1203589	-	613	71903856	typA	M28_Spy1194	-	GTP-binding protein TypA/BipA
1190	 38.97	0	1203772..1204161	-	129	71903857	-	M28_Spy1195	-	rhodanese-related sulfurtransferase
1191	 43.52	+1	1204171..1205142	-	323	71903858	glcK	M28_Spy1196	-	glucokinase
1192	 33.78	-1	1205147..1205368	-	73	71903859	-	M28_Spy1197	-	putative cytoplasmic protein
1193	 40.15	0	1205492..1206019	-	175	71903860	dpr	M28_Spy1198	-	ferroxidase
1194	 33.33	-1	1206247..1206873	+	208	71903861	-	M28_Spy1199	-	prepilin peptidase family protein
1195	 37.59	0	1206955..1208034	-	359	71903862	-	M28_Spy1200	-	radical SAM protein
1196	 33.64	-1	1208038..1208682	-	214	71903863	-	M28_Spy1201	-	transcriptional regulator
1197	 30.89	-1	1208953..1209075	-	40	71903864	-	M28_Spy1202	-	hypothetical protein
1198	 37.43	0	1209106..1210131	-	341	71903865	-	M28_Spy1203	-	ribose operon repressor
1199	 38.15	0	1210498..1211535	-	345	71903866	-	M28_Spy1204	-	ATP-dependent protease La
1200	 34.96	0	1211522..1212013	-	163	71903867	coaD	M28_Spy1205	-	phosphopantetheine adenylyltransferase
1201	 37.96	0	1212003..1212542	-	179	71903868	-	M28_Spy1206	-	methyltransferase
1202	 40.89	0	1212665..1213657	-	330	71903869	asnA	M28_Spy1207	-	asparagine synthetase AsnA
1203	 42.38	+1	1213970..1214920	-	316	71903870	arcC	M28_Spy1208	-	carbamate kinase
1204	 41.59	0	1214940..1216271	-	443	71903871	-	M28_Spy1209	-	hypothetical protein
1205	 40.43	0	1216288..1217781	-	497	71903872	-	M28_Spy1210	-	arginine/ornithine antiporter
1206	 41.81	0	1217951..1218964	-	337	71903873	arcB	M28_Spy1211	-	ornithine carbamoyltransferase
1207	 39.16	0	1219004..1219432	-	142	71903874	-	M28_Spy1212	-	acetyltransferase
1208	 40.21	0	1219532..1220767	-	411	71903875	arcA	M28_Spy1213	-	arginine deiminase
1209	 35.68	0	1221041..1221721	-	226	71903876	-	M28_Spy1214	-	Crp family transcriptional regulator
1210	 40.93	0	1221863..1222336	+	157	71903877	ahrC.2	M28_Spy1215	-	arginine repressor
1211	 42.12	0	1222502..1223218	-	238	71903878	-	M28_Spy1216	-	hypothetical protein
1212	 40.31	0	1223222..1224310	-	362	71903879	-	M28_Spy1217	-	putative cytoplasmic protein
1213	 43.14	+1	1224383..1226116	-	577	71903880	-	M28_Spy1218	-	two-component sensor kinase
38.26	MEAN

3.98	STD DEV
