IslandPath Analysis: Streptococcus pyogenes MGAS315

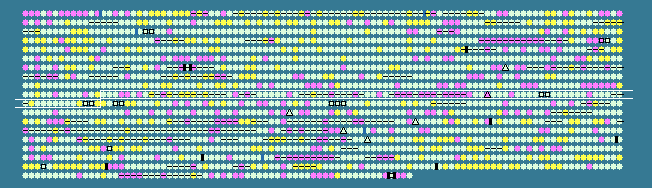

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.60 STD DEV: 3.72
Streptococcus pyogenes MGAS315, complete genome - 1..1900521
1865 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
914	 37.64	0	970942..974052	-	1036	21910450	dnaE	SpyM3_0914	-	DNA polymerase III DnaE
915	 37.37	0	974237..974608	+	123	21910451	-	SpyM3_0915	-	GntR family transcriptional regulator
916	 35.19	0	974608..975306	+	232	21910452	-	SpyM3_0916	-	ABC transporter ATP-binding protein
917	 31.42	-1	975316..976101	+	261	21910453	-	SpyM3_0917	-	ABC transporter permease
918	 32.52	-1	976232..976846	-	204	21910454	-	SpyM3_0918	-	hypothetical protein
919	 40.21	0	977437..977625	-	62	21910455	-	SpyM3_0919	-	hypothetical protein
920	 31.16	-1	977738..978520	-	260	21910456	ssa	SpyM3_0920	-	streptococcal superantigen SSA - phage associated
921	 36.18	0	978733..979857	-	374	21910457	-	SpyM3_0921	-	hypothetical protein
922	 44.67	+1	979995..981203	-	402	21910458	-	SpyM3_0922	-	putative cell wall hydrolase - phage associated
923	 39.04	0	981319..981546	-	75	21910459	-	SpyM3_0923	-	putative holin - phage associated
924	 34.78	-1	981543..981818	-	91	21910460	-	SpyM3_0924	-	hypothetical protein
925	 42.72	+1	981828..982445	-	205	21910461	-	SpyM3_0925	-	hypothetical protein
926	 35.19	0	982448..982879	-	143	21910462	-	SpyM3_0926	-	hypothetical protein
927	 44.48	+1	982891..984774	-	627	21910463	-	SpyM3_0927	-	hypothetical protein
928	 43.90	+1	984859..984981	-	40	21910464	-	SpyM3_0928	-	hyaluronidase C-terminal portion - phage associated
929	 44.44	+1	985021..985803	-	260	21910465	hylP.2	SpyM3_0929	-	hyaluronidase N-terminal portion - phage associated
930	 41.83	0	985800..987776	-	658	21910466	-	SpyM3_0930	-	hypothetical protein
931	 42.09	0	987941..988648	-	235	21910467	-	SpyM3_0931	-	hypothetical protein
932	 41.95	0	988648..992571	-	1307	21910468	-	SpyM3_0932	-	hypothetical protein
933	 36.90	0	992584..992751	-	55	21910469	-	SpyM3_0933	-	hypothetical protein
934	 36.39	0	992781..993107	-	108	21910470	-	SpyM3_0934	-	hypothetical protein
935	 41.83	0	993160..993771	-	203	21910471	-	SpyM3_0935	-	hypothetical protein
936	 34.98	0	993790..994215	-	141	21910472	-	SpyM3_0936	-	hypothetical protein
937	 40.21	0	994212..994589	-	125	21910473	-	SpyM3_0937	-	hypothetical protein
938	 34.51	-1	994586..994924	-	112	21910474	-	SpyM3_0938	-	hypothetical protein
939	 37.62	0	994921..995223	-	100	21910475	-	SpyM3_0939	-	hypothetical protein
940	 38.76	0	995226..995354	-	42	21910476	-	SpyM3_0940	-	hypothetical protein
941	 37.55	0	995368..996552	-	394	21910477	-	SpyM3_0941	-	hypothetical protein
942	 38.44	0	996578..997243	-	221	21910478	clpP.2	SpyM3_0942	-	putative ClpP protease ATP-dependent protease proteolytic subunit - phage associated
943	 39.89	0	997221..998441	-	406	21910479	-	SpyM3_0943	-	hypothetical protein
944	 36.70	0	998475..998741	-	88	21910480	-	SpyM3_0944	-	hypothetical protein
945	 30.99	-2	998734..998904	-	56	21910481	-	SpyM3_0945	-	hypothetical protein
946	 38.29	0	998901..1000655	-	584	21910482	-	SpyM3_0946	-	hypothetical protein
947	 37.61	0	1000670..1001137	-	155	21910483	-	SpyM3_0947	-	hypothetical protein
948	 38.94	0	1001309..1001647	-	112	21910484	-	SpyM3_0948	-	hypothetical protein
949	 46.73	+2	1001644..1001949	-	101	21910485	-	SpyM3_0949	-	hypothetical protein
950	 37.64	0	1002233..1002673	-	146	21910486	-	SpyM3_0950	-	hypothetical protein
951	 36.16	0	1002946..1003581	-	211	21910487	-	SpyM3_0951	-	hypothetical protein
952	 34.08	-1	1003581..1003982	-	133	21910488	-	SpyM3_0952	-	hypothetical protein
953	 37.07	0	1004173..1004547	-	124	21910489	-	SpyM3_0953	-	putative DNA methyltransferase - phage associated
954	 37.75	0	1004853..1005056	-	67	21910490	-	SpyM3_0954	-	hypothetical protein
955	 39.25	0	1005040..1005360	-	106	21910491	-	SpyM3_0955	-	hypothetical protein
956	 31.88	-1	1005357..1005770	-	137	21910492	-	SpyM3_0956	-	hypothetical protein
957	 38.72	0	1006032..1006904	-	290	21910493	-	SpyM3_0957	-	putative DNA primase - phage associated
958	 36.76	0	1006952..1007506	-	184	21910494	-	SpyM3_0958	-	putative DNA primase - phage associated
959	 38.56	0	1007496..1008299	-	267	21910495	-	SpyM3_0959	-	hypothetical protein
960	 34.42	-1	1008311..1008769	-	152	21910496	-	SpyM3_0960	-	hypothetical protein
961	 39.02	0	1008785..1010014	-	409	21910497	-	SpyM3_0961	-	DEAD box family helicase
962	 36.27	0	1010116..1010796	-	226	21910498	-	SpyM3_0962	-	hypothetical protein
963	 33.13	-1	1010797..1011279	-	160	21910499	-	SpyM3_0963	-	hypothetical protein
964	 34.60	-1	1011508..1011822	-	104	21910500	-	SpyM3_0964	-	hypothetical protein
965	 31.85	-1	1011838..1011972	-	44	21910501	-	SpyM3_0965	-	hypothetical protein
966	 38.05	0	1011969..1012265	-	98	21910502	-	SpyM3_0966	-	hypothetical protein
967	 33.33	-1	1012343..1012528	-	61	21910503	-	SpyM3_0967	-	hypothetical protein
968	 33.75	-1	1012695..1012934	+	79	21910504	-	SpyM3_0968	-	hypothetical protein
969	 32.38	-1	1013085..1013294	+	69	21910505	-	SpyM3_0969	-	hypothetical protein
970	 39.02	0	1013253..1013498	-	81	21910506	-	SpyM3_0970	-	hypothetical protein
971	 29.17	-2	1013510..1013749	-	79	21910507	-	SpyM3_0971	-	hypothetical protein
972	 31.78	-1	1013823..1014209	+	128	21910508	-	SpyM3_0972	-	hypothetical protein
973	 34.30	-1	1014198..1014404	-	68	21910509	-	SpyM3_0973	-	hypothetical protein
974	 33.97	-1	1014461..1015240	+	259	21910510	-	SpyM3_0974	-	hypothetical protein
975	 30.30	-2	1015176..1015340	-	54	21910511	-	SpyM3_0975	-	hypothetical protein
976	 37.41	0	1015374..1015520	-	48	21910512	-	SpyM3_0976	-	hypothetical protein
977	 35.49	0	1015882..1016670	+	262	21910513	-	SpyM3_0977	-	putative repressor protein - phage associated
978	 33.43	-1	1017105..1018193	+	362	21910514	intP	SpyM3_0978	-	putative integrase - phage associated
979	 36.23	0	1018556..1019176	+	206	21910515	-	SpyM3_0979	-	hypothetical protein
980	 37.88	0	1019433..1021697	-	754	21910516	glgP	SpyM3_0980	-	putative glycogen (maltodextrin) phosphorylase
981	 37.15	0	1021732..1023225	-	497	21910517	malQ	SpyM3_0981	-	putative 4-alpha-glucanotransferase
982	 32.75	-1	1023340..1024359	-	339	21910518	malR	SpyM3_0982	-	putative maltose operon transcriptional repressor
983	 39.02	0	1024603..1025850	+	415	21910519	malE	SpyM3_0983	-	putative maltose/maltodextrin-binding protein
984	 37.08	0	1026124..1027485	+	453	21910520	malF	SpyM3_0984	-	putative maltose/maltodextrin ABC transport system (permease)
985	 35.96	0	1027485..1028321	+	278	21910521	malG	SpyM3_0985	-	putative maltose/maltodextrin ABC transport system (permease)
986	 37.04	0	1028323..1028484	-	53	21910522	-	SpyM3_0986	-	hypothetical protein
987	 40.24	0	1028508..1028753	+	81	21910523	-	SpyM3_0987	-	putative transposase N-terminal portion
988	 40.65	0	1028695..1029282	+	195	21910524	-	SpyM3_0988	-	putative transposase carboxy terminal portion
989	 41.11	0	1029251..1029430	-	59	21910525	-	SpyM3_0989	-	hypothetical protein
990	 35.98	0	1029797..1030780	-	327	21910526	-	SpyM3_0990	-	putative esterase
991	 35.81	0	1030811..1032061	-	416	21910527	dltD	SpyM3_0991	-	putative secreted protein DltD
992	 36.25	0	1032054..1032293	-	79	21910528	dltC	SpyM3_0992	-	D-alanine--poly(phosphoribitol) ligase subunit 2
993	 37.15	0	1032311..1033567	-	418	21910529	dltB	SpyM3_0993	-	putative dltB protein, D-alanine transfer from Dcp to undecaprenol-phosphate
994	 40.29	0	1033564..1035102	-	512	21910530	dltA	SpyM3_0994	-	D-alanine--D-alanyl carrier protein ligase
995	 26.39	-2	1035114..1035257	-	47	21910531	-	SpyM3_0995	-	hypothetical protein
996	 39.41	0	1035521..1037512	-	663	21910532	uvrB	SpyM3_0996	-	excinuclease ABC subunit B
997	 38.02	0	1037705..1039879	+	724	21910533	glnP	SpyM3_0997	-	putative glutamine ABC transporter, glutamine-binding protein/permease protein
998	 40.76	0	1039879..1040619	+	246	21910534	glnQ	SpyM3_0998	-	putative ABC transporter ATP-binding protein - glutamine transport
999	 37.91	0	1040767..1040919	-	50	21910535	-	SpyM3_0999	-	hypothetical protein
1000	 40.14	0	1040916..1042295	-	459	21910536	-	SpyM3_1000	-	putative PTS system IIC component
1001	 38.67	0	1042473..1042922	-	149	21910537	-	SpyM3_1001	-	hypothetical protein
1002	 44.05	+1	1042919..1043254	-	111	21910538	-	SpyM3_1002	-	PTS system, cellobiose-specific IIA component
1003	 38.78	0	1043257..1043568	-	103	21910539	-	SpyM3_1003	-	PTS system, cellobiose-specific IIB component
1004	 40.00	0	1043591..1043800	-	69	21910540	-	SpyM3_1004	-	putative transcriptional antiterminator
1005	 38.45	0	1043710..1045584	-	624	21910541	-	SpyM3_1005	-	putative transcriptional antiterminator
1006	 41.64	0	1045690..1046784	-	364	21910542	-	SpyM3_1006	-	outer surface protein
1007	 40.76	0	1046793..1048193	-	466	21910543	bglA.2	SpyM3_1007	-	putative beta-glucosidase
1008	 37.64	0	1048418..1049113	+	231	21910544	-	SpyM3_1008	-	hypothetical protein
1009	 35.22	0	1049118..1049276	-	52	21910545	-	SpyM3_1009	-	hypothetical protein
1010	 44.27	+1	1049345..1050652	-	435	21910546	obgE	SpyM3_1010	-	GTPase ObgE
1011	 37.18	0	1051135..1051602	+	155	21910547	-	SpyM3_1011	-	putative transposase associated protein
1012	 39.53	0	1051623..1052429	+	268	21910548	-	SpyM3_1012	-	putative transposase - IS861
1013	 42.15	0	1052729..1053601	-	290	21910549	nadC	SpyM3_1013	-	nicotinate-nucleotide pyrophosphorylase
38.60	MEAN

3.72	STD DEV
