IslandPath Analysis: Streptococcus pyogenes MGAS315

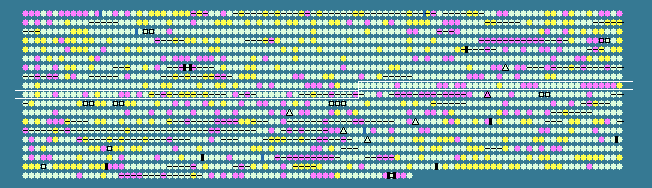

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.60 STD DEV: 3.72
Streptococcus pyogenes MGAS315, complete genome - 1..1900521
1865 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
857	 40.54	0	914274..914606	-	110	21910393	-	SpyM3_0857	-	putative glycine cleavage system H protein
858	 39.24	0	914648..915646	-	332	21910394	-	SpyM3_0858	-	hypothetical protein
859	 40.67	0	915643..916842	-	399	21910395	-	SpyM3_0859	-	putative trimethylamine dehydrogenase
860	 39.70	0	916839..917576	-	245	21910396	-	SpyM3_0860	-	hypothetical protein
861	 36.80	0	917871..918563	+	230	21910397	dpfB	SpyM3_0861	-	phosphopantothenate--cysteine ligase
862	 35.90	0	918556..919101	+	181	21910398	dfp	SpyM3_0862	-	phosphopantothenoylcysteine decarboxylase
863	 33.16	-1	919159..919728	+	189	21910399	-	SpyM3_0863	-	hypothetical protein
864	 37.75	0	919904..921622	+	572	21910400	pgmA	SpyM3_0864	-	putative phosphoglucomutase
865	 38.91	0	921837..922661	-	274	21910401	-	SpyM3_0865	-	putative sugar ABC transporter (permease protein)
866	 37.46	0	922795..923859	-	354	21910402	-	SpyM3_0866	-	putative sugar ABC transporter (permease protein)
867	 37.31	0	923852..925384	-	510	21910403	-	SpyM3_0867	-	putative sugar ABC transporter ATP-binding protein
868	 38.46	0	925523..926575	-	350	21910404	-	SpyM3_0868	-	putative ABC transporter (lipoprotein)
869	 35.90	0	926669..927058	-	129	21910405	cdd	SpyM3_0869	-	cytidine deaminase
870	 34.01	-1	927718..928311	-	197	21910406	-	SpyM3_0870	-	16S rRNA m(2)G 1207 methyltransferase
871	 31.60	-1	928579..929499	+	306	21910407	coaA	SpyM3_0871	-	pantothenate kinase
872	 39.74	0	929568..929801	+	77	161485743	rpsT	SpyM3_0872	-	30S ribosomal protein S20
873	 31.58	-1	929926..931236	-	436	21910409	ciaH	SpyM3_0873	-	putative sensor histidine kinase protein
874	 32.00	-1	931229..931903	-	224	21910410	ciaR	SpyM3_0874	-	putative DNA-binding response regulator
875	 36.68	0	932250..934787	-	845	21910411	pepN	SpyM3_0875	-	aminopeptidase N
876	 35.32	0	934992..935645	-	217	21910412	phoU	SpyM3_0876	-	putative phosphate uptake regulatory protein
877	 39.11	0	935713..936474	-	253	21910413	pstB	SpyM3_0877	-	putative phosphate ABC transporter ATP-binding protein
878	 39.18	0	936484..937287	-	267	21910414	pstB2	SpyM3_0878	-	phosphate ABC transporter ATP-binding protein
879	 40.65	0	937303..938190	-	295	21910415	pstC	SpyM3_0879	-	putative phosphate ABC transporter (permease protein)
880	 42.74	+1	938180..939115	-	311	21910416	pstC2	SpyM3_0880	-	putative phosphate ABC transporter (permease protein)
881	 38.41	0	939126..939992	-	288	21910417	pstS	SpyM3_0881	-	putative phosphate ABC transporter, periplasmic phosphate-binding protein
882	 40.52	0	940131..941438	-	435	21910418	-	SpyM3_0882	-	putative nucleolar protein
883	 38.91	0	941444..942232	-	262	21910419	-	SpyM3_0883	-	putative myo-inositol-1(or 4)-monophosphatase
884	 32.62	-1	942222..942500	-	92	21910420	-	SpyM3_0884	-	hypothetical protein
885	 34.81	-1	942502..942906	-	134	21910421	spxA	SpyM3_0885	-	transcriptional regulator Spx
886	 34.08	-1	942949..943881	-	310	21910422	mreA	SpyM3_0886	-	bifunctional riboflavin kinase/FMN adenylyltransferase
887	 41.81	0	943910..944794	-	294	161485742	truB	SpyM3_0887	-	tRNA pseudouridine synthase B
888	 38.40	0	944910..946250	-	446	21910424	-	SpyM3_0888	-	hypothetical protein
889	 36.78	0	946347..947303	-	318	21910425	-	SpyM3_0889	-	hypothetical protein
890	 39.36	0	947314..947910	-	198	21910426	-	SpyM3_0890	-	hypothetical protein
891	 38.91	0	948002..950638	-	878	21910427	-	SpyM3_0891	-	hypothetical protein
892	 40.17	0	950653..951354	-	233	21910428	-	SpyM3_0892	-	ABC transporter ATP-binding protein
893	 37.02	0	951472..952014	+	180	21910429	-	SpyM3_0893	-	TetR/AcrR family transcriptional regulator
894	 35.05	0	952157..952798	-	213	21910430	-	SpyM3_0894	-	putative transcriptional regulator
895	 34.76	-1	952961..953449	-	162	21910431	-	SpyM3_0895	-	hypothetical protein
896	 31.34	-1	953460..953660	-	66	21910432	-	SpyM3_0896	-	hypothetical protein
897	 33.89	-1	953701..954240	-	179	21910433	-	SpyM3_0897	-	hypothetical protein
898	 31.22	-1	954253..954441	-	62	21910434	-	SpyM3_0898	-	hypothetical protein
899	 33.67	-1	954452..955039	-	195	21910435	-	SpyM3_0899	-	hypothetical protein
900	 42.97	+1	955100..955348	-	82	21910436	-	SpyM3_0900	-	hypothetical protein
901	 41.10	0	955711..958029	-	772	21910437	pcrA	SpyM3_0901	-	DNA helicase II
902	 35.67	0	958398..958568	-	56	21910438	-	SpyM3_0902	-	hypothetical protein
903	 43.31	+1	958559..959881	+	440	21910439	-	SpyM3_0903	-	Na(+)-linked D-alanine glycine permease
904	 36.17	0	960001..961236	+	411	21910440	-	SpyM3_0904	-	putative cation efflux system protein
905	 35.79	0	961606..962379	-	257	21910441	cfa	SpyM3_0905	-	cAMP factor
906	 33.21	-1	962749..963585	-	278	21910442	-	SpyM3_0906	-	putative amino acid ABC transporter, periplasmic amino acid-binding protein
907	 39.84	0	963601..964230	-	209	21910443	-	SpyM3_0907	-	putative amino acid ABC transporter ATP-binding protein
908	 35.67	0	964240..964881	-	213	21910444	-	SpyM3_0908	-	putative amino acid ABC transporter (permease protein)
909	 38.39	0	964988..965323	-	111	21910445	-	SpyM3_0909	-	hypothetical protein
910	 41.21	0	965519..967282	-	587	21910446	glmS	SpyM3_0910	-	D-fructose-6-phosphate amidotransferase
911	 32.97	-1	967509..968066	-	185	21910447	sipC	SpyM3_0911	-	putative signal peptidase I
912	 40.25	0	968284..969786	-	500	21910448	pyk	SpyM3_0912	-	pyruvate kinase
913	 43.20	+1	969849..970862	-	337	21910449	pfkA	SpyM3_0913	-	6-phosphofructokinase
914	 37.64	0	970942..974052	-	1036	21910450	dnaE	SpyM3_0914	-	DNA polymerase III DnaE
915	 37.37	0	974237..974608	+	123	21910451	-	SpyM3_0915	-	GntR family transcriptional regulator
916	 35.19	0	974608..975306	+	232	21910452	-	SpyM3_0916	-	ABC transporter ATP-binding protein
917	 31.42	-1	975316..976101	+	261	21910453	-	SpyM3_0917	-	ABC transporter permease
918	 32.52	-1	976232..976846	-	204	21910454	-	SpyM3_0918	-	hypothetical protein
919	 40.21	0	977437..977625	-	62	21910455	-	SpyM3_0919	-	hypothetical protein
920	 31.16	-1	977738..978520	-	260	21910456	ssa	SpyM3_0920	-	streptococcal superantigen SSA - phage associated
921	 36.18	0	978733..979857	-	374	21910457	-	SpyM3_0921	-	hypothetical protein
922	 44.67	+1	979995..981203	-	402	21910458	-	SpyM3_0922	-	putative cell wall hydrolase - phage associated
923	 39.04	0	981319..981546	-	75	21910459	-	SpyM3_0923	-	putative holin - phage associated
924	 34.78	-1	981543..981818	-	91	21910460	-	SpyM3_0924	-	hypothetical protein
925	 42.72	+1	981828..982445	-	205	21910461	-	SpyM3_0925	-	hypothetical protein
926	 35.19	0	982448..982879	-	143	21910462	-	SpyM3_0926	-	hypothetical protein
927	 44.48	+1	982891..984774	-	627	21910463	-	SpyM3_0927	-	hypothetical protein
928	 43.90	+1	984859..984981	-	40	21910464	-	SpyM3_0928	-	hyaluronidase C-terminal portion - phage associated
929	 44.44	+1	985021..985803	-	260	21910465	hylP.2	SpyM3_0929	-	hyaluronidase N-terminal portion - phage associated
930	 41.83	0	985800..987776	-	658	21910466	-	SpyM3_0930	-	hypothetical protein
931	 42.09	0	987941..988648	-	235	21910467	-	SpyM3_0931	-	hypothetical protein
932	 41.95	0	988648..992571	-	1307	21910468	-	SpyM3_0932	-	hypothetical protein
933	 36.90	0	992584..992751	-	55	21910469	-	SpyM3_0933	-	hypothetical protein
934	 36.39	0	992781..993107	-	108	21910470	-	SpyM3_0934	-	hypothetical protein
935	 41.83	0	993160..993771	-	203	21910471	-	SpyM3_0935	-	hypothetical protein
936	 34.98	0	993790..994215	-	141	21910472	-	SpyM3_0936	-	hypothetical protein
937	 40.21	0	994212..994589	-	125	21910473	-	SpyM3_0937	-	hypothetical protein
938	 34.51	-1	994586..994924	-	112	21910474	-	SpyM3_0938	-	hypothetical protein
939	 37.62	0	994921..995223	-	100	21910475	-	SpyM3_0939	-	hypothetical protein
940	 38.76	0	995226..995354	-	42	21910476	-	SpyM3_0940	-	hypothetical protein
941	 37.55	0	995368..996552	-	394	21910477	-	SpyM3_0941	-	hypothetical protein
942	 38.44	0	996578..997243	-	221	21910478	clpP.2	SpyM3_0942	-	putative ClpP protease ATP-dependent protease proteolytic subunit - phage associated
943	 39.89	0	997221..998441	-	406	21910479	-	SpyM3_0943	-	hypothetical protein
944	 36.70	0	998475..998741	-	88	21910480	-	SpyM3_0944	-	hypothetical protein
945	 30.99	-2	998734..998904	-	56	21910481	-	SpyM3_0945	-	hypothetical protein
946	 38.29	0	998901..1000655	-	584	21910482	-	SpyM3_0946	-	hypothetical protein
947	 37.61	0	1000670..1001137	-	155	21910483	-	SpyM3_0947	-	hypothetical protein
948	 38.94	0	1001309..1001647	-	112	21910484	-	SpyM3_0948	-	hypothetical protein
949	 46.73	+2	1001644..1001949	-	101	21910485	-	SpyM3_0949	-	hypothetical protein
950	 37.64	0	1002233..1002673	-	146	21910486	-	SpyM3_0950	-	hypothetical protein
951	 36.16	0	1002946..1003581	-	211	21910487	-	SpyM3_0951	-	hypothetical protein
952	 34.08	-1	1003581..1003982	-	133	21910488	-	SpyM3_0952	-	hypothetical protein
953	 37.07	0	1004173..1004547	-	124	21910489	-	SpyM3_0953	-	putative DNA methyltransferase - phage associated
954	 37.75	0	1004853..1005056	-	67	21910490	-	SpyM3_0954	-	hypothetical protein
955	 39.25	0	1005040..1005360	-	106	21910491	-	SpyM3_0955	-	hypothetical protein
956	 31.88	-1	1005357..1005770	-	137	21910492	-	SpyM3_0956	-	hypothetical protein
38.60	MEAN

3.72	STD DEV
