IslandPath Analysis: Streptococcus pyogenes MGAS315

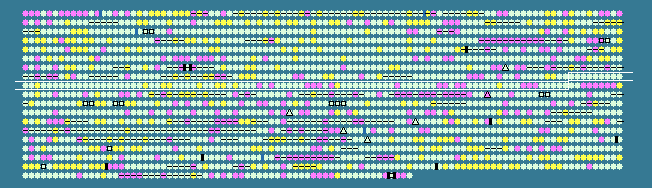

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.60 STD DEV: 3.72
Streptococcus pyogenes MGAS315, complete genome - 1..1900521
1865 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
792	 39.10	0	843647..845173	+	508	21910328	-	SpyM3_0792	-	putative ABC transporter (binding protein)
793	 39.43	0	845451..846434	+	327	21910329	-	SpyM3_0793	-	guanosine 5'-monophosphate oxidoreductase
794	 38.49	0	846739..847320	+	193	21910330	xpt	SpyM3_0794	-	xanthine phosphoribosyltransferase
795	 40.34	0	847320..848603	+	427	21910331	-	SpyM3_0795	-	putative purine (xanthine) permease
796	 37.17	0	848667..849605	-	312	21910332	-	SpyM3_0796	-	putative thiamine biosynthesis lipoprotein precursor
797	 36.56	0	849658..849843	-	61	21910333	-	SpyM3_0797	-	4-oxalocrotonate tautomerase
798	 35.19	0	850011..850550	+	179	21910334	tdk	SpyM3_0798	-	thymidine kinase
799	 36.94	0	850585..851664	+	359	21910335	prfA	SpyM3_0799	-	peptide chain release factor 1
800	 35.71	0	851664..852503	+	279	21910336	hemK	SpyM3_0800	-	putative protoporphyrinogen oxidase
801	 37.73	0	852487..853077	+	196	21910337	-	SpyM3_0801	-	hypothetical protein
802	 41.06	0	853095..853547	+	150	21910338	-	SpyM3_0802	-	hypothetical protein
803	 42.40	+1	853537..854793	+	418	21910339	glyA	SpyM3_0803	-	serine hydroxymethyltransferase
804	 35.17	0	854800..855777	+	325	21910340	-	SpyM3_0804	-	hypothetical protein
805	 38.33	0	855778..856377	+	199	21910341	-	SpyM3_0805	-	hypothetical protein
806	 40.16	0	856502..858112	+	536	21910342	-	SpyM3_0806	-	putative ABC transporter ATP-binding protein
807	 38.43	0	858109..859836	+	575	21910343	-	SpyM3_0807	-	putative ABC transporter ATP-binding protein
808	 40.26	0	860077..861447	+	456	21910344	nox.1	SpyM3_0808	-	putative NADH oxidase
809	 40.85	0	861606..862589	-	327	21910345	ldh	SpyM3_0809	-	L-lactate dehydrogenase
810	 40.05	0	862780..865266	+	828	21910346	gyrA	SpyM3_0810	-	DNA gyrase subunit A
811	 36.00	0	865286..866035	+	249	21910347	-	SpyM3_0811	-	putative sortase
812	 35.99	0	866118..866531	+	137	21910348	-	SpyM3_0812	-	hypothetical protein
813	 37.07	0	867145..867519	+	124	21910349	-	SpyM3_0813	-	hypothetical protein
814	 38.16	0	867569..868480	-	303	21910350	-	SpyM3_0814	-	hypothetical protein
815	 37.63	0	868597..869247	-	216	21910351	hlyIII	SpyM3_0815	-	hypothetical protein
816	 37.64	0	869244..869684	-	146	21910352	-	SpyM3_0816	-	hypothetical protein
817	 38.40	0	869903..870751	+	282	21910353	rbgA	SpyM3_0817	-	ribosomal biogenesis GTPase
818	 41.92	0	870741..871532	+	263	21910354	rnhB	SpyM3_0818	-	ribonuclease HII
819	 39.31	0	871597..872433	+	278	21910355	smf	SpyM3_0819	-	Smf family DNA processing protein
820	 38.40	0	872539..874668	+	709	21910356	topA	SpyM3_0820	-	DNA topoisomerase I
821	 42.96	+1	874665..876149	+	494	21910357	gid	SpyM3_0821	-	tRNA (uracil-5-)-methyltransferase Gid
822	 42.08	0	876302..877708	+	468	161485745	-	SpyM3_0822	-	oxaloacetate decarboxylase
823	 37.46	0	877751..878065	+	104	21910359	-	SpyM3_0823	-	hypothetical protein
824	 42.45	+1	878065..878415	+	116	21910360	-	SpyM3_0824	-	putative methylmalonyl-CoA decarboxylase gamma-subunit
825	 43.15	+1	878425..879555	+	376	21910361	-	SpyM3_0825	-	putative methylmalonyl-CoA decarboxylase beta-subunit
826	 40.90	0	879756..880640	-	294	21910362	citG	SpyM3_0826	-	putative CitG protein,2-(5''-triphosphoribosyl)-3'-dephosphocoenzyme-A synthase
827	 35.49	0	880633..881328	-	231	21910363	-	SpyM3_0827	-	GntR family transcriptional regulator
828	 40.72	0	881486..882892	-	468	21910364	-	SpyM3_0828	-	putative Mg2+/citrate complex transporter
829	 38.27	0	883269..883592	+	107	21910365	-	SpyM3_0829	-	hypothetical protein
830	 46.87	+2	883646..884044	+	132	161485744	-	SpyM3_0830	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
831	 41.83	0	884140..885210	+	356	21910367	-	SpyM3_0831	-	putative decarboxylase beta subunit
832	 41.42	0	885398..885706	+	102	21910368	citD	SpyM3_0832	-	citrate lyase subunit gamma
833	 42.45	+1	885694..886581	+	295	21910369	citE	SpyM3_0833	-	putative citrate lyase beta subunit
834	 42.79	+1	886584..888116	+	510	21910370	citF	SpyM3_0834	-	putative citrate lyase alpha subunit
835	 41.28	0	888109..888687	+	192	21910371	citX	SpyM3_0835	-	2'-(5''-triphosphoribosyl)-3'-dephospho-CoA:apo-citrate lyase
836	 43.15	+1	888702..890096	+	464	21910372	oadA	SpyM3_0836	-	oxaloacetate decarboxylase
837	 38.18	0	890207..891259	-	350	21910373	citC	SpyM3_0837	-	putative citrate lyase synthetase (citrate (pro-3S)-lyase ligase)
838	 36.44	0	891348..891830	-	160	21910374	-	SpyM3_0838	-	hypothetical protein
839	 37.82	0	892531..893601	-	356	21910375	xerS	SpyM3_0839	-	site-specific tyrosine recombinase XerS
840	 32.62	-1	894071..894769	+	232	21910376	-	SpyM3_0840	-	putative repressor protein
841	 40.50	0	894904..896466	-	520	21910377	ffh	SpyM3_0841	-	putative signal recognition particle -inhibited division protein
842	 32.75	-1	896481..896822	-	113	21910378	ylxM	SpyM3_0842	-	hypothetical protein
843	 38.91	0	896911..897609	-	232	21910379	-	SpyM3_0843	-	GntR family transcriptional regulator
844	 35.15	0	897692..899125	-	477	21910380	-	SpyM3_0844	-	hypothetical protein
845	 40.69	0	899292..900854	+	520	21910381	guaA	SpyM3_0845	-	bifunctional GMP synthase/glutamine amidotransferase protein
846	 35.13	0	900896..902119	-	407	21910382	murM.2	SpyM3_0846	-	putative anti resistance factor
847	 36.89	0	902484..904028	-	514	21910383	-	SpyM3_0847	-	ABC transporter ATP-binding protein
848	 33.33	-1	904162..904719	-	185	21910384	-	SpyM3_0848	-	hypothetical protein
849	 33.91	-1	904697..905563	-	288	21910385	pdxK	SpyM3_0849	-	pyridoxamine kinase
850	 33.49	-1	905653..906921	+	422	21910386	-	SpyM3_0850	-	hypothetical protein
851	 35.99	0	907392..907730	-	112	21910387	-	SpyM3_0851	-	putative anaerobic ribonucleotide reductase
852	 33.59	-1	908069..909646	-	525	21910388	-	SpyM3_0852	-	putative cardiolipin synthetase
853	 42.73	+1	909731..911401	-	556	21910389	fhs.1	SpyM3_0853	-	formate--tetrahydrofolate ligase
854	 38.53	0	911529..912548	-	339	21910390	lplA	SpyM3_0854	-	putative lipoate-protein ligase
855	 39.64	0	912595..913371	-	258	21910391	-	SpyM3_0855	-	SIR2 family protein
856	 40.87	0	913469..914251	-	260	21910392	-	SpyM3_0856	-	hypothetical protein
857	 40.54	0	914274..914606	-	110	21910393	-	SpyM3_0857	-	putative glycine cleavage system H protein
858	 39.24	0	914648..915646	-	332	21910394	-	SpyM3_0858	-	hypothetical protein
859	 40.67	0	915643..916842	-	399	21910395	-	SpyM3_0859	-	putative trimethylamine dehydrogenase
860	 39.70	0	916839..917576	-	245	21910396	-	SpyM3_0860	-	hypothetical protein
861	 36.80	0	917871..918563	+	230	21910397	dpfB	SpyM3_0861	-	phosphopantothenate--cysteine ligase
862	 35.90	0	918556..919101	+	181	21910398	dfp	SpyM3_0862	-	phosphopantothenoylcysteine decarboxylase
863	 33.16	-1	919159..919728	+	189	21910399	-	SpyM3_0863	-	hypothetical protein
864	 37.75	0	919904..921622	+	572	21910400	pgmA	SpyM3_0864	-	putative phosphoglucomutase
865	 38.91	0	921837..922661	-	274	21910401	-	SpyM3_0865	-	putative sugar ABC transporter (permease protein)
866	 37.46	0	922795..923859	-	354	21910402	-	SpyM3_0866	-	putative sugar ABC transporter (permease protein)
867	 37.31	0	923852..925384	-	510	21910403	-	SpyM3_0867	-	putative sugar ABC transporter ATP-binding protein
868	 38.46	0	925523..926575	-	350	21910404	-	SpyM3_0868	-	putative ABC transporter (lipoprotein)
869	 35.90	0	926669..927058	-	129	21910405	cdd	SpyM3_0869	-	cytidine deaminase
870	 34.01	-1	927718..928311	-	197	21910406	-	SpyM3_0870	-	16S rRNA m(2)G 1207 methyltransferase
871	 31.60	-1	928579..929499	+	306	21910407	coaA	SpyM3_0871	-	pantothenate kinase
872	 39.74	0	929568..929801	+	77	161485743	rpsT	SpyM3_0872	-	30S ribosomal protein S20
873	 31.58	-1	929926..931236	-	436	21910409	ciaH	SpyM3_0873	-	putative sensor histidine kinase protein
874	 32.00	-1	931229..931903	-	224	21910410	ciaR	SpyM3_0874	-	putative DNA-binding response regulator
875	 36.68	0	932250..934787	-	845	21910411	pepN	SpyM3_0875	-	aminopeptidase N
876	 35.32	0	934992..935645	-	217	21910412	phoU	SpyM3_0876	-	putative phosphate uptake regulatory protein
877	 39.11	0	935713..936474	-	253	21910413	pstB	SpyM3_0877	-	putative phosphate ABC transporter ATP-binding protein
878	 39.18	0	936484..937287	-	267	21910414	pstB2	SpyM3_0878	-	phosphate ABC transporter ATP-binding protein
879	 40.65	0	937303..938190	-	295	21910415	pstC	SpyM3_0879	-	putative phosphate ABC transporter (permease protein)
880	 42.74	+1	938180..939115	-	311	21910416	pstC2	SpyM3_0880	-	putative phosphate ABC transporter (permease protein)
881	 38.41	0	939126..939992	-	288	21910417	pstS	SpyM3_0881	-	putative phosphate ABC transporter, periplasmic phosphate-binding protein
882	 40.52	0	940131..941438	-	435	21910418	-	SpyM3_0882	-	putative nucleolar protein
883	 38.91	0	941444..942232	-	262	21910419	-	SpyM3_0883	-	putative myo-inositol-1(or 4)-monophosphatase
884	 32.62	-1	942222..942500	-	92	21910420	-	SpyM3_0884	-	hypothetical protein
885	 34.81	-1	942502..942906	-	134	21910421	spxA	SpyM3_0885	-	transcriptional regulator Spx
886	 34.08	-1	942949..943881	-	310	21910422	mreA	SpyM3_0886	-	bifunctional riboflavin kinase/FMN adenylyltransferase
887	 41.81	0	943910..944794	-	294	161485742	truB	SpyM3_0887	-	tRNA pseudouridine synthase B
888	 38.40	0	944910..946250	-	446	21910424	-	SpyM3_0888	-	hypothetical protein
889	 36.78	0	946347..947303	-	318	21910425	-	SpyM3_0889	-	hypothetical protein
890	 39.36	0	947314..947910	-	198	21910426	-	SpyM3_0890	-	hypothetical protein
891	 38.91	0	948002..950638	-	878	21910427	-	SpyM3_0891	-	hypothetical protein
38.60	MEAN

3.72	STD DEV
