IslandPathversion 1.0

IslandPath Analysis: Streptococcus pyogenes MGAS315

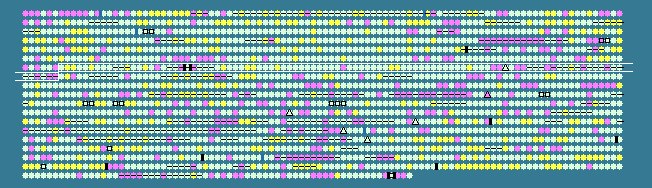

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.60 STD DEV: 3.72
Streptococcus pyogenes MGAS315, complete genome - 1..1900521
1865 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
607	 38.48	0	666055..668154	-	699	21910143	clpL	SpyM3_0607	-	putative ATP-dependent Clp proteinase (ATP-binding subunit)
608	 42.84	+1	668534..669217	+	227	21910144	rpiA	SpyM3_0608	-	ribose-5-phosphate isomerase A
609	 42.49	+1	669294..670505	+	403	21910145	deoB	SpyM3_0609	-	phosphopentomutase
610	 41.04	0	670524..670964	+	146	21910146	arsC	SpyM3_0610	-	putative arsenate reductase
611	 41.36	0	670948..671757	+	269	21910147	punA	SpyM3_0611	-	purine nucleoside phosphorylase
612	 43.56	+1	672528..673133	+	201	21910148	deoD2	SpyM3_0612	-	putative purine nucleoside phosphorylase
613	 39.60	0	673261..673914	+	217	21910149	-	SpyM3_0613	-	putative histidine protein kinase
614	 40.20	0	673994..674779	-	261	21910150	cpsY	SpyM3_0614	-	putative transcriptional regulator
615	 36.50	0	675121..675657	+	178	21910151	-	SpyM3_0615	-	hypothetical protein
616	 41.99	0	675934..676626	+	230	21910152	pyrF	SpyM3_0616	-	orotidine 5'-phosphate decarboxylase
617	 39.52	0	676684..677313	+	209	21910153	pyrE	SpyM3_0617	-	orotate phosphoribosyltransferase
618	 42.27	0	677510..678964	+	484	21910154	amiC	SpyM3_0618	-	amidase
619	 37.62	0	679082..679945	+	287	21910155	-	SpyM3_0619	-	putative ABC transporter (binding protein)
620	 39.32	0	679974..680624	+	216	21910156	-	SpyM3_0620	-	putative ABC transporter (permease)
621	 42.81	+1	680757..681410	+	217	21910157	ung	SpyM3_0621	-	uracil-DNA glycosylase
622	 40.98	0	681542..682810	+	422	21910158	pyrC	SpyM3_0622	-	dihydroorotase
623	 32.78	-1	682868..683590	-	240	21910159	-	SpyM3_0623	-	putative glycerol-3-phosphate acyltransferase PlsY
624	 41.73	0	683641..685593	+	650	21910160	parE	SpyM3_0624	-	DNA topoisomerase IV subunit B
625	 40.24	0	685684..688143	+	819	161485747	parC	SpyM3_0625	-	DNA topoisomerase IV subunit A
626	 40.74	0	688263..689288	+	341	21910162	bcaT	SpyM3_0626	-	branched-chain amino acid aminotransferase
627	 31.17	-1	689352..689582	+	76	21910163	-	SpyM3_0627	-	hypothetical protein
628	 41.29	0	689994..691199	+	401	21910164	rpsA	SpyM3_0628	-	30S ribosomal protein S1
629	 33.00	-1	691746..692048	-	100	21910165	-	SpyM3_0629	-	hypothetical protein
630	 38.10	0	692249..693235	+	328	21910166	-	SpyM3_0630	-	hypothetical protein
631	 40.57	0	693546..693932	+	128	21910167	-	SpyM3_0631	-	hypothetical protein
632	 39.49	0	693991..694899	+	302	21910168	-	SpyM3_0632	-	putative exfoliative toxin
633	 41.81	0	695017..695193	-	58	21910169	-	SpyM3_0633	-	hypothetical protein
634	 43.00	+1	695327..696226	+	299	21910170	miaA	SpyM3_0634	-	tRNA delta(2)-isopentenylpyrophosphate transferase
635	 39.55	0	696380..697537	+	385	21910171	hflX	SpyM3_0635	-	putative GTP-binding protein
636	 38.21	0	697530..698165	+	211	21910172	-	SpyM3_0636	-	hypothetical protein
637	 40.54	0	698180..699109	+	309	21910173	-	SpyM3_0637	-	ribonuclease Z
638	 42.09	0	699109..699873	+	254	21910174	-	SpyM3_0638	-	oxidoreductase
639	 42.15	0	699870..702080	+	736	21910175	recJ	SpyM3_0639	-	putative single-strand DNA-specific exonuclease
640	 39.11	0	702230..702748	+	172	21910176	apt	SpyM3_0640	-	adenine phosphoribosyltransferase
641	 35.53	0	702829..703512	+	227	21910177	-	SpyM3_0641	-	hypothetical protein
642	 39.57	0	703509..704165	+	218	21910178	nth	SpyM3_0642	-	putative endonuclease III (DNA repair)
643	 42.36	+1	704237..704923	+	228	21910179	-	SpyM3_0643	-	hypothetical protein
644	 40.43	0	704913..705701	+	262	21910180	-	SpyM3_0644	-	hypothetical protein
645	 40.20	0	705741..706847	+	368	21910181	-	SpyM3_0645	-	putative oxidoreductase
646	 42.07	0	706905..707774	+	289	21910182	rmlA	SpyM3_0646	-	glucose-1-phosphate thymidyl transferase
647	 40.07	0	707774..708367	+	197	21910183	rmlC	SpyM3_0647	-	dTDP-4-dehydrorhamnose 3,5-epimerase
648	 40.15	0	708611..709651	+	346	21910184	rmlB	SpyM3_0648	-	dTDP-glucose 4,6-dehydratase
649	 39.62	0	709872..710348	+	158	21910185	mutX	SpyM3_0649	-	putative dGTP pyrophosphohydrolase
650	 38.32	0	710406..711587	+	393	21910186	-	SpyM3_0650	-	hypothetical protein
651	 39.42	0	711577..712824	+	415	21910187	-	SpyM3_0651	-	hypothetical protein
652	 40.05	0	712883..714535	-	550	21910188	-	SpyM3_0652	-	putative fibronectin-binding protein-like protein A
653	 38.34	0	714889..715887	+	332	21910189	-	SpyM3_0653	-	putative ABC transporter substrate-binding protein
654	 31.05	-2	715838..716056	+	72	21910190	-	SpyM3_0654	-	hypothetical protein
655	 36.21	0	716232..717101	+	289	21910191	-	SpyM3_0655	-	putative ABC transporter membrane-spanning permease
656	 37.55	0	717098..717856	+	252	21910192	-	SpyM3_0656	-	ABC transporter ATP-binding protein
657	 38.57	0	718060..719721	+	553	21910193	-	SpyM3_0657	-	Zn-dependent hydrolase
658	 41.09	0	719854..720639	+	261	21910194	estA	SpyM3_0658	-	putative tributyrin esterase
659	 35.47	0	720669..720995	+	108	21910195	-	SpyM3_0659	-	hypothetical protein
660	 40.88	0	721041..722948	+	635	21910196	-	SpyM3_0660	-	ABC transporter ATP-binding protein
661	 41.59	0	723233..724201	+	322	21910197	acoA	SpyM3_0661	-	putative acetoin dehydrogenase (TPP-dependent) alpha chain
662	 42.42	+1	724257..725258	+	333	21910198	acoB	SpyM3_0662	-	putative acetoin dehydrogenase (TPP-dependent) beta chain
663	 42.77	+1	725443..726852	+	469	21910199	acoC	SpyM3_0663	-	branched-chain alpha-keto acid dehydrogenase subunit E2
664	 41.50	0	727183..728946	+	587	21910200	acoL	SpyM3_0664	-	putative dihydrolipoamide dehydrogenase component E3
665	 35.93	0	729429..731852	-	807	21910201	hylA	SpyM3_0665	-	extracellular hyaluronate lyase
666	 37.47	0	732085..733074	+	329	21910202	-	SpyM3_0666	-	putative lipoate-protein ligase
667	 36.62	0	733183..733974	-	263	21910203	cobQ	SpyM3_0667	-	putative cobyric acid synthase
668	 37.97	0	733974..735311	-	445	21910204	murC	SpyM3_0668	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
669	 37.09	0	735424..736275	+	283	21910205	-	SpyM3_0669	-	hypothetical protein
670	 36.26	0	736272..737228	+	318	21910206	-	SpyM3_0670	-	hypothetical protein
671	 42.07	0	737447..738637	+	396	21910207	-	SpyM3_0671	-	putative phospho-sugar mutase
672	 39.41	0	738761..739402	+	213	21910208	-	SpyM3_0672	-	hypothetical protein
673	 37.82	0	739369..740595	+	408	21910209	hemN	SpyM3_0673	-	coproporphyrinogen III oxidase
674	 36.25	0	740605..741357	+	250	21910210	-	SpyM3_0674	-	putative acyl-ACP thioesterase
675	 43.66	+1	741357..742121	+	254	21910211	-	SpyM3_0675	-	hypothetical protein
676	 37.91	0	742121..742753	+	210	21910212	-	SpyM3_0676	-	hypothetical protein
677	 35.21	0	743040..747146	+	1368	21910213	-	SpyM3_0677	-	hypothetical protein
678	 35.63	0	747146..748015	+	289	21910214	-	SpyM3_0678	-	hypothetical protein
679	 34.56	-1	748027..748353	+	108	21910215	-	SpyM3_0679	-	hypothetical protein
680	 29.71	-2	748343..749005	+	220	21910216	-	SpyM3_0680	-	hypothetical protein
681	 35.42	0	749213..750409	-	398	21910217	-	SpyM3_0681	-	putative integrase - phage associated
682	 36.71	0	750720..751460	-	246	21910218	-	SpyM3_0682	-	hypothetical protein
683	 33.59	-1	751471..751863	-	130	21910219	-	SpyM3_0683	-	hypothetical protein
684	 30.51	-2	751867..752256	-	129	21910220	-	SpyM3_0684	-	putative repressor - phage associated
685	 35.87	0	752506..752781	+	91	21910221	-	SpyM3_0685	-	hypothetical protein
686	 37.09	0	752816..753028	+	70	21910222	-	SpyM3_0686	-	hypothetical protein
687	 38.06	0	753907..754626	+	239	21910223	-	SpyM3_0687	-	putative antirepressor - phage associated
688	 31.40	-1	754700..754957	+	85	21910224	-	SpyM3_0688	-	hypothetical protein
689	 31.77	-1	755050..755241	+	63	21910225	-	SpyM3_0689	-	hypothetical protein
690	 40.04	0	755537..756877	+	446	21910226	-	SpyM3_0690	-	putative DNA polymerase III delta prime subunit - phage associated
691	 35.43	0	756870..757631	+	253	21910227	-	SpyM3_0691	-	hypothetical protein
692	 46.23	+2	757940..758443	+	167	21910228	-	SpyM3_0692	-	hypothetical protein
693	 37.72	0	758443..758670	+	75	21910229	-	SpyM3_0693	-	hypothetical protein
694	 30.92	-2	758684..758890	+	68	21910230	-	SpyM3_0694	-	hypothetical protein
695	 38.39	0	758907..759341	+	144	21910231	-	SpyM3_0695	-	hypothetical protein
696	 40.00	0	759338..759622	+	94	21910232	-	SpyM3_0696	-	hypothetical protein
697	 36.97	0	759624..760256	+	210	21910233	-	SpyM3_0697	-	hypothetical protein
698	 33.53	-1	760261..760773	+	170	21910234	-	SpyM3_0698	-	hypothetical protein
699	 41.94	0	760739..760924	+	61	21910235	-	SpyM3_0699	-	putative single strand binding protein - phage associated
700	 40.07	0	760939..761220	+	93	21910236	-	SpyM3_0700	-	hypothetical protein
701	 35.40	0	761217..761555	+	112	21910237	-	SpyM3_0701	-	putaive immunity repressor protein - phage associated
702	 37.68	0	761557..762384	+	275	21910238	-	SpyM3_0702	-	hypothetical protein
703	 33.33	-1	762486..762800	+	104	21910239	-	SpyM3_0703	-	putative transcriptional activator - phage associated
704	 35.94	0	762960..763535	+	191	21910240	-	SpyM3_0704	-	putative recombinase - phage associated
705	 31.97	-1	763689..763982	+	97	21910241	-	SpyM3_0705	-	hypothetical protein
706	 34.80	-1	764040..764243	+	67	21910242	-	SpyM3_0706	-	hypothetical protein
38.60	MEAN

3.72	STD DEV
