IslandPath Analysis: Streptococcus pyogenes MGAS315

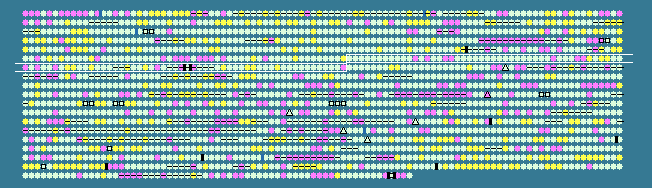

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.60 STD DEV: 3.72
Streptococcus pyogenes MGAS315, complete genome - 1..1900521
1865 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
555	 35.96	0	608939..609853	+	304	21910091	-	SpyM3_0555	-	putative capsular polysaccharide biosynthesis regulatory protein
556	 36.17	0	609850..610308	+	152	21910092	lsp	SpyM3_0556	-	putative prolipoprotein signal peptidase
557	 41.53	0	610298..611188	+	296	21910093	-	SpyM3_0557	-	putative ribosomal large subunit pseudouridine synthase
558	 41.76	0	611583..612104	+	173	21910094	pyrR	SpyM3_0558	-	pyrimidine regulatory protein PyrR
559	 38.77	0	612165..613379	+	404	21910095	pyrP	SpyM3_0559	-	putative uracil permease
560	 39.64	0	613440..614375	+	311	21910096	pyrB	SpyM3_0560	-	aspartate carbamoyltransferase catalytic subunit
561	 40.07	0	614419..615501	+	360	21910097	carA	SpyM3_0561	-	carbamoyl phosphate synthase small subunit
562	 38.02	0	615747..618923	+	1058	161485749	carB	SpyM3_0562	-	carbamoyl phosphate synthase large subunit
563	 36.32	0	619129..620400	+	423	21910099	-	SpyM3_0563	-	hypothetical protein
564	 35.37	0	620424..621110	+	228	21910100	-	SpyM3_0564	-	ABC transporter ATP-binding protein
565	 35.63	0	621122..622342	+	406	21910101	-	SpyM3_0565	-	ABC transporter permease
566	 31.72	-1	622596..624329	+	577	21910102	-	SpyM3_0566	-	putative glycerophosphodiester phosphodiesterase
567	 38.83	0	624456..624728	+	90	21910103	rpsP	SpyM3_0567	-	30S ribosomal protein S16
568	 35.00	0	624738..624977	+	79	21910104	-	SpyM3_0568	-	RNA binding protein
569	 35.93	0	625937..628936	+	999	21910105	-	SpyM3_0569	-	putative surface antigen
570	 36.82	0	628956..629357	+	133	21910106	-	SpyM3_0570	-	hypothetical protein
571	 33.90	-1	629537..630412	-	291	21910107	czcD	SpyM3_0571	-	putative cation-efflux system membrane protein
572	 29.89	-2	630548..631069	+	173	21910108	-	SpyM3_0572	-	hypothetical protein
573	 37.76	0	631284..631802	+	172	21910109	rimM	SpyM3_0573	-	16S rRNA-processing protein
574	 41.26	0	631792..632523	+	243	21910110	trmD	SpyM3_0574	-	tRNA (guanine-N(1)-)-methyltransferase
575	 37.26	0	632523..633515	+	330	21910111	-	SpyM3_0575	-	putative thioredoxin reductase
576	 39.75	0	633693..634751	+	352	21910112	-	SpyM3_0576	-	regulatory protein
577	 40.26	0	634764..635687	+	307	21910113	apbA	SpyM3_0577	-	2-dehydropantoate 2-reductase
578	 36.13	0	635943..636656	+	237	21910114	fruR	SpyM3_0578	-	putative fructose operon transcriptional repressor
579	 40.81	0	636776..637564	+	262	21910115	fruK	SpyM3_0579	-	putative fructose-1-phosphate kinase
580	 41.60	0	637561..639507	+	648	21910116	fruA	SpyM3_0580	-	PTS system, fructose-specific IIABC component
581	 37.21	0	639606..640199	+	197	21910117	-	SpyM3_0581	-	putative peptidoglycan hydrolase
582	 38.70	0	640426..641058	+	210	21910118	-	SpyM3_0582	-	putative peptidoglycan hydrolase
583	 38.04	0	642015..643034	-	339	21910119	-	SpyM3_0583	-	hypothetical protein
584	 41.24	0	643539..643715	+	58	21910120	-	SpyM3_0584	-	hypothetical protein
585	 35.17	0	643943..644323	+	126	21910121	-	SpyM3_0585	-	hypothetical protein
586	 36.75	0	644323..645171	+	282	21910122	-	SpyM3_0586	-	hypothetical protein
587	 39.95	0	645296..646504	+	402	21910123	papS	SpyM3_0587	-	tRNA CCA-pyrophosphorylase
588	 39.40	0	646501..648378	+	625	21910124	-	SpyM3_0588	-	putative ABC transporter ATP-binding protein
589	 30.72	-2	648882..649034	+	50	21910125	-	SpyM3_0589	-	hypothetical protein
590	 35.52	0	649290..649700	+	136	21910126	fms	SpyM3_0590	-	peptide deformylase
591	 35.72	0	649782..651794	-	670	21910127	-	SpyM3_0591	-	5'-nucleotidase
592	 35.48	0	652014..652664	+	216	21910128	-	SpyM3_0592	-	GTP pyrophosphokinase
593	 34.68	-1	652667..653335	+	222	21910129	-	SpyM3_0593	-	putative two-component response regulator
594	 34.87	-1	653344..654576	+	410	21910130	-	SpyM3_0594	-	putative putative two-component sensory transduction histidine kinase
595	 42.66	+1	654870..655748	+	292	21910131	mvaK1	SpyM3_0595	-	mevalonate kinase
596	 40.86	0	655811..656674	+	287	21910132	mvaD	SpyM3_0596	-	mevalonate diphosphate decarboxylase
597	 42.86	+1	656667..657674	+	335	21910133	mvaK2	SpyM3_0597	-	phosphomevalonate kinase
598	 42.12	0	657667..658656	+	329	21910134	-	SpyM3_0598	-	isopentenyl pyrophosphate isomerase
599	 40.06	0	658886..660163	-	425	21910135	mvaS.1	SpyM3_0599	-	putative 3-hydroxy-3-methylglutaryl-coenzyme A
600	 37.59	0	660150..661325	-	391	21910136	mvaS.2	SpyM3_0600	-	putative 3-hydroxy-3-methylglutaryl-coenzyme A synthase
601	 34.88	0	661534..662373	+	279	161485748	thyA	SpyM3_0601	-	thymidylate synthase
602	 36.75	0	662453..662950	+	165	21910138	dyr	SpyM3_0602	-	putative dihydrofolate reductase
603	 34.50	-1	662970..663140	+	56	21910139	-	SpyM3_0603	-	hypothetical protein
604	 38.70	0	663270..664499	+	409	21910140	clpX	SpyM3_0604	-	ATP-dependent protease ATP-binding subunit
605	 38.67	0	664509..665108	+	199	21910141	-	SpyM3_0605	-	GTPase EngB
606	 34.14	-1	665256..666002	+	248	21910142	-	SpyM3_0606	-	hypothetical protein
607	 38.48	0	666055..668154	-	699	21910143	clpL	SpyM3_0607	-	putative ATP-dependent Clp proteinase (ATP-binding subunit)
608	 42.84	+1	668534..669217	+	227	21910144	rpiA	SpyM3_0608	-	ribose-5-phosphate isomerase A
609	 42.49	+1	669294..670505	+	403	21910145	deoB	SpyM3_0609	-	phosphopentomutase
610	 41.04	0	670524..670964	+	146	21910146	arsC	SpyM3_0610	-	putative arsenate reductase
611	 41.36	0	670948..671757	+	269	21910147	punA	SpyM3_0611	-	purine nucleoside phosphorylase
612	 43.56	+1	672528..673133	+	201	21910148	deoD2	SpyM3_0612	-	putative purine nucleoside phosphorylase
613	 39.60	0	673261..673914	+	217	21910149	-	SpyM3_0613	-	putative histidine protein kinase
614	 40.20	0	673994..674779	-	261	21910150	cpsY	SpyM3_0614	-	putative transcriptional regulator
615	 36.50	0	675121..675657	+	178	21910151	-	SpyM3_0615	-	hypothetical protein
616	 41.99	0	675934..676626	+	230	21910152	pyrF	SpyM3_0616	-	orotidine 5'-phosphate decarboxylase
617	 39.52	0	676684..677313	+	209	21910153	pyrE	SpyM3_0617	-	orotate phosphoribosyltransferase
618	 42.27	0	677510..678964	+	484	21910154	amiC	SpyM3_0618	-	amidase
619	 37.62	0	679082..679945	+	287	21910155	-	SpyM3_0619	-	putative ABC transporter (binding protein)
620	 39.32	0	679974..680624	+	216	21910156	-	SpyM3_0620	-	putative ABC transporter (permease)
621	 42.81	+1	680757..681410	+	217	21910157	ung	SpyM3_0621	-	uracil-DNA glycosylase
622	 40.98	0	681542..682810	+	422	21910158	pyrC	SpyM3_0622	-	dihydroorotase
623	 32.78	-1	682868..683590	-	240	21910159	-	SpyM3_0623	-	putative glycerol-3-phosphate acyltransferase PlsY
624	 41.73	0	683641..685593	+	650	21910160	parE	SpyM3_0624	-	DNA topoisomerase IV subunit B
625	 40.24	0	685684..688143	+	819	161485747	parC	SpyM3_0625	-	DNA topoisomerase IV subunit A
626	 40.74	0	688263..689288	+	341	21910162	bcaT	SpyM3_0626	-	branched-chain amino acid aminotransferase
627	 31.17	-1	689352..689582	+	76	21910163	-	SpyM3_0627	-	hypothetical protein
628	 41.29	0	689994..691199	+	401	21910164	rpsA	SpyM3_0628	-	30S ribosomal protein S1
629	 33.00	-1	691746..692048	-	100	21910165	-	SpyM3_0629	-	hypothetical protein
630	 38.10	0	692249..693235	+	328	21910166	-	SpyM3_0630	-	hypothetical protein
631	 40.57	0	693546..693932	+	128	21910167	-	SpyM3_0631	-	hypothetical protein
632	 39.49	0	693991..694899	+	302	21910168	-	SpyM3_0632	-	putative exfoliative toxin
633	 41.81	0	695017..695193	-	58	21910169	-	SpyM3_0633	-	hypothetical protein
634	 43.00	+1	695327..696226	+	299	21910170	miaA	SpyM3_0634	-	tRNA delta(2)-isopentenylpyrophosphate transferase
635	 39.55	0	696380..697537	+	385	21910171	hflX	SpyM3_0635	-	putative GTP-binding protein
636	 38.21	0	697530..698165	+	211	21910172	-	SpyM3_0636	-	hypothetical protein
637	 40.54	0	698180..699109	+	309	21910173	-	SpyM3_0637	-	ribonuclease Z
638	 42.09	0	699109..699873	+	254	21910174	-	SpyM3_0638	-	oxidoreductase
639	 42.15	0	699870..702080	+	736	21910175	recJ	SpyM3_0639	-	putative single-strand DNA-specific exonuclease
640	 39.11	0	702230..702748	+	172	21910176	apt	SpyM3_0640	-	adenine phosphoribosyltransferase
641	 35.53	0	702829..703512	+	227	21910177	-	SpyM3_0641	-	hypothetical protein
642	 39.57	0	703509..704165	+	218	21910178	nth	SpyM3_0642	-	putative endonuclease III (DNA repair)
643	 42.36	+1	704237..704923	+	228	21910179	-	SpyM3_0643	-	hypothetical protein
644	 40.43	0	704913..705701	+	262	21910180	-	SpyM3_0644	-	hypothetical protein
645	 40.20	0	705741..706847	+	368	21910181	-	SpyM3_0645	-	putative oxidoreductase
646	 42.07	0	706905..707774	+	289	21910182	rmlA	SpyM3_0646	-	glucose-1-phosphate thymidyl transferase
647	 40.07	0	707774..708367	+	197	21910183	rmlC	SpyM3_0647	-	dTDP-4-dehydrorhamnose 3,5-epimerase
648	 40.15	0	708611..709651	+	346	21910184	rmlB	SpyM3_0648	-	dTDP-glucose 4,6-dehydratase
649	 39.62	0	709872..710348	+	158	21910185	mutX	SpyM3_0649	-	putative dGTP pyrophosphohydrolase
650	 38.32	0	710406..711587	+	393	21910186	-	SpyM3_0650	-	hypothetical protein
651	 39.42	0	711577..712824	+	415	21910187	-	SpyM3_0651	-	hypothetical protein
652	 40.05	0	712883..714535	-	550	21910188	-	SpyM3_0652	-	putative fibronectin-binding protein-like protein A
653	 38.34	0	714889..715887	+	332	21910189	-	SpyM3_0653	-	putative ABC transporter substrate-binding protein
654	 31.05	-2	715838..716056	+	72	21910190	-	SpyM3_0654	-	hypothetical protein
38.60	MEAN

3.72	STD DEV
