IslandPathversion 1.0

IslandPath Analysis: Streptococcus pyogenes MGAS315

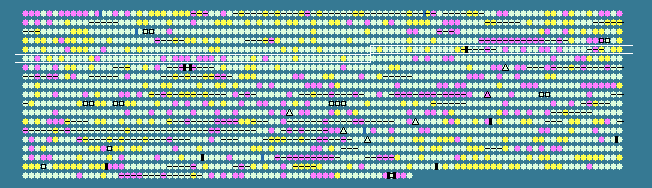

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.60 STD DEV: 3.72
Streptococcus pyogenes MGAS315, complete genome - 1..1900521
1865 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
459	 38.13	0	502908..505409	+	833	21909995	dinG	SpyM3_0459	-	bifunctional ATP-dependent DNA helicase/DNA polymerase III subunit epsilon
460	 42.21	0	505755..506948	+	397	21909996	aspC	SpyM3_0460	-	aspartate aminotransferase
461	 38.23	0	506969..508315	+	448	21909997	asnC	SpyM3_0461	-	asparaginyl-tRNA synthetase
462	 41.98	0	508729..509619	+	296	21909998	-	SpyM3_0462	-	hypothetical protein
463	 41.97	0	509760..510593	+	277	21909999	-	SpyM3_0463	-	hypothetical protein
464	 39.47	0	510590..511501	+	303	21910000	-	SpyM3_0464	-	hypothetical protein
465	 42.56	+1	511634..513031	+	465	21910001	pepD	SpyM3_0465	-	putative dipeptidase
466	 38.63	0	513183..514730	+	515	21910002	adcA	SpyM3_0466	-	putative adhesion protein
467	 37.62	0	514878..515600	+	240	21910003	-	SpyM3_0467	-	GntR family transcriptional regulator
468	 42.42	+1	515620..516819	+	399	21910004	agaS	SpyM3_0468	-	putative tagatose-6-phosphate aldose/ketose isomerase
469	 41.00	0	516916..517176	-	86	21910005	rpmE2	SpyM3_0469	-	50S ribosomal protein L31 type B
470	 41.83	0	517291..518232	-	313	21910006	-	SpyM3_0470	-	hypothetical protein
471	 39.78	0	518626..519075	+	149	21910007	flaV	SpyM3_0471	-	flavodoxin
472	 39.65	0	519250..519534	+	94	21910008	-	SpyM3_0472	-	hypothetical protein
473	 42.36	+1	519527..520789	+	420	21910009	-	SpyM3_0473	-	putative transmembrane protein
474	 44.54	+1	520904..521251	+	115	21910010	rplS	SpyM3_0474	-	50S ribosomal protein L19
475	 38.07	0	522267..522836	+	189	21910011	-	SpyM3_0475	-	putative hydrolase
476	 39.78	0	522837..524789	+	650	161485752	gyrB	SpyM3_0476	-	DNA gyrase subunit B
477	 37.04	0	525157..526881	+	574	21910013	-	SpyM3_0477	-	septation ring formation regulator EzrA
478	 34.42	-1	527013..527471	-	152	21910014	-	SpyM3_0478	-	hypothetical protein
479	 41.82	0	527704..529011	+	435	21910015	eno	SpyM3_0479	-	phosphopyruvate hydratase
480	 39.51	0	529573..529734	+	53	21910016	sagA	SpyM3_0480	-	streptolysin S associated protein
481	 33.96	-1	529956..530906	+	316	21910017	sagB	SpyM3_0481	-	streptolysin S associated protein
482	 35.22	0	530903..531961	+	352	21910018	sagC	SpyM3_0482	-	streptolysin S associated protein
483	 36.13	0	531981..533339	+	452	21910019	-	SpyM3_0483	-	hypothetical protein
484	 33.18	-1	533314..533985	+	223	21910020	-	SpyM3_0484	-	hypothetical protein
485	 35.23	0	533982..534665	+	227	21910021	-	SpyM3_0485	-	hypothetical protein
486	 35.93	0	534688..535611	+	307	21910022	-	SpyM3_0486	-	putative ABC transporter ATP-binding protein
487	 32.54	-1	535620..536747	+	375	21910023	sagH	SpyM3_0487	-	ABC transporter ATP-binding protein
488	 32.62	-1	536744..537862	+	372	21910024	-	SpyM3_0488	-	putative ABC transporter ATP-binding protein
489	 37.91	0	538433..541165	+	910	21910025	-	SpyM3_0489	-	hypothetical protein
490	 31.94	-1	541443..541943	+	166	21910026	-	SpyM3_0490	-	hypothetical protein
491	 40.48	0	542138..544096	+	652	21910027	ligA	SpyM3_0491	-	NAD-dependent DNA ligase LigA
492	 37.44	0	544110..545132	+	340	161485751	-	SpyM3_0492	-	putative lipid kinase
493	 38.89	0	545524..545721	+	65	21910029	-	SpyM3_0493	-	F0F1 ATP synthase subunit C
494	 38.35	0	545756..546472	+	238	21910030	-	SpyM3_0494	-	F0F1 ATP synthase subunit A
495	 38.38	0	546490..546984	+	164	21910031	-	SpyM3_0495	-	F0F1 ATP synthase subunit B
496	 34.08	-1	546984..547520	+	178	21910032	-	SpyM3_0496	-	F0F1 ATP synthase subunit delta
497	 42.35	+1	547536..549044	+	502	21910033	-	SpyM3_0497	-	F0F1 ATP synthase subunit alpha
498	 37.67	0	549060..549935	+	291	21910034	-	SpyM3_0498	-	F0F1 ATP synthase subunit gamma
499	 42.86	+1	550097..551503	+	468	21910035	-	SpyM3_0499	-	F0F1 ATP synthase subunit beta
500	 42.21	0	551516..551932	+	138	21910036	atpC	SpyM3_0500	-	F0F1 ATP synthase subunit epsilon
501	 35.66	0	552198..552455	+	85	21910037	-	SpyM3_0501	-	hypothetical protein
502	 41.35	0	552520..553791	+	423	21910038	murA	SpyM3_0502	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
503	 33.33	-1	553795..553983	+	62	21910039	-	SpyM3_0503	-	hypothetical protein
504	 41.62	0	554019..554597	+	192	21910040	endA	SpyM3_0504	-	putative DNA-entry nuclease
505	 43.67	+1	554584..554883	+	99	21910041	endA	SpyM3_0505	-	putative DNA-entry nuclease
506	 41.67	0	555166..556209	+	347	21910042	pheS	SpyM3_0506	-	phenylalanyl-tRNA synthetase subunit alpha
507	 42.23	0	556464..558824	+	786	21910043	pheT	SpyM3_0507	-	phenylalanyl-tRNA synthetase subunit beta
508	 39.95	0	558934..559311	+	125	21910044	-	SpyM3_0508	-	hypothetical protein
509	 39.02	0	559304..559690	+	128	21910045	-	SpyM3_0509	-	hypothetical protein
510	 35.38	0	559763..560839	+	358	21910046	-	SpyM3_0510	-	hypothetical protein
511	 41.26	0	560849..561517	+	222	21910047	-	SpyM3_0511	-	ABC transporter ATP-binding protein
512	 43.96	+1	561622..562374	-	250	21910048	-	SpyM3_0512	-	hypothetical protein
513	 34.83	-1	562689..565904	+	1071	21910049	rexB	SpyM3_0513	-	ATP-dependent nuclease subunit B
514	 36.36	0	565865..569533	+	1222	21910050	rexA	SpyM3_0514	-	putative ATP-dependent exonuclease subunit A
515	 35.67	0	569673..570485	+	270	21910051	-	SpyM3_0515	-	putative ABC transporter
516	 36.72	0	570626..570802	+	58	21910052	rpsU	SpyM3_0516	-	30S ribosomal protein S21
517	 35.26	0	570930..571292	-	120	21910053	mscL	SpyM3_0517	-	putative large conductance mechanosensitive channel
518	 38.42	0	571467..573236	+	589	21910054	dnaG	SpyM3_0518	-	DNA primase
519	 38.65	0	573245..574354	+	369	21910055	rpoD	SpyM3_0519	-	RNA polymerase sigma factor RpoD
520	 39.82	0	574590..574928	+	112	21910056	-	SpyM3_0520	-	hypothetical protein
521	 40.35	0	575066..575920	+	284	21910057	rmlD	SpyM3_0521	-	putative dTDP-4-keto-L-rhamnose reductase
522	 39.31	0	576039..577193	+	384	21910058	rgpAc	SpyM3_0522	-	hypothetical protein
523	 37.41	0	577183..578115	+	310	21910059	rgpBc	SpyM3_0523	-	alpha-L-Rha alpha-1,3-L-rhamnosyltransferase
524	 33.96	-1	578118..578921	+	267	21910060	rgpCc	SpyM3_0524	-	putative ABC-transporter (permease protein)
525	 35.24	0	578921..580126	+	401	21910061	rgpDc	SpyM3_0525	-	ABC transporter ATP-binding protein
526	 32.24	-1	580151..581158	+	335	21910062	rgpEc	SpyM3_0526	-	putative glycosyltransferase
527	 31.67	-1	581155..582900	+	581	21910063	rgpFc	SpyM3_0527	-	hypothetical protein
528	 32.04	-1	582897..585371	+	824	21910064	-	SpyM3_0528	-	hypothetical protein
529	 35.92	0	585550..586245	+	231	21910065	-	SpyM3_0529	-	putative glycosyl transferase
530	 27.19	-2	586247..586588	+	113	21910066	-	SpyM3_0530	-	hypothetical protein
531	 29.99	-2	586581..587867	+	428	21910067	-	SpyM3_0531	-	hypothetical protein
532	 29.99	-2	587848..589344	+	498	21910068	-	SpyM3_0532	-	hypothetical protein
533	 38.81	0	589438..590661	+	407	21910069	pepT	SpyM3_0533	-	peptidase T
534	 32.31	-1	590702..591190	+	162	21910070	-	SpyM3_0534	-	putative pore-forming peptide
535	 37.37	0	591177..591374	-	65	21910071	-	SpyM3_0535	-	putative ferredoxin
536	 37.95	0	591424..591900	+	158	21910072	-	SpyM3_0536	-	hypothetical protein
537	 40.09	0	591915..592595	+	226	21910073	cmk	SpyM3_0537	-	cytidylate kinase
538	 37.66	0	592757..593287	+	176	21910074	infC	SpyM3_0538	-	translation initiation factor IF-3
539	 42.42	+1	593329..593526	+	65	21910075	rpmI	SpyM3_0539	-	50S ribosomal protein L35
540	 41.67	0	593585..593944	+	119	21910076	rplT	SpyM3_0540	-	50S ribosomal protein L20
541	 35.05	0	594235..596445	-	736	21910077	-	SpyM3_0541	-	hypothetical protein
542	 37.03	0	596553..597716	+	387	21910078	-	SpyM3_0542	-	hypothetical protein
543	 37.26	0	597713..598399	+	228	21910079	aroD	SpyM3_0543	-	3-dehydroquinate dehydratase
544	 41.99	0	598493..599659	+	388	161485750	aroF	SpyM3_0544	-	chorismate synthase
545	 39.47	0	599720..600061	+	113	21910081	-	SpyM3_0545	-	hypothetical protein
546	 43.39	+1	600282..601634	+	450	21910082	gor	SpyM3_0546	-	glutathione reductase
547	 40.77	0	601714..602991	-	425	21910083	folC.2	SpyM3_0547	-	putative folyl-polyglutamate synthetase
548	 41.50	0	603021..603461	-	146	21910084	-	SpyM3_0548	-	hypothetical protein
549	 41.29	0	603696..604838	+	380	21910085	nifS	SpyM3_0549	-	putative iron-sulfur cofactor synthesis protein
550	 41.82	0	604910..606064	+	384	21910086	thiI	SpyM3_0550	-	thiamine biosynthesis protein ThiI
551	 37.56	0	606213..607394	+	393	21910087	-	SpyM3_0551	-	hypothetical protein
552	 39.05	0	607608..607922	+	104	21910088	rplU	SpyM3_0552	-	50S ribosomal protein L21
553	 37.00	0	607934..608260	+	108	21910089	-	SpyM3_0553	-	hypothetical protein
554	 42.18	0	608288..608581	+	97	21910090	rpmA	SpyM3_0554	-	50S ribosomal protein L27
555	 35.96	0	608939..609853	+	304	21910091	-	SpyM3_0555	-	putative capsular polysaccharide biosynthesis regulatory protein
556	 36.17	0	609850..610308	+	152	21910092	lsp	SpyM3_0556	-	putative prolipoprotein signal peptidase
557	 41.53	0	610298..611188	+	296	21910093	-	SpyM3_0557	-	putative ribosomal large subunit pseudouridine synthase
558	 41.76	0	611583..612104	+	173	21910094	pyrR	SpyM3_0558	-	pyrimidine regulatory protein PyrR
38.60	MEAN

3.72	STD DEV
