IslandPathversion 1.0

IslandPath Analysis: Streptococcus pyogenes MGAS315

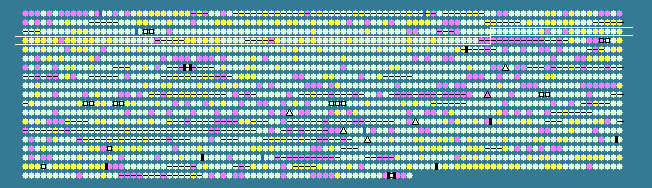

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.60 STD DEV: 3.72
Streptococcus pyogenes MGAS315, complete genome - 1..1900521
1865 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
279	 39.91	0	316372..317025	+	217	21909815	-	SpyM3_0279	-	hypothetical protein
280	 39.12	0	317070..318071	-	333	21909816	fhuG.1	SpyM3_0280	-	putative ferrichrome ABC transporter (permease)
281	 42.07	0	318068..319120	-	350	21909817	fhuB	SpyM3_0281	-	putative ferrichrome ABC transporter (permease)
282	 37.51	0	319110..320042	-	310	21909818	fhuD.1	SpyM3_0282	-	putative ferrichrome ABC transporter (ferrichrome-binding protein)
283	 39.34	0	320068..320850	-	260	21909819	fhuC.1	SpyM3_0283	-	putative ferrichrome ABC transporter ATP-binding protein
284	 41.36	0	321096..322541	-	481	21909820	murE	SpyM3_0284	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
285	 40.12	0	322629..324263	+	544	21909821	-	SpyM3_0285	-	putative polysaccharide biosynthesis protein
286	 40.95	0	324431..325060	+	209	21909822	upp	SpyM3_0286	-	uracil phosphoribosyltransferase
287	 42.13	0	325283..325873	+	196	21909823	clpP	SpyM3_0287	-	ATP-dependent Clp protease proteolytic subunit
288	 33.33	-1	326365..326640	+	91	21909824	-	SpyM3_0288	-	hypothetical protein
289	 41.67	0	326889..327524	+	211	21909825	tdk	SpyM3_0289	-	thymidylate kinase
290	 39.38	0	327542..328417	+	291	21909826	-	SpyM3_0290	-	DNA polymerase III subunit delta'
291	 33.02	-1	329081..329404	+	107	21909827	-	SpyM3_0291	-	DNA replication intiation control protein YabA
292	 42.25	0	329409..330272	+	287	21909828	-	SpyM3_0292	-	putative tetrapyrrole methylase family protein
293	 36.13	0	330299..330691	+	130	21909829	-	SpyM3_0293	-	hypothetical protein
294	 45.40	+1	330738..331367	-	209	21909830	-	SpyM3_0294	-	putative copper homeostasis protein
295	 40.34	0	331665..332021	+	118	21909831	-	SpyM3_0295	-	putative arsenate reductase
296	 43.12	+1	332095..332922	-	275	21909832	exoA	SpyM3_0296	-	putative 3'-exo-deoxyribonuclease
297	 42.13	0	333160..334341	+	393	21909833	lctO	SpyM3_0297	-	L-lactate oxidase
298	 41.67	0	334685..339553	+	1622	21909834	prtS	SpyM3_0298	-	putative cell envelope proteinase
299	 40.57	0	340301..341032	+	243	21909835	-	SpyM3_0299	-	hypothetical protein
300	 44.19	+1	341275..343272	+	665	21909836	metG	SpyM3_0300	-	methionyl-tRNA synthetase
301	 43.20	+1	343766..344779	+	337	21909837	nrdF	SpyM3_0301	-	ribonucleotide-diphosphate reductase subunit beta
302	 41.72	0	344783..345271	+	162	21909838	nrdI	SpyM3_0302	-	ribonucleotide reductase stimulatory protein
303	 45.67	+1	345238..347418	+	726	21909839	nrdE.2	SpyM3_0303	-	ribonucleotide-diphosphate reductase subunit alpha
304	 51.13	+2	347580..348332	-	250	21909840	-	SpyM3_0304	-	hypothetical protein
305	 41.78	0	348790..349215	+	141	21909841	-	SpyM3_0305	-	hypothetical protein
306	 47.62	+2	349406..349657	+	83	21909842	-	SpyM3_0306	-	hypothetical protein
307	 34.27	-1	349822..350352	-	176	21909843	-	SpyM3_0307	-	hypothetical protein
308	 42.62	+1	350711..350947	+	78	21909844	-	SpyM3_0308	-	hypothetical protein
309	 44.21	+1	350940..351638	+	232	21909845	fabG	SpyM3_0309	-	3-ketoacyl-(acyl-carrier-protein) reductase
310	 41.98	0	351714..352673	+	319	21909846	-	SpyM3_0310	-	NAD-dependent oxidoreductase
311	 42.30	0	353006..354343	+	445	21909847	glpT	SpyM3_0311	-	putative glycerol-3-phosphate transporter
312	 43.17	+1	354516..355898	+	460	21909848	glmU	SpyM3_0312	-	putative UDP-N-acetylglucosamine pyrophosphorylase
313	 40.54	0	355929..356483	+	184	21909849	-	SpyM3_0313	-	hypothetical protein
314	 36.51	0	356483..356734	+	83	21909850	-	SpyM3_0314	-	hypothetical protein
315	 42.67	+1	356754..357449	+	231	21909851	pfs	SpyM3_0315	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
316	 36.84	0	357600..357941	+	113	21909852	-	SpyM3_0316	-	hypothetical protein
317	 40.28	0	358040..358687	-	215	21909853	-	SpyM3_0317	-	putative metal-dependent transcriptional regulator
318	 35.31	0	358857..359765	+	302	21909854	mtsA	SpyM3_0318	-	putative metal binding protein of ABC transporter
319	 37.33	0	359829..360554	+	241	21909855	mtsB	SpyM3_0319	-	ABC transporter ATP-binding protein
320	 37.43	0	360555..361409	+	284	21909856	mtsC	SpyM3_0320	-	integral membrane protein MtsC, ABC transporter (permease protein)
321	 39.41	0	361557..362363	-	268	21909857	cypB	SpyM3_0321	-	putative peptidyl-prolyl cis-trans isomerase
322	 40.53	0	362667..364985	+	772	21909858	-	SpyM3_0322	-	putative cell division protein
323	 33.62	-1	365056..365406	-	116	21909859	-	SpyM3_0323	-	hypothetical protein
324	 41.31	0	365653..366078	+	141	21909860	rplK	SpyM3_0324	-	50S ribosomal protein L11
325	 41.88	0	366184..366873	+	229	21909861	rplA	SpyM3_0325	-	50S ribosomal protein L1
326	 42.39	+1	367196..367924	+	242	21909862	pyrH	SpyM3_0326	-	uridylate kinase
327	 39.96	0	367954..368511	+	185	21909863	frr	SpyM3_0327	-	ribosome recycling factor
328	 42.39	+1	368749..369477	+	242	21909864	-	SpyM3_0328	-	hypothetical protein
329	 42.16	0	369550..370059	+	169	21909865	msrA.2	SpyM3_0329	-	methionine sulfoxide reductase A
330	 35.19	0	370056..370271	+	71	21909866	-	SpyM3_0330	-	hypothetical protein
331	 44.87	+1	370427..371596	+	389	21909867	-	SpyM3_0331	-	hypothetical protein
332	 40.78	0	371911..373683	+	590	21909868	-	SpyM3_0332	-	67 kDa Myosin-crossreactive streptococcal antigen
333	 42.40	+1	373980..374894	+	304	21909869	phoH	SpyM3_0333	-	putative phosphate starvation-induced protein
334	 42.01	0	374940..375515	+	191	21909870	-	SpyM3_0334	-	hypothetical protein
335	 39.77	0	375644..376171	+	175	21909871	-	SpyM3_0335	-	putative metalloprotease
336	 36.52	0	376152..376559	+	135	21909872	dgk	SpyM3_0336	-	putative diacylglycerol kinase
337	 40.47	0	376679..377575	+	298	21909873	era	SpyM3_0337	-	GTP-binding protein Era
338	 40.61	0	377550..378071	+	173	21909874	-	SpyM3_0338	-	hypothetical protein
339	 41.39	0	379537..379809	+	90	21909875	-	SpyM3_0339	-	putative bacteriocin
340	 39.30	0	379822..380022	+	66	21909876	-	SpyM3_0340	-	hypothetical protein
341	 48.06	+2	380383..380511	+	42	21909877	-	SpyM3_0341	-	hypothetical protein
342	 29.79	-2	380561..380842	+	93	21909878	-	SpyM3_0342	-	hypothetical protein
343	 42.44	+1	381691..382755	+	354	21909879	-	SpyM3_0343	-	hypothetical protein
344	 40.85	0	382848..383246	+	132	21909880	-	SpyM3_0344	-	hypothetical protein
345	 36.67	0	383595..383864	-	89	21909881	-	SpyM3_0345	-	hypothetical protein
346	 36.79	0	384935..385801	+	288	21909882	mutR	SpyM3_0346	-	putative positive transcriptional regulator
347	 42.39	+1	385973..386800	+	275	21909883	fpg	SpyM3_0347	-	formamidopyrimidine-DNA glycosylase
348	 41.75	0	386797..387390	+	197	21909884	coaE	SpyM3_0348	-	dephospho-CoA kinase
349	 43.25	+1	387580..389082	+	500	21909885	-	SpyM3_0349	-	ATPase
350	 38.27	0	389204..390397	+	397	21909886	-	SpyM3_0350	-	putative multi-drug resistance efflux pump
351	 37.55	0	390586..390822	+	78	21909887	secG	SpyM3_0351	-	preprotein translocase subunit SecG
352	 41.31	0	390994..393249	+	751	21909888	vacB	SpyM3_0352	-	putative exoribonuclease R
353	 40.81	0	393252..393719	+	155	21909889	smpB	SpyM3_0353	-	SsrA-binding protein
354	 37.27	0	393734..394444	+	236	21909890	-	SpyM3_0354	-	putative glutamine cyclotransferase
355	 42.75	+1	394561..395208	-	215	21909891	pcp	SpyM3_0355	-	pyrrolidone-carboxylate peptidase
356	 40.02	0	395258..396184	-	308	21909892	-	SpyM3_0356	-	hypothetical protein
357	 38.89	0	396184..396867	-	227	21909893	-	SpyM3_0357	-	hypothetical protein
358	 37.28	0	397078..398064	-	328	21909894	-	SpyM3_0358	-	putative sugar transferase
359	 38.10	0	398149..398526	-	125	21909895	gloA	SpyM3_0359	-	putative lactoylglutathione lyase
360	 40.84	0	398537..399202	-	221	21909896	-	SpyM3_0360	-	NAD(P)H-dependent quinone reductase
361	 42.08	0	399251..400336	-	361	21909897	pepQ	SpyM3_0361	-	putative Xaa-Pro dipeptidase
362	 39.92	0	400510..401511	+	333	21909898	ccpA	SpyM3_0362	-	putative catabolite control protein
363	 38.94	0	401642..402640	+	332	21909899	-	SpyM3_0363	-	putative sugar transferase
364	 38.50	0	402642..403976	+	444	21909900	-	SpyM3_0364	-	1,2-diacylglycerol 3-glucosyltransferase
365	 42.90	+1	404398..406341	+	647	21909901	thrS	SpyM3_0365	-	threonyl-tRNA synthetase
366	 40.08	0	406482..407474	+	330	21909902	-	SpyM3_0366	-	putative ABC transporter, ATP-binding protein
367	 38.46	0	407476..408294	+	272	21909903	-	SpyM3_0367	-	hypothetical protein
368	 39.44	0	408296..409081	+	261	21909904	-	SpyM3_0368	-	ABC transporter permease
369	 44.39	+1	409827..410975	+	382	21909905	-	SpyM3_0369	-	putative acetyl coenzyme A acetyltransferase
370	 37.42	0	410932..412179	+	415	21909906	-	SpyM3_0370	-	hypothetical protein
371	 37.75	0	412275..413270	+	331	21909907	-	SpyM3_0371	-	hypothetical protein
372	 39.24	0	413432..414142	+	236	21909908	vicR	SpyM3_0372	-	two-component response regulator
373	 37.69	0	414135..415487	+	450	21909909	vicK	SpyM3_0373	-	two-component sensor histidine kinase
374	 37.53	0	415491..416300	+	269	21909910	vicX	SpyM3_0374	-	VicX protein
375	 37.37	0	416743..417435	+	230	21909911	rnc	SpyM3_0375	-	ribonuclease III
376	 36.68	0	417436..420963	+	1175	21909912	smc	SpyM3_0376	-	putative chromosome condensation and segregation SMC protein
377	 32.51	-1	421228..422079	-	283	21909913	-	SpyM3_0377	-	putative positive transcriptional regulator
378	 27.95	-2	422354..423226	+	290	21909914	aroE.2	SpyM3_0378	-	shikimate 5-dehydrogenase
38.60	MEAN

3.72	STD DEV
