IslandPath Analysis: Streptococcus pyogenes MGAS315

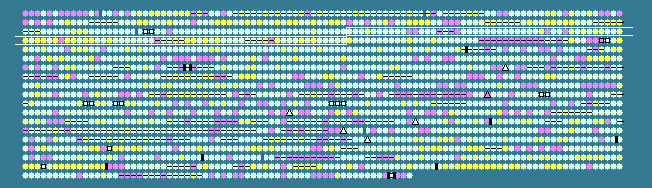

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.60 STD DEV: 3.72
Streptococcus pyogenes MGAS315, complete genome - 1..1900521
1865 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
255	 37.89	0	297775..298257	+	160	21909791	greA	SpyM3_0255	-	transcription elongation factor GreA
256	 40.15	0	298881..299804	-	307	21909792	-	SpyM3_0256	-	OxaA-like protein precursor
257	 37.28	0	299886..300164	-	92	21909793	-	SpyM3_0257	-	putative acylphosphate phosphohydrolase
258	 42.14	0	300424..301161	+	245	21909794	-	SpyM3_0258	-	23S rRNA methyltransferase
259	 40.30	0	301227..301700	+	157	21909795	-	SpyM3_0259	-	hypothetical protein
260	 36.81	0	301715..302404	+	229	21909796	-	SpyM3_0260	-	hypothetical protein
261	 36.63	0	302582..302824	+	80	21909797	-	SpyM3_0261	-	hypothetical protein
262	 40.25	0	303002..303796	+	264	21909798	glr	SpyM3_0262	-	glutamate racemase
263	 41.95	0	303793..304779	+	328	21909799	-	SpyM3_0263	-	fused deoxyribonucleotide triphosphate pyrophosphatase/unknown domain-containing protein
264	 39.27	0	304758..305279	+	173	21909800	-	SpyM3_0264	-	putative phosphoesterase
265	 34.20	-1	305276..305737	+	153	21909801	-	SpyM3_0265	-	CBS domain containing protein
266	 32.66	-1	305734..306480	+	248	21909802	xerD	SpyM3_0266	-	site-specific tyrosine recombinase XerD-like protein
267	 35.18	0	306480..307184	+	234	21909803	scpA	SpyM3_0267	-	segregation and condensation protein A
268	 38.22	0	307181..307732	+	183	21909804	scpB	SpyM3_0268	-	segregation and condensation protein B
269	 39.42	0	307852..308574	+	240	21909805	-	SpyM3_0269	-	putative ribosomal large subunit pseudouridine synthase
270	 34.47	-1	308571..308834	+	87	21909806	-	SpyM3_0270	-	hypothetical protein
271	 37.34	0	309012..309560	+	182	21909807	-	SpyM3_0271	-	23S rRNA methyltransferase
272	 31.56	-1	309870..310433	+	187	21909808	-	SpyM3_0272	-	hypothetical protein
273	 34.10	-1	310435..311088	+	217	21909809	-	SpyM3_0273	-	putative phosphatase
274	 38.76	0	311381..312301	+	306	21909810	-	SpyM3_0274	-	hypothetical protein
275	 40.54	0	312340..312894	+	184	21909811	-	SpyM3_0275	-	SAM-dependent methyltransferase
276	 38.95	0	313027..314361	+	444	21909812	hlyX	SpyM3_0276	-	putative hemolysin
277	 38.13	0	314439..315230	+	263	21909813	pflC	SpyM3_0277	-	putative pyruvate formate-lyase activating enzyme
278	 40.34	0	315355..316296	+	313	21909814	-	SpyM3_0278	-	putative manganese-dependent inorganic pyrophosphatase
279	 39.91	0	316372..317025	+	217	21909815	-	SpyM3_0279	-	hypothetical protein
280	 39.12	0	317070..318071	-	333	21909816	fhuG.1	SpyM3_0280	-	putative ferrichrome ABC transporter (permease)
281	 42.07	0	318068..319120	-	350	21909817	fhuB	SpyM3_0281	-	putative ferrichrome ABC transporter (permease)
282	 37.51	0	319110..320042	-	310	21909818	fhuD.1	SpyM3_0282	-	putative ferrichrome ABC transporter (ferrichrome-binding protein)
283	 39.34	0	320068..320850	-	260	21909819	fhuC.1	SpyM3_0283	-	putative ferrichrome ABC transporter ATP-binding protein
284	 41.36	0	321096..322541	-	481	21909820	murE	SpyM3_0284	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
285	 40.12	0	322629..324263	+	544	21909821	-	SpyM3_0285	-	putative polysaccharide biosynthesis protein
286	 40.95	0	324431..325060	+	209	21909822	upp	SpyM3_0286	-	uracil phosphoribosyltransferase
287	 42.13	0	325283..325873	+	196	21909823	clpP	SpyM3_0287	-	ATP-dependent Clp protease proteolytic subunit
288	 33.33	-1	326365..326640	+	91	21909824	-	SpyM3_0288	-	hypothetical protein
289	 41.67	0	326889..327524	+	211	21909825	tdk	SpyM3_0289	-	thymidylate kinase
290	 39.38	0	327542..328417	+	291	21909826	-	SpyM3_0290	-	DNA polymerase III subunit delta'
291	 33.02	-1	329081..329404	+	107	21909827	-	SpyM3_0291	-	DNA replication intiation control protein YabA
292	 42.25	0	329409..330272	+	287	21909828	-	SpyM3_0292	-	putative tetrapyrrole methylase family protein
293	 36.13	0	330299..330691	+	130	21909829	-	SpyM3_0293	-	hypothetical protein
294	 45.40	+1	330738..331367	-	209	21909830	-	SpyM3_0294	-	putative copper homeostasis protein
295	 40.34	0	331665..332021	+	118	21909831	-	SpyM3_0295	-	putative arsenate reductase
296	 43.12	+1	332095..332922	-	275	21909832	exoA	SpyM3_0296	-	putative 3'-exo-deoxyribonuclease
297	 42.13	0	333160..334341	+	393	21909833	lctO	SpyM3_0297	-	L-lactate oxidase
298	 41.67	0	334685..339553	+	1622	21909834	prtS	SpyM3_0298	-	putative cell envelope proteinase
299	 40.57	0	340301..341032	+	243	21909835	-	SpyM3_0299	-	hypothetical protein
300	 44.19	+1	341275..343272	+	665	21909836	metG	SpyM3_0300	-	methionyl-tRNA synthetase
301	 43.20	+1	343766..344779	+	337	21909837	nrdF	SpyM3_0301	-	ribonucleotide-diphosphate reductase subunit beta
302	 41.72	0	344783..345271	+	162	21909838	nrdI	SpyM3_0302	-	ribonucleotide reductase stimulatory protein
303	 45.67	+1	345238..347418	+	726	21909839	nrdE.2	SpyM3_0303	-	ribonucleotide-diphosphate reductase subunit alpha
304	 51.13	+2	347580..348332	-	250	21909840	-	SpyM3_0304	-	hypothetical protein
305	 41.78	0	348790..349215	+	141	21909841	-	SpyM3_0305	-	hypothetical protein
306	 47.62	+2	349406..349657	+	83	21909842	-	SpyM3_0306	-	hypothetical protein
307	 34.27	-1	349822..350352	-	176	21909843	-	SpyM3_0307	-	hypothetical protein
308	 42.62	+1	350711..350947	+	78	21909844	-	SpyM3_0308	-	hypothetical protein
309	 44.21	+1	350940..351638	+	232	21909845	fabG	SpyM3_0309	-	3-ketoacyl-(acyl-carrier-protein) reductase
310	 41.98	0	351714..352673	+	319	21909846	-	SpyM3_0310	-	NAD-dependent oxidoreductase
311	 42.30	0	353006..354343	+	445	21909847	glpT	SpyM3_0311	-	putative glycerol-3-phosphate transporter
312	 43.17	+1	354516..355898	+	460	21909848	glmU	SpyM3_0312	-	putative UDP-N-acetylglucosamine pyrophosphorylase
313	 40.54	0	355929..356483	+	184	21909849	-	SpyM3_0313	-	hypothetical protein
314	 36.51	0	356483..356734	+	83	21909850	-	SpyM3_0314	-	hypothetical protein
315	 42.67	+1	356754..357449	+	231	21909851	pfs	SpyM3_0315	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
316	 36.84	0	357600..357941	+	113	21909852	-	SpyM3_0316	-	hypothetical protein
317	 40.28	0	358040..358687	-	215	21909853	-	SpyM3_0317	-	putative metal-dependent transcriptional regulator
318	 35.31	0	358857..359765	+	302	21909854	mtsA	SpyM3_0318	-	putative metal binding protein of ABC transporter
319	 37.33	0	359829..360554	+	241	21909855	mtsB	SpyM3_0319	-	ABC transporter ATP-binding protein
320	 37.43	0	360555..361409	+	284	21909856	mtsC	SpyM3_0320	-	integral membrane protein MtsC, ABC transporter (permease protein)
321	 39.41	0	361557..362363	-	268	21909857	cypB	SpyM3_0321	-	putative peptidyl-prolyl cis-trans isomerase
322	 40.53	0	362667..364985	+	772	21909858	-	SpyM3_0322	-	putative cell division protein
323	 33.62	-1	365056..365406	-	116	21909859	-	SpyM3_0323	-	hypothetical protein
324	 41.31	0	365653..366078	+	141	21909860	rplK	SpyM3_0324	-	50S ribosomal protein L11
325	 41.88	0	366184..366873	+	229	21909861	rplA	SpyM3_0325	-	50S ribosomal protein L1
326	 42.39	+1	367196..367924	+	242	21909862	pyrH	SpyM3_0326	-	uridylate kinase
327	 39.96	0	367954..368511	+	185	21909863	frr	SpyM3_0327	-	ribosome recycling factor
328	 42.39	+1	368749..369477	+	242	21909864	-	SpyM3_0328	-	hypothetical protein
329	 42.16	0	369550..370059	+	169	21909865	msrA.2	SpyM3_0329	-	methionine sulfoxide reductase A
330	 35.19	0	370056..370271	+	71	21909866	-	SpyM3_0330	-	hypothetical protein
331	 44.87	+1	370427..371596	+	389	21909867	-	SpyM3_0331	-	hypothetical protein
332	 40.78	0	371911..373683	+	590	21909868	-	SpyM3_0332	-	67 kDa Myosin-crossreactive streptococcal antigen
333	 42.40	+1	373980..374894	+	304	21909869	phoH	SpyM3_0333	-	putative phosphate starvation-induced protein
334	 42.01	0	374940..375515	+	191	21909870	-	SpyM3_0334	-	hypothetical protein
335	 39.77	0	375644..376171	+	175	21909871	-	SpyM3_0335	-	putative metalloprotease
336	 36.52	0	376152..376559	+	135	21909872	dgk	SpyM3_0336	-	putative diacylglycerol kinase
337	 40.47	0	376679..377575	+	298	21909873	era	SpyM3_0337	-	GTP-binding protein Era
338	 40.61	0	377550..378071	+	173	21909874	-	SpyM3_0338	-	hypothetical protein
339	 41.39	0	379537..379809	+	90	21909875	-	SpyM3_0339	-	putative bacteriocin
340	 39.30	0	379822..380022	+	66	21909876	-	SpyM3_0340	-	hypothetical protein
341	 48.06	+2	380383..380511	+	42	21909877	-	SpyM3_0341	-	hypothetical protein
342	 29.79	-2	380561..380842	+	93	21909878	-	SpyM3_0342	-	hypothetical protein
343	 42.44	+1	381691..382755	+	354	21909879	-	SpyM3_0343	-	hypothetical protein
344	 40.85	0	382848..383246	+	132	21909880	-	SpyM3_0344	-	hypothetical protein
345	 36.67	0	383595..383864	-	89	21909881	-	SpyM3_0345	-	hypothetical protein
346	 36.79	0	384935..385801	+	288	21909882	mutR	SpyM3_0346	-	putative positive transcriptional regulator
347	 42.39	+1	385973..386800	+	275	21909883	fpg	SpyM3_0347	-	formamidopyrimidine-DNA glycosylase
348	 41.75	0	386797..387390	+	197	21909884	coaE	SpyM3_0348	-	dephospho-CoA kinase
349	 43.25	+1	387580..389082	+	500	21909885	-	SpyM3_0349	-	ATPase
350	 38.27	0	389204..390397	+	397	21909886	-	SpyM3_0350	-	putative multi-drug resistance efflux pump
351	 37.55	0	390586..390822	+	78	21909887	secG	SpyM3_0351	-	preprotein translocase subunit SecG
352	 41.31	0	390994..393249	+	751	21909888	vacB	SpyM3_0352	-	putative exoribonuclease R
353	 40.81	0	393252..393719	+	155	21909889	smpB	SpyM3_0353	-	SsrA-binding protein
354	 37.27	0	393734..394444	+	236	21909890	-	SpyM3_0354	-	putative glutamine cyclotransferase
38.60	MEAN

3.72	STD DEV
