IslandPath Analysis: Streptococcus pyogenes MGAS315

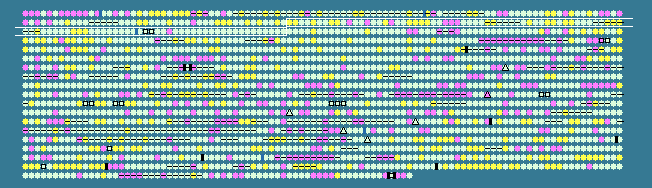

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.60 STD DEV: 3.72
Streptococcus pyogenes MGAS315, complete genome - 1..1900521
1865 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
145	 42.30	0	172646..175288	+	880	21909681	polA.1	SpyM3_0145	-	DNA polymerase I
146	 42.76	+1	175475..175930	+	151	21909682	-	SpyM3_0146	-	hypothetical protein
147	 39.74	0	175982..176449	+	155	21909683	spf	SpyM3_0147	-	putative ferric uptake regulator
148	 35.53	0	176552..177415	-	287	21909684	-	SpyM3_0148	-	hypothetical protein
149	 43.04	+1	177634..178776	+	380	21909685	tgt	SpyM3_0149	-	queuine tRNA-ribosyltransferase
150	 41.99	0	178994..179305	+	103	21909686	-	SpyM3_0150	-	hypothetical protein
151	 40.00	0	179309..179848	+	179	21909687	-	SpyM3_0151	-	putative biotin synthase
152	 43.85	+1	179988..180767	+	259	21909688	-	SpyM3_0152	-	hypothetical protein
153	 45.35	+1	180767..181282	+	171	21909689	-	SpyM3_0153	-	putative cytidine/deoxycytidylate deaminase family protein
154	 37.51	0	181896..183116	-	406	21909690	-	SpyM3_0154	-	hypothetical protein
155	 27.80	-2	183529..184233	+	234	21909691	speG	SpyM3_0155	-	pyrogenic exotoxin G precursor
156	 41.56	0	184694..186043	+	449	21909692	pgi	SpyM3_0156	-	glucose-6-phosphate isomerase
157	 36.08	0	186392..187630	-	412	21909693	-	SpyM3_0157	-	putative regulatory protein RofA related
158	 31.84	-1	187633..187899	-	88	21909694	-	SpyM3_0158	-	putative regulatory protein
159	 37.80	0	188587..189258	+	223	21909695	-	SpyM3_0159	-	hypothetical protein
160	 38.33	0	189357..190256	-	299	21909696	hasC.2	SpyM3_0160	-	putative UDP-glucose pyrophosphorylase
161	 42.77	+1	190289..191305	-	338	21909697	gpsA	SpyM3_0161	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
162	 34.44	-1	191603..192052	+	149	21909698	-	SpyM3_0162	-	hypothetical protein
163	 38.49	0	192045..193751	+	568	21909699	-	SpyM3_0163	-	putative ABC transporter, ATP-binding/permease protein
164	 41.01	0	193754..195538	+	594	21909700	-	SpyM3_0164	-	putative ABC transporter ATP-binding/membrane spanning protein
165	 44.14	+1	195656..196423	+	255	21909701	-	SpyM3_0165	-	hypothetical protein
166	 42.95	+1	196533..196979	+	148	21909702	dut	SpyM3_0166	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
167	 44.49	+1	197060..198421	+	453	21909703	radA	SpyM3_0167	-	DNA repair protein RadA
168	 46.99	+2	198610..199107	+	165	21909704	-	SpyM3_0168	-	hypothetical protein
169	 38.12	0	199238..199948	+	236	21909705	-	SpyM3_0169	-	hypothetical protein
170	 41.22	0	200131..201576	+	481	21909706	gltX	SpyM3_0170	-	glutamyl-tRNA synthetase
171	 33.18	-1	201971..203317	+	448	21909707	-	SpyM3_0171	-	putative histidine kinase
172	 31.09	-2	203314..203892	+	192	21909708	-	SpyM3_0172	-	putative histidine kinase
173	 33.19	-1	203913..204593	+	226	21909709	-	SpyM3_0173	-	putative histidine kinase
174	 35.76	0	204597..205337	+	246	21909710	-	SpyM3_0174	-	putative response regulator
175	 38.06	0	205877..206236	+	119	21909711	rnpA	SpyM3_0175	-	ribonuclease P
176	 40.46	0	206202..207029	+	275	21909712	-	SpyM3_0176	-	hypothetical protein
177	 41.42	0	207041..207955	+	304	21909713	-	SpyM3_0177	-	hypothetical protein
178	 44.44	+1	208270..208404	+	44	21909714	rpmH	SpyM3_0178	-	50S ribosomal protein L34
179	 44.96	+1	208678..209382	+	234	21909715	-	SpyM3_0179	-	N-acetylmannosamine-6-phosphate 2-epimerase
180	 39.94	0	209431..210489	+	352	21909716	-	SpyM3_0180	-	N-acetylneuraminate-binding protein
181	 36.56	0	210565..210750	+	61	21909717	-	SpyM3_0181	-	putative sugar transporter sugar binding lipoprotein
182	 39.10	0	210875..211741	+	288	21909718	-	SpyM3_0182	-	N-acetylneuraminate transport system permease protein
183	 41.28	0	211754..212584	+	276	21909719	-	SpyM3_0183	-	N-acetylneuraminate transport system permease protein
184	 39.06	0	212741..213403	+	220	21909720	-	SpyM3_0184	-	hypothetical protein
185	 43.50	+1	213415..214329	+	304	21909721	nanH	SpyM3_0185	-	N-acetylneuraminate lyase
186	 41.64	0	214351..215289	+	312	21909722	-	SpyM3_0186	-	putative glucose kinase
187	 38.63	0	215400..216230	-	276	21909723	-	SpyM3_0187	-	putative phosphosugar-binding transcriptional regulator
188	 42.68	+1	216419..217306	+	295	21909724	-	SpyM3_0188	-	hypothetical protein
189	 45.35	+1	217278..217868	+	196	21909725	-	SpyM3_0189	-	hypothetical protein
190	 42.04	0	217982..218854	+	290	21909726	ksgA	SpyM3_0190	-	dimethyladenosine transferase
191	 43.07	+1	219279..220151	+	290	161485754	-	SpyM3_0191	-	ribosome-associated GTPase
192	 43.89	+1	220161..220823	+	220	21909728	rpe	SpyM3_0192	-	ribulose-phosphate 3-epimerase
193	 40.92	0	220816..221448	+	210	21909729	-	SpyM3_0193	-	hypothetical protein
194	 41.12	0	221450..222721	+	423	21909730	-	SpyM3_0194	-	hypothetical protein
195	 39.83	0	222711..223649	+	312	21909731	cbf	SpyM3_0195	-	CMP-binding factor
196	 37.26	0	223916..224755	+	279	21909732	purR	SpyM3_0196	-	purine operon repressor
197	 39.32	0	224746..227367	+	873	21909733	prgA	SpyM3_0197	-	putative surface exclusion protein
198	 43.96	+1	227575..227988	+	137	21909734	rpsL	SpyM3_0198	-	30S ribosomal protein S12
199	 43.74	+1	228009..228479	+	156	21909735	rpsG	SpyM3_0199	-	30S ribosomal protein S7
200	 42.91	+1	228964..231042	+	692	21909736	fusA	SpyM3_0200	-	elongation factor G
201	 41.25	0	231383..232393	+	336	21909737	plr	SpyM3_0201	-	glyceraldehyde-3-phosphate dehydrogenase
202	 40.76	0	232877..233617	-	246	21909738	-	SpyM3_0202	-	putative amino acid ABC transporter ATP-binding protein
203	 42.70	+1	233610..235178	-	522	21909739	-	SpyM3_0203	-	putative glutamine-binding periplasmic protein
204	 40.65	0	235376..237301	+	641	21909740	-	SpyM3_0204	-	hypothetical protein
205	 37.26	0	237367..238206	+	279	21909741	uppP	SpyM3_0205	-	undecaprenyl pyrophosphate phosphatase
206	 37.10	0	238424..239113	+	229	21909742	mecA	SpyM3_0206	-	adaptor protein
207	 37.53	0	239171..240289	+	372	21909743	rgpG	SpyM3_0207	-	putative polysacharide biosynthesis protein
208	 41.12	0	240411..241181	+	256	21909744	-	SpyM3_0208	-	putative ABC transporter, ATP-binding protein
209	 42.68	+1	241276..242538	+	420	21909745	-	SpyM3_0209	-	hypothetical protein
210	 42.95	+1	242569..243795	+	408	21909746	-	SpyM3_0210	-	putative aminotransferase
211	 42.50	+1	243782..244261	+	159	21909747	-	SpyM3_0211	-	hypothetical protein
212	 40.38	0	244254..245672	+	472	21909748	-	SpyM3_0212	-	hypothetical protein
213	 37.14	0	245824..247005	-	393	21909749	-	SpyM3_0213	-	putative DD-carboxypeptidase
214	 35.69	0	247173..248405	-	410	21909750	dacA	SpyM3_0214	-	putative D-alanyl-D-alanine carboxypeptidase
215	 40.28	0	248736..250706	+	656	21909751	oppA	SpyM3_0215	-	oligopeptide permease
216	 36.93	0	250771..252273	+	500	21909752	oppB	SpyM3_0216	-	putative oligopeptide permease
217	 37.22	0	252273..253199	+	308	21909753	oppC	SpyM3_0217	-	putative oligopeptide permease
218	 39.96	0	253208..254278	+	356	21909754	oppD	SpyM3_0218	-	putative oligopeptide ABC transporter, ATP-binding protein
219	 37.77	0	254271..255194	+	307	21909755	oppF	SpyM3_0219	-	putative oligopeptide ABC transporter, ATP-binding protein
220	 37.45	0	261586..262071	+	161	21909756	comX.1	SpyM3_0220	-	putative transcriptional regulator ComX1
221	 38.13	0	262681..263097	+	138	21909757	-	SpyM3_0221	-	IS1548 transposase
222	 37.94	0	263078..263815	+	245	21909758	-	SpyM3_0222	-	IS1548 transposase
223	 36.75	0	263921..264505	+	194	21909759	-	SpyM3_0223	-	hypothetical protein
224	 37.98	0	264505..265623	+	372	21909760	-	SpyM3_0224	-	GTP-binding protein YqeH
225	 34.30	-1	265648..265956	+	102	21909761	-	SpyM3_0225	-	hypothetical protein
226	 39.34	0	266025..266657	+	210	21909762	nadD	SpyM3_0226	-	nicotinic acid mononucleotide adenylyltransferase
227	 40.40	0	266654..267247	+	197	21909763	-	SpyM3_0227	-	hypothetical protein
228	 38.62	0	267247..267624	+	125	21909764	-	SpyM3_0228	-	iojap protein family
229	 38.98	0	267672..268415	+	247	21909765	-	SpyM3_0229	-	hypothetical protein
230	 36.13	0	268637..269743	+	368	21909766	-	SpyM3_0230	-	hypothetical protein
231	 38.63	0	270225..270941	+	238	21909767	-	SpyM3_0231	-	hypothetical protein
232	 38.55	0	271144..271986	+	280	21909768	atmA	SpyM3_0232	-	ABC transporter substrate-binding protein
233	 36.88	0	272310..273155	+	281	21909769	atmB	SpyM3_0233	-	ABC transporter substrate-binding protein
234	 39.15	0	273405..274469	+	354	21909770	atmD	SpyM3_0234	-	ABC transporter ATP-binding protein
235	 37.09	0	274470..275162	+	230	21909771	atmE	SpyM3_0235	-	ABC transporter permease
236	 36.98	0	275216..276586	-	456	21909772	braB	SpyM3_0236	-	putative branched-chain amino acid transport protein
237	 38.16	0	276895..278034	+	379	21909773	-	SpyM3_0237	-	serine/threonine transporter SstT
238	 37.63	0	278089..278763	-	224	21909774	-	SpyM3_0238	-	hypothetical protein
239	 38.36	0	278773..280164	-	463	21909775	-	SpyM3_0239	-	putative potassium uptake protein
240	 38.10	0	280233..280946	-	237	21909776	gidB	SpyM3_0240	-	glucose-inhibited division protein B
241	 36.20	0	281096..281653	+	185	21909777	lemA	SpyM3_0241	-	putative cytoplasmic membrane protein
242	 40.58	0	281700..282596	+	298	21909778	htpX	SpyM3_0242	-	heat shock protein HtpX
243	 37.45	0	282830..283363	+	177	21909779	-	SpyM3_0243	-	hypothetical protein
244	 38.57	0	283631..284317	+	228	21909780	csrR	SpyM3_0244	-	two-component response regulator
38.60	MEAN

3.72	STD DEV
