IslandPath Analysis: Streptococcus pyogenes MGAS315

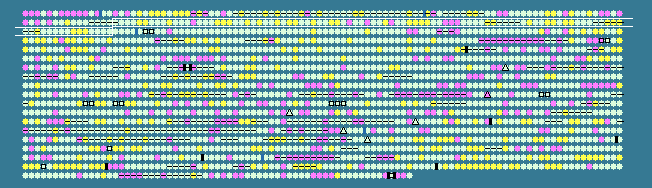

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.60 STD DEV: 3.72
Streptococcus pyogenes MGAS315, complete genome - 1..1900521
1865 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
116	 40.62	0	138400..138879	+	159	21909652	ntpK	SpyM3_0116	-	V-type ATP synthase subunit K
117	 36.58	0	138948..139532	+	194	21909653	ntpE	SpyM3_0117	-	putative V-type Na+ -ATPase subunit E
118	 38.64	0	139548..140546	+	332	21909654	ntpC	SpyM3_0118	-	putative V-type Na+ -ATPase subunit C
119	 39.56	0	140543..140863	+	106	21909655	ntpG	SpyM3_0119	-	V-type ATP synthase subunit F
120	 46.62	+2	141064..142839	+	591	161485755	ntpA	SpyM3_0120	-	V-type ATP synthase subunit A
121	 42.51	+1	142840..144255	+	471	21909657	ntpB	SpyM3_0121	-	V-type ATP synthase subunit B
122	 38.28	0	144300..144926	+	208	21909658	ntpD	SpyM3_0122	-	V-type ATP synthase subunit D
123	 40.54	0	145046..146308	-	420	21909659	-	SpyM3_0123	-	putative toxic anion resistance protein
124	 38.23	0	146321..147199	-	292	21909660	-	SpyM3_0124	-	hypothetical protein
125	 43.39	+1	147637..148929	+	430	21909661	purA	SpyM3_0125	-	adenylosuccinate synthetase
126	 40.13	0	149256..150299	+	347	21909662	-	SpyM3_0126	-	putative ABC transporter
127	 40.93	0	150472..151011	+	179	21909663	nusG	SpyM3_0127	-	transcription antitermination protein NusG
128	 36.80	0	151382..152737	+	451	21909664	nga	SpyM3_0128	-	NAD glycohydrolase
129	 33.33	-1	152742..153227	+	161	21909665	-	SpyM3_0129	-	hypothetical protein
130	 37.41	0	153251..154966	+	571	21909666	slo	SpyM3_0130	-	streptolysin O
131	 38.68	0	155105..155347	-	80	21909667	-	SpyM3_0131	-	hypothetical protein
132	 39.74	0	155747..155902	-	51	21909668	-	SpyM3_0132	-	hypothetical protein
133	 42.26	0	156817..158037	+	406	21909669	metB	SpyM3_0133	-	putative cystathionine beta-lyase
134	 46.56	+2	158248..160749	+	833	21909670	leuS	SpyM3_0134	-	leucyl-tRNA synthetase
135	 42.54	+1	161056..162489	+	477	21909671	ulaA	SpyM3_0135	-	ascorbate-specific PTS system enzyme IIC
136	 39.78	0	162560..162838	+	92	21909672	-	SpyM3_0136	-	PTS system, 3-keto-L-gulonate specific IIB component
137	 41.98	0	162961..163446	+	161	21909673	-	SpyM3_0137	-	PTS system, 3-keto-L-gulonate specific IIA component
138	 46.76	+2	163537..164199	+	220	21909674	ulaD	SpyM3_0138	-	3-keto-L-gulonate-6-phosphate decarboxylase
139	 41.90	0	164204..165067	+	287	21909675	-	SpyM3_0139	-	putative L-xylulose 5-phosphate 3-epimerase
140	 47.52	+2	165069..165773	+	234	21909676	araD	SpyM3_0140	-	L-ribulose-5-phosphate 4-epimerase
141	 36.98	0	166098..167744	+	548	21909677	-	SpyM3_0141	-	putative transcriptional regulator
142	 39.93	0	167997..169088	+	363	21909678	-	SpyM3_0142	-	putative L-ascorbate 6-phosphate lactonase
143	 42.11	0	169576..170772	+	398	21909679	opuAA	SpyM3_0143	-	putative glycine betaine/proline ABC transporter
144	 41.64	0	170830..172515	+	561	21909680	opuABC	SpyM3_0144	-	putative glycine-betaine binding permease protein
145	 42.30	0	172646..175288	+	880	21909681	polA.1	SpyM3_0145	-	DNA polymerase I
146	 42.76	+1	175475..175930	+	151	21909682	-	SpyM3_0146	-	hypothetical protein
147	 39.74	0	175982..176449	+	155	21909683	spf	SpyM3_0147	-	putative ferric uptake regulator
148	 35.53	0	176552..177415	-	287	21909684	-	SpyM3_0148	-	hypothetical protein
149	 43.04	+1	177634..178776	+	380	21909685	tgt	SpyM3_0149	-	queuine tRNA-ribosyltransferase
150	 41.99	0	178994..179305	+	103	21909686	-	SpyM3_0150	-	hypothetical protein
151	 40.00	0	179309..179848	+	179	21909687	-	SpyM3_0151	-	putative biotin synthase
152	 43.85	+1	179988..180767	+	259	21909688	-	SpyM3_0152	-	hypothetical protein
153	 45.35	+1	180767..181282	+	171	21909689	-	SpyM3_0153	-	putative cytidine/deoxycytidylate deaminase family protein
154	 37.51	0	181896..183116	-	406	21909690	-	SpyM3_0154	-	hypothetical protein
155	 27.80	-2	183529..184233	+	234	21909691	speG	SpyM3_0155	-	pyrogenic exotoxin G precursor
156	 41.56	0	184694..186043	+	449	21909692	pgi	SpyM3_0156	-	glucose-6-phosphate isomerase
157	 36.08	0	186392..187630	-	412	21909693	-	SpyM3_0157	-	putative regulatory protein RofA related
158	 31.84	-1	187633..187899	-	88	21909694	-	SpyM3_0158	-	putative regulatory protein
159	 37.80	0	188587..189258	+	223	21909695	-	SpyM3_0159	-	hypothetical protein
160	 38.33	0	189357..190256	-	299	21909696	hasC.2	SpyM3_0160	-	putative UDP-glucose pyrophosphorylase
161	 42.77	+1	190289..191305	-	338	21909697	gpsA	SpyM3_0161	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
162	 34.44	-1	191603..192052	+	149	21909698	-	SpyM3_0162	-	hypothetical protein
163	 38.49	0	192045..193751	+	568	21909699	-	SpyM3_0163	-	putative ABC transporter, ATP-binding/permease protein
164	 41.01	0	193754..195538	+	594	21909700	-	SpyM3_0164	-	putative ABC transporter ATP-binding/membrane spanning protein
165	 44.14	+1	195656..196423	+	255	21909701	-	SpyM3_0165	-	hypothetical protein
166	 42.95	+1	196533..196979	+	148	21909702	dut	SpyM3_0166	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
167	 44.49	+1	197060..198421	+	453	21909703	radA	SpyM3_0167	-	DNA repair protein RadA
168	 46.99	+2	198610..199107	+	165	21909704	-	SpyM3_0168	-	hypothetical protein
169	 38.12	0	199238..199948	+	236	21909705	-	SpyM3_0169	-	hypothetical protein
170	 41.22	0	200131..201576	+	481	21909706	gltX	SpyM3_0170	-	glutamyl-tRNA synthetase
171	 33.18	-1	201971..203317	+	448	21909707	-	SpyM3_0171	-	putative histidine kinase
172	 31.09	-2	203314..203892	+	192	21909708	-	SpyM3_0172	-	putative histidine kinase
173	 33.19	-1	203913..204593	+	226	21909709	-	SpyM3_0173	-	putative histidine kinase
174	 35.76	0	204597..205337	+	246	21909710	-	SpyM3_0174	-	putative response regulator
175	 38.06	0	205877..206236	+	119	21909711	rnpA	SpyM3_0175	-	ribonuclease P
176	 40.46	0	206202..207029	+	275	21909712	-	SpyM3_0176	-	hypothetical protein
177	 41.42	0	207041..207955	+	304	21909713	-	SpyM3_0177	-	hypothetical protein
178	 44.44	+1	208270..208404	+	44	21909714	rpmH	SpyM3_0178	-	50S ribosomal protein L34
179	 44.96	+1	208678..209382	+	234	21909715	-	SpyM3_0179	-	N-acetylmannosamine-6-phosphate 2-epimerase
180	 39.94	0	209431..210489	+	352	21909716	-	SpyM3_0180	-	N-acetylneuraminate-binding protein
181	 36.56	0	210565..210750	+	61	21909717	-	SpyM3_0181	-	putative sugar transporter sugar binding lipoprotein
182	 39.10	0	210875..211741	+	288	21909718	-	SpyM3_0182	-	N-acetylneuraminate transport system permease protein
183	 41.28	0	211754..212584	+	276	21909719	-	SpyM3_0183	-	N-acetylneuraminate transport system permease protein
184	 39.06	0	212741..213403	+	220	21909720	-	SpyM3_0184	-	hypothetical protein
185	 43.50	+1	213415..214329	+	304	21909721	nanH	SpyM3_0185	-	N-acetylneuraminate lyase
186	 41.64	0	214351..215289	+	312	21909722	-	SpyM3_0186	-	putative glucose kinase
187	 38.63	0	215400..216230	-	276	21909723	-	SpyM3_0187	-	putative phosphosugar-binding transcriptional regulator
188	 42.68	+1	216419..217306	+	295	21909724	-	SpyM3_0188	-	hypothetical protein
189	 45.35	+1	217278..217868	+	196	21909725	-	SpyM3_0189	-	hypothetical protein
190	 42.04	0	217982..218854	+	290	21909726	ksgA	SpyM3_0190	-	dimethyladenosine transferase
191	 43.07	+1	219279..220151	+	290	161485754	-	SpyM3_0191	-	ribosome-associated GTPase
192	 43.89	+1	220161..220823	+	220	21909728	rpe	SpyM3_0192	-	ribulose-phosphate 3-epimerase
193	 40.92	0	220816..221448	+	210	21909729	-	SpyM3_0193	-	hypothetical protein
194	 41.12	0	221450..222721	+	423	21909730	-	SpyM3_0194	-	hypothetical protein
195	 39.83	0	222711..223649	+	312	21909731	cbf	SpyM3_0195	-	CMP-binding factor
196	 37.26	0	223916..224755	+	279	21909732	purR	SpyM3_0196	-	purine operon repressor
197	 39.32	0	224746..227367	+	873	21909733	prgA	SpyM3_0197	-	putative surface exclusion protein
198	 43.96	+1	227575..227988	+	137	21909734	rpsL	SpyM3_0198	-	30S ribosomal protein S12
199	 43.74	+1	228009..228479	+	156	21909735	rpsG	SpyM3_0199	-	30S ribosomal protein S7
200	 42.91	+1	228964..231042	+	692	21909736	fusA	SpyM3_0200	-	elongation factor G
201	 41.25	0	231383..232393	+	336	21909737	plr	SpyM3_0201	-	glyceraldehyde-3-phosphate dehydrogenase
202	 40.76	0	232877..233617	-	246	21909738	-	SpyM3_0202	-	putative amino acid ABC transporter ATP-binding protein
203	 42.70	+1	233610..235178	-	522	21909739	-	SpyM3_0203	-	putative glutamine-binding periplasmic protein
204	 40.65	0	235376..237301	+	641	21909740	-	SpyM3_0204	-	hypothetical protein
205	 37.26	0	237367..238206	+	279	21909741	uppP	SpyM3_0205	-	undecaprenyl pyrophosphate phosphatase
206	 37.10	0	238424..239113	+	229	21909742	mecA	SpyM3_0206	-	adaptor protein
207	 37.53	0	239171..240289	+	372	21909743	rgpG	SpyM3_0207	-	putative polysacharide biosynthesis protein
208	 41.12	0	240411..241181	+	256	21909744	-	SpyM3_0208	-	putative ABC transporter, ATP-binding protein
209	 42.68	+1	241276..242538	+	420	21909745	-	SpyM3_0209	-	hypothetical protein
210	 42.95	+1	242569..243795	+	408	21909746	-	SpyM3_0210	-	putative aminotransferase
211	 42.50	+1	243782..244261	+	159	21909747	-	SpyM3_0211	-	hypothetical protein
212	 40.38	0	244254..245672	+	472	21909748	-	SpyM3_0212	-	hypothetical protein
213	 37.14	0	245824..247005	-	393	21909749	-	SpyM3_0213	-	putative DD-carboxypeptidase
214	 35.69	0	247173..248405	-	410	21909750	dacA	SpyM3_0214	-	putative D-alanyl-D-alanine carboxypeptidase
215	 40.28	0	248736..250706	+	656	21909751	oppA	SpyM3_0215	-	oligopeptide permease
38.60	MEAN

3.72	STD DEV
