IslandPathversion 1.0

IslandPath Analysis: Streptococcus pyogenes MGAS315

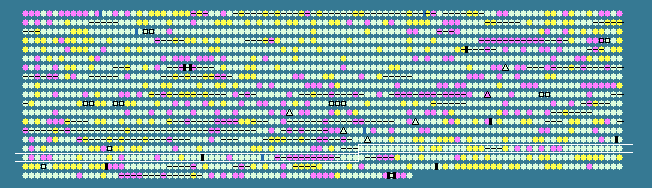

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.60 STD DEV: 3.72
Streptococcus pyogenes MGAS315, complete genome - 1..1900521
1865 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1557	 38.22	0	1548343..1550103	-	586	21911093	cycD	SpyM3_1557	-	ABC transporter ATP-binding protein
1558	 41.22	0	1550103..1550939	-	278	21911094	fhuC.2	SpyM3_1558	-	putative ferrichrome transport ATP-binding protein
1559	 40.47	0	1550936..1551958	-	340	21911095	fhuG.2	SpyM3_1559	-	putative ferrichrome ABC transporter (permease)
1560	 38.32	0	1551960..1553702	-	580	21911096	fhuD.2	SpyM3_1560	-	putative ferrichrome ABC transporter (ferrichrome-binding protein)
1561	 35.55	0	1553899..1557726	-	1275	21911097	-	SpyM3_1561	-	hypothetical protein
1562	 41.36	0	1558201..1559682	-	493	21911098	isp.2	SpyM3_1562	-	immunogenic secreted protein precursor-like protein
1563	 39.33	0	1559799..1560899	-	366	21911099	alr	SpyM3_1563	-	alanine racemase
1564	 36.41	0	1560896..1561252	-	118	21911100	acpS	SpyM3_1564	-	4'-phosphopantetheinyl transferase
1565	 41.27	0	1561368..1563887	-	839	21911101	secA	SpyM3_1565	-	preprotein translocase subunit SecA
1566	 41.40	0	1564021..1564974	-	317	21911102	pmi	SpyM3_1566	-	putative mannose-6-phosphate isomerase
1567	 46.10	+2	1565069..1565953	-	294	21911103	scrK	SpyM3_1567	-	putative fructokinase
1568	 37.73	0	1566217..1569216	-	999	21911104	ndoS	SpyM3_1568	-	putative secreted endoglycosidase
1569	 43.10	+1	1569447..1571330	-	627	21911105	scrA	SpyM3_1569	-	PTS system, sucrose-specific IIABC component
1570	 42.57	+1	1571572..1573011	+	479	21911106	scrB	SpyM3_1570	-	putative sucrose-6-phosphate hydrolase
1571	 37.59	0	1573136..1573981	+	281	21911107	scrR	SpyM3_1571	-	putative sucrose operon repressor
1572	 36.64	0	1574122..1574574	-	150	21911108	nusB	SpyM3_1572	-	transcription antitermination protein NusB
1573	 39.49	0	1574567..1574956	-	129	21911109	-	SpyM3_1573	-	hypothetical protein
1574	 40.68	0	1575002..1575559	-	185	21911110	efp	SpyM3_1574	-	elongation factor P
1575	 43.72	+1	1575655..1576116	-	153	21911111	comEB	SpyM3_1575	-	putative late competence protein required for DNA binding
1576	 43.20	+1	1576151..1577224	-	357	21911112	pepP	SpyM3_1576	-	Xaa-Pro dipeptidase
1577	 42.56	+1	1577340..1580168	-	942	21911113	uvrA	SpyM3_1577	-	excinuclease ABC subunit A
1578	 38.94	0	1580371..1581315	+	314	21911114	-	SpyM3_1578	-	divalent cation transport protein magnesium transporter
1579	 41.25	0	1581447..1582103	+	218	21911115	-	SpyM3_1579	-	hypothetical protein
1580	 40.83	0	1582236..1582475	-	79	21911116	rpsR	SpyM3_1580	-	30S ribosomal protein S18
1581	 42.89	+1	1582640..1583131	-	163	21911117	ssb.2	SpyM3_1581	-	single-strand DNA-binding protein
1582	 39.86	0	1583153..1583443	-	96	21911118	rpsF	SpyM3_1582	-	30S ribosomal protein S6
1583	 31.63	-1	1583616..1583909	-	97	21911119	-	SpyM3_1583	-	hypothetical protein
1584	 38.35	0	1584077..1585231	+	384	21911120	mutY	SpyM3_1584	-	putative A/G-specific adenine glycosylase
1585	 34.52	-1	1585408..1585995	+	195	21911121	-	SpyM3_1585	-	hypothetical protein
1586	 35.24	0	1586047..1586361	-	104	21911122	trx.2	SpyM3_1586	-	putative thioredoxin
1587	 32.93	-1	1586442..1586942	-	166	21911123	-	SpyM3_1587	-	putative PAP2 family protein
1588	 36.75	0	1586946..1589402	-	818	21911124	mutS.1	SpyM3_1588	-	putative DNA mismatch repair protein
1589	 34.07	-1	1589434..1589979	-	181	21911125	-	SpyM3_1589	-	hypothetical protein
1590	 33.01	-1	1589982..1590290	-	102	21911126	-	SpyM3_1590	-	hypothetical protein
1591	 37.10	0	1590447..1591349	+	300	21911127	-	SpyM3_1591	-	ribonuclease HIII
1592	 37.04	0	1591360..1591953	+	197	21911128	spi	SpyM3_1592	-	putative signal peptidase I
1593	 41.24	0	1592011..1594464	+	817	21911129	recD	SpyM3_1593	-	putative exodeoxyribonuclease V alpha subunit
1594	 36.61	0	1594556..1595044	+	162	21911130	-	SpyM3_1594	-	hypothetical protein
1595	 41.99	0	1595133..1596230	-	365	21911131	dinP	SpyM3_1595	-	DNA polymerase IV
1596	 41.84	0	1596440..1598767	+	775	21911132	pfl	SpyM3_1596	-	putative pyruvate formate-lyase
1597	 37.33	0	1598946..1599896	-	316	21911133	-	SpyM3_1597	-	putative esterase
1598	 35.19	0	1599881..1600633	-	250	21911134	cppA	SpyM3_1598	-	putative putative C3-degrading proteinase
1599	 38.16	0	1600895..1601827	+	310	21911135	-	SpyM3_1599	-	hypothetical protein
1600	 38.29	0	1602163..1603110	-	315	21911136	glpF.2	SpyM3_1600	-	putative glycerol uptake facilitator protein
1601	 39.26	0	1603513..1604709	-	398	21911137	norA	SpyM3_1601	-	putative antibiotic resistance protein
1602	 32.50	-1	1604815..1605534	+	239	21911138	-	SpyM3_1602	-	putative transcriptional regulatory protein
1603	 39.68	0	1605556..1607838	+	760	21911139	pepXP	SpyM3_1603	-	x-prolyl-dipeptidyl aminopeptidase
1604	 33.78	-1	1607918..1608139	-	73	21911140	-	SpyM3_1604	-	hypothetical protein
1605	 34.67	-1	1608309..1608683	+	124	21911141	-	SpyM3_1605	-	putative repressor
1606	 40.33	0	1608876..1609175	+	99	21911142	-	SpyM3_1606	-	hypothetical protein
1607	 39.97	0	1609232..1609969	-	245	21911143	-	SpyM3_1607	-	putative transcriptional activator regulator protein
1608	 39.87	0	1610122..1610748	-	208	21911144	dnaQ	SpyM3_1608	-	DNA polymerase III subunit epsilon
1609	 40.30	0	1610758..1611288	-	176	21911145	-	SpyM3_1609	-	hypothetical protein
1610	 42.58	+1	1611538..1612662	+	374	21911146	-	SpyM3_1610	-	hypothetical protein
1611	 37.50	0	1612757..1613428	-	223	21911147	deoC	SpyM3_1611	-	putative deoxyribose-phosphate aldolase
1612	 36.24	0	1613458..1614660	-	400	21911148	nupC	SpyM3_1612	-	putative nucleoside transporter
1613	 40.64	0	1614681..1615460	-	259	21911149	udp	SpyM3_1613	-	putative uridine phosphorylase
1614	 36.36	0	1615701..1616459	+	252	21911150	-	SpyM3_1614	-	GntR family transcriptional regulator
1615	 44.81	+1	1616679..1616948	+	89	21911151	rpsN	SpyM3_1615	-	30S ribosomal protein S14
1616	 41.79	0	1617119..1618147	-	342	21911152	gcp	SpyM3_1616	-	O-sialoglycoprotein endopeptidase
1617	 34.21	-1	1618137..1618592	-	151	21911153	-	SpyM3_1617	-	putative ribosomal-protein-alanine acetyltransferase
1618	 39.77	0	1618564..1619262	-	232	21911154	-	SpyM3_1618	-	putative glycoprotein endopeptidase
1619	 37.66	0	1619546..1619776	+	76	21911155	-	SpyM3_1619	-	hypothetical protein
1620	 39.99	0	1619778..1621460	+	560	21911156	-	SpyM3_1620	-	Zn-dependent hydrolase
1621	 37.71	0	1621688..1623034	-	448	21911157	glnA	SpyM3_1621	-	putative glutamine synthetase
1622	 37.37	0	1623072..1623443	-	123	21911158	glnR	SpyM3_1622	-	putative transcriptional repressor of glutamine synthetase
1623	 30.62	-2	1623510..1624061	-	183	21911159	-	SpyM3_1623	-	hypothetical protein
1624	 41.94	0	1624324..1625520	-	398	21911160	pgk	SpyM3_1624	-	phosphoglycerate kinase
1625	 35.44	0	1625713..1626567	-	284	21911161	lppC	SpyM3_1625	-	putative acid phosphatase
1626	 40.74	0	1626797..1627687	-	296	21911162	-	SpyM3_1626	-	hypothetical protein
1627	 42.22	0	1627924..1629555	-	543	21911163	-	SpyM3_1627	-	hypothetical protein
1628	 37.43	0	1629588..1629953	-	121	21911164	asp	SpyM3_1628	-	putative alkaline-shock protein
1629	 38.10	0	1630105..1630293	-	62	21911165	rpmB	SpyM3_1629	-	50S ribosomal protein L28
1630	 41.84	0	1630675..1631556	-	293	21911166	fba	SpyM3_1630	-	fructose-bisphosphate aldolase
1631	 38.94	0	1631903..1632829	-	308	21911167	-	SpyM3_1631	-	hypothetical protein
1632	 40.87	0	1632997..1634601	-	534	21911168	pyrG	SpyM3_1632	-	CTP synthetase
1633	 36.46	0	1634858..1635433	-	191	161485735	rpoE	SpyM3_1633	-	DNA-directed RNA polymerase subunit delta
1634	 37.54	0	1635650..1636933	-	427	21911170	tig	SpyM3_1634	-	trigger factor
1635	 34.28	-1	1637254..1638099	+	281	21911171	-	SpyM3_1635	-	hypothetical protein
1636	 40.46	0	1638164..1638724	-	186	21911172	-	SpyM3_1636	-	hypothetical protein
1637	 39.19	0	1638738..1639130	-	130	21911173	-	SpyM3_1637	-	hypothetical protein
1638	 35.82	0	1639198..1639962	-	254	21911174	thiD	SpyM3_1638	-	phosphomethylpyrimidine kinase
1639	 36.27	0	1639952..1640701	-	249	21911175	truA	SpyM3_1639	-	tRNA pseudouridine synthase A
1640	 37.45	0	1640888..1641373	-	161	21911176	comX.2	SpyM3_1640	-	putative competence protein ComX1
1641	 40.13	0	1647159..1648232	-	357	21911177	-	SpyM3_1641	-	putative glycerate kinase
1642	 39.07	0	1648582..1651560	+	992	21911178	hsdR	SpyM3_1642	-	putative type I site-specific deoxyribonuclease hsdR subunit
1643	 34.78	-1	1651573..1652748	+	391	21911179	hsdS	SpyM3_1643	-	putative type I site-specific deoxyribonuclease hsdS subunit
1644	 36.75	0	1652761..1654341	+	526	21911180	hsdM	SpyM3_1644	-	putative type I site-specific deoxyribonuclease hsdM modification subunit
1645	 30.36	-2	1654898..1655503	-	201	21911181	salR	SpyM3_1645	-	putative response regulator of salavaricin regulon
1646	 29.04	-2	1655484..1656905	-	473	21911182	salK	SpyM3_1646	-	putative two-component sensor histidine kinase
1647	 31.18	-1	1657086..1658804	-	572	21911183	salY	SpyM3_1647	-	ABC transporter permease
1648	 32.52	-1	1658994..1659731	-	245	21911184	salX	SpyM3_1648	-	ABC transporter ATP-binding protein
1649	 30.51	-2	1659728..1661212	-	494	21911185	salT	SpyM3_1649	-	putative salivaricin A modification enzyme
1650	 29.77	-2	1661227..1661871	-	214	21911186	-	SpyM3_1650	-	putative salivaricin A modification enzyme
1651	 30.83	-2	1661849..1664683	-	944	21911187	salB	SpyM3_1651	-	putative salivaricin A modification enzyme
1652	 34.69	-1	1664766..1664912	-	48	21911188	salA	SpyM3_1652	-	lantibiotic salivaricin A precursor
1653	 37.95	0	1665427..1666833	-	468	21911189	lacG	SpyM3_1653	-	6-phospho-beta-galactosidase
1654	 38.75	0	1666906..1668603	-	565	21911190	lacE	SpyM3_1654	-	PTS system, lactose-specific IIBC component
1655	 37.11	0	1668603..1668920	-	105	21911191	lacF	SpyM3_1655	-	PTS system, lactose-specific IIA component
1656	 37.91	0	1668944..1669927	-	327	21911192	lacD.2	SpyM3_1656	-	tagatose 1,6-diphosphate aldolase
38.60	MEAN

3.72	STD DEV
