IslandPath Analysis: Streptococcus pyogenes MGAS315

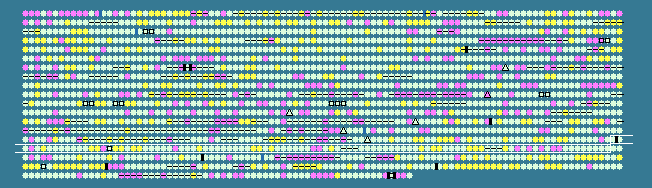

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.60 STD DEV: 3.72
Streptococcus pyogenes MGAS315, complete genome - 1..1900521
1865 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1499	 37.06	0	1493112..1493648	-	178	21911035	-	SpyM3_1499	-	hypothetical protein
1500	 40.09	0	1493907..1494542	-	211	21911036	trmB	SpyM3_1500	-	tRNA (guanine-N(7))-methyltransferase
1501	 37.25	0	1494542..1495333	-	263	21911037	-	SpyM3_1501	-	hypothetical protein
1502	 32.27	-1	1495397..1496431	-	344	21911038	-	SpyM3_1502	-	putative ABC transporter (permease)
1503	 36.50	0	1496434..1497159	-	241	21911039	-	SpyM3_1503	-	putative ABC transporter ATP-binding protein
1504	 42.14	0	1497231..1497650	+	139	21911040	hit	SpyM3_1504	-	putative cell-cycle regulation histidine triad (HIT) protein
1505	 37.25	0	1497647..1498003	+	118	21911041	-	SpyM3_1505	-	hypothetical protein
1506	 38.40	0	1498114..1499397	-	427	21911042	-	SpyM3_1506	-	putative transcription regulator
1507	 36.00	0	1499406..1499930	-	174	21911043	-	SpyM3_1507	-	hypothetical protein
1508	 37.66	0	1499905..1500366	-	153	21911044	-	SpyM3_1508	-	ATP/GTP hydrolase
1509	 38.19	0	1500520..1501980	-	486	21911045	-	SpyM3_1509	-	hypothetical protein
1510	 39.73	0	1502244..1503056	+	270	21911046	-	SpyM3_1510	-	hypothetical protein
1511	 41.19	0	1503408..1504400	+	330	21911047	manL	SpyM3_1511	-	putative mannose-specific phosphotransferase system component IIAB
1512	 45.43	+1	1504489..1505298	+	269	21911048	manM	SpyM3_1512	-	PTS system, mannose-specific IIC component
1513	 43.42	+1	1505315..1506226	+	303	21911049	manN	SpyM3_1513	-	PTS system, mannose-specific IID component
1514	 34.44	-1	1506247..1506699	+	150	21911050	-	SpyM3_1514	-	hypothetical protein
1515	 37.97	0	1507020..1508012	+	330	21911051	-	SpyM3_1515	-	IS1548 transposase
1516	 42.33	+1	1508417..1509694	+	425	21911052	serS	SpyM3_1516	-	seryl-tRNA synthetase
1517	 43.06	+1	1509925..1510695	-	256	21911053	accA	SpyM3_1517	-	acetyl-CoA carboxylase subunit alpha
1518	 41.52	0	1510692..1511558	-	288	21911054	accD	SpyM3_1518	-	acetyl-CoA carboxylase subunit beta
1519	 42.20	0	1511567..1512931	-	454	21911055	accC	SpyM3_1519	-	acetyl-CoA carboxylase biotin carboxylase subunit
1520	 42.32	0	1512963..1513385	-	140	21911056	fabZ	SpyM3_1520	-	(3R)-hydroxymyristoyl-ACP dehydratase
1521	 41.52	0	1513382..1513882	-	166	161485736	accB	SpyM3_1521	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
1522	 42.01	0	1513884..1515116	-	410	21911058	fabF	SpyM3_1522	-	3-oxoacyl-(acyl carrier protein) synthase II
1523	 39.73	0	1515131..1515865	-	244	21911059	fabG	SpyM3_1523	-	3-ketoacyl-(acyl-carrier-protein) reductase
1524	 39.94	0	1515855..1516793	-	312	21911060	fabD	SpyM3_1524	-	acyl-carrier-protein S-malonyltransferase
1525	 41.53	0	1516818..1517732	-	304	21911061	fabK	SpyM3_1525	-	putative trans-2-enoyl-ACP reductase II
1526	 31.11	-2	1517990..1518214	-	74	21911062	acpP	SpyM3_1526	-	acyl carrier protein
1527	 40.41	0	1518275..1519249	-	324	21911063	fabH	SpyM3_1527	-	3-oxoacyl-(acyl carrier protein) synthase III
1528	 37.93	0	1519250..1519684	-	144	21911064	-	SpyM3_1528	-	MarR family transcriptional regulator
1529	 39.52	0	1519761..1520552	-	263	21911065	phaB	SpyM3_1529	-	enoyl-CoA hydratase
1530	 42.65	+1	1520772..1521962	-	396	21911066	dnaJ	SpyM3_1530	-	heat-shock (chaperone) protein
1531	 40.34	0	1522189..1524015	-	608	21911067	dnaK	SpyM3_1531	-	molecular chaperone DnaK
1532	 40.84	0	1524195..1524767	-	190	21911068	grpE	SpyM3_1532	-	putative Hsp-70 cofactor
1533	 37.39	0	1524770..1525804	-	344	21911069	hrcA	SpyM3_1533	-	heat-inducible transcription repressor
1534	 35.26	0	1525939..1526508	-	189	21911070	-	SpyM3_1534	-	N-acetylmuramoyl-L-alanine amidase
1535	 39.65	0	1526505..1527248	-	247	21911071	-	SpyM3_1535	-	putative D,D-carboxypeptidase
1536	 39.83	0	1527238..1527945	-	235	21911072	-	SpyM3_1536	-	putative phosphoglycerate mutase
1537	 40.00	0	1528337..1528576	-	79	21911073	-	SpyM3_1537	-	hypothetical protein
1538	 37.04	0	1528795..1529010	-	71	21911074	-	SpyM3_1538	-	hypothetical protein
1539	 43.40	+1	1529007..1530446	-	479	21911075	gatB	SpyM3_1539	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1540	 43.35	+1	1530446..1531912	-	488	21911076	gatA	SpyM3_1540	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
1541	 39.60	0	1531912..1532214	-	100	21911077	gatC	SpyM3_1541	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
1542	 48.98	+2	1532445..1532738	-	97	21911078	-	SpyM3_1542	-	hypothetical protein
1543	 36.40	0	1533224..1533778	-	184	21911079	-	SpyM3_1543	-	putative pyrazinamidase/nicotinamidase
1544	 38.19	0	1533925..1534707	-	260	21911080	codY	SpyM3_1544	-	transcriptional repressor CodY
1545	 39.01	0	1534925..1536139	-	404	21911081	-	SpyM3_1545	-	aminotransferase AlaT
1546	 37.53	0	1536370..1536822	+	150	21911082	-	SpyM3_1546	-	hypothetical protein
1547	 38.01	0	1536945..1538333	-	462	21911083	-	SpyM3_1547	-	hypothetical protein
1548	 39.03	0	1538406..1539371	+	321	21911084	asnB	SpyM3_1548	-	L-asparaginase
1549	 30.92	-2	1539720..1540424	-	234	21911085	-	SpyM3_1549	-	hypothetical protein
1550	 35.11	0	1540437..1541339	-	300	21911086	-	SpyM3_1550	-	putative ABC transporter ATP-binding protein
1551	 37.10	0	1541632..1543647	-	671	21911087	recG	SpyM3_1551	-	putative ATP-dependent DNA helicase
1552	 42.29	0	1543740..1543940	+	66	21911088	-	SpyM3_1552	-	hypothetical protein
1553	 38.97	0	1544022..1545476	-	484	21911089	-	SpyM3_1553	-	putative ABC transporter ATP-binding protein
1554	 36.71	0	1545413..1546093	-	226	21911090	-	SpyM3_1554	-	hypothetical protein
1555	 35.19	0	1546090..1546683	-	197	21911091	-	SpyM3_1555	-	hypothetical protein
1556	 35.49	0	1546680..1548350	-	556	21911092	cycC	SpyM3_1556	-	ABC transporter ATP-binding protein
1557	 38.22	0	1548343..1550103	-	586	21911093	cycD	SpyM3_1557	-	ABC transporter ATP-binding protein
1558	 41.22	0	1550103..1550939	-	278	21911094	fhuC.2	SpyM3_1558	-	putative ferrichrome transport ATP-binding protein
1559	 40.47	0	1550936..1551958	-	340	21911095	fhuG.2	SpyM3_1559	-	putative ferrichrome ABC transporter (permease)
1560	 38.32	0	1551960..1553702	-	580	21911096	fhuD.2	SpyM3_1560	-	putative ferrichrome ABC transporter (ferrichrome-binding protein)
1561	 35.55	0	1553899..1557726	-	1275	21911097	-	SpyM3_1561	-	hypothetical protein
1562	 41.36	0	1558201..1559682	-	493	21911098	isp.2	SpyM3_1562	-	immunogenic secreted protein precursor-like protein
1563	 39.33	0	1559799..1560899	-	366	21911099	alr	SpyM3_1563	-	alanine racemase
1564	 36.41	0	1560896..1561252	-	118	21911100	acpS	SpyM3_1564	-	4'-phosphopantetheinyl transferase
1565	 41.27	0	1561368..1563887	-	839	21911101	secA	SpyM3_1565	-	preprotein translocase subunit SecA
1566	 41.40	0	1564021..1564974	-	317	21911102	pmi	SpyM3_1566	-	putative mannose-6-phosphate isomerase
1567	 46.10	+2	1565069..1565953	-	294	21911103	scrK	SpyM3_1567	-	putative fructokinase
1568	 37.73	0	1566217..1569216	-	999	21911104	ndoS	SpyM3_1568	-	putative secreted endoglycosidase
1569	 43.10	+1	1569447..1571330	-	627	21911105	scrA	SpyM3_1569	-	PTS system, sucrose-specific IIABC component
1570	 42.57	+1	1571572..1573011	+	479	21911106	scrB	SpyM3_1570	-	putative sucrose-6-phosphate hydrolase
1571	 37.59	0	1573136..1573981	+	281	21911107	scrR	SpyM3_1571	-	putative sucrose operon repressor
1572	 36.64	0	1574122..1574574	-	150	21911108	nusB	SpyM3_1572	-	transcription antitermination protein NusB
1573	 39.49	0	1574567..1574956	-	129	21911109	-	SpyM3_1573	-	hypothetical protein
1574	 40.68	0	1575002..1575559	-	185	21911110	efp	SpyM3_1574	-	elongation factor P
1575	 43.72	+1	1575655..1576116	-	153	21911111	comEB	SpyM3_1575	-	putative late competence protein required for DNA binding
1576	 43.20	+1	1576151..1577224	-	357	21911112	pepP	SpyM3_1576	-	Xaa-Pro dipeptidase
1577	 42.56	+1	1577340..1580168	-	942	21911113	uvrA	SpyM3_1577	-	excinuclease ABC subunit A
1578	 38.94	0	1580371..1581315	+	314	21911114	-	SpyM3_1578	-	divalent cation transport protein magnesium transporter
1579	 41.25	0	1581447..1582103	+	218	21911115	-	SpyM3_1579	-	hypothetical protein
1580	 40.83	0	1582236..1582475	-	79	21911116	rpsR	SpyM3_1580	-	30S ribosomal protein S18
1581	 42.89	+1	1582640..1583131	-	163	21911117	ssb.2	SpyM3_1581	-	single-strand DNA-binding protein
1582	 39.86	0	1583153..1583443	-	96	21911118	rpsF	SpyM3_1582	-	30S ribosomal protein S6
1583	 31.63	-1	1583616..1583909	-	97	21911119	-	SpyM3_1583	-	hypothetical protein
1584	 38.35	0	1584077..1585231	+	384	21911120	mutY	SpyM3_1584	-	putative A/G-specific adenine glycosylase
1585	 34.52	-1	1585408..1585995	+	195	21911121	-	SpyM3_1585	-	hypothetical protein
1586	 35.24	0	1586047..1586361	-	104	21911122	trx.2	SpyM3_1586	-	putative thioredoxin
1587	 32.93	-1	1586442..1586942	-	166	21911123	-	SpyM3_1587	-	putative PAP2 family protein
1588	 36.75	0	1586946..1589402	-	818	21911124	mutS.1	SpyM3_1588	-	putative DNA mismatch repair protein
1589	 34.07	-1	1589434..1589979	-	181	21911125	-	SpyM3_1589	-	hypothetical protein
1590	 33.01	-1	1589982..1590290	-	102	21911126	-	SpyM3_1590	-	hypothetical protein
1591	 37.10	0	1590447..1591349	+	300	21911127	-	SpyM3_1591	-	ribonuclease HIII
1592	 37.04	0	1591360..1591953	+	197	21911128	spi	SpyM3_1592	-	putative signal peptidase I
1593	 41.24	0	1592011..1594464	+	817	21911129	recD	SpyM3_1593	-	putative exodeoxyribonuclease V alpha subunit
1594	 36.61	0	1594556..1595044	+	162	21911130	-	SpyM3_1594	-	hypothetical protein
1595	 41.99	0	1595133..1596230	-	365	21911131	dinP	SpyM3_1595	-	DNA polymerase IV
1596	 41.84	0	1596440..1598767	+	775	21911132	pfl	SpyM3_1596	-	putative pyruvate formate-lyase
1597	 37.33	0	1598946..1599896	-	316	21911133	-	SpyM3_1597	-	putative esterase
1598	 35.19	0	1599881..1600633	-	250	21911134	cppA	SpyM3_1598	-	putative putative C3-degrading proteinase
38.60	MEAN

3.72	STD DEV
