IslandPath Analysis: Streptococcus pyogenes MGAS315

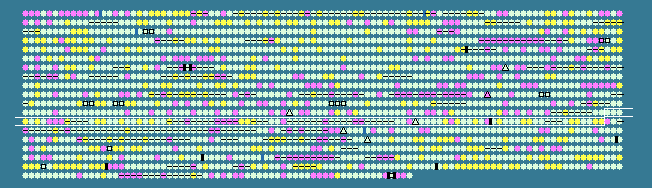

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.60 STD DEV: 3.72
Streptococcus pyogenes MGAS315, complete genome - 1..1900521
1865 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1198	 40.72	0	1225067..1225540	+	157	21910734	argR	SpyM3_1198	-	putative arginine repressor
1199	 41.56	0	1225707..1226423	-	238	21910735	-	SpyM3_1199	-	hypothetical protein
1200	 40.83	0	1226437..1227516	-	359	21910736	-	SpyM3_1200	-	hypothetical protein
1201	 43.37	+1	1227589..1229322	-	577	21910737	yesM	SpyM3_1201	-	putative two-component sensor histidine kinase
1202	 40.62	0	1229319..1230059	-	246	21910738	yesN	SpyM3_1202	-	putative two-component response regulator
1203	 43.17	+1	1230304..1230486	-	60	21910739	-	SpyM3_1203	-	hypothetical protein
1204	 35.24	0	1230832..1231407	-	191	21910740	sla	SpyM3_1204	-	streptococcal phospholipase A2 - phage associated
1205	 28.85	-2	1231883..1232662	-	259	21910741	speK	SpyM3_1205	-	streptococcal pyrogenic exotoxin SpeK - phage associated
1206	 32.53	-1	1232966..1233832	-	288	21910742	-	SpyM3_1206	-	hypothetical protein
1207	 34.48	-1	1233820..1234344	-	174	21910743	-	SpyM3_1207	-	hypothetical protein
1208	 44.22	+1	1234484..1235686	-	400	21910744	-	SpyM3_1208	-	putative cell wall hydrolase, lysin - phage associated
1209	 38.17	0	1235797..1235982	-	61	21910745	-	SpyM3_1209	-	hypothetical protein
1210	 39.06	0	1235979..1236275	-	98	21910746	-	SpyM3_1210	-	hypothetical protein
1211	 41.18	0	1236286..1236897	-	203	21910747	-	SpyM3_1211	-	hypothetical protein
1212	 36.57	0	1236900..1237331	-	143	21910748	-	SpyM3_1212	-	hypothetical protein
1213	 44.59	+1	1237343..1239226	-	627	21910749	-	SpyM3_1213	-	hypothetical protein
1214	 43.69	+1	1239241..1240254	-	337	21910750	hylP.4	SpyM3_1214	-	hyaluronidase - phage associated
1215	 41.31	0	1240251..1242395	-	714	21910751	-	SpyM3_1215	-	hypothetical protein
1216	 39.33	0	1242392..1243108	-	238	21910752	-	SpyM3_1216	-	hypothetical protein
1217	 43.05	+1	1243105..1246365	-	1086	21910753	-	SpyM3_1217	-	putative minor tail protein - phage associated
1218	 37.63	0	1246355..1246936	-	193	21910754	-	SpyM3_1218	-	hypothetical protein
1219	 39.54	0	1246940..1247374	-	144	21910755	-	SpyM3_1219	-	hypothetical protein
1220	 42.80	+1	1247413..1247898	-	161	21910756	-	SpyM3_1220	-	putative major tail shaft protein - phage associated
1221	 36.34	0	1247898..1248296	-	132	21910757	-	SpyM3_1221	-	putative minor capsid protein - phage associated
1222	 43.98	+1	1248293..1248649	-	118	21910758	-	SpyM3_1222	-	putative minor capsid protein - phage associated
1223	 38.84	0	1248649..1249011	-	120	21910759	-	SpyM3_1223	-	putative minor capsid protein - phage associated
1224	 39.09	0	1248971..1249387	-	138	21910760	-	SpyM3_1224	-	hypothetical protein
1225	 43.83	+1	1249441..1250259	-	272	21910761	-	SpyM3_1225	-	putative major capsid/head protein - phage associated
1226	 40.07	0	1250263..1250871	-	202	21910762	-	SpyM3_1226	-	hypothetical protein
1227	 35.58	0	1251003..1251269	-	88	21910763	-	SpyM3_1227	-	hypothetical protein
1228	 32.92	-1	1251331..1251570	-	79	21910764	-	SpyM3_1228	-	hypothetical protein
1229	 40.09	0	1251542..1253020	-	492	21910765	-	SpyM3_1229	-	putative minor capsid protein - phage associated
1230	 40.65	0	1253025..1254527	-	500	21910766	-	SpyM3_1230	-	putative minor capsid protein - phage associated
1231	 41.09	0	1254541..1255752	-	403	21910767	-	SpyM3_1231	-	putative terminase large subunit - phage associated
1232	 39.45	0	1255835..1256308	-	157	21910768	-	SpyM3_1232	-	hypothetical protein
1233	 28.84	-2	1256359..1256736	-	125	21910769	-	SpyM3_1233	-	hypothetical protein
1234	 28.52	-2	1256797..1257066	-	89	21910770	-	SpyM3_1234	-	hypothetical protein
1235	 34.96	0	1257189..1257866	-	225	21910771	-	SpyM3_1235	-	putative ABC transporter ATP-binding protein - phage associated
1236	 34.10	-1	1257845..1258363	-	172	21910772	-	SpyM3_1236	-	hypothetical protein
1237	 46.12	+2	1258444..1258701	+	85	21910773	-	SpyM3_1237	-	hypothetical protein
1238	 44.32	+1	1258600..1258863	-	87	21910774	-	SpyM3_1238	-	hypothetical protein
1239	 45.83	+1	1258973..1259212	-	79	21910775	-	SpyM3_1239	-	hypothetical protein
1240	 38.32	0	1259340..1259780	-	146	21910776	-	SpyM3_1240	-	hypothetical protein
1241	 40.63	0	1260221..1260727	-	168	21910777	-	SpyM3_1241	-	hypothetical protein
1242	 37.43	0	1260724..1260894	-	56	21910778	-	SpyM3_1242	-	hypothetical protein
1243	 36.05	0	1260891..1261295	-	134	21910779	-	SpyM3_1243	-	hypothetical protein
1244	 27.04	-2	1261305..1261574	-	89	21910780	-	SpyM3_1244	-	hypothetical protein
1245	 41.75	0	1261571..1261855	-	94	21910781	-	SpyM3_1245	-	hypothetical protein
1246	 35.71	0	1261849..1262100	-	83	21910782	-	SpyM3_1246	-	hypothetical protein
1247	 37.25	0	1262097..1262453	-	118	21910783	-	SpyM3_1247	-	hypothetical protein
1248	 38.78	0	1262450..1262890	-	146	21910784	-	SpyM3_1248	-	hypothetical protein
1249	 41.90	0	1263099..1263518	-	139	21910785	-	SpyM3_1249	-	putative single-strand DNA-binding protein - phage associated
1250	 37.78	0	1263511..1264185	-	224	21910786	-	SpyM3_1250	-	putative recombination protein - phage associated
1251	 33.95	-1	1264186..1264668	-	160	21910787	-	SpyM3_1251	-	hypothetical protein
1252	 39.61	0	1264690..1264944	-	84	21910788	-	SpyM3_1252	-	hypothetical protein
1253	 35.90	0	1265092..1265325	-	77	21910789	-	SpyM3_1253	-	hypothetical protein
1254	 36.23	0	1265306..1265719	-	137	21910790	-	SpyM3_1254	-	hypothetical protein
1255	 40.08	0	1265841..1266092	-	83	21910791	-	SpyM3_1255	-	putative replication protein - phage associated
1256	 34.95	0	1266192..1266377	-	61	21910792	-	SpyM3_1256	-	hypothetical protein
1257	 34.20	-1	1266406..1266750	-	114	21910793	-	SpyM3_1257	-	hypothetical protein
1258	 40.78	0	1266909..1267163	-	84	21910794	-	SpyM3_1258	-	hypothetical protein
1259	 35.82	0	1267152..1267352	+	66	21910795	-	SpyM3_1259	-	hypothetical protein
1260	 40.00	0	1267349..1267498	-	49	21910796	-	SpyM3_1260	-	hypothetical protein
1261	 38.55	0	1267531..1268259	-	242	21910797	-	SpyM3_1261	-	putative P1-type antirepressor - phage associated
1262	 35.42	0	1268270..1268461	-	63	21910798	-	SpyM3_1262	-	hypothetical protein
1263	 36.67	0	1269257..1269616	+	119	21910799	-	SpyM3_1263	-	putative repressor - phage associated
1264	 35.17	0	1269630..1270010	+	126	21910800	-	SpyM3_1264	-	hypothetical protein
1265	 30.08	-2	1270021..1270542	+	173	21910801	-	SpyM3_1265	-	hypothetical protein
1266	 37.49	0	1270661..1271815	+	384	21910802	int315.4	SpyM3_1266	-	putative integrase - phage associated
1267	 41.46	0	1271926..1273032	-	368	21910803	msrA.1	SpyM3_1267	-	bifunctional methionine sulfoxide reductase A/B protein
1268	 39.10	0	1273075..1273698	-	207	21910804	-	SpyM3_1268	-	hypothetical protein
1269	 38.96	0	1273711..1274421	-	236	21910805	ccdA	SpyM3_1269	-	putative cytochrome C-type biogenesis protein
1270	 41.59	0	1274642..1275574	-	310	21910806	-	SpyM3_1270	-	putative divalent cation transport protein
1271	 46.88	+2	1275666..1276625	-	319	21910807	-	SpyM3_1271	-	putative oxidoreductase
1272	 31.03	-2	1277635..1278414	+	259	21910808	-	SpyM3_1272	-	hypothetical protein
1273	 45.11	+1	1278630..1281278	-	882	21910809	valS	SpyM3_1273	-	valyl-tRNA synthetase
1274	 38.19	0	1281280..1281588	-	102	21910810	-	SpyM3_1274	-	hypothetical protein
1275	 42.08	0	1281613..1281795	-	60	21910811	-	SpyM3_1275	-	hypothetical protein
1276	 50.39	+2	1281792..1281920	-	42	21910812	-	SpyM3_1276	-	hypothetical protein
1277	 41.16	0	1282396..1282791	-	131	21910813	-	SpyM3_1277	-	hypothetical protein
1278	 34.90	0	1282812..1283066	-	84	21910814	-	SpyM3_1278	-	hypothetical protein
1279	 40.77	0	1283545..1284297	+	250	21910815	aroA.2	SpyM3_1279	-	3-deoxy-7-phosphoheptulonate synthase
1280	 42.27	0	1284353..1285426	+	357	21910816	aroB	SpyM3_1280	-	3-dehydroquinate synthase
1281	 37.58	0	1285862..1286167	-	101	21910817	-	SpyM3_1281	-	putative acetate kinase
1282	 41.00	0	1286169..1286507	-	112	21910818	-	SpyM3_1282	-	hypothetical protein
1283	 41.53	0	1286560..1287315	-	251	21910819	-	SpyM3_1283	-	SAM-dependent methyltransferase
1284	 46.30	+2	1287568..1288446	-	292	21910820	aroE.1	SpyM3_1284	-	putative shikimate 5-dehydrogenase
1285	 43.99	+1	1288584..1292000	-	1138	21910821	-	SpyM3_1285	-	putative beta-galactosidase
1286	 38.38	0	1292020..1293504	-	494	21910822	-	SpyM3_1286	-	putative two-component sensor response regulator
1287	 40.58	0	1293504..1295228	-	574	21910823	-	SpyM3_1287	-	putative two-component sensor histidine kinase
1288	 36.96	0	1295218..1295823	-	201	21910824	-	SpyM3_1288	-	hypothetical protein
1289	 39.14	0	1296129..1297574	-	481	21910825	-	SpyM3_1289	-	putative sugar ABC transporter substrate binding protein
1290	 39.59	0	1297655..1298581	-	308	21910826	-	SpyM3_1290	-	putative sugar ABC transporter permease protein
1291	 38.70	0	1298591..1299541	-	316	21910827	-	SpyM3_1291	-	putative sugar ABC transporter substrate binding protein
1292	 44.60	+1	1299737..1300615	+	292	21910828	-	SpyM3_1292	-	putative sugar kinase
1293	 44.91	+1	1301226..1302668	-	480	21910829	-	SpyM3_1293	-	putative beta-glucosidase
1294	 41.83	0	1302692..1304386	-	564	21910830	hyl	SpyM3_1294	-	putative hyaluronidase
1295	 41.02	0	1304437..1305477	-	346	21910831	-	SpyM3_1295	-	putative transcription regulator (LacI family)
1296	 43.99	+1	1305790..1306896	+	368	21910832	-	SpyM3_1296	-	hypothetical protein
1297	 44.27	+1	1306911..1309616	+	901	21910833	-	SpyM3_1297	-	putative sugar hydrolase
38.60	MEAN

3.72	STD DEV
