IslandPathversion 1.0

IslandPath Analysis: Streptococcus pneumoniae CGSP14

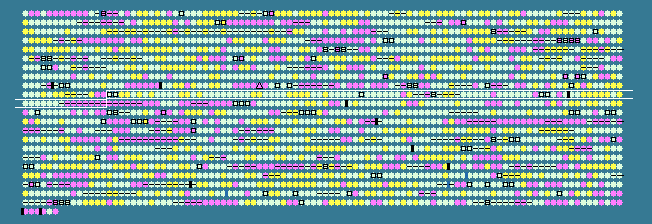

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.55 STD DEV: 4.71
Streptococcus pneumoniae CGSP14, complete genome - 1..2209198
2206 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
915	 39.23	0	900570..900959	-	129	182683885	-	SPCG_0915	-	IS1381 transposase protein B
916	 38.31	0	900976..901377	-	133	182683886	-	SPCG_0916	-	IS1381 transposase protein A
917	 44.99	+1	901748..903154	+	468	182683887	gidA	SPCG_0917	-	glucose-inhibited division protein A
918	 43.82	0	903232..903975	+	247	182683888	pyrH	SPCG_0918	-	uridylate kinase
919	 42.65	0	903984..904541	+	185	182683889	frr	SPCG_0919	-	ribosome releasing factor
920	 44.97	+1	904562..905455	+	297	182683890	-	SPCG_0920	-	hypothetical protein
921	 41.67	0	905464..905679	+	71	182683891	-	SPCG_0921	-	hypothetical protein
922	 45.10	+1	905765..906733	+	322	182683892	phoL	SPCG_0922	-	phoH family protein
923	 42.74	0	906736..907203	+	155	182683893	-	SPCG_0923	-	hypothetical protein
924	 38.36	0	907215..907592	+	125	182683894	-	SPCG_0924	-	hypothetical protein
925	 37.33	0	907775..908275	+	166	182683895	-	SPCG_0925	-	acetyltransferase
926	 37.72	0	908278..908505	+	75	182683896	-	SPCG_0926	-	hypothetical protein
927	 45.29	+1	908909..909184	-	91	182683897	-	SPCG_0927	-	alanine dehydrogenase
928	 45.65	+1	909181..910008	-	275	182683898	-	SPCG_0928	-	alanine dehydrogenase
929	 40.53	0	910185..910754	+	189	182683899	-	SPCG_0929	-	acetyltransferase
930	 44.85	+1	910822..911472	+	216	182683900	celA	SPCG_0930	-	competence protein CelA
931	 41.37	0	911456..913696	+	746	182683901	celB	SPCG_0931	-	competence protein CelB
932	 41.80	0	913875..914063	+	62	182683902	-	SPCG_0932	-	hypothetical protein
933	 41.29	0	914096..914623	+	175	182683903	-	SPCG_0933	-	ABC transporter, ATP-binding protein
934	 37.64	0	914679..915863	+	394	182683904	-	SPCG_0934	-	hypothetical protein
935	 39.12	0	916117..916704	+	195	182683905	infC	SPCG_0935	-	translation initiation factor IF-3
936	 41.29	0	916737..916937	+	66	182683906	rpmI	SPCG_0936	-	50S ribosomal protein L35
937	 41.11	0	916989..917348	+	119	182683907	rplT	SPCG_0937	-	50S ribosomal protein L20
938	 40.51	0	917355..917786	+	143	182683908	lguL	SPCG_0938	-	lactoylglutathione lyase
939	 45.19	+1	918036..918836	+	266	182683909	pyrDII	SPCG_0939	-	dihydroorotate dehydrogenase electron transfer subunit
940	 43.50	0	918793..919785	+	330	182683910	pyrD	SPCG_0940	-	dihydroorotate dehydrogenase
941	 38.25	0	919827..921860	+	677	182683911	lytB	SPCG_0941	-	endo-beta-N-acetylglucosaminidase
942	 42.60	0	921921..923603	-	560	182683912	flpA	SPCG_0942	-	adherence and virulence protein A
943	 40.96	0	923681..924178	+	165	182683913	-	SPCG_0943	-	hypothetical protein
944	 40.91	0	924159..924554	+	131	182683914	dgkA	SPCG_0944	-	diacylglycerol kinase
945	 44.33	+1	924571..925470	+	299	182683915	era	SPCG_0945	-	GTP-binding protein Era
946	 44.00	0	925519..926343	+	274	182683916	mutM	SPCG_0946	-	formamidopyrimidine-DNA glycosylase
947	 45.18	+1	926316..926948	+	210	182683917	coaE	SPCG_0947	-	dephospho-CoA kinase
948	 43.25	0	926935..928134	+	399	182683918	pmrA	SPCG_0948	-	multi-drug resistance efflux pump
949	 36.32	0	928323..928556	+	77	182683919	secG	SPCG_0949	-	translocase
950	 42.42	0	928658..931012	+	784	182683920	rnr	SPCG_0950	-	VacB/Rnb family exoribonuclease
951	 44.66	+1	930975..931442	+	155	182683921	smpB	SPCG_0951	-	ssrA-binding protein
952	 42.10	0	931452..932318	+	288	182683922	tehB	SPCG_0952	-	tellurite resistance protein TehB
953	 38.78	0	932391..933344	+	317	182683923	coiA	SPCG_0953	-	competence protein CoiA
954	 41.93	0	933363..935165	+	600	182683924	-	SPCG_0954	-	oligoendopeptidase F
955	 41.04	0	935167..935880	+	237	182683925	-	SPCG_0955	-	O-methyltransferase
956	 36.94	0	935947..936888	+	313	182683926	-	SPCG_0956	-	peptidylprolyl isomerase
957	 36.26	0	937007..937348	-	113	182683927	-	SPCG_0957	-	IS3-Spn1, transposase, truncation
958	 42.35	0	938109..938729	-	206	182683928	gpmB	SPCG_0958	-	phosphoglycerate mutase family protein
959	 39.54	0	938729..939211	-	160	182683929	ebsC	SPCG_0959	-	regulatory protein, putative
960	 41.64	0	939211..940053	-	280	182683930	-	SPCG_0960	-	hypothetical protein
961	 38.58	0	940148..940948	-	266	182683931	-	SPCG_0961	-	hypothetical protein
962	 41.04	0	941032..942471	+	479	182683932	gcaD	SPCG_0962	-	UDP-N-acetylglucosamine pyrophosphorylase
963	 41.39	0	942481..943026	+	181	182683933	-	SPCG_0963	-	mutT/nudix family protein
964	 35.34	0	943005..943352	+	115	182683934	-	SPCG_0964	-	hypothetical protein
965	 43.43	0	943369..944061	+	230	182683935	pfs	SPCG_0965	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
966	 38.41	0	944138..944629	+	163	182683936	-	SPCG_0966	-	hypothetical protein
967	 39.71	0	944691..945317	+	208	182683937	dnaQ	SPCG_0967	-	DNA polymerase III subunit epsilon
968	 35.93	0	945320..947089	+	589	182683938	-	SPCG_0968	-	hypothetical protein
969	 36.21	0	947285..947632	+	115	182683939	-	SPCG_0969	-	IS630-Spn1 transposase
970	 38.30	0	947811..947951	+	46	182683940	-	SPCG_0970	-	hypothetical protein
971	 48.26	+1	948112..948312	+	66	182683941	-	SPCG_0971	-	hypothetical protein
972	 45.34	+1	948131..948763	-	210	182683942	-	SPCG_0972	-	hypothetical protein
973	 36.16	0	948989..949696	+	235	182683943	ccdA	SPCG_0973	-	cytochrome c-type biogenesis protein CcdA
974	 38.02	0	949689..950264	+	191	182683944	-	SPCG_0974	-	thioredoxin family protein
975	 41.10	0	950626..952029	+	467	182683945	yfnA	SPCG_0975	-	amino acid permease family protein
976	 38.57	0	952154..953089	+	311	182683946	lmb	SPCG_0976	-	adhesion lipoprotein
977	 41.80	0	953097..955601	+	834	182683947	-	SPCG_0977	-	hypothetical protein
978	 36.47	0	955811..958930	+	1039	182683948	-	SPCG_0978	-	hypothetical protein
979	 35.46	0	959760..959900	+	46	182683949	-	SPCG_0979	-	hypothetical protein
980	 40.37	0	959934..960416	+	160	182683950	-	SPCG_0980	-	pneumococcal histidine triad protein E precursor, truncation
981	 38.74	0	960525..960746	-	73	182683952	-	SPCG_0981	-	hypothetical protein
982	 38.82	0	960732..960968	+	78	182683951	-	SPCG_0982	-	hypothetical protein
983	 36.34	0	960997..961329	+	110	182683953	-	SPCG_0983	-	hypothetical protein
984	 42.48	0	961365..962588	-	407	182683954	pepT	SPCG_0984	-	peptidase T
985	 37.90	0	962743..963837	+	364	182683955	hemH	SPCG_0985	-	ferrochelatase
986	 33.33	-1	963884..963976	-	30	182683956	-	SPCG_0986	-	hypothetical protein
987	 36.39	0	963992..964744	-	250	182683957	-	SPCG_0987	-	degenerate transposase
988	 38.46	0	964737..965282	-	181	182683958	-	SPCG_0988	-	degenerate transposase
989	 37.30	0	965398..965775	-	125	182683959	mscL	SPCG_0989	-	large conductance mechanosensitive channel protein MscL
990	 31.02	-1	965857..966288	-	143	182683960	-	SPCG_0990	-	gtrA family protein
991	 37.11	0	966339..966920	+	193	182683961	-	SPCG_0991	-	hypothetical protein
992	 40.00	0	967198..967452	+	84	182683962	-	SPCG_0992	-	hypothetical protein
993	 42.34	0	967678..968754	+	358	182683963	asd	SPCG_0993	-	aspartate-semialdehyde dehydrogenase
994	 43.38	0	968810..969745	+	311	182683964	dapA	SPCG_0994	-	dihydrodipicolinate synthase
995	 44.17	0	969792..971231	-	479	182683965	thdF	SPCG_0995	-	tRNA modification GTPase
996	 44.00	0	971302..971526	-	74	182683966	xylH	SPCG_0996	-	4-oxalocrotonate tautomerase
997	 43.99	0	971607..972197	+	196	182683967	tdk	SPCG_0997	-	thymidine kinase
998	 45.19	+1	972194..973273	+	359	182683968	prfA	SPCG_0998	-	peptide chain release factor 1
999	 38.45	0	973273..974112	+	279	182683969	hemK	SPCG_0999	-	hemK protein
1000	 43.33	0	974069..974698	+	209	182683970	-	SPCG_1000	-	Sua5/YciO/YrdC family protein
1001	 40.76	0	974661..975131	+	156	182683971	-	SPCG_1001	-	acetyltransferase
1002	 42.16	0	975193..976449	+	418	182683972	glyA	SPCG_1002	-	serine hydroxymethyltransferase
1003	 37.60	0	976424..977431	+	335	182683973	-	SPCG_1003	-	hypothetical protein
1004	 41.63	0	977431..978045	+	204	182683974	-	SPCG_1004	-	hypothetical protein
1005	 40.10	0	978119..979093	+	324	182683975	-	SPCG_1005	-	hypothetical protein
1006	 37.63	0	979062..979154	+	30	182683976	-	SPCG_1006	-	hypothetical protein
1007	 40.84	0	979167..980792	+	541	182683977	-	SPCG_1007	-	RNA methyltransferase
1008	 22.55	-2	981918..982019	+	33	182683978	-	SPCG_1008	-	hypothetical protein
1009	 30.90	-1	982140..983165	+	341	182683979	-	SPCG_1009	-	iron-compound ABC transporter, iron compound-binding protein
1010	 32.07	-1	983136..983690	-	184	182683981	-	SPCG_1010	-	hypothetical protein
1011	 33.24	-1	983143..984162	+	339	182683980	-	SPCG_1011	-	iron-compound ABC transporter, permease protein
1012	 30.46	-1	984162..985169	+	335	182683982	-	SPCG_1012	-	iron-compound ABC transporter, permease protein
1013	 33.71	-1	985169..985963	+	264	182683983	-	SPCG_1013	-	iron-compound ABC transporter, ATP-binding protein
1014	 23.58	-2	986832..987149	+	105	182683984	-	SPCG_1014	-	hypothetical protein
39.55	MEAN

4.71	STD DEV
