IslandPathversion 1.0

IslandPath Analysis: Streptococcus pneumoniae CGSP14

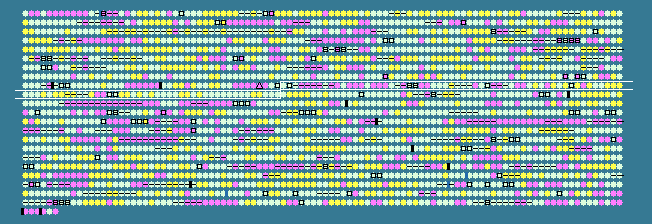

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.55 STD DEV: 4.71
Streptococcus pneumoniae CGSP14, complete genome - 1..2209198
2206 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
844	 41.79	0	831169..831369	+	66	182683814	-	SPCG_0844	-	hypothetical protein
845	 39.49	0	831571..831846	-	91	182683815	-	SPCG_0845	-	degenerate transposase
846	 38.89	0	831902..832045	+	47	182683816	-	SPCG_0846	-	hypothetical protein
847	 34.18	-1	832138..832725	+	195	182683817	-	SPCG_0847	-	hypothetical protein
848	 34.07	-1	833123..833932	+	269	182683818	-	SPCG_0848	-	phosphosugar-binding transcriptional regulator, putative
849	 34.19	-1	833937..834638	+	233	182683819	-	SPCG_0849	-	N-acetylmannosamine-6-phosphate 2-epimerase
850	 35.40	0	834663..835580	+	305	182683820	-	SPCG_0850	-	N-acetylneuraminate lyase
851	 36.32	0	835608..837149	+	513	182683821	-	SPCG_0851	-	sodium:solute symporter family protein
852	 31.37	-1	837168..837626	+	152	182683822	-	SPCG_0852	-	hypothetical protein
853	 35.31	0	837628..839850	+	740	182683823	nanC	SPCG_0853	-	neuraminidase, putative
854	 37.81	0	839860..840999	+	379	182683824	-	SPCG_0854	-	Gfo/Idh/MocA family oxidoreductase
855	 33.22	-1	841156..842046	+	296	182683825	-	SPCG_0855	-	ROK family protein
856	 28.09	-2	842071..842394	+	107	182683826	-	SPCG_0856	-	hypothetical protein
857	 31.58	-1	842384..844375	+	663	182683827	-	SPCG_0857	-	ATP synthase subunit I
858	 40.25	0	844391..844867	+	158	182683828	-	SPCG_0858	-	ATP synthase subunit K
859	 29.38	-2	844901..845482	+	193	182683829	-	SPCG_0859	-	v-type sodium ATP synthase, subunit E
860	 29.46	-2	845547..846554	+	335	182683830	-	SPCG_0860	-	v-type sodium ATP synthase, subunit C
861	 31.15	-1	846544..846864	+	106	182683831	-	SPCG_0861	-	v-type ATP synthase subunit F
862	 39.33	0	846903..848702	+	599	182683832	-	SPCG_0862	-	v-type ATP synthase subunit A
863	 36.22	0	848703..850088	+	461	182683833	-	SPCG_0863	-	v-type ATP synthase subunit B
864	 30.56	-1	850111..850722	+	203	182683834	-	SPCG_0864	-	ATP synthase subunit D
865	 37.12	0	850832..851359	-	175	182683835	-	SPCG_0865	-	degenerate transposase
866	 37.76	0	851640..852158	-	172	182683836	-	SPCG_0866	-	degenerate transposase
867	 23.21	-2	852291..852458	+	55	182683837	-	SPCG_0867	-	hypothetical protein
868	 30.65	-1	852474..852734	+	86	182683838	-	SPCG_0868	-	hypothetical protein
869	 41.83	0	852838..853308	-	156	182683839	-	SPCG_0869	-	transcriptional repressor, putative
870	 41.20	0	853325..855598	-	757	182683840	-	SPCG_0870	-	x-prolyl-dipeptidyl aminopeptidase
871	 39.34	0	855918..859046	+	1042	182683841	-	SPCG_0871	-	DNA polymerase III subunit alpha
872	 44.25	0	859129..860136	+	335	182683842	pfkA	SPCG_0872	-	6-phosphofructokinase
873	 41.10	0	860195..861700	+	501	182683843	-	SPCG_0873	-	pyruvate kinase
874	 37.90	0	862864..863082	-	72	182683844	-	SPCG_0874	-	hypothetical protein
875	 39.40	0	863518..864390	+	290	182683845	-	SPCG_0875	-	hypothetical protein
876	 35.15	0	864403..864567	+	54	182683846	-	SPCG_0876	-	hypothetical protein
877	 39.78	0	864488..864580	+	30	182683847	-	SPCG_0877	-	hypothetical protein
878	 39.06	0	864497..864880	-	127	182683848	-	SPCG_0878	-	IS1381 transposase protein A
879	 34.29	-1	865023..865334	+	103	182683849	-	SPCG_0879	-	hypothetical protein
880	 33.89	-1	865338..866054	+	238	182683850	-	SPCG_0880	-	hypothetical protein
881	 40.69	0	866184..866999	-	271	182683851	-	SPCG_0881	-	hypothetical protein
882	 42.05	0	866996..867901	-	301	182683852	-	SPCG_0882	-	hypothetical protein
883	 35.61	0	867902..868033	-	43	182683853	-	SPCG_0883	-	hypothetical protein
884	 28.73	-2	868243..869610	+	455	182683854	-	SPCG_0884	-	capsular polysaccharide biosynthesis protein, putative
885	 42.78	0	869694..871841	+	715	182683855	-	SPCG_0885	-	transcriptional regulator, putative
886	 44.44	+1	871828..872277	+	149	182683856	-	SPCG_0886	-	hypothetical protein
887	 41.03	0	872335..872607	+	90	182683857	-	SPCG_0887	-	hypothetical protein
888	 33.33	-1	872655..872819	-	54	182683858	-	SPCG_0888	-	hypothetical protein
889	 43.26	0	873523..874338	+	271	182683859	-	SPCG_0889	-	ABC transporter, ATP-binding protein
890	 39.17	0	874340..876328	+	662	182683860	-	SPCG_0890	-	ABC transporter, permease protein, putative
891	 43.82	0	876370..876960	-	196	182683861	-	SPCG_0891	-	uncharacterized membrane protein
892	 39.41	0	877040..877960	-	306	182683862	-	SPCG_0892	-	IS1239 transposase
893	 43.70	0	878622..880097	+	491	182683863	cad	SPCG_0893	-	lysine decarboxylase
894	 35.88	0	880063..880533	-	156	182683864	-	SPCG_0894	-	pilin gene inverting-related protein,truncated
895	 44.60	+1	881034..881894	+	286	182683865	speE	SPCG_0895	-	spermidine synthase
896	 41.59	0	881891..883150	+	419	182683866	-	SPCG_0896	-	hypothetical protein
897	 42.64	0	883150..884277	+	375	182683867	nspC	SPCG_0897	-	carboxynorspermidine decarboxylase
898	 44.29	+1	884274..885359	+	361	182683868	-	SPCG_0898	-	hypothetical protein
899	 43.15	0	885369..886244	+	291	182683869	-	SPCG_0899	-	carbon-nitrogen hydrolase family protein
900	 43.83	0	886425..887234	-	269	182683870	-	SPCG_0900	-	Cof family protein
901	 36.90	0	887781..888452	+	223	182683871	-	SPCG_0901	-	hypothetical protein
902	 40.48	0	888694..889602	+	302	182683872	cpsY	SPCG_0902	-	LysR family transcriptional regulator
903	 41.34	0	889599..890060	+	153	182683873	lspA	SPCG_0903	-	lipoprotein signal peptidase
904	 44.48	+1	890050..890937	+	295	182683874	rluD	SPCG_0904	-	ribosomal large subunit pseudouridine synthase D
905	 37.47	0	890940..892823	+	627	182683875	lytD	SPCG_0905	-	choline binding protein E
906	 44.30	+1	892903..894033	+	376	182683876	proB	SPCG_0906	-	gamma-glutamyl kinase
907	 45.53	+1	894043..895305	+	420	182683877	proA	SPCG_0907	-	gamma-glutamyl phosphate reductase
908	 44.74	+1	895309..896106	+	265	182683878	proC	SPCG_0908	-	pyrroline-5-carboxylate reductase
909	 46.48	+1	896326..896964	+	212	182683879	tmk	SPCG_0909	-	thymidylate kinase
910	 41.19	0	896961..897851	+	296	182683880	holB	SPCG_0910	-	DNA polymerase III subunit delta
911	 41.74	0	897864..898208	+	114	182683881	-	SPCG_0911	-	hypothetical protein
912	 43.45	0	898211..899080	+	289	182683882	-	SPCG_0912	-	tetrapyrrole methylase family protein
913	 32.97	-1	899280..899825	+	181	182683883	-	SPCG_0913	-	hypothetical protein
914	 30.34	-1	900078..900512	+	144	182683884	-	SPCG_0914	-	hypothetical protein
915	 39.23	0	900570..900959	-	129	182683885	-	SPCG_0915	-	IS1381 transposase protein B
916	 38.31	0	900976..901377	-	133	182683886	-	SPCG_0916	-	IS1381 transposase protein A
917	 44.99	+1	901748..903154	+	468	182683887	gidA	SPCG_0917	-	glucose-inhibited division protein A
918	 43.82	0	903232..903975	+	247	182683888	pyrH	SPCG_0918	-	uridylate kinase
919	 42.65	0	903984..904541	+	185	182683889	frr	SPCG_0919	-	ribosome releasing factor
920	 44.97	+1	904562..905455	+	297	182683890	-	SPCG_0920	-	hypothetical protein
921	 41.67	0	905464..905679	+	71	182683891	-	SPCG_0921	-	hypothetical protein
922	 45.10	+1	905765..906733	+	322	182683892	phoL	SPCG_0922	-	phoH family protein
923	 42.74	0	906736..907203	+	155	182683893	-	SPCG_0923	-	hypothetical protein
924	 38.36	0	907215..907592	+	125	182683894	-	SPCG_0924	-	hypothetical protein
925	 37.33	0	907775..908275	+	166	182683895	-	SPCG_0925	-	acetyltransferase
926	 37.72	0	908278..908505	+	75	182683896	-	SPCG_0926	-	hypothetical protein
927	 45.29	+1	908909..909184	-	91	182683897	-	SPCG_0927	-	alanine dehydrogenase
928	 45.65	+1	909181..910008	-	275	182683898	-	SPCG_0928	-	alanine dehydrogenase
929	 40.53	0	910185..910754	+	189	182683899	-	SPCG_0929	-	acetyltransferase
930	 44.85	+1	910822..911472	+	216	182683900	celA	SPCG_0930	-	competence protein CelA
931	 41.37	0	911456..913696	+	746	182683901	celB	SPCG_0931	-	competence protein CelB
932	 41.80	0	913875..914063	+	62	182683902	-	SPCG_0932	-	hypothetical protein
933	 41.29	0	914096..914623	+	175	182683903	-	SPCG_0933	-	ABC transporter, ATP-binding protein
934	 37.64	0	914679..915863	+	394	182683904	-	SPCG_0934	-	hypothetical protein
935	 39.12	0	916117..916704	+	195	182683905	infC	SPCG_0935	-	translation initiation factor IF-3
936	 41.29	0	916737..916937	+	66	182683906	rpmI	SPCG_0936	-	50S ribosomal protein L35
937	 41.11	0	916989..917348	+	119	182683907	rplT	SPCG_0937	-	50S ribosomal protein L20
938	 40.51	0	917355..917786	+	143	182683908	lguL	SPCG_0938	-	lactoylglutathione lyase
939	 45.19	+1	918036..918836	+	266	182683909	pyrDII	SPCG_0939	-	dihydroorotate dehydrogenase electron transfer subunit
940	 43.50	0	918793..919785	+	330	182683910	pyrD	SPCG_0940	-	dihydroorotate dehydrogenase
941	 38.25	0	919827..921860	+	677	182683911	lytB	SPCG_0941	-	endo-beta-N-acetylglucosaminidase
942	 42.60	0	921921..923603	-	560	182683912	flpA	SPCG_0942	-	adherence and virulence protein A
943	 40.96	0	923681..924178	+	165	182683913	-	SPCG_0943	-	hypothetical protein
39.55	MEAN

4.71	STD DEV
