IslandPathversion 1.0

IslandPath Analysis: Streptococcus pneumoniae CGSP14

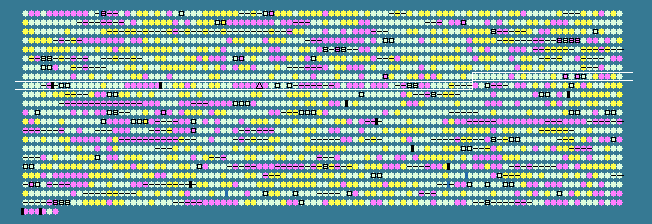

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.55 STD DEV: 4.71
Streptococcus pneumoniae CGSP14, complete genome - 1..2209198
2206 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
776	 37.67	0	766232..766807	+	191	182683746	-	SPCG_0776	-	hypothetical protein
777	 41.72	0	766832..767344	+	170	182683747	-	SPCG_0777	-	hemolysin-related protein
778	 42.05	0	768002..768712	+	236	182683748	deoD	SPCG_0778	-	purine nucleoside phosphorylase
779	 38.67	0	768735..769259	-	174	182683749	flaR	SPCG_0779	-	topology modulation protein
780	 38.49	0	769312..769563	-	83	182683750	rpsT	SPCG_0780	-	30S ribosomal protein S20
781	 38.38	0	769616..770566	-	316	182683751	coaA	SPCG_0781	-	pantothenate kinase
782	 32.84	-1	770726..771130	+	134	182683752	-	SPCG_0782	-	hypothetical protein
783	 39.76	0	771337..771927	+	196	182683753	-	SPCG_0783	-	hypothetical protein
784	 43.11	0	771924..773201	+	425	182683754	pdp	SPCG_0784	-	pyrimidine-nucleoside phosphorylase
785	 42.23	0	773219..773881	+	220	182683755	deoC	SPCG_0785	-	deoxyribose-phosphate aldolase
786	 40.77	0	773868..774257	+	129	182683756	cdd	SPCG_0786	-	cytidine deaminase
787	 42.31	0	774275..775399	+	374	182683757	-	SPCG_0787	-	lipoprotein
788	 41.86	0	775543..777078	+	511	182683758	-	SPCG_0788	-	sugar ABC transporter, ATP-binding protein
789	 44.75	+1	777044..778129	+	361	182683759	-	SPCG_0789	-	sugar ABC transporter, permease protein, putative
790	 42.74	0	778132..779088	+	318	182683760	-	SPCG_0790	-	sugar ABC transporter, permease protein, putative
791	 27.70	-2	779173..779385	+	70	182683761	-	SPCG_0791	-	degenerate transposase
792	 39.29	0	779521..779688	+	55	182683762	-	SPCG_0792	-	hypothetical protein
793	 33.70	-1	779688..779960	+	90	182683763	-	SPCG_0793	-	degenerate transposase
794	 38.65	0	780022..780510	+	162	182683764	-	SPCG_0794	-	degenerate transposase
795	 41.12	0	780553..781194	-	213	182683765	-	SPCG_0795	-	hypothetical protein
796	 45.22	+1	781330..783273	+	647	182683766	parE	SPCG_0796	-	DNA topoisomerase IV subunit B
797	 27.78	-2	783273..783380	+	35	182683767	-	SPCG_0797	-	hypothetical protein
798	 35.71	0	783394..783519	+	41	182683768	-	SPCG_0798	-	hypothetical protein
799	 43.77	0	783684..786164	+	826	182683769	parC	SPCG_0799	-	DNA topoisomerase IV subunit A
800	 41.45	0	786296..787318	+	340	182683770	ilvE	SPCG_0800	-	branched-chain amino acid aminotransferase
801	 36.31	0	787374..788078	+	234	182683771	-	SPCG_0801	-	ABC-type oligopeptide transport system, periplasmic component
802	 37.13	0	788122..788832	+	236	182683772	-	SPCG_0802	-	hypothetical protein
803	 38.31	0	788829..789752	+	307	182683773	-	SPCG_0803	-	membrane protein
804	 39.07	0	789767..790411	+	214	182683774	pcp	SPCG_0804	-	pyrrolidone-carboxylate peptidase
805	 29.44	-2	790579..790809	+	76	182683775	-	SPCG_0805	-	hypothetical protein
806	 40.81	0	791182..792384	+	400	182683776	rpsA	SPCG_0806	-	30S ribosomal protein S1
807	 36.51	0	792469..792972	-	167	182683777	-	SPCG_0807	-	degenerate transposase
808	 39.25	0	793253..793624	-	123	182683778	-	SPCG_0808	-	degenerate transposase
809	 38.96	0	793964..794461	+	165	182683779	-	SPCG_0809	-	hypothetical protein
810	 42.03	0	794461..796116	+	551	182683780	dnaX	SPCG_0810	-	DNA polymerase III subunits gamma and tau
811	 37.44	0	796144..796338	+	64	182683781	-	SPCG_0811	-	hypothetical protein
812	 41.54	0	796467..797258	+	263	182683782	-	SPCG_0812	-	ABC transporter, ATP-binding protein
813	 42.60	0	797286..798548	+	420	182683783	-	SPCG_0813	-	hypothetical protein
814	 44.58	+1	798514..799785	+	423	182683784	-	SPCG_0814	-	aminotransferase, class-V
815	 40.76	0	799742..800212	+	156	182683785	nifU	SPCG_0815	-	nifU family protein
816	 41.83	0	800266..801678	+	470	182683786	-	SPCG_0816	-	FeS assembly protein SufB
817	 40.10	0	801909..803150	-	413	182683787	dacA	SPCG_0817	-	D-alanyl-D-alanine carboxypeptidase
818	 33.33	-1	803253..804362	+	369	182683788	-	SPCG_0818	-	membrane protein
819	 30.56	-1	805241..805348	-	35	182683789	-	SPCG_0819	-	hypothetical protein
820	 32.05	-1	805487..806263	-	258	182683790	-	SPCG_0820	-	hypothetical protein
821	 33.55	-1	806290..806760	-	156	182683791	-	SPCG_0821	-	hypothetical protein
822	 32.90	-1	806815..807279	-	154	182683792	-	SPCG_0822	-	hypothetical protein
823	 20.37	-2	807327..807434	+	35	182683793	-	SPCG_0823	-	hypothetical protein
824	 42.11	0	807884..808624	+	246	182683794	fruR	SPCG_0824	-	lactose phosphotransferase system repressor
825	 40.90	0	808621..809532	+	303	182683795	fruB	SPCG_0825	-	1-phosphofructokinase, putative
826	 44.55	+1	809529..811481	+	650	182683796	fruA	SPCG_0826	-	PTS system, fructose specific IIABC components
827	 43.71	0	811567..813870	+	767	182683797	ftsK	SPCG_0827	-	spoE family protein
828	 35.77	0	813915..814448	-	177	182683799	-	SPCG_0828	-	hypothetical protein
829	 43.89	0	814421..815623	+	400	182683798	-	SPCG_0829	-	aminotransferase, class-V
830	 42.96	0	815632..816846	+	404	182683800	thiI	SPCG_0830	-	thiamine biosynthesis protein ThiI
831	 41.93	0	816957..817805	+	282	182683801	-	SPCG_0831	-	hypothetical protein
832	 44.35	+1	817827..818162	+	111	182683802	-	SPCG_0832	-	hypothetical protein
833	 44.85	+1	818159..818566	+	135	182683803	-	SPCG_0833	-	hypothetical protein
834	 41.82	0	818579..819745	+	388	182683804	-	SPCG_0834	-	hypothetical protein
835	 36.21	0	820253..821746	+	497	182683805	-	SPCG_0835	-	type I restriction-modification system, M subunit, putative
836	 33.15	-1	821759..822301	+	180	182683806	-	SPCG_0836	-	type I restriction-modification system, S subunit, putative
837	 33.07	-1	822298..823416	+	372	182683807	-	SPCG_0837	-	type I restriction-modification system, S subunit, putative
838	 33.33	-1	823476..823712	+	78	182683808	-	SPCG_0838	-	hypothetical protein
839	 31.88	-1	823709..824122	+	137	182683809	-	SPCG_0839	-	hypothetical protein
840	 36.02	0	824240..825205	+	321	182683810	-	SPCG_0840	-	phage integrase family integrase/recombinase
841	 32.12	-1	825150..825809	+	219	182683811	-	SPCG_0841	-	type I restriction-modification system, S subunit, putative
842	 37.69	0	825839..829189	+	1116	182683812	-	SPCG_0842	-	type I restriction-modification system, R subunit, putative
843	 40.42	0	829589..831169	-	526	182683813	-	SPCG_0843	-	IS1380-Spn1 transposase
844	 41.79	0	831169..831369	+	66	182683814	-	SPCG_0844	-	hypothetical protein
845	 39.49	0	831571..831846	-	91	182683815	-	SPCG_0845	-	degenerate transposase
846	 38.89	0	831902..832045	+	47	182683816	-	SPCG_0846	-	hypothetical protein
847	 34.18	-1	832138..832725	+	195	182683817	-	SPCG_0847	-	hypothetical protein
848	 34.07	-1	833123..833932	+	269	182683818	-	SPCG_0848	-	phosphosugar-binding transcriptional regulator, putative
849	 34.19	-1	833937..834638	+	233	182683819	-	SPCG_0849	-	N-acetylmannosamine-6-phosphate 2-epimerase
850	 35.40	0	834663..835580	+	305	182683820	-	SPCG_0850	-	N-acetylneuraminate lyase
851	 36.32	0	835608..837149	+	513	182683821	-	SPCG_0851	-	sodium:solute symporter family protein
852	 31.37	-1	837168..837626	+	152	182683822	-	SPCG_0852	-	hypothetical protein
853	 35.31	0	837628..839850	+	740	182683823	nanC	SPCG_0853	-	neuraminidase, putative
854	 37.81	0	839860..840999	+	379	182683824	-	SPCG_0854	-	Gfo/Idh/MocA family oxidoreductase
855	 33.22	-1	841156..842046	+	296	182683825	-	SPCG_0855	-	ROK family protein
856	 28.09	-2	842071..842394	+	107	182683826	-	SPCG_0856	-	hypothetical protein
857	 31.58	-1	842384..844375	+	663	182683827	-	SPCG_0857	-	ATP synthase subunit I
858	 40.25	0	844391..844867	+	158	182683828	-	SPCG_0858	-	ATP synthase subunit K
859	 29.38	-2	844901..845482	+	193	182683829	-	SPCG_0859	-	v-type sodium ATP synthase, subunit E
860	 29.46	-2	845547..846554	+	335	182683830	-	SPCG_0860	-	v-type sodium ATP synthase, subunit C
861	 31.15	-1	846544..846864	+	106	182683831	-	SPCG_0861	-	v-type ATP synthase subunit F
862	 39.33	0	846903..848702	+	599	182683832	-	SPCG_0862	-	v-type ATP synthase subunit A
863	 36.22	0	848703..850088	+	461	182683833	-	SPCG_0863	-	v-type ATP synthase subunit B
864	 30.56	-1	850111..850722	+	203	182683834	-	SPCG_0864	-	ATP synthase subunit D
865	 37.12	0	850832..851359	-	175	182683835	-	SPCG_0865	-	degenerate transposase
866	 37.76	0	851640..852158	-	172	182683836	-	SPCG_0866	-	degenerate transposase
867	 23.21	-2	852291..852458	+	55	182683837	-	SPCG_0867	-	hypothetical protein
868	 30.65	-1	852474..852734	+	86	182683838	-	SPCG_0868	-	hypothetical protein
869	 41.83	0	852838..853308	-	156	182683839	-	SPCG_0869	-	transcriptional repressor, putative
870	 41.20	0	853325..855598	-	757	182683840	-	SPCG_0870	-	x-prolyl-dipeptidyl aminopeptidase
871	 39.34	0	855918..859046	+	1042	182683841	-	SPCG_0871	-	DNA polymerase III subunit alpha
872	 44.25	0	859129..860136	+	335	182683842	pfkA	SPCG_0872	-	6-phosphofructokinase
873	 41.10	0	860195..861700	+	501	182683843	-	SPCG_0873	-	pyruvate kinase
874	 37.90	0	862864..863082	-	72	182683844	-	SPCG_0874	-	hypothetical protein
875	 39.40	0	863518..864390	+	290	182683845	-	SPCG_0875	-	hypothetical protein
39.55	MEAN

4.71	STD DEV
