IslandPathversion 1.0

IslandPath Analysis: Streptococcus pneumoniae CGSP14

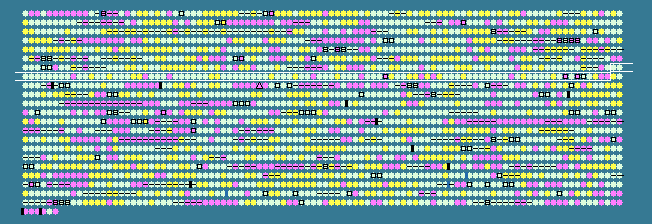

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.55 STD DEV: 4.71
Streptococcus pneumoniae CGSP14, complete genome - 1..2209198
2206 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
699	 41.34	0	694813..695973	+	386	182683669	-	SPCG_0699	-	branched-chain amino acid ABC transporter, amino acid-binding protein
700	 43.00	0	696232..697110	+	292	182683670	-	SPCG_0700	-	branched-chain amino acid ABC transporter, permease protein
701	 40.75	0	697114..698070	+	318	182683671	-	SPCG_0701	-	branched-chain amino acid ABC transporter, permease protein
702	 38.95	0	698070..698834	+	254	182683672	-	SPCG_0702	-	branched-chain amino acid ABC transporter, ATP-binding protein
703	 41.49	0	698834..699544	+	236	182683673	-	SPCG_0703	-	branched-chain amino acid ABC transporter, ATP-binding protein
704	 37.75	0	699958..700614	+	218	182683674	-	SPCG_0704	-	acetoin utilization protein AcuB, putative
705	 42.63	0	700828..701817	+	329	182683675	prfB	SPCG_0705	-	peptide chain release factor 2
706	 41.13	0	701835..702527	+	230	182683676	ftsE	SPCG_0706	-	cell division ABC transporter, ATP-binding protein FtsE
707	 37.17	0	702457..703446	+	329	182683677	ftsX	SPCG_0707	-	cell division ABC transporter, permease protein FtsX
708	 41.27	0	703732..705912	+	726	182683678	ptsG	SPCG_0708	-	PTS system, IIABC components
709	 35.83	0	705918..706037	+	39	182683679	-	SPCG_0709	-	hypothetical protein
710	 41.73	0	706030..706779	+	249	182683680	-	SPCG_0710	-	hypothetical protein
711	 40.62	0	706919..708262	+	447	182683681	rheB	SPCG_0711	-	DEAD-box ATP dependent DNA helicase
712	 43.83	0	708477..709667	+	396	182683682	metK	SPCG_0712	-	S-adenosylmethionine synthetase
713	 42.63	0	710220..711155	+	311	182683683	-	SPCG_0713	-	dihydroorotate dehydrogenase
714	 39.31	0	711189..712226	+	345	182683684	holA	SPCG_0714	-	DNA polymerase III subunit delta
715	 43.40	0	712399..713004	+	201	182683685	sodA	SPCG_0715	-	superoxide dismutase, manganese-dependent
716	 40.11	0	713162..713692	+	176	182683686	-	SPCG_0716	-	hypothetical protein
717	 42.45	0	713713..714798	+	361	182683687	-	SPCG_0717	-	hypothetical protein
718	 37.06	0	714798..715280	+	160	182683688	-	SPCG_0718	-	vanZF-related protein
719	 43.90	0	715282..716823	+	513	182683689	-	SPCG_0719	-	ABC transporter, ATP-binding protein
720	 43.41	0	716879..717682	-	267	182683690	ppiA	SPCG_0720	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
721	 35.68	0	717766..717978	-	70	182683691	-	SPCG_0721	-	hypothetical protein
722	 37.62	0	718457..718666	-	69	182683692	-	SPCG_0722	-	hypothetical protein
723	 39.93	0	718836..719123	+	95	182683693	rpsP	SPCG_0723	-	30S ribosomal protein S16
724	 36.25	0	719127..719366	+	79	182683694	-	SPCG_0724	-	KH domain-containing protein
725	 34.46	-1	719931..720731	+	266	182683695	-	SPCG_0725	-	hypothetical protein
726	 40.27	0	720762..721280	+	172	182683696	rimM	SPCG_0726	-	16S rRNA-processing protein
727	 42.92	0	721270..721989	+	239	182683697	trmD	SPCG_0727	-	tRNA (guanine-N(1)-)-methyltransferase
728	 37.76	0	722001..722339	+	112	182683698	-	SPCG_0728	-	ATP cone domain-containing protein
729	 38.01	0	722370..722690	-	106	182683699	-	SPCG_0729	-	hypothetical protein
730	 38.33	0	722764..723003	+	79	182683700	-	SPCG_0730	-	hypothetical protein
731	 42.64	0	723000..723128	-	42	182683701	-	SPCG_0731	-	hypothetical protein
732	 44.69	+1	723255..723791	-	178	182683702	-	SPCG_0732	-	hypothetical protein
733	 43.25	0	723964..725334	-	456	182683703	gor	SPCG_0733	-	glutathione reductase
734	 42.33	0	725620..726819	+	399	182683704	-	SPCG_0734	-	hypothetical protein
735	 41.74	0	726803..727504	+	233	182683705	-	SPCG_0735	-	ABC transporter, ATP-binding protein
736	 40.00	0	727506..728765	+	419	182683706	-	SPCG_0736	-	hypothetical protein
737	 42.65	0	728847..730886	+	679	182683707	metG	SPCG_0737	-	methionine--tRNA ligase
738	 40.43	0	731259..731582	+	107	182683708	-	SPCG_0738	-	hypothetical protein
739	 37.62	0	731586..732401	+	271	182683709	-	SPCG_0739	-	hypothetical protein
740	 36.67	0	732473..733402	+	309	182683710	-	SPCG_0740	-	aldo/keto reductase family oxidoreductase
741	 41.95	0	733468..733734	+	88	182683711	-	SPCG_0741	-	hypothetical protein
742	 44.92	+1	733727..734425	+	232	182683712	fabG	SPCG_0742	-	3-ketoacyl-(acyl-carrier-protein) reductase
743	 39.72	0	734436..734936	+	166	182683713	-	SPCG_0743	-	mutT/nudix family protein
744	 36.43	0	734911..735783	+	290	182683714	-	SPCG_0744	-	PEP-utilizing enzyme family protein
745	 42.63	0	735758..736198	+	146	182683715	-	SPCG_0745	-	hypothetical protein
746	 44.37	+1	736321..738867	+	848	182683716	pepN	SPCG_0746	-	aminopeptidase N
747	 37.11	0	738910..739650	+	246	182683717	ciaR	SPCG_0747	-	DNA-binding response regulator CiaR
748	 38.43	0	739640..740974	+	444	182683718	ciaH	SPCG_0748	-	sensor histidine kinase CiaH
749	 34.03	-1	741008..741295	-	95	182683720	-	SPCG_0749	-	hypothetical protein
750	 40.43	0	741294..742364	+	356	182683719	-	SPCG_0750	-	hypothetical protein
751	 40.07	0	742564..745014	+	816	182683721	dinG	SPCG_0751	-	ATP-dependent DNA helicase
752	 39.89	0	745024..746274	+	416	182683722	rodA	SPCG_0752	-	rod shape-determining protein RodA, putative
753	 43.60	0	746285..746839	+	184	182683723	thiJ	SPCG_0753	-	4-methyl-5(b-hydroxyethyl)-thiazole monophosphate biosynthesis protein, putative
754	 37.52	0	746915..747487	+	190	182683724	gph	SPCG_0754	-	HAD superfamily hydrolase
755	 42.84	0	747502..749448	+	648	182683725	gyrB	SPCG_0755	-	DNA gyrase subunit B
756	 36.13	0	749503..751257	+	584	182683726	ezrA	SPCG_0756	-	septation ring formation regulator EzrA
757	 30.21	-1	751788..751883	+	31	182683727	-	SPCG_0757	-	hypothetical protein
758	 41.67	0	751981..752196	-	71	182683728	-	SPCG_0758	-	IS66 family Orf2
759	 37.33	0	752564..752863	-	99	182683729	-	SPCG_0759	-	hypothetical protein
760	 39.78	0	753028..753492	-	154	182683730	-	SPCG_0760	-	mutT/nudix family protein
761	 35.73	0	753542..753958	+	138	182683731	-	SPCG_0761	-	IS630-Spn1, transposase Orf1
762	 43.43	0	754612..756870	-	752	182683732	clpE	SPCG_0762	-	ATP-dependent Clp protease, ATP-binding subunit ClpE
763	 41.13	0	757099..757329	-	76	182683733	-	SPCG_0763	-	hypothetical protein
764	 39.42	0	757513..758202	+	229	182683734	-	SPCG_0764	-	amino acid ABC transporter, permease protein
765	 43.27	0	758202..758936	+	244	182683735	-	SPCG_0765	-	amino acid ABC transporter, ATP-binding protein
766	 45.17	+1	759027..759947	+	306	182683736	-	SPCG_0766	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
767	 33.58	-1	760085..760906	+	273	182683737	-	SPCG_0767	-	hypothetical protein
768	 43.87	0	760921..761793	+	290	182683738	-	SPCG_0768	-	hypothetical protein
769	 30.95	-1	761790..761915	-	41	182683739	-	SPCG_0769	-	hypothetical protein
770	 43.05	0	762018..762758	+	246	182683740	rpiA	SPCG_0770	-	ribose-5-phosphate isomerase A
771	 42.27	0	762709..763983	+	424	182683741	deoB	SPCG_0771	-	phosphopentomutase
772	 41.38	0	763985..764158	+	57	182683742	-	SPCG_0772	-	hypothetical protein
773	 36.67	0	764273..764542	+	89	182683743	-	SPCG_0773	-	hypothetical protein
774	 44.69	+1	764542..765351	+	269	182683744	pnp	SPCG_0774	-	purine nucleoside phosphorylase
775	 40.20	0	765815..766222	+	135	182683745	-	SPCG_0775	-	hypothetical protein
776	 37.67	0	766232..766807	+	191	182683746	-	SPCG_0776	-	hypothetical protein
777	 41.72	0	766832..767344	+	170	182683747	-	SPCG_0777	-	hemolysin-related protein
778	 42.05	0	768002..768712	+	236	182683748	deoD	SPCG_0778	-	purine nucleoside phosphorylase
779	 38.67	0	768735..769259	-	174	182683749	flaR	SPCG_0779	-	topology modulation protein
780	 38.49	0	769312..769563	-	83	182683750	rpsT	SPCG_0780	-	30S ribosomal protein S20
781	 38.38	0	769616..770566	-	316	182683751	coaA	SPCG_0781	-	pantothenate kinase
782	 32.84	-1	770726..771130	+	134	182683752	-	SPCG_0782	-	hypothetical protein
783	 39.76	0	771337..771927	+	196	182683753	-	SPCG_0783	-	hypothetical protein
784	 43.11	0	771924..773201	+	425	182683754	pdp	SPCG_0784	-	pyrimidine-nucleoside phosphorylase
785	 42.23	0	773219..773881	+	220	182683755	deoC	SPCG_0785	-	deoxyribose-phosphate aldolase
786	 40.77	0	773868..774257	+	129	182683756	cdd	SPCG_0786	-	cytidine deaminase
787	 42.31	0	774275..775399	+	374	182683757	-	SPCG_0787	-	lipoprotein
788	 41.86	0	775543..777078	+	511	182683758	-	SPCG_0788	-	sugar ABC transporter, ATP-binding protein
789	 44.75	+1	777044..778129	+	361	182683759	-	SPCG_0789	-	sugar ABC transporter, permease protein, putative
790	 42.74	0	778132..779088	+	318	182683760	-	SPCG_0790	-	sugar ABC transporter, permease protein, putative
791	 27.70	-2	779173..779385	+	70	182683761	-	SPCG_0791	-	degenerate transposase
792	 39.29	0	779521..779688	+	55	182683762	-	SPCG_0792	-	hypothetical protein
793	 33.70	-1	779688..779960	+	90	182683763	-	SPCG_0793	-	degenerate transposase
794	 38.65	0	780022..780510	+	162	182683764	-	SPCG_0794	-	degenerate transposase
795	 41.12	0	780553..781194	-	213	182683765	-	SPCG_0795	-	hypothetical protein
796	 45.22	+1	781330..783273	+	647	182683766	parE	SPCG_0796	-	DNA topoisomerase IV subunit B
797	 27.78	-2	783273..783380	+	35	182683767	-	SPCG_0797	-	hypothetical protein
798	 35.71	0	783394..783519	+	41	182683768	-	SPCG_0798	-	hypothetical protein
39.55	MEAN

4.71	STD DEV
