IslandPath Analysis: Streptococcus pneumoniae CGSP14

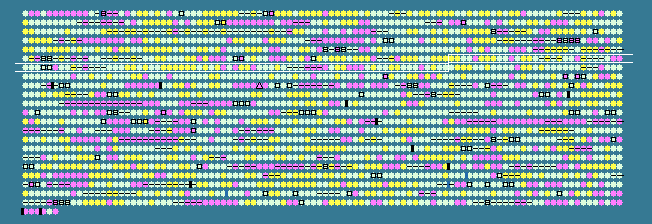

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.55 STD DEV: 4.71
Streptococcus pneumoniae CGSP14, complete genome - 1..2209198
2206 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
572	 43.45	0	567629..569863	+	744	182683542	recJ	SPCG_0572	-	single-stranded-DNA-specific exonuclease RecJ
573	 43.20	0	570038..571699	+	553	182683543	-	SPCG_0573	-	metallo-beta-lactamase superfamily protein
574	 42.95	0	571768..572547	+	259	182683544	estA	SPCG_0574	-	tributyrin esterase
575	 37.02	0	572660..573880	+	406	182683545	murM	SPCG_0575	-	beta-lactam resistance factor
576	 35.28	0	573885..575117	+	410	182683546	murN	SPCG_0576	-	beta-lactam resistance factor
577	 45.78	+1	575175..575897	+	240	182683547	-	SPCG_0577	-	hypothetical protein
578	 45.18	+1	575937..577784	+	615	182683548	uvrC	SPCG_0578	-	excinuclease ABC subunit C
579	 44.75	+1	577834..578271	+	145	182683549	-	SPCG_0579	-	hypothetical protein
580	 38.69	0	578272..578607	+	111	182683550	-	SPCG_0580	-	hypothetical protein
581	 41.30	0	578791..579606	-	271	182683551	-	SPCG_0581	-	amino acid ABC transporter, amino acid-binding protein, putative
582	 30.63	-1	579665..579775	+	36	182683552	-	SPCG_0582	-	hypothetical protein
583	 41.75	0	579762..580367	+	201	182683553	nrd	SPCG_0583	-	nitroreductase family protein
584	 45.11	+1	580380..581780	+	466	182683554	pepV	SPCG_0584	-	dipeptidase
585	 44.21	0	581834..582412	+	192	182683555	-	SPCG_0585	-	hypothetical protein
586	 38.10	0	582536..582724	+	62	182683556	-	SPCG_0586	-	hypothetical protein
587	 42.36	0	583015..584355	+	446	182683557	brnQ	SPCG_0587	-	branched-chain amino acid transport system II carrier protein
588	 45.38	+1	584559..585596	+	345	182683558	-	SPCG_0588	-	hypothetical protein
589	 42.06	0	585565..586068	+	167	182683559	-	SPCG_0589	-	HIT family protein
590	 43.24	0	586071..586787	+	238	182683560	-	SPCG_0590	-	hypothetical protein
591	 41.31	0	587096..587521	+	141	182683561	rplK	SPCG_0591	-	50S ribosomal protein L11
592	 40.58	0	587729..588418	+	229	182683562	rplA	SPCG_0592	-	50S ribosomal protein L1
593	 33.92	-1	589020..589532	+	170	182683563	-	SPCG_0593	-	hypothetical protein
594	 43.20	0	590577..591569	+	330	182683564	-	SPCG_0594	-	ABC transporter, ATP-binding protein
595	 41.70	0	591529..592389	+	286	182683565	-	SPCG_0595	-	membrane protein
596	 39.31	0	592391..593176	+	261	182683566	-	SPCG_0596	-	hypothetical protein
597	 42.01	0	593274..593492	+	72	182683567	-	SPCG_0597	-	hypothetical protein
598	 36.67	0	593429..593638	+	69	182683568	-	SPCG_0598	-	hypothetical protein
599	 33.35	-1	594362..600796	+	2144	182683569	prtA	SPCG_0599	-	serine protease
600	 35.74	0	601407..601904	+	165	182683570	-	SPCG_0600	-	PTS system IIA component, putative
601	 40.52	0	601942..602247	+	101	182683571	-	SPCG_0601	-	PTS system, IIB component, putative
602	 41.33	0	602295..603770	+	491	182683572	-	SPCG_0602	-	PTS system, IIC component, putative
603	 42.08	0	604120..610821	+	2233	182683573	bgaA	SPCG_0603	-	beta-galactosidase
604	 40.18	0	611131..611685	-	184	182683574	-	SPCG_0604	-	degenerate transposase
605	 36.99	0	611673..611918	-	81	182683575	-	SPCG_0605	-	degenerate transposase
606	 35.20	0	612129..612449	-	106	182683577	-	SPCG_0606	-	hypothetical protein
607	 38.89	0	612424..613089	+	221	182683576	-	SPCG_0607	-	hypothetical protein
608	 42.51	0	613090..613536	+	148	182683578	-	SPCG_0608	-	Fe-S oxidoreductase
609	 43.44	0	613514..614077	+	187	182683579	-	SPCG_0609	-	hypothetical protein
610	 38.67	0	614101..614325	+	74	182683580	-	SPCG_0610	-	hypothetical protein
611	 35.29	0	614300..614401	+	33	182683581	-	SPCG_0611	-	hypothetical protein
612	 41.77	0	614376..616391	+	671	182683582	-	SPCG_0612	-	sodium/hydrogen exchanger family protein
613	 39.27	0	616555..617430	+	291	182683583	-	SPCG_0613	-	ribonuclease BN, putative
614	 41.77	0	617641..618351	+	236	182683584	ccdA	SPCG_0614	-	cytochrome c-type biogenesis protein CcdA
615	 42.09	0	618344..618937	+	197	182683585	-	SPCG_0615	-	thioredoxin family protein
616	 42.14	0	618948..620060	+	370	182683586	msrA	SPCG_0616	-	bifunctional methionine sulfoxide reductase A/B protein
617	 40.87	0	620400..621155	+	251	182683587	-	SPCG_0617	-	DNA-binding response regulator
618	 43.50	0	621152..622843	+	563	182683588	-	SPCG_0618	-	sensor histidine kinase, putative
619	 45.98	+1	622938..623522	+	194	182683589	-	SPCG_0619	-	hypothetical protein
620	 36.56	0	623544..629486	+	1980	182683590	zmpB	SPCG_0620	-	zinc metalloprotease ZmpB, putative
621	 45.06	+1	629547..631268	+	573	182683591	-	SPCG_0621	-	chorismate binding enzyme
622	 39.57	0	631269..631877	+	202	182683592	-	SPCG_0622	-	hypothetical protein
623	 37.94	0	631936..632934	+	332	182683593	-	SPCG_0623	-	pneumococcal surface protein, putative
624	 43.46	0	633043..634020	+	325	182683594	glcK	SPCG_0624	-	glucokinase
625	 43.45	0	634117..634956	+	279	182683595	thyA	SPCG_0625	-	thymidylate synthase
626	 45.03	+1	635004..635174	-	56	182683597	-	SPCG_0626	-	hypothetical protein
627	 43.92	0	635050..635238	+	62	182683596	-	SPCG_0627	-	hypothetical protein
628	 44.34	+1	635244..636179	+	311	182683598	miaA	SPCG_0628	-	tRNA delta(2)-isopentenylpyrophosphate transferase
629	 44.96	+1	636172..637410	+	412	182683599	-	SPCG_0629	-	GTP-binding protein HflX
630	 40.71	0	637403..638026	+	207	182683600	-	SPCG_0630	-	hypothetical protein
631	 45.38	+1	638041..638970	+	309	182683601	-	SPCG_0631	-	ribonuclease Z
632	 42.20	0	638991..639746	+	251	182683602	-	SPCG_0632	-	short chain dehydrogenase/reductase family oxidoreductase
633	 43.74	0	639800..640798	-	332	182683604	-	SPCG_0633	-	transcriptional regulator, putative
634	 34.81	-1	640772..641041	+	89	182683603	-	SPCG_0634	-	hypothetical protein
635	 41.73	0	641041..641421	+	126	182683605	-	SPCG_0635	-	hypothetical protein
636	 32.83	-1	641540..641737	+	65	182683606	-	SPCG_0636	-	hypothetical protein
637	 43.39	0	641777..642502	-	241	182683607	rsuA	SPCG_0637	-	ribosomal small subunit pseudouridine synthase A
638	 43.48	0	642643..644505	+	620	182683608	-	SPCG_0638	-	elongation factor Tu family protein
639	 34.51	-1	644525..644779	+	84	182683609	-	SPCG_0639	-	hypothetical protein
640	 41.88	0	645326..645442	+	38	182683610	-	SPCG_0640	-	hypothetical protein
641	 37.69	0	645513..647534	+	673	182683611	-	SPCG_0641	-	hypothetical protein
642	 37.07	0	647536..648177	+	213	182683612	-	SPCG_0642	-	ABC transporter, ATP-binding protein
643	 44.72	+1	648281..649633	+	450	182683613	murD	SPCG_0643	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
644	 42.40	0	649635..650693	+	352	182683614	murG	SPCG_0644	-	N-acetylglucosaminyl transferase
645	 40.08	0	650703..651902	+	399	182683615	divIB	SPCG_0645	-	cell division protein DivIB
646	 36.73	0	652012..652158	+	48	182683616	-	SPCG_0646	-	hypothetical protein
647	 36.36	0	652170..652301	+	43	182683617	-	SPCG_0647	-	hypothetical protein
648	 25.21	-2	652642..653490	+	282	182683618	-	SPCG_0648	-	hypothetical protein
649	 30.77	-1	653820..654560	+	246	182683619	-	SPCG_0649	-	HesA/MoeB/ThiF family protein
650	 32.65	-1	655000..655875	+	291	182683620	-	SPCG_0650	-	ABC transporter ATP-binding protein - unknown substrate
651	 32.21	-1	655868..656581	+	237	182683621	-	SPCG_0651	-	hypothetical protein
652	 38.19	0	656855..656998	-	47	182683622	-	SPCG_0652	-	hypothetical protein
653	 45.87	+1	657316..658017	+	233	182683623	pyrF	SPCG_0653	-	orotidine 5'-phosphate decarboxylase
654	 44.08	0	658051..658683	+	210	182683624	pyrE	SPCG_0654	-	orotate phosphoribosyltransferase
655	 34.51	-1	659362..660126	+	254	182683625	-	SPCG_0655	-	hypothetical protein
656	 31.35	-1	660881..661585	+	234	182683626	-	SPCG_0656	-	hypothetical protein
657	 31.64	-1	661582..662229	+	215	182683627	-	SPCG_0657	-	ABC transporter, ATP-binding protein
658	 41.23	0	662309..663169	-	286	182683628	-	SPCG_0658	-	amino acid (glutamine) ABC transporter substrate binding protein
659	 43.08	0	663181..663939	-	252	182683629	-	SPCG_0659	-	amino acid ABC transporter, ATP-binding protein
660	 42.48	0	663940..664857	-	305	182683630	-	SPCG_0660	-	amino acid ABC transporter, permease protein
661	 40.82	0	664890..665036	+	48	182683631	-	SPCG_0661	-	hypothetical protein
662	 43.13	0	665164..666654	+	496	182683632	lysS	SPCG_0662	-	lysyl-tRNA synthetase
663	 45.47	+1	667278..668414	+	378	182683633	lctO	SPCG_0663	-	lactate oxidase
664	 40.36	0	668971..669639	+	222	182683634	-	SPCG_0664	-	transcriptional regulator, putative
665	 39.02	0	669636..669881	-	81	182683635	-	SPCG_0665	-	hypothetical protein
666	 36.57	0	669944..670747	+	267	182683636	thiM	SPCG_0666	-	hydroxyethylthiazole kinase
667	 34.13	-1	670749..671378	+	209	182683637	thiE	SPCG_0667	-	thiamine-phosphate pyrophosphorylase
668	 41.00	0	671937..672497	+	186	182683638	-	SPCG_0668	-	hypothetical protein
669	 44.01	0	672498..673883	+	461	182683639	-	SPCG_0669	-	ABC transporter, ATP-binding protein
670	 39.78	0	673885..674535	+	216	182683640	-	SPCG_0670	-	hypothetical protein
671	 38.82	0	674546..675238	+	230	182683641	tenA	SPCG_0671	-	transcriptional activator TenA
39.55	MEAN

4.71	STD DEV
