IslandPath Analysis: Streptococcus pneumoniae CGSP14

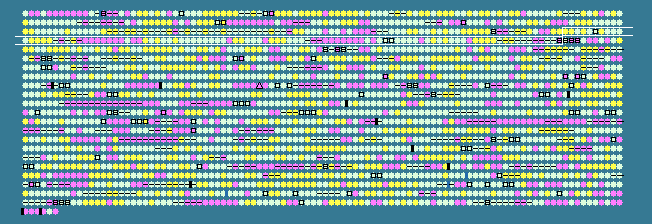

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.55 STD DEV: 4.71
Streptococcus pneumoniae CGSP14, complete genome - 1..2209198
2206 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
291	 44.67	+1	281369..282091	+	240	182683261	rsuA	SPCG_0291	-	ribosomal small subunit pseudouridine synthase A
292	 43.37	0	282308..283642	+	444	182683262	pepC	SPCG_0292	-	aminopeptidase C
293	 41.12	0	283698..284609	-	303	182683263	manN	SPCG_0293	-	PTS system, mannose-specific IID component
294	 47.64	+1	284633..285436	-	267	182683264	manM	SPCG_0294	-	PTS system, mannose-specific IIC component
295	 42.34	0	285464..286462	-	332	182683265	manL	SPCG_0295	-	PTS system, mannose-specific IIAB components
296	 40.73	0	286862..288469	-	535	182683266	-	SPCG_0296	-	IS1380-Spn1 transposase
297	 45.88	+1	288396..289415	-	339	182683267	adhP	SPCG_0297	-	alcohol dehydrogenase
298	 40.14	0	289524..289670	-	48	182683268	-	SPCG_0298	-	hypothetical protein
299	 40.96	0	289754..290566	-	270	182683269	-	SPCG_0299	-	Cof family protein
300	 40.87	0	290702..292174	+	490	182683270	-	SPCG_0300	-	xanthine/uracil permease family protein
301	 37.41	0	292224..292934	+	236	182683271	-	SPCG_0301	-	hypothetical protein
302	 45.16	+1	293028..294008	+	326	182683272	sulA	SPCG_0302	-	dihydropteroate synthase
303	 45.96	+1	294010..295332	+	440	182683273	sulB	SPCG_0303	-	dihydrofolate synthetase
304	 43.24	0	295313..295867	+	184	182683274	folE	SPCG_0304	-	GTP cyclohydrolase I
305	 44.90	+1	295910..296722	+	270	182683275	sulD	SPCG_0305	-	bifunctional folate synthesis protein
306	 38.17	0	296767..297138	-	123	182683276	-	SPCG_0306	-	hypothetical protein
307	 27.62	-2	297128..297232	-	34	182683277	-	SPCG_0307	-	hypothetical protein
308	 39.82	0	297441..297887	+	148	182683278	rplM	SPCG_0308	-	50S ribosomal protein L13
309	 45.04	+1	297907..298299	+	130	182683279	rpsI	SPCG_0309	-	30S ribosomal protein S9
310	 31.58	-1	298767..298937	+	56	182683280	-	SPCG_0310	-	hypothetical protein
311	 32.45	-1	299013..299351	+	112	182683281	-	SPCG_0311	-	hypothetical protein
312	 35.77	0	299499..300977	+	492	182683282	bglA	SPCG_0312	-	6-phospho-beta-glucosidase
313	 31.25	-1	301029..301268	+	79	182683283	-	SPCG_0313	-	hypothetical protein
314	 35.09	0	301371..301712	+	113	182683284	-	SPCG_0314	-	PTS system, IIB component
315	 31.57	-1	301830..303809	+	659	182683285	-	SPCG_0315	-	PTS system, IIB component
316	 33.65	-1	303819..304133	+	104	182683286	-	SPCG_0316	-	PTS system, IIA component
317	 29.19	-2	304164..304670	+	168	182683287	-	SPCG_0317	-	hypothetical protein
318	 37.94	0	304750..306096	+	448	182683288	-	SPCG_0318	-	PTS system, IIC component
319	 35.59	0	306477..306653	+	58	182683289	-	SPCG_0319	-	hypothetical protein
320	 35.82	0	307055..309268	+	737	182683290	-	SPCG_0320	-	glycosy hydrolase family protein
321	 43.40	0	309490..309966	-	158	182683291	basA	SPCG_0321	-	glutathione peroxidase
322	 39.94	0	310156..313392	+	1078	182683292	-	SPCG_0322	-	hyaluronidase
323	 44.76	+1	314536..315165	-	209	182683293	kdgA	SPCG_0323	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
324	 43.01	0	315175..316176	-	333	182683294	-	SPCG_0324	-	carbohydrate kinase
325	 41.28	0	316207..316848	-	213	182683295	-	SPCG_0325	-	hypothetical protein
326	 44.12	0	316867..317682	-	271	182683296	gno	SPCG_0326	-	gluconate 5-dehydrogenase
327	 39.31	0	317954..318388	+	144	182683297	-	SPCG_0327	-	PTS system, IIA component
328	 40.89	0	318400..319590	+	396	182683298	-	SPCG_0328	-	glucuronyl hydrolase
329	 40.85	0	319601..320092	+	163	182683299	-	SPCG_0329	-	PTS system, IIB component
330	 41.67	0	320107..320886	+	259	182683300	-	SPCG_0330	-	PTS system, IIC component
331	 39.44	0	320873..321691	+	272	182683301	-	SPCG_0331	-	PTS system, IID component
332	 37.41	0	321691..321984	+	97	182683302	-	SPCG_0332	-	preprotein translocase, YajC subunit
333	 40.33	0	322006..323907	+	633	182683303	-	SPCG_0333	-	hypothetical protein
334	 38.95	0	323901..324968	+	355	182683304	regR	SPCG_0334	-	sugar binding transcriptional regulator RegR
335	 32.10	-1	325424..325666	-	80	182683305	-	SPCG_0335	-	hypothetical protein
336	 45.13	+1	325682..325876	-	64	182683306	yorfE	SPCG_0336	-	transcriptional regulator, putative
337	 44.06	0	326042..326992	+	316	182683307	mraW	SPCG_0337	-	S-adenosyl-methyltransferase MraW
338	 36.16	0	327004..327321	+	105	182683308	ftsL	SPCG_0338	-	cell division protein FtsL
339	 40.26	0	327325..329577	+	750	182683309	pbp2X	SPCG_0339	-	penicillin-binding protein 2X
340	 41.90	0	329579..330559	+	326	182683310	mraY	SPCG_0340	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
341	 33.86	-1	330699..330887	+	62	182683311	-	SPCG_0341	-	hypothetical protein
342	 43.07	0	331168..333273	+	701	182683312	clpL	SPCG_0342	-	ATP-dependent Clp protease, ATP-binding subunit, putative
343	 45.55	+1	334126..334608	-	160	182683313	luxS	SPCG_0343	-	S-ribosylhomocysteinase
344	 43.77	0	334703..336187	-	494	182683314	-	SPCG_0344	-	hypothetical protein
345	 42.35	0	336340..337947	+	535	182683315	dexB	SPCG_0345	-	glucan 1,6-alpha-glucosidase
346	 38.08	0	339007..340461	+	484	182683316	wzg	SPCG_0346	-	capsular polysaccharide biosynthesis protein Cps14A
347	 37.43	0	340463..341194	+	243	182683317	wzh	SPCG_0347	-	capsular polysaccharide biosynthesis protein Cps14B
348	 38.24	0	341203..341895	+	230	182683318	wzd	SPCG_0348	-	capsular polysaccharide biosynthesis protein Cps14C
349	 34.65	-1	341905..342588	+	227	182683319	wze	SPCG_0349	-	capsular polysaccharide biosynthesis protein Cps14D
350	 32.68	-1	342604..343971	+	455	182683320	wchA	SPCG_0350	-	glucosyl-1-phosphate transferase
351	 32.22	-1	343975..344424	+	149	182683321	wchJ	SPCG_0351	-	putative glycosyltransferase activity enhancer
352	 27.98	-2	344424..344927	+	167	182683322	wchK	SPCG_0352	-	ss-1,4-galactosyltransferase
353	 27.37	-2	344917..346089	+	390	182683323	wzy	SPCG_0353	-	putative polysaccharide polymerase
354	 30.98	-1	346086..347105	+	339	182683324	wchL	SPCG_0354	-	ss-1,3-N-acetylglucosaminyltransferase
355	 30.44	-1	347075..348076	+	333	182683325	wchM	SPCG_0355	-	ss-1,4-galactosyltransferase
356	 31.03	-1	348144..349013	+	289	182683326	wchN	SPCG_0356	-	capsular polysaccharide synthesis protein
357	 30.14	-1	348997..350469	+	490	182683327	wzx	SPCG_0357	-	transporter
358	 37.63	0	350621..350713	+	30	182683328	-	SPCG_0358	-	hypothetical protein
359	 32.08	-1	350730..351047	+	105	182683329	-	SPCG_0359	-	hypothetical protein
360	 38.75	0	351407..353770	+	787	182683330	lrp	SPCG_0360	-	putative surface anchored protein
361	 36.74	0	353925..354452	-	175	182683331	-	SPCG_0361	-	degenerate transposase
362	 39.50	0	354733..355251	-	172	182683332	-	SPCG_0362	-	degenerate transposase
363	 39.48	0	355487..357472	+	661	182683333	aliA	SPCG_0363	-	oligopeptide ABC transporter, oligopeptide-binding protein AliA
364	 42.74	0	357773..363076	+	1767	182683334	-	SPCG_0364	-	cell wall surface anchor family protein
365	 41.53	0	363243..365402	-	719	182683335	pbp1A	SPCG_0365	-	penicillin-binding protein 1A
366	 38.36	0	365399..365995	-	198	182683337	-	SPCG_0366	-	hypothetical protein
367	 35.78	0	365978..366589	+	203	182683336	-	SPCG_0367	-	hypothetical protein
368	 37.57	0	366647..367000	+	117	182683338	-	SPCG_0368	-	hypothetical protein
369	 43.90	0	367471..368643	+	390	182683339	-	SPCG_0369	-	hypothetical protein
370	 40.22	0	368656..370050	+	464	182683340	-	SPCG_0370	-	hypothetical protein
371	 43.15	0	370105..371550	+	481	182683341	gnd	SPCG_0371	-	6-phosphogluconate dehydrogenase
372	 42.17	0	371562..372251	+	229	182683342	csrR	SPCG_0372	-	DNA-binding response regulator
373	 39.49	0	372260..373348	+	362	182683343	cbpJ	SPCG_0373	-	choline binding protein J
374	 42.48	0	373466..374722	-	418	182683344	-	SPCG_0374	-	hypothetical protein
375	 29.51	-2	374857..375327	-	156	182683345	-	SPCG_0375	-	hypothetical protein
376	 46.19	+1	376699..377577	+	292	182683346	mvk	SPCG_0376	-	mevalonate kinase
377	 43.19	0	377559..378512	+	317	182683347	mvd1	SPCG_0377	-	diphosphomevalonate decarboxylase
378	 43.65	0	378499..379506	+	335	182683348	mvaK2	SPCG_0378	-	phosphomevalonate kinase
379	 44.21	0	379490..380500	+	336	182683349	fni	SPCG_0379	-	isopentenyl pyrophosphate isomerase
380	 39.34	0	380577..381275	+	232	182683350	-	SPCG_0380	-	hypothetical protein
381	 43.37	0	381272..382267	+	331	182683351	-	SPCG_0381	-	sensor histidine kinase, putative
382	 46.45	+1	382281..382913	+	210	182683352	-	SPCG_0382	-	DNA-binding response regulator
383	 37.04	0	382914..383156	+	80	182683353	-	SPCG_0383	-	hypothetical protein
384	 42.35	0	383138..383392	+	84	182683354	-	SPCG_0384	-	DNA alkylation repair enzyme, truncation
385	 37.36	0	383411..383683	+	90	182683355	-	SPCG_0385	-	DNA alkylation repair enzyme, truncation
386	 34.17	-1	383833..384072	+	79	182683356	-	SPCG_0386	-	hypothetical protein
387	 34.55	-1	384069..384974	+	301	182683357	cbpG	SPCG_0387	-	choline binding protein G
388	 39.91	0	384993..385418	+	141	182683358	-	SPCG_0388	-	hypothetical protein
389	 42.92	0	385536..386015	+	159	182683359	-	SPCG_0389	-	hypothetical protein
390	 31.72	-1	386143..386328	-	61	182683360	-	SPCG_0390	-	degenerate transposase
39.55	MEAN

4.71	STD DEV
