IslandPath Analysis: Streptococcus pneumoniae CGSP14

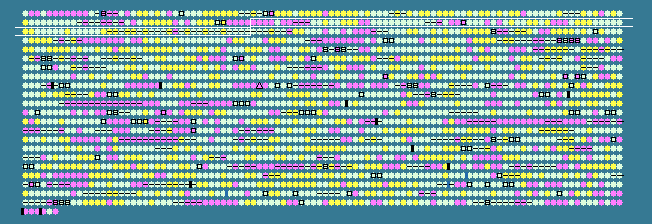

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.55 STD DEV: 4.71
Streptococcus pneumoniae CGSP14, complete genome - 1..2209198
2206 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
139	 27.18	-2	138129..139070	+	313	182683109	-	SPCG_0139	-	hypothetical protein
140	 26.32	-2	139099..140637	+	512	182683110	-	SPCG_0140	-	hypothetical protein
141	 30.95	-1	140643..141398	+	251	182683111	-	SPCG_0141	-	hypothetical protein
142	 29.24	-2	141411..142583	+	390	182683112	ugd	SPCG_0142	-	UDP-glucose dehydrogenase
143	 39.86	0	142954..143841	+	295	182683113	mutR	SPCG_0143	-	transcriptional regulator
144	 33.33	-1	144111..144236	+	41	182683114	-	SPCG_0144	-	putative bacteriocin
145	 27.98	-2	144296..147211	+	971	182683115	-	SPCG_0145	-	lantibiotic biosynthesis protein
146	 30.91	-1	147195..148472	+	425	182683116	-	SPCG_0146	-	lantibiotic biosynthesis protein
147	 29.04	-2	148501..149757	+	418	182683117	-	SPCG_0147	-	lantibiotic efflux protein
148	 35.99	0	149836..150513	+	225	182683118	-	SPCG_0148	-	hypothetical protein
149	 38.29	0	150525..151190	+	221	182683119	-	SPCG_0149	-	hypothetical protein
150	 37.97	0	151259..152488	+	409	182683120	-	SPCG_0150	-	hypothetical protein
151	 46.18	+1	152943..153557	+	204	182683121	-	SPCG_0151	-	hypothetical protein
152	 40.67	0	153661..154491	+	276	182683122	-	SPCG_0152	-	ABC transporter, substrate-binding protein
153	 40.70	0	154645..155499	+	284	182683123	-	SPCG_0153	-	lipoprotein
154	 46.51	+1	155596..156969	+	457	182683124	-	SPCG_0154	-	hypothetical protein
155	 43.31	0	156962..158023	+	353	182683125	-	SPCG_0155	-	ABC transporter, ATP-binding protein
156	 45.74	+1	158025..158717	+	230	182683126	-	SPCG_0156	-	ABC transporter, permease protein, putative
157	 33.33	-1	158833..159606	+	257	182683127	-	SPCG_0157	-	transcriptional activator Rgg/GadR/MutR family protein
158	 33.33	-1	159788..159907	+	39	182683128	-	SPCG_0158	-	hypothetical protein
159	 40.32	0	159930..160244	+	104	182683129	-	SPCG_0159	-	hypothetical protein
160	 41.60	0	160260..160646	+	128	182683130	-	SPCG_0160	-	hypothetical protein
161	 40.04	0	160675..162060	+	461	182683131	-	SPCG_0161	-	hypothetical protein
162	 41.13	0	162238..163443	+	401	182683132	-	SPCG_0162	-	Tn916, transcriptional regulator, putative
163	 36.94	0	163486..163707	+	73	182683133	-	SPCG_0163	-	hypothetical protein
164	 40.36	0	163824..164321	+	165	182683134	-	SPCG_0164	-	hypothetical protein
165	 38.86	0	164296..164802	+	168	182683135	-	SPCG_0165	-	hypothetical protein
166	 40.78	0	164735..167233	+	832	182683136	-	SPCG_0166	-	hypothetical protein
167	 41.74	0	167236..169413	+	725	182683137	-	SPCG_0167	-	hypothetical protein
168	 42.71	0	169410..170411	+	333	182683138	-	SPCG_0168	-	hypothetical protein
169	 37.39	0	170408..171343	+	311	182683139	-	SPCG_0169	-	hypothetical protein
170	 33.33	-1	171618..171704	+	28	182683140	-	SPCG_0170	-	tet(M) leader peptide
171	 37.00	0	171705..173639	+	644	182683141	-	SPCG_0171	-	tetracycline resistance protein TetM
172	 32.93	-1	174564..175301	+	245	182683142	-	SPCG_0172	-	rRNA methylase
173	 34.41	-1	175656..176210	+	184	182683143	-	SPCG_0173	-	resolvase
174	 34.91	0	176214..179132	+	972	182683144	-	SPCG_0174	-	transposase
175	 38.33	0	179188..179427	-	79	182683145	-	SPCG_0175	-	hypothetical protein
176	 37.73	0	179923..180354	+	143	182683146	-	SPCG_0176	-	hypothetical protein
177	 37.23	0	180351..180581	+	76	182683147	-	SPCG_0177	-	hypothetical protein
178	 35.29	0	181042..181245	+	67	182683148	-	SPCG_0178	-	hypothetical protein
179	 37.19	0	181327..182544	+	405	182683149	-	SPCG_0179	-	hypothetical protein
180	 34.32	-1	182961..184277	+	438	182683150	-	SPCG_0180	-	hypothetical protein
181	 40.69	0	184315..184518	+	67	182683151	-	SPCG_0181	-	hypothetical protein
182	 44.34	+1	184713..185375	-	220	182683152	-	SPCG_0182	-	hypothetical protein
183	 38.66	0	185632..186213	+	193	182683153	-	SPCG_0183	-	hypothetical protein
184	 39.47	0	186159..186761	+	200	182683154	-	SPCG_0184	-	hypothetical protein
185	 43.81	0	187054..188361	-	435	182683155	-	SPCG_0185	-	hypothetical protein
186	 46.41	+1	188626..189084	-	152	182683156	-	SPCG_0186	-	hypothetical protein
187	 37.93	0	189081..189602	-	173	182683157	-	SPCG_0187	-	hypothetical protein
188	 46.10	+1	189877..191826	+	649	182683158	hexB	SPCG_0188	-	DNA mismatch repair protein
189	 35.68	0	192151..192618	-	155	182683159	ribE	SPCG_0189	-	riboflavin synthase, beta subunit
190	 35.36	0	192619..193854	-	411	182683160	ribA	SPCG_0190	-	3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II
191	 33.65	-1	193844..194479	-	211	182683161	ribC	SPCG_0191	-	riboflavin synthase subunit alpha
192	 36.24	0	194464..195564	-	366	182683162	ribD	SPCG_0192	-	riboflavin biosynthesis protein RibD
193	 43.94	0	195970..196563	+	197	182683163	ruvA	SPCG_0193	-	holliday junction DNA helicase motor protein
194	 46.95	+1	196219..196776	-	185	182683165	-	SPCG_0194	-	hypothetical protein
195	 46.63	+1	196573..197136	+	187	182683164	tag	SPCG_0195	-	DNA-3-methyladenine glycosylase I
196	 36.73	0	197133..197810	+	225	182683166	-	SPCG_0196	-	hypothetical protein
197	 41.96	0	197965..198996	-	343	182683167	-	SPCG_0197	-	mccC family protein
198	 38.54	0	199184..199279	-	31	182683168	-	SPCG_0198	-	hypothetical protein
199	 42.98	0	199251..199955	-	234	182683169	-	SPCG_0199	-	hypothetical protein
200	 41.90	0	199946..200890	-	314	182683170	-	SPCG_0200	-	magnesium transporter CorA family protein
201	 47.33	+1	200989..203853	+	954	182683171	uvrA	SPCG_0201	-	excinuclease ABC subunit A
202	 43.60	0	203846..204907	+	353	182683172	pepP	SPCG_0202	-	peptidase M24 family protein
203	 39.10	0	205039..205437	+	132	182683173	spxA	SPCG_0203	-	transcriptional regulator Spx
204	 38.07	0	205503..206072	+	189	182683174	-	SPCG_0204	-	hypothetical protein
205	 38.20	0	206159..206425	+	88	182683175	-	SPCG_0205	-	hypothetical protein
206	 41.67	0	206429..206848	+	139	182683176	-	SPCG_0206	-	hypothetical protein
207	 38.56	0	206864..207169	+	101	182683177	-	SPCG_0207	-	hypothetical protein
208	 43.75	0	207471..208727	+	418	182683178	folC	SPCG_0208	-	dihydrofolate synthetase, putative
209	 41.21	0	208724..209269	+	181	182683179	-	SPCG_0209	-	hypothetical protein
210	 38.42	0	209415..210947	+	510	182683180	cls	SPCG_0210	-	cardiolipin synthetase
211	 40.08	0	211187..212743	+	518	182683181	-	SPCG_0211	-	competence-induced protein Ccs4
212	 42.77	0	212857..215070	+	737	182683182	-	SPCG_0212	-	anaerobic ribonucleoside triphosphate reductase
213	 39.72	0	215082..215222	+	46	182683183	-	SPCG_0213	-	hypothetical protein
214	 43.79	0	215266..215772	+	168	182683184	-	SPCG_0214	-	acetyltransferase
215	 43.82	0	215765..216355	+	196	182683185	nrdD	SPCG_0215	-	anaerobic ribonucleoside-triphosphate reductase activating protein
216	 44.50	+1	216352..216969	+	205	182683186	-	SPCG_0216	-	hypothetical protein
217	 42.07	0	217236..217544	+	102	182683187	rpsJ	SPCG_0217	-	30S ribosomal protein S10
218	 43.06	0	217760..218386	+	208	182683188	rplC	SPCG_0218	-	50S ribosomal protein L3
219	 43.43	0	218411..219034	+	207	182683189	rplD	SPCG_0219	-	50S ribosomal protein L4
220	 36.36	0	219034..219330	+	98	182683190	rplW	SPCG_0220	-	50S ribosomal protein L23
221	 44.96	+1	219348..220181	+	277	182683191	rplB	SPCG_0221	-	50S ribosomal protein L2
222	 40.07	0	220273..220554	+	93	182683192	rpsS	SPCG_0222	-	30S ribosomal protein S19
223	 41.45	0	220566..220910	+	114	182683193	rplV	SPCG_0223	-	50S ribosomal protein L22
224	 42.97	0	220923..221576	+	217	182683194	rpsC	SPCG_0224	-	30S ribosomal protein S3
225	 44.20	0	221580..221993	+	137	182683195	rplP	SPCG_0225	-	50S ribosomal protein L16
226	 35.27	0	222003..222209	+	68	182683196	rpmC	SPCG_0226	-	50S ribosomal protein L29
227	 38.70	0	222234..222494	+	86	182683197	rpsQ	SPCG_0227	-	30S ribosomal protein S17
228	 43.90	0	222520..222888	+	122	182683198	rplN	SPCG_0228	-	50S ribosomal protein L14
229	 39.22	0	222966..223271	+	101	182683199	rplX	SPCG_0229	-	50S ribosomal protein L24
230	 40.88	0	223295..223837	+	180	182683200	rplE	SPCG_0230	-	50S ribosomal protein L5
231	 44.07	0	223855..224124	+	89	182683201	rpsN	SPCG_0231	-	ribosomal protein S14
232	 39.10	0	224338..224736	+	132	182683202	rpsH	SPCG_0232	-	30S ribosomal protein S8
233	 40.60	0	224928..225464	+	178	182683203	rplF	SPCG_0233	-	50S ribosomal protein L6
234	 44.70	+1	225509..225904	+	131	182683204	rplR	SPCG_0234	-	50S ribosomal protein L18
235	 43.03	0	225922..226416	+	164	182683205	rpsE	SPCG_0235	-	30S ribosomal protein S5
236	 36.89	0	226388..226612	+	74	182683206	rpmD	SPCG_0236	-	50S ribosomal protein L30
237	 41.50	0	226757..227197	+	146	182683207	rplO	SPCG_0237	-	50S ribosomal protein L15
238	 38.83	0	227210..228520	+	436	182683208	secY	SPCG_0238	-	preprotein translocase SecY
39.55	MEAN

4.71	STD DEV
