IslandPath Analysis: Streptococcus pneumoniae CGSP14

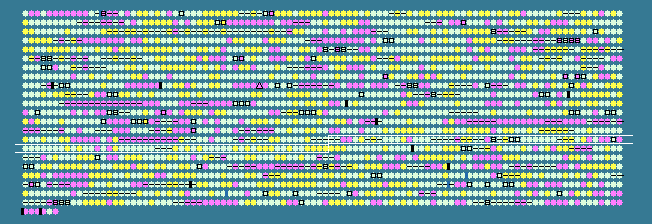

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.55 STD DEV: 4.71
Streptococcus pneumoniae CGSP14, complete genome - 1..2209198
2206 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1452	 39.74	0	1426599..1427051	+	150	182684422	-	SPCG_1452	-	hypothetical protein
1453	 40.59	0	1427048..1427695	+	215	182684423	-	SPCG_1453	-	hemolysin
1454	 28.47	-2	1428047..1429363	-	438	182684424	-	SPCG_1454	-	hypothetical protein
1455	 33.21	-1	1429381..1430181	-	266	182684425	-	SPCG_1455	-	ABC transporter, ATP-binding protein
1456	 42.22	0	1430669..1431253	-	194	182684426	-	SPCG_1456	-	hypothetical protein
1457	 44.41	+1	1431254..1432147	-	297	182684427	pdx1	SPCG_1457	-	pyridoxine biosynthesis protein
1458	 40.80	0	1432281..1433660	-	459	182684428	nox	SPCG_1458	-	NADH oxidase
1459	 43.72	0	1433954..1434877	+	307	182684429	apbE	SPCG_1459	-	thiamine biosynthesis protein ApbE, putative
1460	 38.61	0	1434937..1435542	+	201	182684430	-	SPCG_1460	-	oxidoreductase, putative
1461	 42.33	0	1435561..1436805	+	414	182684431	-	SPCG_1461	-	oxidoreductase, putative
1462	 39.92	0	1437028..1437285	-	85	182684432	-	SPCG_1462	-	hypothetical protein
1463	 41.73	0	1437327..1439363	-	678	182684433	glyS	SPCG_1463	-	glycyl-tRNA synthetase beta subunit
1464	 44.23	0	1439649..1440566	-	305	182684434	glyQ	SPCG_1464	-	glycyl-tRNA synthetase alpha subunit
1465	 34.23	-1	1440758..1441537	-	259	182684435	-	SPCG_1465	-	hypothetical protein
1466	 42.59	0	1441792..1442634	-	280	182684436	-	SPCG_1466	-	aldo/keto reductase family oxidoreductase
1467	 38.32	0	1442748..1444190	-	480	182684437	pgdA	SPCG_1467	-	peptidoglycan N-acetylglucosamine deacetylase A
1468	 39.95	0	1444374..1444751	-	125	182684438	-	SPCG_1468	-	hypothetical protein
1469	 41.00	0	1444771..1445853	+	360	182684439	mocA	SPCG_1469	-	Gfo/Idh/MocA family oxidoreductase
1470	 40.90	0	1445850..1446932	+	360	182684440	-	SPCG_1470	-	DEAD-box ATP dependent DNA helicase
1471	 36.70	0	1446996..1447262	-	88	182684441	-	SPCG_1471	-	hypothetical protein
1472	 37.96	0	1447527..1447634	-	35	182684442	-	SPCG_1472	-	hypothetical protein
1473	 31.82	-1	1447886..1448017	-	43	182684443	-	SPCG_1473	-	hypothetical protein
1474	 44.12	0	1448401..1449615	-	404	182684444	tuf	SPCG_1474	-	elongation factor Tu
1475	 43.91	0	1450530..1451399	-	289	182684445	glpF	SPCG_1475	-	glycerol uptake facilitator protein, putative
1476	 41.36	0	1451622..1451783	-	53	182684446	-	SPCG_1476	-	cell wall surface anchor family protein
1477	 37.83	0	1452100..1453212	-	370	182684447	-	SPCG_1477	-	hypothetical protein
1478	 32.29	-1	1453850..1453945	-	31	182684448	-	SPCG_1478	-	hypothetical protein
1479	 37.33	0	1453911..1454210	-	99	182684449	-	SPCG_1479	-	transposase, IS630-Spn1 related, Orf2
1480	 39.81	0	1454430..1454645	-	71	182684450	-	SPCG_1480	-	hypothetical protein
1481	 43.34	0	1454989..1456707	+	572	182684451	pgm	SPCG_1481	-	phosphoglucomutase
1482	 37.50	0	1456757..1457284	-	175	182684452	-	SPCG_1482	-	degenerate transposase
1483	 38.34	0	1457565..1458083	-	172	182684453	-	SPCG_1483	-	degenerate transposase
1484	 40.23	0	1458310..1458657	+	115	182684454	bta	SPCG_1484	-	bacterocin transport accessory protein
1485	 37.28	0	1458937..1459773	-	278	182684455	-	SPCG_1485	-	amino acid ABC transporter, amino acid-binding protein
1486	 42.22	0	1459786..1460415	-	209	182684456	-	SPCG_1486	-	amino acid ABC transporter, ATP-binding protein
1487	 40.49	0	1460425..1461123	-	232	182684457	-	SPCG_1487	-	amino acid ABC transporter, permease protein
1488	 40.96	0	1461212..1462456	-	414	182684458	-	SPCG_1488	-	TPR domain-containing protein
1489	 38.22	0	1462431..1463597	-	388	182684459	-	SPCG_1489	-	membrane protein
1490	 42.60	0	1463741..1464754	+	337	182684460	-	SPCG_1490	-	hypothetical protein
1491	 43.10	0	1464799..1465218	-	139	182684461	atpC	SPCG_1491	-	ATP synthase subunit epsilon
1492	 44.78	+1	1465229..1466635	-	468	182684462	atpD	SPCG_1492	-	ATP synthase subunit B
1493	 41.64	0	1466721..1467599	-	292	182684463	atpG	SPCG_1493	-	ATP synthase subunit C
1494	 44.42	+1	1467615..1469120	-	501	182684464	atpA	SPCG_1494	-	ATP synthase subunit A
1495	 35.01	0	1469135..1469671	-	178	182684465	atpH	SPCG_1495	-	ATP synthase subunit D
1496	 36.77	0	1469671..1470165	-	164	182684466	atpF	SPCG_1496	-	ATP synthase subunit B
1497	 35.98	0	1470179..1470895	-	238	182684467	atpB	SPCG_1497	-	ATP synthase subunit A
1498	 34.33	-1	1470930..1471130	-	66	182684468	atpE	SPCG_1498	-	ATP synthase F0, C subunit
1499	 39.79	0	1471205..1472257	-	350	182684469	-	SPCG_1499	-	IS1239 transposase
1500	 34.99	0	1472670..1473152	-	160	182684470	-	SPCG_1500	-	acetyltransferase
1501	 39.23	0	1473186..1473728	-	180	182684471	-	SPCG_1501	-	hypothetical protein
1502	 41.67	0	1473756..1474247	-	163	182684472	greA	SPCG_1502	-	transcription elongation factor GreA
1503	 41.12	0	1474309..1475964	-	551	182684473	-	SPCG_1503	-	hypothetical protein
1504	 41.21	0	1476045..1476539	-	164	182684474	-	SPCG_1504	-	acetyltransferase
1505	 41.08	0	1476536..1477000	-	154	182684475	-	SPCG_1505	-	acetyltransferase
1506	 41.65	0	1477010..1478344	-	444	182684476	murC	SPCG_1506	-	UDP-N-acetylmuramate--L-alanine ligase
1507	 40.29	0	1478355..1478972	-	205	182684477	-	SPCG_1507	-	hypothetical protein
1508	 44.08	0	1479020..1482118	-	1032	182684478	snf	SPCG_1508	-	snf2 family protein
1509	 41.82	0	1482211..1483377	-	388	182684479	patB	SPCG_1509	-	aminotransferase, class II
1510	 44.57	+1	1483385..1484479	-	364	182684480	metB	SPCG_1510	-	cystathionine gamma-synthase
1511	 38.89	0	1484636..1485229	-	197	182684481	-	SPCG_1511	-	hypothetical protein
1512	 36.11	0	1485217..1485756	-	179	182684482	-	SPCG_1512	-	hypothetical protein
1513	 33.15	-1	1485765..1486310	-	181	182684483	-	SPCG_1513	-	ABC-type multidrug transport system, ATPase and permease components
1514	 38.59	0	1486482..1488440	-	652	182684484	aliB	SPCG_1514	-	oligopeptide ABC transporter, oligopeptide-binding protein AliB
1515	 26.04	-2	1488427..1488522	-	31	182684485	-	SPCG_1515	-	hypothetical protein
1516	 44.02	0	1488643..1490280	-	545	182684486	-	SPCG_1516	-	polysaccharide biosynthesis protein, putative
1517	 42.95	0	1490371..1491816	+	481	182684487	murE	SPCG_1517	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1518	 38.74	0	1492110..1492682	-	190	182684488	-	SPCG_1518	-	hypothetical protein
1519	 41.91	0	1492719..1493231	-	170	182684489	-	SPCG_1519	-	hypothetical protein
1520	 42.74	0	1493318..1494253	-	311	182684490	ppaC	SPCG_1520	-	putative manganese-dependent inorganic pyrophosphatase
1521	 42.67	0	1494324..1494623	-	99	182684491	-	SPCG_1521	-	hypothetical protein
1522	 42.00	0	1494613..1495362	-	249	182684492	-	SPCG_1522	-	hypothetical protein
1523	 42.64	0	1495416..1495802	-	128	182684493	-	SPCG_1523	-	hypothetical protein
1524	 41.54	0	1495777..1497177	-	466	182684494	-	SPCG_1524	-	cof family protein/peptidyl-prolyl cis-trans isomerase, cyclophilin type
1525	 41.67	0	1497472..1497711	-	79	182684495	rpsR	SPCG_1525	-	30S ribosomal protein S18
1526	 43.52	0	1497743..1498213	-	156	182684496	ssbA	SPCG_1526	-	single-strand DNA-binding protein
1527	 38.49	0	1498225..1498515	-	96	182684497	rpsF	SPCG_1527	-	30S ribosomal protein S6
1528	 43.97	0	1498669..1500012	-	447	182684498	asnS	SPCG_1528	-	asparaginyl-tRNA synthetase
1529	 39.78	0	1500031..1500402	-	123	182684499	-	SPCG_1529	-	hypothetical protein
1530	 46.72	+1	1500389..1501576	-	395	182684500	aspB	SPCG_1530	-	aspartate aminotransferase
1531	 39.26	0	1501573..1502061	-	162	182684501	-	SPCG_1531	-	hypothetical protein
1532	 42.86	0	1502301..1502930	+	209	182684502	-	SPCG_1532	-	hypothetical protein
1533	 42.39	0	1503208..1503936	-	242	182684503	-	SPCG_1533	-	hypothetical protein
1534	 38.79	0	1504030..1504194	-	54	182684504	-	SPCG_1534	-	hypothetical protein
1535	 42.48	0	1504347..1505942	-	531	182684505	-	SPCG_1535	-	hypothetical protein
1536	 45.26	+1	1505954..1506364	-	136	182684506	def	SPCG_1536	-	peptide deformylase
1537	 40.03	0	1506480..1507271	-	263	182684507	-	SPCG_1537	-	glutathione S-transferase family protein
1538	 44.30	+1	1507284..1510028	-	914	182684508	pacL	SPCG_1538	-	cation transporter E1-E2 family ATPase
1539	 42.36	0	1510284..1511468	+	394	182684509	-	SPCG_1539	-	cation efflux family protein
1540	 43.70	0	1511611..1513482	-	623	182684510	-	SPCG_1540	-	ABC transporter, ATP-binding protein
1541	 43.92	0	1513479..1514678	-	399	182684511	-	SPCG_1541	-	polyA polymerase family protein
1542	 45.44	+1	1514675..1515442	-	255	182684512	dapB	SPCG_1542	-	dihydrodipicolinate reductase
1543	 41.46	0	1515708..1516556	-	282	182684513	-	SPCG_1543	-	degV family protein
1544	 36.95	0	1516558..1516944	-	128	182684514	-	SPCG_1544	-	hypothetical protein
1545	 44.20	0	1517006..1518358	-	450	182684515	glmM	SPCG_1545	-	phosphoglucomutase/phosphomannomutase family protein
1546	 39.23	0	1518382..1519161	-	259	182684516	-	SPCG_1546	-	hypothetical protein
1547	 39.48	0	1519148..1520026	-	292	182684517	-	SPCG_1547	-	hypothetical protein
1548	 44.62	+1	1520141..1521106	+	321	182684518	-	SPCG_1548	-	pyridine nucleotide-disulphide oxidoreductase family protein
1549	 45.50	+1	1521140..1522051	-	303	182684519	-	SPCG_1549	-	hypothetical protein
1550	 45.30	+1	1522048..1523025	-	325	182684520	-	SPCG_1550	-	hypothetical protein
1551	 44.00	0	1523022..1523912	-	296	182684521	-	SPCG_1551	-	hypothetical protein
39.55	MEAN

4.71	STD DEV
