IslandPath Analysis: Streptococcus pneumoniae CGSP14

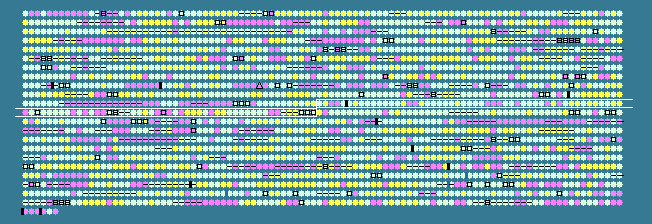

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.55 STD DEV: 4.71
Streptococcus pneumoniae CGSP14, complete genome - 1..2209198
2206 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1050	 41.38	0	1018912..1019085	+	57	182684020	-	SPCG_1050	-	hypothetical protein
1051	 45.61	+1	1019066..1019236	+	56	182684021	-	SPCG_1051	-	hypothetical protein
1052	 32.40	-1	1019398..1021332	+	644	182684022	-	SPCG_1052	-	endonuclease, putative
1053	 35.86	0	1021292..1022635	+	447	182684023	-	SPCG_1053	-	hypothetical protein
1054	 42.15	0	1022810..1023796	+	328	182684024	guaC	SPCG_1054	-	guanosine 5'-monophosphate oxidoreductase
1055	 40.34	0	1024114..1024812	+	232	182684025	rncS	SPCG_1055	-	ribonuclease III
1056	 43.08	0	1024803..1028342	+	1179	182684026	-	SPCG_1056	-	hypothetical protein
1057	 40.13	0	1028339..1029133	+	264	182684027	-	SPCG_1057	-	cof family protein
1058	 42.25	0	1029133..1029951	+	272	182684028	-	SPCG_1058	-	cof family protein
1059	 42.02	0	1029955..1031244	+	429	182684029	ftsY	SPCG_1059	-	signal recognition particle-docking protein FtsY
1060	 41.73	0	1031290..1032777	-	495	182684030	zwf	SPCG_1060	-	glucose-6-phosphate 1-dehydrogenase
1061	 42.65	0	1032926..1033666	-	246	182684031	-	SPCG_1061	-	amino acid ABC transporter, ATP-binding protein
1062	 39.38	0	1033666..1035831	-	721	182684032	-	SPCG_1062	-	amino acid ABC transporter, amino acid-binding protein/permease protein
1063	 39.20	0	1036000..1036953	+	317	182684033	-	SPCG_1063	-	hypothetical protein
1064	 45.40	+1	1037030..1039018	+	662	182684034	uvrB	SPCG_1064	-	excinuclease ABC subunit B
1065	 32.09	-1	1039028..1039591	+	187	182684035	-	SPCG_1065	-	acetyltransferase
1066	 34.36	-1	1039557..1040045	+	162	182684036	-	SPCG_1066	-	acetyltransferase
1067	 43.16	0	1040119..1040586	+	155	182684037	-	SPCG_1067	-	mutT/nudix family protein
1068	 42.25	0	1040583..1041098	-	171	182684038	-	SPCG_1068	-	biotin repressor family transcriptional regulator
1069	 38.14	0	1041110..1041691	-	193	182684039	-	SPCG_1069	-	hypothetical protein
1070	 38.12	0	1041919..1042482	-	187	182684040	-	SPCG_1070	-	membrane protein
1071	 40.94	0	1042466..1043017	-	183	182684041	-	SPCG_1071	-	phosphopantothenoylcysteine synthase/decarboxylase
1072	 39.72	0	1043029..1043733	-	234	182684042	-	SPCG_1072	-	hypothetical protein
1073	 44.05	0	1043948..1045618	+	556	182684043	fhs	SPCG_1073	-	formate--tetrahydrofolate ligase
1074	 42.52	0	1045947..1047122	+	391	182684044	mutY	SPCG_1074	-	A/G-specific adenine glycosylase
1075	 40.87	0	1047126..1047881	+	251	182684045	-	SPCG_1075	-	DNA-binding response regulator
1076	 39.85	0	1047874..1049223	+	449	182684046	-	SPCG_1076	-	sensory box sensor histidine kinase
1077	 42.35	0	1049225..1050034	+	269	182684047	vicX	SPCG_1077	-	vicX protein
1078	 35.97	0	1050065..1050367	+	100	182684048	-	SPCG_1078	-	hypothetical protein
1079	 34.85	0	1050360..1050623	+	87	182684049	-	SPCG_1079	-	hypothetical protein
1080	 31.05	-1	1050598..1051254	+	218	182684050	-	SPCG_1080	-	ion transporter, putative
1081	 41.74	0	1051582..1052580	-	332	182684051	-	SPCG_1081	-	L-lactate dehydrogenase
1082	 42.56	0	1052705..1055230	+	841	182684052	-	SPCG_1082	-	DNA gyrase subunit A
1083	 32.66	-1	1055230..1055973	+	247	182684053	-	SPCG_1083	-	hypothetical protein
1084	 40.35	0	1056217..1057014	+	265	182684054	-	SPCG_1084	-	FNT family protein
1085	 37.40	0	1057162..1057284	+	40	182684055	-	SPCG_1085	-	O-acetylhomoserine sulfhydrylase, truncation
1086	 42.11	0	1057306..1058421	+	371	182684056	-	SPCG_1086	-	O-acetylhomoserine sulfhydrylase, truncation
1087	 41.10	0	1058517..1059791	+	424	182684057	-	SPCG_1087	-	hypothetical protein
1088	 26.30	-2	1059803..1062988	+	1061	182684058	-	SPCG_1088	-	hypothetical protein
1089	 45.05	+1	1063089..1063967	+	292	182684059	truB	SPCG_1089	-	tRNA pseudouridine synthase B
1090	 35.42	0	1064116..1064211	+	31	182684060	-	SPCG_1090	-	hypothetical protein
1091	 40.92	0	1064208..1064510	+	100	182684061	-	SPCG_1091	-	hypothetical protein
1092	 43.97	0	1064618..1065256	+	212	182684062	udK	SPCG_1092	-	uridine kinase
1093	 43.28	0	1065378..1066724	+	448	182684063	xseA	SPCG_1093	-	exodeoxyribonuclease VII large subunit
1094	 41.31	0	1066702..1066914	+	70	182684064	xseB	SPCG_1094	-	exodeoxyribonuclease VII small subunit
1095	 44.41	+1	1066911..1067786	+	291	182684065	-	SPCG_1095	-	geranyltranstransferase
1096	 44.98	+1	1067779..1068594	+	271	182684066	-	SPCG_1096	-	hemolysin A, putative
1097	 36.57	0	1068587..1069018	+	143	182684067	ahrC	SPCG_1097	-	transcriptional repressor, putative
1098	 41.79	0	1069025..1070692	+	555	182684068	recN	SPCG_1098	-	DNA repair protein RecN
1099	 43.76	0	1070694..1071422	+	242	182684069	pphA	SPCG_1099	-	serine/threonine protein phosphatase
1100	 43.40	0	1071438..1073324	+	628	182684070	-	SPCG_1100	-	GTP-binding protein LepA
1101	 35.63	0	1073737..1074258	+	173	182684071	-	SPCG_1101	-	PTS system IIA component, putative
1102	 39.93	0	1074296..1074598	+	100	182684072	-	SPCG_1102	-	hypothetical protein
1103	 38.72	0	1075036..1075425	+	129	182684073	-	SPCG_1103	-	IS1381 transposase protein B
1104	 36.81	0	1075594..1075938	+	114	182684074	-	SPCG_1104	-	galactose mutarotase-like protein
1105	 41.31	0	1076095..1076520	+	141	182684075	lacA	SPCG_1105	-	galactose-6-phosphate isomerase
1106	 39.53	0	1076551..1077066	+	171	182684076	lacB	SPCG_1106	-	galactose-6-phosphate isomerase
1107	 40.65	0	1077077..1078006	+	309	182684077	lacC	SPCG_1107	-	tagatose-6-phosphate kinase
1108	 40.98	0	1078008..1078988	+	326	182684078	lacD	SPCG_1108	-	tagatose 1,6-diphosphate aldolase
1109	 35.84	0	1079222..1080058	+	278	182684079	lacT	SPCG_1109	-	transcription antiterminator LacT
1110	 41.82	0	1080094..1080411	+	105	182684080	-	SPCG_1110	-	PTS system, lactose-specific IIA component
1111	 35.25	0	1080383..1082107	+	574	182684081	-	SPCG_1111	-	PTS system, lactose-specific IIBC components
1112	 39.83	0	1082313..1083728	+	471	182684082	lacG	SPCG_1112	-	6-phospho-beta-galactosidase
1113	 29.46	-2	1083771..1084028	+	85	182684083	-	SPCG_1113	-	hypothetical protein
1114	 34.78	-1	1084307..1085068	-	253	182684084	lacR	SPCG_1114	-	lactose phosphotransferase system repressor
1115	 38.54	0	1085378..1085896	+	172	182684085	-	SPCG_1115	-	degenerate transposase
1116	 37.69	0	1086177..1086704	+	175	182684086	-	SPCG_1116	-	degenerate transposase
1117	 41.12	0	1086742..1087704	-	320	182684087	nrdF	SPCG_1117	-	ribonucleotide-diphosphate reductase beta subunit
1118	 41.44	0	1087892..1090051	-	719	182684088	nrdE	SPCG_1118	-	ribonucleotide-diphosphate reductase alpha subunit
1119	 37.97	0	1090132..1090368	-	78	182684089	nrdH	SPCG_1119	-	nrdH-redoxin
1120	 41.67	0	1090701..1090964	+	87	182684090	-	SPCG_1120	-	phosphocarrier protein HPr
1121	 43.54	0	1090970..1092703	+	577	182684091	-	SPCG_1121	-	phosphoenolpyruvate-protein phosphotransferase
1122	 41.07	0	1092922..1095480	+	852	182684092	-	SPCG_1122	-	hypothetical protein
1123	 30.40	-1	1095622..1095996	+	124	182684093	-	SPCG_1123	-	hypothetical protein
1124	 31.92	-1	1096072..1096284	+	70	182684094	-	SPCG_1124	-	degenerate transposase
1125	 32.48	-1	1096449..1097387	+	312	182684095	-	SPCG_1125	-	hypothetical protein
1126	 41.57	0	1097409..1098161	+	250	182684096	-	SPCG_1126	-	HAD superfamily hydrolase
1127	 26.04	-2	1098219..1098821	+	200	182684097	-	SPCG_1127	-	hypothetical protein
1128	 44.10	0	1098942..1099610	+	222	182684098	ung	SPCG_1128	-	uracil-DNA glycosylase
1129	 44.73	+1	1099620..1100084	+	154	182684099	mutX	SPCG_1129	-	mutator MutT protein
1130	 43.50	0	1100097..1101365	+	422	182684100	-	SPCG_1130	-	dihydroorotase
1131	 42.14	0	1101650..1103011	+	453	182684101	-	SPCG_1131	-	MATE efflux family protein
1132	 27.03	-2	1103008..1103118	-	36	182684102	-	SPCG_1132	-	hypothetical protein
1133	 43.65	0	1103165..1104133	+	322	182684103	acoA	SPCG_1133	-	acetoin dehydrogenase, E1 component, alpha subunit, putative
1134	 44.21	0	1104149..1105141	+	330	182684104	acoB	SPCG_1134	-	acetoin dehydrogenase, E1 component, beta subunit, putative
1135	 42.29	0	1105275..1106402	+	375	182684105	acoC	SPCG_1135	-	dihydrolipoamide acetyltransferase
1136	 42.49	0	1106448..1108151	+	567	182684106	acoL	SPCG_1136	-	acetoin dehydrogenase complex, E3 component, dihydrolipoamide dehydrogenase, putative
1137	 39.90	0	1108215..1109204	+	329	182684107	-	SPCG_1137	-	lipoate-protein ligase, putative
1138	 38.19	0	1109269..1110339	-	356	182684108	xerC	SPCG_1138	-	tyrosine recombinase
1139	 41.63	0	1110923..1112488	-	521	182684109	-	SPCG_1139	-	voltage-gated chloride channel family protein
1140	 41.41	0	1112489..1113268	-	259	182684110	-	SPCG_1140	-	ribonuclease HII
1141	 41.67	0	1113255..1114106	-	283	182684111	-	SPCG_1141	-	GTP-binding protein
1142	 35.87	0	1114351..1119834	-	1827	182684112	zmpD	SPCG_1142	-	zinc metalloprotease ZmpD, putative
1143	 33.04	-1	1119878..1125604	-	1908	182684113	iga	SPCG_1143	-	immunoglobulin A1 protease
1144	 41.73	0	1125813..1126991	-	392	182684114	-	SPCG_1144	-	hypothetical protein
1145	 43.36	0	1127161..1130811	-	1216	182684115	rexA	SPCG_1145	-	exonuclease RexA
1146	 43.17	0	1130808..1134110	-	1100	182684116	rexB	SPCG_1146	-	exonuclease RexB
1147	 36.49	0	1134591..1134938	+	115	182684117	-	SPCG_1147	-	IS630-Spn1, transposase Orf1
1148	 39.31	0	1135487..1136005	+	172	182684118	-	SPCG_1148	-	degenerate transposase
1149	 37.69	0	1136286..1136813	+	175	182684119	-	SPCG_1149	-	degenerate transposase
39.55	MEAN

4.71	STD DEV
