IslandPath Analysis: Streptococcus pneumoniae CGSP14

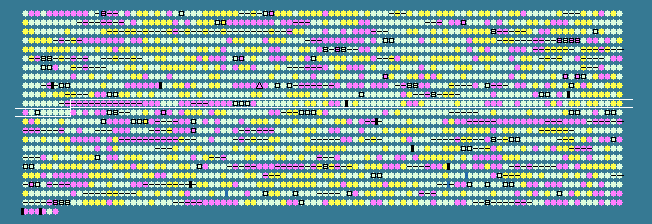

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.55 STD DEV: 4.71
Streptococcus pneumoniae CGSP14, complete genome - 1..2209198
2206 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1009	 30.90	-1	982140..983165	+	341	182683979	-	SPCG_1009	-	iron-compound ABC transporter, iron compound-binding protein
1010	 32.07	-1	983136..983690	-	184	182683981	-	SPCG_1010	-	hypothetical protein
1011	 33.24	-1	983143..984162	+	339	182683980	-	SPCG_1011	-	iron-compound ABC transporter, permease protein
1012	 30.46	-1	984162..985169	+	335	182683982	-	SPCG_1012	-	iron-compound ABC transporter, permease protein
1013	 33.71	-1	985169..985963	+	264	182683983	-	SPCG_1013	-	iron-compound ABC transporter, ATP-binding protein
1014	 23.58	-2	986832..987149	+	105	182683984	-	SPCG_1014	-	hypothetical protein
1015	 29.97	-2	987454..988167	+	237	182683985	-	SPCG_1015	-	hypothetical protein
1016	 24.73	-2	988185..989102	+	305	182683986	-	SPCG_1016	-	hypothetical protein
1017	 29.88	-2	989535..989939	+	134	182683987	-	SPCG_1017	-	hypothetical protein
1018	 31.14	-1	990113..990841	+	242	182683988	-	SPCG_1018	-	putative phage-associated protein
1019	 35.80	0	991525..991686	+	53	182683989	-	SPCG_1019	-	hypothetical protein
1020	 33.39	-1	991778..993457	+	559	182683990	-	SPCG_1020	-	resolvase family site-specific recombinase
1021	 33.99	-1	993680..994291	+	203	182683991	-	SPCG_1021	-	hypothetical protein
1022	 31.82	-1	994604..994801	+	65	182683992	-	SPCG_1022	-	hypothetical protein
1023	 33.99	-1	994863..995621	+	252	182683993	-	SPCG_1023	-	hypothetical protein
1024	 40.12	0	995679..996533	+	284	182683994	-	SPCG_1024	-	hydrolase, putative
1025	 36.32	0	996594..997529	+	311	182683995	-	SPCG_1025	-	hypothetical protein
1026	 39.29	0	997668..999431	+	587	182683996	nplT	SPCG_1026	-	neopullulanase
1027	 33.33	-1	999517..999834	+	105	182683997	-	SPCG_1027	-	hypothetical protein
1028	 29.08	-2	999880..1000161	+	93	182683998	-	SPCG_1028	-	hypothetical protein
1029	 32.02	-1	1000549..1001082	+	177	182683999	-	SPCG_1029	-	transcriptional regulator, putative
1030	 35.56	0	1001082..1001843	+	253	182684000	-	SPCG_1030	-	hypothetical protein
1031	 26.25	-2	1001871..1002647	+	258	182684001	-	SPCG_1031	-	phosphoesterase, putative
1032	 32.28	-1	1002650..1003027	+	125	182684002	-	SPCG_1032	-	hypothetical protein
1033	 35.28	0	1003859..1004218	+	119	182684003	-	SPCG_1033	-	Tn5252, ORF 10 protein
1034	 35.25	0	1004228..1004593	+	121	182684004	-	SPCG_1034	-	Tn5252, ORF 9 protein
1035	 33.17	-1	1004580..1006430	+	616	182684005	-	SPCG_1035	-	Tn5252, relaxase
1036	 38.18	0	1006683..1007363	+	226	182684006	-	SPCG_1036	-	degenerate transposase
1037	 41.48	0	1007381..1007650	+	89	182684007	-	SPCG_1037	-	degenerate transposase
1038	 38.84	0	1008811..1009809	-	332	182684008	-	SPCG_1038	-	IS1239 transposase
1039	 34.77	-1	1010368..1011411	+	347	182684009	-	SPCG_1039	-	hypothetical protein
1040	 42.69	0	1011560..1013665	+	701	182684010	topA	SPCG_1040	-	DNA topoisomerase I
1041	 37.50	0	1013886..1014245	+	119	182684011	-	SPCG_1041	-	hypothetical protein
1042	 42.97	0	1014338..1014970	+	210	182684012	cutC	SPCG_1042	-	copper homeostasis protein CutC
1043	 39.42	0	1015014..1015670	+	218	182684013	-	SPCG_1043	-	hypothetical protein
1044	 42.13	0	1015689..1016222	+	177	182684014	-	SPCG_1044	-	hypothetical protein
1045	 41.38	0	1016338..1016772	+	144	182684015	-	SPCG_1045	-	hypothetical protein
1046	 43.74	0	1016784..1017821	+	345	182684016	-	SPCG_1046	-	3-isopropylmalate dehydrogenase
1047	 38.15	0	1017818..1018087	+	89	182684017	-	SPCG_1047	-	hypothetical protein
1048	 43.33	0	1018091..1018450	+	119	182684018	-	SPCG_1048	-	3-isopropylmalate dehydratase, small subunit, putative
1049	 45.83	+1	1018669..1018812	+	47	182684019	-	SPCG_1049	-	hypothetical protein
1050	 41.38	0	1018912..1019085	+	57	182684020	-	SPCG_1050	-	hypothetical protein
1051	 45.61	+1	1019066..1019236	+	56	182684021	-	SPCG_1051	-	hypothetical protein
1052	 32.40	-1	1019398..1021332	+	644	182684022	-	SPCG_1052	-	endonuclease, putative
1053	 35.86	0	1021292..1022635	+	447	182684023	-	SPCG_1053	-	hypothetical protein
1054	 42.15	0	1022810..1023796	+	328	182684024	guaC	SPCG_1054	-	guanosine 5'-monophosphate oxidoreductase
1055	 40.34	0	1024114..1024812	+	232	182684025	rncS	SPCG_1055	-	ribonuclease III
1056	 43.08	0	1024803..1028342	+	1179	182684026	-	SPCG_1056	-	hypothetical protein
1057	 40.13	0	1028339..1029133	+	264	182684027	-	SPCG_1057	-	cof family protein
1058	 42.25	0	1029133..1029951	+	272	182684028	-	SPCG_1058	-	cof family protein
1059	 42.02	0	1029955..1031244	+	429	182684029	ftsY	SPCG_1059	-	signal recognition particle-docking protein FtsY
1060	 41.73	0	1031290..1032777	-	495	182684030	zwf	SPCG_1060	-	glucose-6-phosphate 1-dehydrogenase
1061	 42.65	0	1032926..1033666	-	246	182684031	-	SPCG_1061	-	amino acid ABC transporter, ATP-binding protein
1062	 39.38	0	1033666..1035831	-	721	182684032	-	SPCG_1062	-	amino acid ABC transporter, amino acid-binding protein/permease protein
1063	 39.20	0	1036000..1036953	+	317	182684033	-	SPCG_1063	-	hypothetical protein
1064	 45.40	+1	1037030..1039018	+	662	182684034	uvrB	SPCG_1064	-	excinuclease ABC subunit B
1065	 32.09	-1	1039028..1039591	+	187	182684035	-	SPCG_1065	-	acetyltransferase
1066	 34.36	-1	1039557..1040045	+	162	182684036	-	SPCG_1066	-	acetyltransferase
1067	 43.16	0	1040119..1040586	+	155	182684037	-	SPCG_1067	-	mutT/nudix family protein
1068	 42.25	0	1040583..1041098	-	171	182684038	-	SPCG_1068	-	biotin repressor family transcriptional regulator
1069	 38.14	0	1041110..1041691	-	193	182684039	-	SPCG_1069	-	hypothetical protein
1070	 38.12	0	1041919..1042482	-	187	182684040	-	SPCG_1070	-	membrane protein
1071	 40.94	0	1042466..1043017	-	183	182684041	-	SPCG_1071	-	phosphopantothenoylcysteine synthase/decarboxylase
1072	 39.72	0	1043029..1043733	-	234	182684042	-	SPCG_1072	-	hypothetical protein
1073	 44.05	0	1043948..1045618	+	556	182684043	fhs	SPCG_1073	-	formate--tetrahydrofolate ligase
1074	 42.52	0	1045947..1047122	+	391	182684044	mutY	SPCG_1074	-	A/G-specific adenine glycosylase
1075	 40.87	0	1047126..1047881	+	251	182684045	-	SPCG_1075	-	DNA-binding response regulator
1076	 39.85	0	1047874..1049223	+	449	182684046	-	SPCG_1076	-	sensory box sensor histidine kinase
1077	 42.35	0	1049225..1050034	+	269	182684047	vicX	SPCG_1077	-	vicX protein
1078	 35.97	0	1050065..1050367	+	100	182684048	-	SPCG_1078	-	hypothetical protein
1079	 34.85	0	1050360..1050623	+	87	182684049	-	SPCG_1079	-	hypothetical protein
1080	 31.05	-1	1050598..1051254	+	218	182684050	-	SPCG_1080	-	ion transporter, putative
1081	 41.74	0	1051582..1052580	-	332	182684051	-	SPCG_1081	-	L-lactate dehydrogenase
1082	 42.56	0	1052705..1055230	+	841	182684052	-	SPCG_1082	-	DNA gyrase subunit A
1083	 32.66	-1	1055230..1055973	+	247	182684053	-	SPCG_1083	-	hypothetical protein
1084	 40.35	0	1056217..1057014	+	265	182684054	-	SPCG_1084	-	FNT family protein
1085	 37.40	0	1057162..1057284	+	40	182684055	-	SPCG_1085	-	O-acetylhomoserine sulfhydrylase, truncation
1086	 42.11	0	1057306..1058421	+	371	182684056	-	SPCG_1086	-	O-acetylhomoserine sulfhydrylase, truncation
1087	 41.10	0	1058517..1059791	+	424	182684057	-	SPCG_1087	-	hypothetical protein
1088	 26.30	-2	1059803..1062988	+	1061	182684058	-	SPCG_1088	-	hypothetical protein
1089	 45.05	+1	1063089..1063967	+	292	182684059	truB	SPCG_1089	-	tRNA pseudouridine synthase B
1090	 35.42	0	1064116..1064211	+	31	182684060	-	SPCG_1090	-	hypothetical protein
1091	 40.92	0	1064208..1064510	+	100	182684061	-	SPCG_1091	-	hypothetical protein
1092	 43.97	0	1064618..1065256	+	212	182684062	udK	SPCG_1092	-	uridine kinase
1093	 43.28	0	1065378..1066724	+	448	182684063	xseA	SPCG_1093	-	exodeoxyribonuclease VII large subunit
1094	 41.31	0	1066702..1066914	+	70	182684064	xseB	SPCG_1094	-	exodeoxyribonuclease VII small subunit
1095	 44.41	+1	1066911..1067786	+	291	182684065	-	SPCG_1095	-	geranyltranstransferase
1096	 44.98	+1	1067779..1068594	+	271	182684066	-	SPCG_1096	-	hemolysin A, putative
1097	 36.57	0	1068587..1069018	+	143	182684067	ahrC	SPCG_1097	-	transcriptional repressor, putative
1098	 41.79	0	1069025..1070692	+	555	182684068	recN	SPCG_1098	-	DNA repair protein RecN
1099	 43.76	0	1070694..1071422	+	242	182684069	pphA	SPCG_1099	-	serine/threonine protein phosphatase
1100	 43.40	0	1071438..1073324	+	628	182684070	-	SPCG_1100	-	GTP-binding protein LepA
1101	 35.63	0	1073737..1074258	+	173	182684071	-	SPCG_1101	-	PTS system IIA component, putative
1102	 39.93	0	1074296..1074598	+	100	182684072	-	SPCG_1102	-	hypothetical protein
1103	 38.72	0	1075036..1075425	+	129	182684073	-	SPCG_1103	-	IS1381 transposase protein B
1104	 36.81	0	1075594..1075938	+	114	182684074	-	SPCG_1104	-	galactose mutarotase-like protein
1105	 41.31	0	1076095..1076520	+	141	182684075	lacA	SPCG_1105	-	galactose-6-phosphate isomerase
1106	 39.53	0	1076551..1077066	+	171	182684076	lacB	SPCG_1106	-	galactose-6-phosphate isomerase
1107	 40.65	0	1077077..1078006	+	309	182684077	lacC	SPCG_1107	-	tagatose-6-phosphate kinase
1108	 40.98	0	1078008..1078988	+	326	182684078	lacD	SPCG_1108	-	tagatose 1,6-diphosphate aldolase
39.55	MEAN

4.71	STD DEV
