IslandPathversion 1.0

IslandPath Analysis: Streptococcus pneumoniae D39

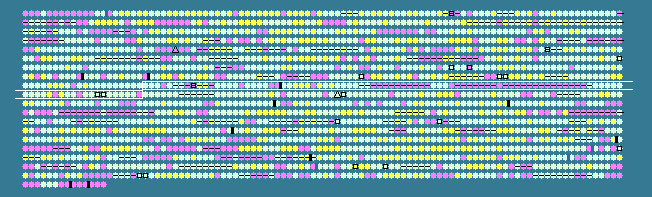

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
821	 38.08	0	886953..887753	-	266	116517017	-	SPD_0873	-	hypothetical protein
822	 41.52	0	887897..889276	+	459	116516172	glmU	SPD_0874	-	UDP-N-acetylglucosamine pyrophosphorylase
823	 41.39	0	889286..889831	+	181	116515368	-	SPD_0875	-	hydrolase, NUDIX family protein
824	 34.60	-1	889843..890157	+	104	116516438	-	SPD_0876	-	hypothetical protein
825	 43.43	0	890174..890866	+	230	116516739	mtnN	SPD_0877	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
826	 37.80	0	890943..891434	+	163	116515331	-	SPD_0878	-	hypothetical protein
827	 39.93	0	891532..892122	+	196	116515938	-	SPD_0879	-	DNA polymerase III subunit epsilon
828	 36.11	0	892131..893894	+	587	116516500	-	SPD_0880	-	hypothetical protein
829	 36.17	0	894614..894754	+	46	116515422	-	SPD_0882	-	IS630-Spn1, transposase Orf2, truncation
830	 48.26	+1	894915..895115	+	66	116516489	-	SPD_0883	-	hypothetical protein
831	 43.70	0	895157..895561	+	134	116517020	-	SPD_0884	-	hypothetical protein
832	 36.16	0	895792..896499	+	235	116516271	ccdA-2	SPD_0885	-	cytochrome c-type biogenesis protein CcdA
833	 37.99	0	896510..897067	+	185	116517059	-	SPD_0886	-	thioredoxin family protein
834	 41.09	0	897441..898832	+	463	116516274	-	SPD_0887	-	amino acid permease family protein
835	 38.45	0	898975..899892	+	305	116515739	lmb	SPD_0888	-	adhesion lipoprotein
836	 41.57	0	899900..902461	+	853	116516147	phtD	SPD_0889	-	pneumococcal histidine triad protein D precursor
837	 36.44	0	902671..905790	+	1039	116516522	phtE	SPD_0890	-	pneumococcal histidine triad protein E precursor
838	 38.25	0	907590..908219	+	209	116516916	-	SPD_0893	-	hypothetical protein
839	 42.34	0	908262..909482	-	406	116515861	pepT	SPD_0894	-	peptidase T
840	 37.81	0	909637..910731	+	364	116517033	hemH	SPD_0895	-	ferrochelatase
841	 37.30	0	910773..911150	-	125	116516166	mscL	SPD_0896	-	large conductance mechanosensitive channel protein MscL
842	 30.56	-2	911232..911663	-	143	116517022	-	SPD_0897	-	GtrA family protein
843	 36.08	0	911786..912295	+	169	116515492	-	SPD_0898	-	hypothetical protein
844	 41.41	0	912810..913886	+	358	116516437	asd	SPD_0900	-	aspartate-semialdehyde dehydrogenase
845	 42.95	0	913942..914877	+	311	116516238	dapA	SPD_0901	-	dihydrodipicolinate synthase
846	 44.61	0	914924..916297	-	457	116516848	trmE	SPD_0902	-	tRNA modification GTPase TrmE
847	 46.45	+1	916434..916616	-	60	116515386	xylH	SPD_0903	-	4-oxalocrotonate tautomerase
848	 44.33	0	916739..917338	+	199	116516420	tdk	SPD_0904	-	thymidine kinase
849	 30.00	-2	917328..917807	+	159	116516070	-	SPD_0905	-	acetyltransferase, GNAT family protein
850	 45.09	+1	917817..918896	+	359	116517153	prfA	SPD_0906	-	peptide chain release factor 1
851	 37.98	0	918896..919735	+	279	116517180	hemK	SPD_0907	-	HemK protein
852	 43.78	0	919719..920321	+	200	116516461	-	SPD_0908	-	Sua5/YciO/YrdC/YwlC family protein
853	 40.28	0	920323..920754	+	143	116515388	-	SPD_0909	-	acetyltransferase, GNAT family protein
854	 42.56	0	920816..922072	+	418	116517005	glyA	SPD_0910	-	serine hydroxymethyltransferase
855	 38.00	0	922047..923054	+	335	116516178	-	SPD_0911	-	hypothetical protein
856	 41.63	0	923054..923668	+	204	116516801	pvaA	SPD_0912	-	hypothetical protein
857	 40.51	0	923742..924716	+	324	116516896	-	SPD_0913	-	hypothetical protein
858	 40.75	0	924790..926421	+	543	116515807	rumA-1	SPD_0914	-	23S rRNA (uracil-5-)-methyltransferase RumA
859	 31.09	-1	927770..928795	+	341	116517168	-	SPD_0915	-	iron-compound ABC transporter, iron compound-binding protein
860	 33.43	-1	928785..929792	+	335	116516465	-	SPD_0916	-	iron-compound ABC transporter, permease protein
861	 30.36	-2	929792..930799	+	335	116516717	-	SPD_0917	-	iron-compound ABC transporter, permease protein
862	 33.58	-1	930799..931593	+	264	116515486	-	SPD_0918	-	iron-compound ABC transporter, ATP-binding protein
863	 28.85	-2	932495..932650	+	51	116516970	-	SPD_0919	-	hypothetical protein
864	 35.80	0	933334..933495	+	53	116515934	-	SPD_0920	-	hypothetical protein
865	 33.57	-1	933587..935266	+	559	116515333	-	SPD_0921	-	site-specific recombinase, resolvase family protein
866	 33.99	-1	935489..936100	+	203	116516667	-	SPD_0922	-	hypothetical protein
867	 31.82	-1	936413..936610	+	65	116515866	-	SPD_0923	-	hypothetical protein
868	 32.84	-1	936672..937487	+	271	116516982	-	SPD_0924	-	hypothetical protein
869	 40.12	0	937487..938341	+	284	116516066	-	SPD_0925	-	hydrolase, putative
870	 36.72	0	938453..939337	+	294	116517124	-	SPD_0926	-	hypothetical protein
871	 39.23	0	939476..941239	+	587	116516706	nplT	SPD_0927	-	neopullulanase
872	 33.65	-1	941325..941642	+	105	116515723	-	SPD_0928	-	hypothetical protein
873	 29.08	-2	941688..941969	+	93	116515888	-	SPD_0929	-	hypothetical protein
874	 32.08	-1	942414..942890	+	158	116515960	-	SPD_0930	-	transcriptional regulator, putative
875	 35.96	0	942890..943651	+	253	116515566	-	SPD_0931	-	hypothetical protein
876	 26.38	-2	943679..944455	+	258	116516641	-	SPD_0932	-	hypothetical protein
877	 31.79	-1	944383..944835	+	150	116516404	-	SPD_0933	-	hypothetical protein
878	 35.28	-1	945667..946026	+	119	116515499	-	SPD_0934	-	Tn5252, ORF 10 protein
879	 34.55	-1	946036..946365	+	109	116517032	-	SPD_0935	-	Tn5252, ORF 9 protein
880	 34.14	-1	946388..947005	+	205	116516207	-	SPD_0936	-	Tn5252, relaxase
881	 30.61	-2	947686..948273	+	195	116515758	-	SPD_0938	-	hypothetical protein
882	 29.94	-2	948318..949172	-	284	116516388	-	SPD_0939	-	transcriptional activator, Rgg/GadR/MutR family protein
883	 30.40	-2	949424..950719	+	431	116515679	-	SPD_0940	-	UDP-N-acetyl-D-mannosaminuronic acid dehydrogenase, putative
884	 31.53	-1	950721..951329	+	202	116516558	-	SPD_0941	-	hypothetical protein
885	 28.22	-2	951339..952121	+	260	116515485	-	SPD_0942	-	hypothetical protein
886	 27.36	-2	952144..954036	+	630	116517038	-	SPD_0943	-	hypothetical protein
887	 29.90	-2	954065..955171	+	368	116515471	-	SPD_0944	-	hypothetical protein
888	 29.37	-2	955179..956489	+	436	116516531	-	SPD_0945	-	AMP-binding enzyme, putative
889	 27.37	-2	956491..957714	+	407	116515709	-	SPD_0946	-	hypothetical protein
890	 30.77	-2	957719..958654	+	311	116515898	-	SPD_0947	-	hypothetical protein
891	 27.92	-2	958669..959868	+	399	116516989	-	SPD_0948	-	hypothetical protein
892	 32.67	-1	959932..960531	+	199	116516041	-	SPD_0949	-	hexapeptide repeat-containing transferase
893	 30.53	-2	960914..962125	+	403	116515531	-	SPD_0950	-	transporter, major facilitator family protein
894	 34.68	-1	962784..963005	+	73	116515940	-	SPD_0951	-	hypothetical protein
895	 39.19	0	963907..965136	+	409	116517219	-	SPD_0952	-	cell division protein FtsW, putative
896	 38.34	0	965156..967852	+	898	116516040	ppc	SPD_0953	-	phosphoenolpyruvate carboxylase
897	 39.03	0	968235..969269	+	344	116517122	-	SPD_0954	-	hypothetical protein
898	 42.68	0	969338..970204	+	288	116515329	-	SPD_0955	-	amino acid or sugar ABC transport systems, permease protein
899	 39.26	0	970201..970959	+	252	116516417	-	SPD_0956	-	ABC transporter, ATP-binding protein
900	 42.19	0	971049..972809	+	586	116515597	dnaG	SPD_0957	-	DNA primase
901	 43.15	0	972812..973921	+	369	116516638	rpoD	SPD_0958	-	RNA polymerase sigma factor RpoD
902	 41.52	0	973935..974264	+	109	116516796	-	SPD_0959	-	hypothetical protein
903	 39.73	0	974298..975422	+	374	116516765	cpoA	SPD_0960	-	glycosyl transferase CpoA
904	 41.48	0	975438..976763	+	441	116515479	-	SPD_0961	-	glycosyl transferase, group 1
905	 44.07	0	976794..976970	+	58	116516478	-	SPD_0962	-	hypothetical protein
906	 32.59	-1	977029..977163	+	44	116516165	-	SPD_0963	-	hypothetical protein
907	 43.63	0	977227..978537	+	436	116515321	obgE	SPD_0964	-	GTPase ObgE
908	 40.25	0	978547..978705	+	52	116516023	-	SPD_0965	-	hypothetical protein
909	 40.87	0	981327..982586	+	419	116515884	murA-1	SPD_0967	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
910	 35.87	0	982602..983153	+	183	116516477	-	SPD_0968	-	acetyltransferase, GNAT family protein
911	 40.92	0	983146..984423	+	425	116517139	-	SPD_0969	-	hypothetical protein
912	 41.70	0	984439..985299	+	286	116516526	map	SPD_0970	-	methionine aminopeptidase
913	 39.35	0	985680..986078	+	132	116515413	-	SPD_0971	-	IS1381, transposase OrfA
914	 39.23	0	986093..986482	+	129	116516586	-	SPD_0972	-	IS1381, transposase OrfB
915	 43.24	0	986673..988964	+	763	116515714	pcrA	SPD_0973	-	ATP-dependent DNA helicase PcrA
916	 41.12	0	989007..989687	+	226	116516612	radC	SPD_0975	-	DNA repair protein RadC
917	 41.74	0	989684..990373	-	229	116517015	-	SPD_0974	-	class I glutamine amidotransferase, putative
918	 41.90	0	990391..991032	-	213	116515408	-	SPD_0976	-	redox-sensing transcriptional repressor Rex
919	 40.08	0	991115..991366	-	83	116516287	-	SPD_0977	-	hypothetical protein
920	 36.21	0	991338..991685	-	115	116515573	-	SPD_0978	-	hypothetical protein
40.03	MEAN

4.59	STD DEV
