IslandPathversion 1.0

IslandPath Analysis: Streptococcus pneumoniae D39

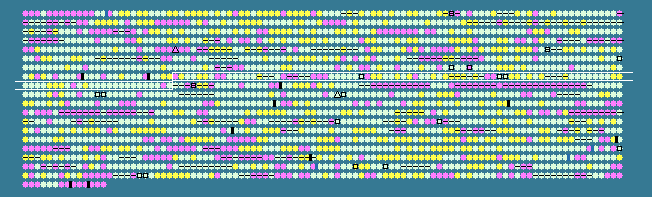

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
726	 35.77	0	787948..788481	-	177	116516509	-	SPD_0775	-	hypothetical protein
727	 44.09	0	788514..789656	+	380	116515406	-	SPD_0776	-	aminotransferase, class V
728	 42.96	0	789665..790879	+	404	116516659	thiI	SPD_0777	-	thiamine biosynthesis protein ThiI
729	 42.18	0	791014..791838	+	274	116515554	-	SPD_0778	-	hypothetical protein
730	 44.35	0	791860..792195	+	111	116517027	-	SPD_0779	-	hypothetical protein
731	 44.94	+1	792195..792599	+	134	116516246	-	SPD_0780	-	hypothetical protein
732	 41.90	0	792612..793778	+	388	116517060	-	SPD_0781	-	hypothetical protein
733	 36.28	0	794286..795779	+	497	116515872	-	SPD_0782	-	type I restriction-modification system, M subunit, putative
734	 32.19	-1	795792..796403	+	203	116515342	-	SPD_0783	-	type I restriction-modification system, S subunit, putative
735	 37.75	0	796482..799832	+	1116	116516102	-	SPD_0784	-	type I restriction-modification system, R subunit, putative
736	 42.29	0	800103..800303	+	66	116515667	-	SPD_0785	-	hypothetical protein
737	 42.25	0	800418..800888	-	156	116516573	-	SPD_0786	-	transcriptional regulator of arginine metabolism expression, putative
738	 41.25	0	800905..803178	-	757	116516024	pepX	SPD_0787	-	x-prolyl-dipeptidyl aminopeptidase
739	 39.26	0	803524..806625	+	1033	116516844	dnaE	SPD_0788	-	DNA polymerase III DnaE
740	 44.35	0	806708..807715	+	335	116515997	pfkA	SPD_0789	-	6-phosphofructokinase
741	 41.17	0	807774..809279	+	501	116516870	pyk	SPD_0790	-	pyruvate kinase
742	 37.65	0	810396..810650	-	84	116515522	-	SPD_0791	-	hypothetical protein
743	 39.40	0	811086..811958	+	290	116516105	-	SPD_0792	-	hypothetical protein
744	 33.94	-1	811971..812135	+	54	116515678	-	SPD_0793	-	hypothetical protein
745	 34.94	-1	812591..812902	+	103	116516083	-	SPD_0795	-	hypothetical protein
746	 34.73	-1	812906..813622	+	238	116517170	-	SPD_0796	-	hypothetical protein
747	 40.69	0	813752..814567	-	271	116516749	-	SPD_0797	-	hypothetical protein
748	 41.94	0	814564..815469	-	301	116516828	-	SPD_0798	-	hypothetical protein
749	 35.61	0	815470..815601	-	43	116515502	-	SPD_0799	-	hypothetical protein
750	 30.28	-2	815811..816170	+	119	116516341	-	SPD_0800	-	capsular polysaccharide biosynthesis protein, putative
751	 28.94	-2	816133..817179	+	348	116517174	-	SPD_0801	-	hypothetical protein
752	 43.24	0	817281..819410	+	709	116516081	-	SPD_0802	-	S1 RNA-binding domain-containing protein
753	 40.66	0	819905..820177	+	90	116516907	-	SPD_0803	-	hypothetical protein
754	 43.21	0	821150..821908	+	252	116515744	-	SPD_0804	-	ABC transporter, ATP-binding protein
755	 38.46	0	821910..823898	+	662	116516245	-	SPD_0805	-	transporter, permease protein, putative
756	 43.49	0	823941..824531	-	196	116515380	-	SPD_0806	-	hypothetical protein
757	 40.30	0	824611..825486	-	291	116516434	-	SPD_0807	-	IS1239, transposase, putative
758	 21.05	-2	825719..825832	-	37	116515443	-	SPD_0808	-	hypothetical protein
759	 43.83	0	826193..827668	+	491	116516967	cad	SPD_0809	-	lysine decarboxylase
760	 44.60	0	828605..829465	+	286	116515725	speE	SPD_0811	-	spermidine synthase
761	 41.59	0	829462..830721	+	419	116516766	lys1	SPD_0812	-	hypothetical protein
762	 42.64	0	830721..831848	+	375	116515395	nspC	SPD_0813	-	carboxynorspermidine decarboxylase
763	 44.11	0	831845..832930	+	361	116516045	-	SPD_0814	-	hypothetical protein
764	 43.04	0	832940..833815	+	291	116516894	-	SPD_0815	-	hydrolase, carbon-nitrogen family protein
765	 44.07	0	833996..834805	-	269	116516008	-	SPD_0816	-	Cof family protein
766	 36.46	0	835352..836023	+	223	116516715	-	SPD_0817	-	hypothetical protein
767	 40.70	0	836265..837173	+	302	116515669	-	SPD_0818	-	transcriptional regulator, LysR family protein
768	 41.13	0	837170..837631	+	153	116516537	lspA	SPD_0819	-	signal peptidase II
769	 44.48	0	837621..838508	+	295	116515398	rluD	SPD_0820	-	ribosomal large subunit pseudouridine synthase D
770	 37.26	0	838511..840394	+	627	116516225	cbpE	SPD_0821	-	choline binding protein E
771	 44.14	0	840495..841604	+	369	116516764	proB	SPD_0822	-	gamma-glutamyl kinase
772	 45.45	+1	841614..842876	+	420	116516154	proA	SPD_0823	-	gamma-glutamyl phosphate reductase
773	 44.49	0	842880..843677	+	265	116516457	proC	SPD_0824	-	pyrroline-5-carboxylate reductase
774	 45.70	+1	843793..844431	+	212	116516561	tdk	SPD_0825	-	thymidylate kinase
775	 41.30	0	844428..845318	+	296	116515715	holB	SPD_0826	-	DNA polymerase III subunit delta'
776	 44.03	0	845358..845675	+	105	116516332	-	SPD_0827	-	DNA replication intiation control protein YabA
777	 43.33	0	845678..846547	+	289	116515519	-	SPD_0828	-	hypothetical protein
778	 33.33	-1	846774..847292	+	172	116517217	-	SPD_0829	-	hypothetical protein
779	 31.64	-1	847401..848048	+	215	116516415	-	SPD_0831	-	hypothetical protein
780	 37.95	0	848037..848426	-	129	116516019	-	SPD_0830	-	IS1381, transposase OrfB
781	 39.23	0	848452..848841	-	129	116516286	-	SPD_0832	-	IS1381, transposase OrfA
782	 45.17	+1	849335..850669	+	444	116516642	gid	SPD_0833	-	tRNA (uracil-5-)-methyltransferase Gid
783	 44.44	0	850753..851490	+	245	116515310	pyrH	SPD_0834	-	uridylate kinase
784	 42.29	0	851499..852056	+	185	116516857	frr	SPD_0835	-	ribosome recycling factor
785	 44.41	0	852077..852970	+	297	116515585	-	SPD_0836	-	hypothetical protein
786	 41.20	0	852979..853194	+	71	116517068	-	SPD_0837	-	hypothetical protein
787	 45.30	+1	853280..854248	+	322	116516028	-	SPD_0838	-	PhoH family protein
788	 37.33	0	854441..854941	+	166	116516254	-	SPD_0839	-	acetyltransferase, GNAT family protein
789	 37.72	0	854944..855171	+	75	116517123	-	SPD_0840	-	hypothetical protein
790	 38.95	0	856859..857428	+	189	116515995	-	SPD_0842	-	acetyltransferase, GNAT family protein
791	 44.70	+1	857496..858146	+	216	116516340	celA	SPD_0843	-	competence protein CelA
792	 41.68	0	858130..860370	+	746	116515500	celB	SPD_0844	-	competence protein CelB
793	 41.72	0	860769..861245	+	158	116516074	-	SPD_0845	-	ABC transporter, ATP-binding protein
794	 38.16	0	861360..862541	+	393	116517169	-	SPD_0846	-	hypothetical protein
795	 39.07	0	862821..863378	+	185	116515644	infC	SPD_0847	-	translation initiation factor IF-3
796	 41.29	0	863411..863611	+	66	116516458	rpmI	SPD_0848	-	50S ribosomal protein L35
797	 40.83	0	863663..864022	+	119	116516545	rplT	SPD_0849	-	50S ribosomal protein L20
798	 41.21	0	864080..864460	+	126	116515712	gloA	SPD_0850	-	lactoylglutathione lyase
799	 44.94	+1	864710..865510	+	266	116515976	pyrK	SPD_0851	-	dihydroorotate dehydrogenase electron transfer subunit
800	 43.88	0	865521..866459	+	312	116517057	pyrDb	SPD_0852	-	dihydroorotate dehydrogenase 1B
801	 39.02	0	866558..868666	+	702	116517112	lytB	SPD_0853	-	endo-beta-N-acetylglucosaminidase precursor, putative
802	 42.63	0	868727..870382	-	551	116516285	pavA	SPD_0854	-	adherence and virulence protein A
803	 41.16	0	870487..870984	+	165	116516344	-	SPD_0855	-	putative metalloprotease
804	 41.41	0	870965..871360	+	131	116515614	dgkA	SPD_0856	-	diacylglycerol kinase
805	 43.78	0	871377..872276	+	299	116516762	era	SPD_0857	-	GTP-binding protein Era
806	 44.24	0	872325..873149	+	274	116515925	mutM	SPD_0858	-	formamidopyrimidine-DNA glycosylase
807	 44.72	+1	873149..873754	+	201	116516997	coaE	SPD_0859	-	dephospho-CoA kinase
808	 43.17	0	873741..874940	+	399	116516183	pmrA	SPD_0860	-	multi-drug resistance efflux pump
809	 36.32	0	875129..875362	+	77	116516845	secG	SPD_0861	-	preprotein translocase subunit SecG
810	 42.46	0	875464..877818	+	784	116515936	rnr	SPD_0862	-	ribonuclease R
811	 44.66	+1	877781..878248	+	155	116516450	smpB	SPD_0863	-	SsrA-binding protein
812	 42.04	0	878264..879124	+	286	116515607	tehB	SPD_0864	-	tellurite resistance protein TehB
813	 38.89	0	879197..880150	+	317	116516258	coiA	SPD_0865	-	competence protein CoiA
814	 42.04	0	880169..881971	+	600	116515412	pepF	SPD_0866	-	oligoendopeptidase F
815	 40.90	0	881973..882686	+	237	116516018	-	SPD_0867	-	O-methyltransferase
816	 36.94	0	882753..883694	+	313	116517083	prsA	SPD_0868	-	foldase protein PrsA
817	 38.68	0	883912..884154	-	80	116515927	-	SPD_0869	-	hypothetical protein
818	 42.35	0	884914..885534	-	206	116516753	-	SPD_0870	-	phosphoglycerate mutase family protein
819	 39.54	0	885534..886016	-	160	116516113	-	SPD_0871	-	regulatory protein, putative
820	 41.64	0	886016..886858	-	280	116516986	-	SPD_0872	-	hypothetical protein
821	 38.08	0	886953..887753	-	266	116517017	-	SPD_0873	-	hypothetical protein
822	 41.52	0	887897..889276	+	459	116516172	glmU	SPD_0874	-	UDP-N-acetylglucosamine pyrophosphorylase
823	 41.39	0	889286..889831	+	181	116515368	-	SPD_0875	-	hydrolase, NUDIX family protein
824	 34.60	-1	889843..890157	+	104	116516438	-	SPD_0876	-	hypothetical protein
825	 43.43	0	890174..890866	+	230	116516739	mtnN	SPD_0877	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
40.03	MEAN

4.59	STD DEV
