IslandPath Analysis: Streptococcus pneumoniae D39

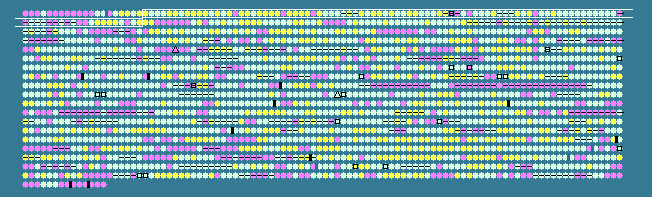

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.03   STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
21	 43.78	0	27184..27681	+	165	116515462	-	SPD_0030	-	hypothetical protein
22	 37.27	0	27706..28365	+	219	116516295	-	SPD_0031	-	hypothetical protein
23	 39.39	0	28358..28489	+	43	116515789	-	SPD_0032	-	hypothetical protein
24	 41.90	0	28634..29602	+	322	116516609	prsA	SPD_0033	-	ribose-phosphate pyrophosphokinase
25	 44.02	0	30143..30376	-	77	116516818	-	SPD_0035	-	hypothetical protein
26	 49.57	+2	30369..30485	-	38	116516187	-	SPD_0036	-	hypothetical protein
27	 39.83	0	30700..31053	-	117	116517001	-	SPD_0037	-	hypothetical protein
28	 43.93	0	31306..33939	+	877	116516654	-	SPD_0038	-	DNA polymerase I
29	 44.29	0	34024..34461	+	145	116515315	-	SPD_0039	-	hypothetical protein
30	 46.39	+1	34652..35662	-	336	116516491	-	SPD_0040	-	hypothetical protein
31	 45.98	+1	35811..36980	+	389	116516139	araT	SPD_0041	-	aromatic amino acid aminotransferase
32	 41.63	0	36977..37747	+	256	116517190	recO	SPD_0042	-	DNA repair protein RecO
33	 47.83	+1	37744..38736	+	330	116515915	plsX	SPD_0043	-	putative glycerol-3-phosphate acyltransferase PlsX
34	 38.89	0	38742..38975	+	77	116515605	-	SPD_0044	-	acyl carrier protein, putative
35	 46.75	+1	39514..39744	+	76	116516897	blpU	SPD_0046	-	bacteriocin BlpU
36	 22.22	-2	39747..39872	+	41	116515804	-	SPD_0047	-	hypothetical protein
37	 44.66	+1	41902..44055	+	717	116516510	comA	SPD_0049	-	competence factor transporting ATP-binding/permease protein ComA
38	 44.52	0	44068..45417	+	449	116515701	comB	SPD_0050	-	competence factor transport protein ComB
39	 40.25	0	45587..46294	+	235	116516190	purC	SPD_0051	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
40	 45.49	+1	46496..50221	+	1241	116516503	-	SPD_0052	-	phosphoribosylformylglycinamidine synthase, putative
41	 46.71	+1	50314..51756	+	480	116515944	purF	SPD_0053	-	amidophosphoribosyltransferase
42	 47.02	+1	51793..52815	+	340	116515735	purM	SPD_0054	-	phosphoribosylaminoimidazole synthetase
43	 47.07	+1	52812..53357	+	181	116515802	purN	SPD_0055	-	phosphoribosylglycinamide formyltransferase
44	 29.41	-2	53441..53950	+	169	116516890	-	SPD_0056	-	vanZ protein, putative
45	 48.00	+1	53975..55522	+	515	116516062	purH	SPD_0057	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
46	 47.51	+1	55644..56906	+	420	116517132	purD	SPD_0058	-	phosphoribosylamine--glycine ligase
47	 50.31	+2	57309..57797	+	162	116515776	purE	SPD_0059	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
48	 47.71	+1	57784..58875	+	363	116516392	purK	SPD_0060	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
49	 35.96	0	58885..59112	+	75	116516948	-	SPD_0061	-	hypothetical protein
50	 46.34	+1	59175..60473	+	432	116516623	purB	SPD_0062	-	adenylosuccinate lyase
51	 42.12	0	60528..64466	-	1312	116517042	strH	SPD_0063	-	beta-N-acetylhexosaminidase
52	 37.50	0	64781..65524	-	247	116515951	-	SPD_0064	-	transcriptional regulator, GntR family protein
53	 41.89	0	65845..67632	+	595	116517213	bgaC	SPD_0065	-	Beta-galactosidase 3
54	 41.09	0	67629..68105	+	158	116516149	-	SPD_0066	-	PTS system, IIB component
55	 44.37	0	68133..69038	+	301	116515606	-	SPD_0067	-	PTS system, IIC component
56	 40.20	0	69025..69840	+	271	116515325	-	SPD_0068	-	PTS system, IID component
57	 43.95	0	69847..70251	+	134	116516395	-	SPD_0069	-	PTS system, IIA component
58	 42.25	0	70550..71716	+	388	116515512	agaS	SPD_0070	-	sugar isomerase domain-containing protein
59	 45.47	+1	71832..72869	+	345	116517175	galM	SPD_0071	-	aldose 1-epimerase
60	 44.33	0	73076..73930	+	284	116517115	-	SPD_0072	-	hypothetical protein
61	 39.53	0	74080..74337	+	85	116515835	-	SPD_0073	-	hypothetical protein
62	 48.63	+1	75312..76076	+	254	116516564	-	SPD_0074	-	phosphorylase, Pnp/Udp family protein, putative
63	 39.25	0	76332..76517	+	61	116516250	-	SPD_0075	-	hypothetical protein
64	 41.45	0	76686..78065	+	459	116516800	-	SPD_0076	-	potassium uptake protein, Trk family protein
65	 43.69	0	78079..78744	+	221	116515848	-	SPD_0077	-	potassium uptake protein, Trk family protein
66	 44.63	+1	79054..79593	+	179	116517146	-	SPD_0078	-	glycosyl transferase, group 2 family protein
67	 42.34	0	79660..80070	+	136	116516097	-	SPD_0079	-	hypothetical protein
68	 42.94	0	80186..83671	+	1161	116515436	-	SPD_0080	-	cell wall surface anchor family protein
69	 41.77	0	83838..84536	+	232	116516719	-	SPD_0081	-	DNA-binding response regulator
70	 43.97	0	84533..85585	+	350	116515418	-	SPD_0082	-	sensor histidine kinase
71	 43.63	0	85780..86391	+	203	116516581	rpsD	SPD_0083	-	30S ribosomal protein S4
72	 35.85	0	86577..86735	+	52	116515746	-	SPD_0084	-	IS630-Spn1, transposase Orf1
73	 29.79	-2	86833..86973	-	46	116516364	-	SPD_0085	-	hypothetical protein
74	 42.53	0	87053..87313	+	86	116516484	-	SPD_0086	-	hypothetical protein
75	 35.14	-1	87267..87488	+	73	116516464	-	SPD_0087	-	hypothetical protein
76	 41.29	0	87807..88736	+	309	116515415	-	SPD_0088	-	ABC transporter, permease protein
77	 42.21	0	88750..89673	+	307	116516742	-	SPD_0089	-	ABC transporter, permease protein
78	 38.48	0	89931..91406	+	491	116516928	-	SPD_0090	-	ABC transporter, substrate-binding protein
79	 44.48	0	91678..92664	+	328	116517133	-	SPD_0091	-	hypothetical protein
80	 41.11	0	92786..93646	+	286	116516138	-	SPD_0092	-	hypothetical protein
81	 40.00	0	93718..94782	-	354	116516874	-	SPD_0093	-	hypothetical protein
82	 40.90	0	94845..95756	-	303	116515571	-	SPD_0094	-	hypothetical protein
83	 43.94	0	95749..96342	-	197	116516361	-	SPD_0095	-	hypothetical protein
84	 42.20	0	96329..96655	-	108	116515726	-	SPD_0096	-	hypothetical protein
85	 44.82	+1	96794..97960	-	388	116515559	-	SPD_0097	-	transporter, putative
86	 33.33	-1	98018..99175	+	385	116516685	-	SPD_0098	-	glycosyl transferase, group 2 family protein
87	 42.19	0	99217..101067	+	616	116517199	capD	SPD_0099	-	capsular polysaccharide biosynthesis protein
88	 43.13	0	101463..102095	-	210	116515790	-	SPD_0101	-	hydrolase, haloacid dehalogenase-like family protein
89	 48.00	+1	102117..102989	-	290	116516525	sdhA	SPD_0102	-	L-serine dehydratase, iron-sulfur-dependent, alpha subunit
90	 41.67	0	102998..103669	-	223	116516124	sdhB	SPD_0103	-	L-serine dehydratase, iron-sulfur-dependent, beta subunit
91	 40.87	0	103911..104414	+	167	116516732	-	SPD_0104	-	LysM domain-containing protein
92	 38.55	0	104537..104785	-	82	116515849	-	SPD_0105	-	hypothetical protein
93	 39.36	0	105242..105490	+	82	116517179	-	SPD_0106	-	bacteriocin, putative
94	 37.89	0	105545..107653	+	702	116516371	-	SPD_0107	-	membrnae protein, putative
95	 40.81	0	107650..108291	+	213	116516985	-	SPD_0108	-	amino acid ABC transporter, ATP-binding protein, putative
96	 39.53	0	108497..109303	+	268	116516177	-	SPD_0109	-	amino acid ABC transporter, periplasmic amino acid-binding protein, putative
97	 41.77	0	109320..110516	+	398	116515666	argG	SPD_0110	-	argininosuccinate synthase
98	 40.95	0	110545..111936	+	463	116516947	argH	SPD_0111	-	argininosuccinate lyase
99	 37.73	0	112225..113088	-	287	116515314	-	SPD_0112	-	hypothetical protein
100	 29.91	-2	115766..116233	+	155	116516334	-	SPD_0114	-	hypothetical protein
101	 34.37	-1	116230..117582	+	450	116516521	-	SPD_0115	-	hypothetical protein
102	 39.63	0	117728..118108	+	126	116515891	-	SPD_0116	-	hypothetical protein
103	 40.86	0	119688..120059	+	123	116516318	-	SPD_0117	-	hypothetical protein
104	 37.30	0	120653..120778	+	41	116515720	-	SPD_0118	-	hypothetical protein
105	 29.93	-2	121084..122142	+	352	116515480	-	SPD_0119	-	hypothetical protein
106	 28.53	-2	122456..123433	+	325	116515901	-	SPD_0120	-	hypothetical protein
107	 40.27	0	123810..124184	+	124	116516556	-	SPD_0121	-	hypothetical protein
108	 29.90	-2	124392..125294	+	300	116515445	-	SPD_0122	-	hypothetical protein
109	 39.27	0	125350..125703	+	117	116516169	-	SPD_0123	-	hypothetical protein
110	 27.01	-2	125670..126428	+	252	116516163	-	SPD_0124	-	hypothetical protein
111	 28.05	-2	127557..127802	+	81	116516979	-	SPD_0125	-	hypothetical protein
112	 42.63	0	128356..130215	+	619	116515876	pspA	SPD_0126	-	pneumococcal surface protein A
113	 48.13	+1	130616..131737	+	373	116516757	trmU	SPD_0127	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
114	 44.30	0	131878..132333	+	151	116516444	-	SPD_0128	-	MutT/nudix family protein
115	 46.34	+1	132343..134256	+	637	116515312	gidA	SPD_0129	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
116	 46.49	+1	134636..136315	-	559	116516160	-	SPD_0130	-	metallo-beta-lactamase domain-containing protein
117	 43.16	0	136317..136550	-	77	116515572	-	SPD_0131	-	hypothetical protein
118	 35.29	-1	137368..137520	-	50	116516595	-	SPD_0132	-	hypothetical protein
119	 38.17	0	137522..137707	-	61	116516791	-	SPD_0133	-	hypothetical protein
120	 45.47	+1	137885..138568	+	227	116516776	-	SPD_0134	-	hypothetical protein
40.03	MEAN

4.59	STD DEV
