IslandPathversion 1.0

IslandPath Analysis: Streptococcus pneumoniae D39

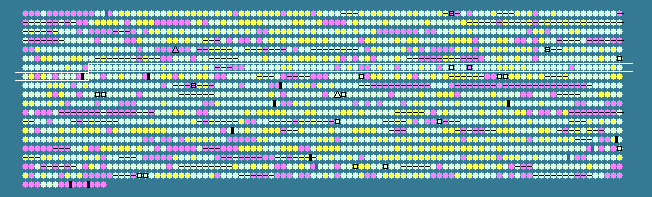

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
612	 41.43	0	669986..671146	+	386	116515756	livJ	SPD_0652	-	branched-chain amino acid ABC transporter, amino acid-binding protein
613	 43.22	0	671414..672283	+	289	116515326	livH	SPD_0653	-	branched-chain amino acid ABC transporter, permease protein
614	 40.75	0	672287..673243	+	318	116516639	livM	SPD_0654	-	branched-chain amino acid ABC transporter, permease protein
615	 38.82	0	673243..674007	+	254	116516236	livG	SPD_0655	-	branched-chain amino acid ABC transporter, ATP-binding protein
616	 41.35	0	674007..674717	+	236	116516439	livF	SPD_0656	-	branched-chain amino acid ABC transporter, ATP-binding protein
617	 37.75	0	675131..675787	+	218	116516866	-	SPD_0657	-	acetoin utilization protein AcuB, putative
618	 42.63	0	676001..676990	+	329	116516272	prfB	SPD_0658	-	peptide chain release factor 2
619	 41.13	0	677008..677700	+	230	116515754	ftsE	SPD_0659	-	cell division ATP-binding protein FtsE
620	 36.79	0	677693..678619	+	308	116516625	ftsX	SPD_0660	-	cell division ABC transporter, permease protein FtsX
621	 41.31	0	678905..681085	+	726	116517154	exp5	SPD_0661	-	PTS system, IIABC components
622	 40.81	0	681137..681952	+	271	116516071	-	SPD_0662	-	hypothetical protein
623	 40.48	0	682092..683435	+	447	116516888	-	SPD_0663	-	ATP-dependent RNA helicase, DEAD/DEAH box family protein
624	 44.00	0	683650..684840	+	396	116515567	metK	SPD_0664	-	S-adenosylmethionine synthetase
625	 42.74	0	685393..686328	+	311	116516687	pyrDa	SPD_0665	-	dihydroorotate dehydrogenase 1A
626	 38.82	0	686362..687399	+	345	116515334	holA	SPD_0666	-	DNA polymerase III subunit delta
627	 43.23	0	687572..688177	+	201	116515547	sodA	SPD_0667	-	superoxide dismutase, manganese-dependent
628	 39.55	0	688334..688864	+	176	116516259	-	SPD_0668	-	hypothetical protein
629	 42.45	0	688885..689970	+	361	116516867	-	SPD_0669	-	hypothetical protein
630	 37.04	0	690008..690439	+	143	116515988	-	SPD_0670	-	hypothetical protein
631	 44.03	0	690441..691982	+	513	116516136	-	SPD_0671	-	ABC transporter, ATP-binding protein
632	 43.41	0	692039..692842	-	267	116516991	-	SPD_0672	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
633	 35.59	0	692926..693147	-	73	116516873	-	SPD_0673	-	hypothetical protein
634	 39.93	0	694013..694285	+	90	116516029	rpsP	SPD_0674	-	30S ribosomal protein S16
635	 36.25	0	694305..694544	+	79	116515603	-	SPD_0675	-	hypothetical protein
636	 35.20	-1	695121..695549	+	142	116516691	-	SPD_0676	-	hypothetical protein
637	 33.33	-1	695550..695909	+	119	116516366	-	SPD_0677	-	hypothetical protein
638	 40.27	0	695940..696458	+	172	116516249	rimM	SPD_0678	-	16S rRNA-processing protein
639	 42.92	0	696448..697167	+	239	116516895	trmD	SPD_0679	-	tRNA (guanine-N(1)-)-methyltransferase
640	 37.76	0	697179..697517	+	112	116515795	-	SPD_0680	-	hypothetical protein
641	 38.94	0	697548..697868	-	106	116516822	-	SPD_0681	-	hypothetical protein
642	 39.81	0	697966..698181	+	71	116517047	-	SPD_0683	-	hypothetical protein
643	 42.86	0	698178..698324	-	48	116516284	-	SPD_0682	-	hypothetical protein
644	 44.51	0	698385..698921	-	178	116515429	-	SPD_0684	-	biotin synthase (BioY family protein), putative
645	 43.95	0	699118..700464	-	448	116516716	gor	SPD_0685	-	glutathione reductase
646	 42.50	0	700729..701928	+	399	116515711	-	SPD_0686	-	hypothetical protein
647	 41.45	0	701912..702613	+	233	116515985	-	SPD_0687	-	ABC transporter ATP-binding protein
648	 40.00	0	702615..703874	+	419	116516885	-	SPD_0688	-	hypothetical protein
649	 42.29	0	703998..705995	+	665	116516229	metG	SPD_0689	-	methionyl-tRNA synthetase
650	 41.15	0	706045..706236	+	63	116517058	-	SPD_0690	-	hypothetical protein
651	 40.19	0	706326..706646	+	106	116515400	-	SPD_0691	-	hypothetical protein
652	 37.44	0	706650..707525	+	291	116516712	-	SPD_0692	-	hypothetical protein
653	 36.35	0	707540..708466	+	308	116515786	-	SPD_0693	-	oxidoreductase, aldo/keto reductase family protein
654	 41.47	0	708545..708802	+	85	116516430	-	SPD_0694	-	hypothetical protein
655	 44.78	+1	708795..709493	+	232	116515543	fabG	SPD_0695	-	3-ketoacyl-(acyl-carrier-protein) reductase
656	 39.38	0	709504..709983	+	159	116516157	-	SPD_0696	-	MutT/nudix family protein
657	 32.92	-1	709991..710719	+	242	116516788	-	SPD_0697	-	acetyltransferase, GNAT family protein
658	 35.52	0	710761..711630	+	289	116515919	-	SPD_0698	-	hypothetical protein
659	 42.40	0	711605..712045	+	146	116516645	-	SPD_0699	-	hypothetical protein
660	 44.29	0	712168..714714	+	848	116515610	pepN	SPD_0700	-	aminopeptidase N
661	 37.25	0	714757..715497	+	246	116515465	ciaR	SPD_0701	-	DNA-binding response regulator CiaR
662	 38.50	0	715487..716821	+	444	116516689	ciaH	SPD_0702	-	sensor histidine kinase CiaH
663	 34.38	-1	716855..717142	-	95	116517218	-	SPD_0703	-	hypothetical protein
664	 40.52	0	717141..718211	+	356	116516394	-	SPD_0704	-	hypothetical protein
665	 40.23	0	718411..720861	+	816	116516668	-	SPD_0705	-	bifunctional ATP-dependent DNA helicase/DNA polymerase III subunit epsilon
666	 40.28	0	720898..722121	+	407	116515576	-	SPD_0706	-	rod shape-determining protein RodA, putative
667	 43.60	0	722132..722686	+	184	116516953	-	SPD_0707	-	4-methyl-5(b-hydroxyethyl)-thiazole monophosphate biosynthesis protein, putative
668	 37.41	0	722771..723334	+	187	116515873	-	SPD_0708	-	hydrolase, haloacid dehalogenase-like family protein
669	 42.78	0	723349..725295	+	648	116516156	gyrB	SPD_0709	-	DNA gyrase subunit B
670	 36.34	0	725377..727104	+	575	116516893	ezrA	SPD_0710	-	septation ring formation regulator EzrA
671	 41.24	0	727898..728251	+	117	116515608	-	SPD_0711	-	hypothetical protein
672	 38.82	0	728283..728792	+	169	116516414	-	SPD_0712	-	transposase family protein
673	 37.00	0	729426..729725	-	99	116515822	-	SPD_0714	-	hypothetical protein
674	 39.48	0	729890..730312	-	140	116515664	-	SPD_0715	-	MutT/nudix family protein
675	 36.49	0	730405..730752	+	115	116517010	-	SPD_0716	-	IS630-Spn1, transposase Orf1
676	 43.43	0	731477..733735	-	752	116516310	clpE	SPD_0717	-	ATP-dependent Clp protease ATP-binding subunit ClpE
677	 41.56	0	733964..734194	-	76	116515533	-	SPD_0718	-	hypothetical protein
678	 39.18	0	734384..735067	+	227	116516598	-	SPD_0719	-	amino acid ABC transporter, permease protein
679	 43.27	0	735067..735801	+	244	116515734	-	SPD_0720	-	amino acid ABC transporter, ATP-binding protein
680	 45.51	+1	735934..736812	+	292	116515868	folD	SPD_0721	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
681	 43.87	0	736954..737826	+	290	116517034	-	SPD_0722	-	YjeF-like protein
682	 44.01	0	738108..738791	+	227	116516446	rpiA	SPD_0723	-	ribose-5-phosphate isomerase A
683	 42.33	0	738805..740016	+	403	116516348	deoB	SPD_0724	-	phosphopentomutase
684	 44.20	0	740576..741385	+	269	116515467	-	SPD_0726	-	purine nucleoside phosphorylase
685	 38.39	0	741861..742592	+	243	116516091	-	SPD_0727	-	hypothetical protein
686	 39.22	0	742638..742841	+	67	116517195	-	SPD_0728	-	hypothetical protein
687	 41.52	0	742866..743378	+	170	116516976	-	SPD_0729	-	hemolysin-related protein
688	 42.48	0	744036..744746	+	236	116515621	deoD	SPD_0730	-	purine nucleoside phosphorylase
689	 38.67	0	744769..745293	-	174	116516744	-	SPD_0731	-	topology modulation protein
690	 38.40	0	745346..745582	-	78	116515680	rpsT	SPD_0732	-	30S ribosomal protein S20
691	 38.65	0	745650..746570	-	306	116515774	coaA	SPD_0733	-	pantothenate kinase
692	 33.56	-1	746768..747208	+	146	116516378	-	SPD_0734	-	hypothetical protein
693	 39.93	0	747415..748005	+	196	116516099	-	SPD_0735	-	methyltransferase small subunit
694	 42.96	0	748002..749279	+	425	116516475	pdp	SPD_0736	-	pyrimidine-nucleoside phosphorylase
695	 41.63	0	749297..749959	+	220	116517157	deoC	SPD_0737	-	deoxyribose-phosphate aldolase
696	 41.54	0	749946..750335	+	129	116516117	cdd-1	SPD_0738	-	cytidine deaminase
697	 41.88	0	750425..751477	+	350	116516951	-	SPD_0739	-	membrane lipoprotein TmpC precursor
698	 41.93	0	751621..753156	+	511	116515854	-	SPD_0740	-	sugar ABC transporter, ATP-binding protein
699	 44.48	0	753149..754207	+	352	116515653	-	SPD_0741	-	sugar ABC transporter, permease protein, putative
700	 42.74	0	754210..755166	+	318	116516674	-	SPD_0742	-	sugar ABC transporter, permease protein, putative
701	 41.43	0	756641..757282	-	213	116515637	-	SPD_0745	-	putative glycerol-3-phosphate acyltransferase PlsY
702	 45.16	+1	757418..759361	+	647	116516535	parE	SPD_0746	-	DNA topoisomerase IV subunit B
703	 34.13	-1	759482..759607	+	41	116516296	-	SPD_0747	-	hypothetical protein
704	 43.97	0	759772..762252	+	826	116515631	parC	SPD_0748	-	DNA topoisomerase IV subunit A
705	 41.35	0	762382..763404	+	340	116516002	ilvE	SPD_0749	-	branched-chain amino acid aminotransferase
706	 36.03	0	763460..764164	+	234	116515710	-	SPD_0750	-	hypothetical protein
707	 37.39	0	764229..764918	+	229	116516266	-	SPD_0751	-	hypothetical protein
708	 38.53	0	764915..765838	+	307	116517099	-	SPD_0752	-	hypothetical protein
709	 39.07	0	765853..766497	+	214	116515464	pcp	SPD_0753	-	pyrrolidone-carboxylate peptidase
710	 29.44	-2	766665..766895	+	76	116516313	-	SPD_0754	-	hypothetical protein
711	 40.98	0	767268..768470	+	400	116515525	rpsA	SPD_0757	-	30S ribosomal protein S1
40.03	MEAN

4.59	STD DEV
