IslandPath Analysis: Streptococcus pneumoniae D39

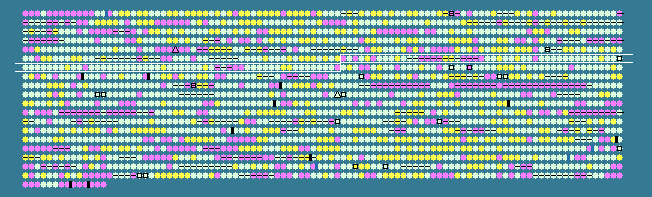

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
554	 34.81	-1	615393..615662	+	89	116516426	-	SPD_0589	-	hypothetical protein
555	 41.73	0	615662..616042	+	126	116515527	-	SPD_0590	-	rhodanese-like domain-containing protein
556	 32.83	-1	616161..616358	+	65	116517051	-	SPD_0591	-	hypothetical protein
557	 43.39	0	616398..617123	-	241	116516226	rsuA-2	SPD_0592	-	ribosomal small subunit pseudouridine synthase A
558	 43.81	0	617285..619126	+	613	116516567	-	SPD_0593	-	elongation factor Tu family protein
559	 34.51	-1	619146..619400	+	84	116515475	-	SPD_0594	-	hypothetical protein
560	 37.07	0	619716..620063	+	115	116516306	-	SPD_0595	-	hypothetical protein
561	 37.69	0	620134..622155	+	673	116515430	-	SPD_0596	-	hypothetical protein
562	 37.23	0	622157..622798	+	213	116516538	-	SPD_0597	-	ABC transporter, ATP-binding protein
563	 44.35	0	622902..624254	+	450	116515762	murD	SPD_0598	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
564	 42.30	0	624258..625316	+	352	116515971	murG	SPD_0599	-	N-acetylglucosaminyl transferase
565	 40.13	0	625326..626516	+	396	116517041	divIB	SPD_0600	-	cell division protein DivIB
566	 37.30	0	626647..626772	+	41	116516346	-	SPD_0601	-	hypothetical protein
567	 36.36	0	626784..626915	+	43	116515555	-	SPD_0602	-	hypothetical protein
568	 25.56	-2	627307..628104	+	265	116517120	-	SPD_0603	-	hypothetical protein
569	 28.90	-2	628447..629460	+	337	116516052	-	SPD_0604	-	HesA/MoeB/ThiF family protein
570	 32.07	-1	630496..631209	+	237	116515841	-	SPD_0606	-	hypothetical protein
571	 45.87	+1	631944..632645	+	233	116516349	pyrF	SPD_0608	-	orotidine 5'-phosphate decarboxylase
572	 44.08	0	632679..633311	+	210	116515534	pyrE	SPD_0609	-	orotate phosphoribosyltransferase
573	 38.02	0	633491..633895	+	134	116516064	-	SPD_0610	-	hypothetical protein
574	 34.51	-1	633991..634755	+	254	116517221	-	SPD_0611	-	hypothetical protein
575	 29.08	-2	634755..635507	+	250	116517024	-	SPD_0612	-	hypothetical protein
576	 31.35	-1	635511..636215	+	234	116515954	-	SPD_0613	-	hypothetical protein
577	 31.79	-1	636212..636859	+	215	116516384	-	SPD_0614	-	ABC transporter, ATP-binding protein
578	 43.35	0	637816..638574	-	252	116515352	-	SPD_0616	-	amino acid ABC transporter, ATP-binding protein
579	 41.74	0	638575..639252	-	225	116516015	-	SPD_0617	-	amino acid ABC transporter, permease protein
580	 46.11	+1	639212..639892	-	226	116516616	-	SPD_0618	-	amino acid ABC transporter, permease protein
581	 40.82	0	640107..640253	+	48	116515805	-	SPD_0619	-	hypothetical protein
582	 43.46	0	640381..641871	+	496	116517090	lysS	SPD_0620	-	lysyl-tRNA synthetase
583	 45.73	+1	642496..643632	+	378	116517149	lctO	SPD_0621	-	lactate oxidase
584	 40.66	0	644187..644855	+	222	116516305	-	SPD_0622	-	transcriptional regulator, TENA/THI-4 family protein, putative
585	 36.65	0	645144..645926	+	260	116515661	thiM	SPD_0623	-	hydroxyethylthiazole kinase
586	 33.17	-1	645928..646557	+	209	116516536	thiE-1	SPD_0624	-	thiamine-phosphate pyrophosphorylase
587	 41.00	0	647115..647675	+	186	116516079	-	SPD_0625	-	hypothetical protein
588	 43.36	0	647676..649061	+	461	116516786	-	SPD_0626	-	ABC transporter, ATP-binding protein
589	 40.25	0	649063..649713	+	216	116516329	-	SPD_0627	-	hypothetical protein
590	 39.68	0	649724..650416	+	230	116517113	tenA	SPD_0628	-	transcriptional activator TenA, TENA/THI-4 family protein
591	 40.95	0	650421..650945	+	174	116516704	thiW	SPD_0629	-	hypothetical protein
592	 43.28	0	650945..651748	+	267	116515654	-	SPD_0630	-	hydroxyethylthiazole kinase, putative
593	 42.97	0	651741..652373	+	210	116515649	thiE-2	SPD_0631	-	thiamine-phosphate pyrophosphorylase
594	 43.06	0	652582..653373	-	263	116516553	thiD	SPD_0632	-	phosphomethylpyrimidine kinase
595	 41.41	0	653739..654134	+	131	116515476	-	SPD_0633	-	transcriptional regulator, putative
596	 42.20	0	654145..654516	+	123	116516327	-	SPD_0634	-	hypothetical protein
597	 43.63	0	654526..656769	+	747	116517177	-	SPD_0635	-	cation-transporting ATPase, E1-E2 family protein
598	 43.02	0	656976..658751	+	591	116516119	spxB	SPD_0636	-	pyruvate oxidase
599	 37.93	0	658862..659209	+	115	116517078	-	SPD_0637	-	hypothetical protein
600	 39.14	0	659326..659979	-	217	116516202	-	SPD_0638	-	transposase family protein
601	 41.67	0	659867..660214	-	115	116516778	-	SPD_0639	-	hypothetical protein
602	 43.07	0	661064..662008	+	314	116516277	manA	SPD_0641	-	mannose-6-phosphate isomerase, class I
603	 42.78	0	662111..663496	-	461	116515423	-	SPD_0642	-	sodium-dependent transporter
604	 40.79	0	664353..664808	-	151	116515491	-	SPD_0644	-	MutT/nudix family protein
605	 42.77	0	664828..666003	-	391	116516881	-	SPD_0645	-	hypothetical protein
606	 42.91	0	666062..666907	-	281	116516904	-	SPD_0646	-	hypothetical protein
607	 39.07	0	667032..667589	+	185	116517044	-	SPD_0647	-	transcriptional regulator, TetR family protein
608	 44.87	+1	667608..668075	+	155	116515918	-	SPD_0648	-	cytidine and deoxycytidylate deaminase family protein
609	 41.63	0	668143..668793	+	216	116515358	upp	SPD_0649	-	uracil phosphoribosyltransferase
610	 41.62	0	668967..669557	+	196	116516216	clpP	SPD_0650	-	ATP-dependent Clp protease proteolytic subunit
611	 36.55	0	669636..669884	+	82	116516631	-	SPD_0651	-	hypothetical protein
612	 41.43	0	669986..671146	+	386	116515756	livJ	SPD_0652	-	branched-chain amino acid ABC transporter, amino acid-binding protein
613	 43.22	0	671414..672283	+	289	116515326	livH	SPD_0653	-	branched-chain amino acid ABC transporter, permease protein
614	 40.75	0	672287..673243	+	318	116516639	livM	SPD_0654	-	branched-chain amino acid ABC transporter, permease protein
615	 38.82	0	673243..674007	+	254	116516236	livG	SPD_0655	-	branched-chain amino acid ABC transporter, ATP-binding protein
616	 41.35	0	674007..674717	+	236	116516439	livF	SPD_0656	-	branched-chain amino acid ABC transporter, ATP-binding protein
617	 37.75	0	675131..675787	+	218	116516866	-	SPD_0657	-	acetoin utilization protein AcuB, putative
618	 42.63	0	676001..676990	+	329	116516272	prfB	SPD_0658	-	peptide chain release factor 2
619	 41.13	0	677008..677700	+	230	116515754	ftsE	SPD_0659	-	cell division ATP-binding protein FtsE
620	 36.79	0	677693..678619	+	308	116516625	ftsX	SPD_0660	-	cell division ABC transporter, permease protein FtsX
621	 41.31	0	678905..681085	+	726	116517154	exp5	SPD_0661	-	PTS system, IIABC components
622	 40.81	0	681137..681952	+	271	116516071	-	SPD_0662	-	hypothetical protein
623	 40.48	0	682092..683435	+	447	116516888	-	SPD_0663	-	ATP-dependent RNA helicase, DEAD/DEAH box family protein
624	 44.00	0	683650..684840	+	396	116515567	metK	SPD_0664	-	S-adenosylmethionine synthetase
625	 42.74	0	685393..686328	+	311	116516687	pyrDa	SPD_0665	-	dihydroorotate dehydrogenase 1A
626	 38.82	0	686362..687399	+	345	116515334	holA	SPD_0666	-	DNA polymerase III subunit delta
627	 43.23	0	687572..688177	+	201	116515547	sodA	SPD_0667	-	superoxide dismutase, manganese-dependent
628	 39.55	0	688334..688864	+	176	116516259	-	SPD_0668	-	hypothetical protein
629	 42.45	0	688885..689970	+	361	116516867	-	SPD_0669	-	hypothetical protein
630	 37.04	0	690008..690439	+	143	116515988	-	SPD_0670	-	hypothetical protein
631	 44.03	0	690441..691982	+	513	116516136	-	SPD_0671	-	ABC transporter, ATP-binding protein
632	 43.41	0	692039..692842	-	267	116516991	-	SPD_0672	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
633	 35.59	0	692926..693147	-	73	116516873	-	SPD_0673	-	hypothetical protein
634	 39.93	0	694013..694285	+	90	116516029	rpsP	SPD_0674	-	30S ribosomal protein S16
635	 36.25	0	694305..694544	+	79	116515603	-	SPD_0675	-	hypothetical protein
636	 35.20	-1	695121..695549	+	142	116516691	-	SPD_0676	-	hypothetical protein
637	 33.33	-1	695550..695909	+	119	116516366	-	SPD_0677	-	hypothetical protein
638	 40.27	0	695940..696458	+	172	116516249	rimM	SPD_0678	-	16S rRNA-processing protein
639	 42.92	0	696448..697167	+	239	116516895	trmD	SPD_0679	-	tRNA (guanine-N(1)-)-methyltransferase
640	 37.76	0	697179..697517	+	112	116515795	-	SPD_0680	-	hypothetical protein
641	 38.94	0	697548..697868	-	106	116516822	-	SPD_0681	-	hypothetical protein
642	 39.81	0	697966..698181	+	71	116517047	-	SPD_0683	-	hypothetical protein
643	 42.86	0	698178..698324	-	48	116516284	-	SPD_0682	-	hypothetical protein
644	 44.51	0	698385..698921	-	178	116515429	-	SPD_0684	-	biotin synthase (BioY family protein), putative
645	 43.95	0	699118..700464	-	448	116516716	gor	SPD_0685	-	glutathione reductase
646	 42.50	0	700729..701928	+	399	116515711	-	SPD_0686	-	hypothetical protein
647	 41.45	0	701912..702613	+	233	116515985	-	SPD_0687	-	ABC transporter ATP-binding protein
648	 40.00	0	702615..703874	+	419	116516885	-	SPD_0688	-	hypothetical protein
649	 42.29	0	703998..705995	+	665	116516229	metG	SPD_0689	-	methionyl-tRNA synthetase
650	 41.15	0	706045..706236	+	63	116517058	-	SPD_0690	-	hypothetical protein
651	 40.19	0	706326..706646	+	106	116515400	-	SPD_0691	-	hypothetical protein
652	 37.44	0	706650..707525	+	291	116516712	-	SPD_0692	-	hypothetical protein
653	 36.35	0	707540..708466	+	308	116515786	-	SPD_0693	-	oxidoreductase, aldo/keto reductase family protein
40.03	MEAN

4.59	STD DEV
