IslandPath Analysis: Streptococcus pneumoniae D39

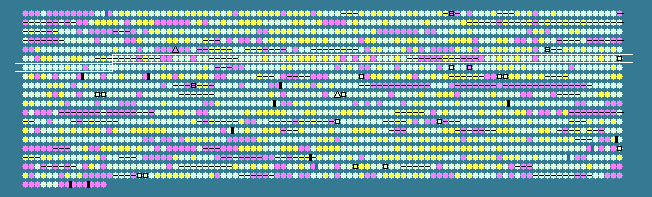

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
516	 42.54	0	561254..561970	+	238	116516570	-	SPD_0549	-	hypothetical protein
517	 41.31	0	562279..562704	+	141	116515716	rplK	SPD_0550	-	50S ribosomal protein L11
518	 40.72	0	562912..563601	+	229	116515704	rplA	SPD_0551	-	50S ribosomal protein L1
519	 40.65	0	564193..564780	-	195	116515836	-	SPD_0552	-	hypothetical protein
520	 30.00	-2	564746..565075	+	109	116516994	-	SPD_0553	-	hypothetical protein
521	 43.61	0	566119..567111	+	330	116516037	-	SPD_0554	-	ABC transporter, ATP-binding protein
522	 41.27	0	567113..567931	+	272	116516264	-	SPD_0555	-	hypothetical protein
523	 39.44	0	567933..568718	+	261	116516906	-	SPD_0556	-	hypothetical protein
524	 33.22	-1	569948..576382	+	2144	116516972	prtA	SPD_0558	-	cell wall-associated serine protease PrtA
525	 35.85	0	577007..577483	+	158	116516145	-	SPD_0559	-	PTS system IIA component, putative
526	 40.20	0	577521..577826	+	101	116516148	-	SPD_0560	-	PTS system, IIB component, putative
527	 41.33	0	577874..579349	+	491	116517184	-	SPD_0561	-	PTS system, IIC component, putative
528	 42.23	0	579654..586340	+	2228	116515472	bgaA	SPD_0562	-	beta-galactosidase precursor, putative
529	 33.62	-1	587654..588007	-	117	116516317	-	SPD_0564	-	hypothetical protein
530	 40.62	0	588105..588557	+	150	116515520	-	SPD_0565	-	hypothetical protein
531	 42.95	0	588615..589061	+	148	116517049	-	SPD_0566	-	hypothetical protein
532	 43.44	0	589039..589602	+	187	116516252	-	SPD_0567	-	hypothetical protein
533	 38.82	0	589595..589849	+	84	116516269	-	SPD_0568	-	hypothetical protein
534	 41.70	0	589861..591915	+	684	116516836	-	SPD_0569	-	sodium/hydrogen exchanger family protein
535	 39.26	0	592094..592954	+	286	116516563	-	SPD_0570	-	ribonuclease BN, putative
536	 41.49	0	593165..593875	+	236	116515707	ccdA-1	SPD_0571	-	cytochrome c-type biogenesis protein CcdA
537	 42.86	0	593895..594461	+	188	116517064	-	SPD_0572	-	thioredoxin family protein
538	 42.74	0	594649..595584	+	311	116515600	msrAB2	SPD_0573	-	bifunctional methionine sulfoxide reductase A/B protein
539	 40.65	0	595852..596589	+	245	116516390	-	SPD_0574	-	DNA-binding response regulator
540	 43.44	0	596586..598277	+	563	116515466	-	SPD_0575	-	sensor histidine kinase, putative
541	 45.74	+1	598393..598956	+	187	116516627	-	SPD_0576	-	hypothetical protein
542	 37.56	0	598978..604608	+	1876	116515780	zmpB	SPD_0577	-	zinc metalloprotease ZmpB
543	 43.09	0	604678..606399	+	573	116516803	pabB	SPD_0578	-	para-aminobenzoate synthase, component I
544	 38.38	0	606557..607546	+	329	116516626	-	SPD_0579	-	pneumococcal surface protein, putative
545	 44.38	0	607682..608641	+	319	116517028	gki	SPD_0580	-	glucokinase
546	 43.33	0	608738..609577	+	279	116516193	thyA	SPD_0581	-	thymidylate synthase
547	 45.03	+1	609625..609795	-	56	116516058	-	SPD_0582	-	hypothetical protein
548	 45.42	+1	609916..610800	+	294	116515353	miaA	SPD_0583	-	tRNA delta(2)-isopentenylpyrophosphate transferase
549	 44.96	+1	610793..612031	+	412	116517076	hflX	SPD_0584	-	GTP-binding protein HflX
550	 40.54	0	612024..612647	+	207	116516854	-	SPD_0585	-	hypothetical protein
551	 45.27	+1	612662..613591	+	309	116516699	rnz	SPD_0586	-	ribonuclease Z
552	 42.33	0	613612..614367	+	251	116515980	-	SPD_0587	-	oxidoreductase, short chain dehydrogenase/reductase family protein
553	 44.17	0	614421..615389	-	322	116517096	-	SPD_0588	-	transcriptional regulator, putative
554	 34.81	-1	615393..615662	+	89	116516426	-	SPD_0589	-	hypothetical protein
555	 41.73	0	615662..616042	+	126	116515527	-	SPD_0590	-	rhodanese-like domain-containing protein
556	 32.83	-1	616161..616358	+	65	116517051	-	SPD_0591	-	hypothetical protein
557	 43.39	0	616398..617123	-	241	116516226	rsuA-2	SPD_0592	-	ribosomal small subunit pseudouridine synthase A
558	 43.81	0	617285..619126	+	613	116516567	-	SPD_0593	-	elongation factor Tu family protein
559	 34.51	-1	619146..619400	+	84	116515475	-	SPD_0594	-	hypothetical protein
560	 37.07	0	619716..620063	+	115	116516306	-	SPD_0595	-	hypothetical protein
561	 37.69	0	620134..622155	+	673	116515430	-	SPD_0596	-	hypothetical protein
562	 37.23	0	622157..622798	+	213	116516538	-	SPD_0597	-	ABC transporter, ATP-binding protein
563	 44.35	0	622902..624254	+	450	116515762	murD	SPD_0598	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
564	 42.30	0	624258..625316	+	352	116515971	murG	SPD_0599	-	N-acetylglucosaminyl transferase
565	 40.13	0	625326..626516	+	396	116517041	divIB	SPD_0600	-	cell division protein DivIB
566	 37.30	0	626647..626772	+	41	116516346	-	SPD_0601	-	hypothetical protein
567	 36.36	0	626784..626915	+	43	116515555	-	SPD_0602	-	hypothetical protein
568	 25.56	-2	627307..628104	+	265	116517120	-	SPD_0603	-	hypothetical protein
569	 28.90	-2	628447..629460	+	337	116516052	-	SPD_0604	-	HesA/MoeB/ThiF family protein
570	 32.07	-1	630496..631209	+	237	116515841	-	SPD_0606	-	hypothetical protein
571	 45.87	+1	631944..632645	+	233	116516349	pyrF	SPD_0608	-	orotidine 5'-phosphate decarboxylase
572	 44.08	0	632679..633311	+	210	116515534	pyrE	SPD_0609	-	orotate phosphoribosyltransferase
573	 38.02	0	633491..633895	+	134	116516064	-	SPD_0610	-	hypothetical protein
574	 34.51	-1	633991..634755	+	254	116517221	-	SPD_0611	-	hypothetical protein
575	 29.08	-2	634755..635507	+	250	116517024	-	SPD_0612	-	hypothetical protein
576	 31.35	-1	635511..636215	+	234	116515954	-	SPD_0613	-	hypothetical protein
577	 31.79	-1	636212..636859	+	215	116516384	-	SPD_0614	-	ABC transporter, ATP-binding protein
578	 43.35	0	637816..638574	-	252	116515352	-	SPD_0616	-	amino acid ABC transporter, ATP-binding protein
579	 41.74	0	638575..639252	-	225	116516015	-	SPD_0617	-	amino acid ABC transporter, permease protein
580	 46.11	+1	639212..639892	-	226	116516616	-	SPD_0618	-	amino acid ABC transporter, permease protein
581	 40.82	0	640107..640253	+	48	116515805	-	SPD_0619	-	hypothetical protein
582	 43.46	0	640381..641871	+	496	116517090	lysS	SPD_0620	-	lysyl-tRNA synthetase
583	 45.73	+1	642496..643632	+	378	116517149	lctO	SPD_0621	-	lactate oxidase
584	 40.66	0	644187..644855	+	222	116516305	-	SPD_0622	-	transcriptional regulator, TENA/THI-4 family protein, putative
585	 36.65	0	645144..645926	+	260	116515661	thiM	SPD_0623	-	hydroxyethylthiazole kinase
586	 33.17	-1	645928..646557	+	209	116516536	thiE-1	SPD_0624	-	thiamine-phosphate pyrophosphorylase
587	 41.00	0	647115..647675	+	186	116516079	-	SPD_0625	-	hypothetical protein
588	 43.36	0	647676..649061	+	461	116516786	-	SPD_0626	-	ABC transporter, ATP-binding protein
589	 40.25	0	649063..649713	+	216	116516329	-	SPD_0627	-	hypothetical protein
590	 39.68	0	649724..650416	+	230	116517113	tenA	SPD_0628	-	transcriptional activator TenA, TENA/THI-4 family protein
591	 40.95	0	650421..650945	+	174	116516704	thiW	SPD_0629	-	hypothetical protein
592	 43.28	0	650945..651748	+	267	116515654	-	SPD_0630	-	hydroxyethylthiazole kinase, putative
593	 42.97	0	651741..652373	+	210	116515649	thiE-2	SPD_0631	-	thiamine-phosphate pyrophosphorylase
594	 43.06	0	652582..653373	-	263	116516553	thiD	SPD_0632	-	phosphomethylpyrimidine kinase
595	 41.41	0	653739..654134	+	131	116515476	-	SPD_0633	-	transcriptional regulator, putative
596	 42.20	0	654145..654516	+	123	116516327	-	SPD_0634	-	hypothetical protein
597	 43.63	0	654526..656769	+	747	116517177	-	SPD_0635	-	cation-transporting ATPase, E1-E2 family protein
598	 43.02	0	656976..658751	+	591	116516119	spxB	SPD_0636	-	pyruvate oxidase
599	 37.93	0	658862..659209	+	115	116517078	-	SPD_0637	-	hypothetical protein
600	 39.14	0	659326..659979	-	217	116516202	-	SPD_0638	-	transposase family protein
601	 41.67	0	659867..660214	-	115	116516778	-	SPD_0639	-	hypothetical protein
602	 43.07	0	661064..662008	+	314	116516277	manA	SPD_0641	-	mannose-6-phosphate isomerase, class I
603	 42.78	0	662111..663496	-	461	116515423	-	SPD_0642	-	sodium-dependent transporter
604	 40.79	0	664353..664808	-	151	116515491	-	SPD_0644	-	MutT/nudix family protein
605	 42.77	0	664828..666003	-	391	116516881	-	SPD_0645	-	hypothetical protein
606	 42.91	0	666062..666907	-	281	116516904	-	SPD_0646	-	hypothetical protein
607	 39.07	0	667032..667589	+	185	116517044	-	SPD_0647	-	transcriptional regulator, TetR family protein
608	 44.87	+1	667608..668075	+	155	116515918	-	SPD_0648	-	cytidine and deoxycytidylate deaminase family protein
609	 41.63	0	668143..668793	+	216	116515358	upp	SPD_0649	-	uracil phosphoribosyltransferase
610	 41.62	0	668967..669557	+	196	116516216	clpP	SPD_0650	-	ATP-dependent Clp protease proteolytic subunit
611	 36.55	0	669636..669884	+	82	116516631	-	SPD_0651	-	hypothetical protein
612	 41.43	0	669986..671146	+	386	116515756	livJ	SPD_0652	-	branched-chain amino acid ABC transporter, amino acid-binding protein
613	 43.22	0	671414..672283	+	289	116515326	livH	SPD_0653	-	branched-chain amino acid ABC transporter, permease protein
614	 40.75	0	672287..673243	+	318	116516639	livM	SPD_0654	-	branched-chain amino acid ABC transporter, permease protein
615	 38.82	0	673243..674007	+	254	116516236	livG	SPD_0655	-	branched-chain amino acid ABC transporter, ATP-binding protein
40.03	MEAN

4.59	STD DEV
