IslandPath Analysis: Streptococcus pneumoniae D39

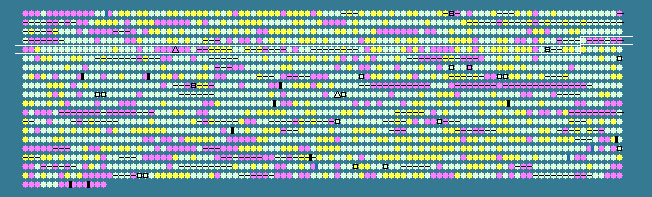

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
394	 41.68	0	419643..421967	+	774	116517188	pflB	SPD_0420	-	formate acetyltransferase
395	 31.61	-1	422334..422681	-	115	116516200	-	SPD_0421	-	hypothetical protein
396	 32.28	-1	422879..423163	-	94	116515513	-	SPD_0422	-	hypothetical protein
397	 33.82	-1	424598..425821	-	407	116517006	-	SPD_0423	-	ROK family protein
398	 39.30	0	425989..427311	+	440	116515962	-	SPD_0424	-	PTS system, cellobiose-specific IIC component
399	 34.13	-1	427313..429199	+	628	116515811	-	SPD_0425	-	hypothetical protein
400	 36.23	0	429367..429711	+	114	116516902	lacF-1	SPD_0426	-	PTS system, lactose-specific IIA component
401	 35.03	-1	429721..431133	+	470	116516482	lacG-1	SPD_0427	-	6-phospho-beta-galactosidase
402	 35.60	0	431202..432881	+	559	116515623	lacE-1	SPD_0428	-	PTS system, lactose-specific IIBC components
403	 43.68	0	433009..434448	-	479	116517119	-	SPD_0429	-	potassium uptake protein, Trk family protein
404	 42.74	0	434452..435801	-	449	116515316	trkA	SPD_0430	-	potassium transporter peripheral membrane component
405	 43.35	0	435990..436838	+	282	116517130	-	SPD_0431	-	hypothetical protein
406	 42.08	0	436853..437401	+	182	116515998	-	SPD_0432	-	hypothetical protein
407	 40.85	0	437408..437620	+	70	116516686	-	SPD_0433	-	hypothetical protein
408	 43.14	0	437722..439404	+	560	116516811	-	SPD_0434	-	ABC transporter, ATP-binding protein
409	 41.64	0	439389..440219	+	276	116516756	-	SPD_0435	-	hypothetical protein
410	 41.47	0	440412..440915	+	167	116515392	-	SPD_0436	-	TrmH family RNA methyltransferase
411	 40.60	0	441374..441937	+	187	116516407	-	SPD_0437	-	hypothetical protein
412	 42.40	0	441927..442577	+	216	116517046	-	SPD_0438	-	PAP2 family protein
413	 39.74	0	442605..442994	+	129	116517187	-	SPD_0439	-	hypothetical protein
414	 40.22	0	442999..443448	+	149	116515870	-	SPD_0440	-	hypothetical protein
415	 42.35	0	443576..444163	+	195	116516666	-	SPD_0441	-	DNA-directed RNA polymerase subunit delta
416	 44.22	0	444553..446160	+	535	116515581	pyrG	SPD_0442	-	CTP synthetase
417	 41.73	0	446719..448350	-	543	116515598	-	SPD_0443	-	Na/Pi-cotransporter II-related protein
418	 41.54	0	448715..453622	+	1635	116516927	-	SPD_0444	-	endo-beta-N-acetylglucosaminidase, putative
419	 43.44	0	453712..454908	+	398	116516585	pgk	SPD_0445	-	phosphoglycerate kinase
420	 36.36	0	455044..455571	+	175	116515489	-	SPD_0446	-	hypothetical protein
421	 42.30	0	455648..456004	+	118	116517159	-	SPD_0447	-	transcriptional regulator, MerR family protein
422	 42.46	0	456041..457387	+	448	116516090	glnA	SPD_0448	-	glutamine synthetase, type I
423	 35.51	0	457860..457997	+	45	116516122	-	SPD_0449	-	hypothetical protein
424	 29.90	-2	458167..459447	+	426	116515880	-	SPD_0451	-	type I restriction-modification system, S subunit, putative
425	 30.67	-2	459401..460000	-	199	116516954	-	SPD_0450	-	type I restriction-modification system, S subunit, putative
426	 30.08	-2	460011..460808	-	265	116515761	-	SPD_0452	-	integrase/recombinase, phage integrase family protein
427	 33.59	-1	460865..462433	-	522	116515523	hsdS	SPD_0453	-	type I restriction-modification system, S subunit
428	 34.63	-1	462433..463896	-	487	116516554	hsdM	SPD_0454	-	type I restriction-modification system, M subunit
429	 36.89	0	463909..466242	-	777	116515646	hsdR	SPD_0455	-	type I restriction-modification system, R subunit
430	 31.34	-1	466615..466815	+	66	116516914	-	SPD_0456	-	hypothetical protein
431	 35.10	-1	466850..467359	+	169	116515425	-	SPD_0457	-	hypothetical protein
432	 43.77	0	467523..468557	+	344	116516738	hrcA	SPD_0458	-	heat-inducible transcription repressor
433	 43.81	0	468584..469108	+	174	116517069	grpE	SPD_0459	-	heat shock protein GrpE
434	 43.53	0	469588..471411	+	607	116516498	dnaK	SPD_0460	-	molecular chaperone DnaK
435	 46.47	+1	472171..473289	+	372	116516829	dnaJ	SPD_0461	-	chaperone protein DnaJ
436	 39.24	0	473624..473911	-	95	116516237	-	SPD_0462	-	hypothetical protein
437	 43.07	0	473921..474331	-	136	116516377	-	SPD_0463	-	Hit-like protein involved in cell-cycle regulation, putative
438	 45.08	+1	474399..475130	+	243	116515745	-	SPD_0464	-	ABC transporter, ATP-binding protein
439	 42.95	0	475127..476176	+	349	116516576	-	SPD_0465	-	ABC transporter, permease protein, putative
440	 43.94	0	476344..476673	-	109	116515782	-	SPD_0466	-	hypothetical protein
441	 33.63	-1	476949..477287	+	112	116516604	blpS	SPD_0467	-	BlpS protein
442	 42.55	0	477292..478029	+	245	116515330	blpR	SPD_0468	-	response regulator BlpR
443	 37.51	0	478043..479383	+	446	116515327	blpH	SPD_0469	-	histidine kinase BlpH, putative
444	 32.69	-1	479425..479580	-	51	116516214	blpC	SPD_0470	-	peptide pheromone BlpC
445	 38.84	0	483721..484410	+	229	116516302	blpY	SPD_0473	-	immunity protein BlpY
446	 35.47	0	484452..484685	+	77	116517135	-	SPD_0474	-	hypothetical protein
447	 37.91	0	484836..485447	+	203	116515839	-	SPD_0475	-	CAAX amino terminal protease family protein
448	 41.38	0	485608..486402	+	264	116516934	-	SPD_0476	-	hypothetical protein
449	 42.45	0	486399..487034	+	211	116515622	trmB	SPD_0477	-	tRNA (guanine-N(7))-methyltransferase
450	 42.92	0	487160..487639	+	159	116516675	-	SPD_0478	-	hypothetical protein
451	 43.18	0	487683..488819	+	378	116515364	nusA	SPD_0479	-	transcription elongation factor NusA
452	 42.86	0	488841..489134	+	97	116516304	-	SPD_0480	-	hypothetical protein
453	 41.33	0	489127..489426	+	99	116515722	-	SPD_0481	-	hypothetical protein
454	 44.83	+1	489443..492235	+	930	116516588	infB	SPD_0482	-	translation initiation factor IF-2
455	 42.17	0	492486..492836	+	116	116515755	rbfA	SPD_0483	-	ribosome-binding factor A
456	 38.60	0	493079..493894	+	271	116516405	-	SPD_0484	-	hypothetical protein
457	 38.80	0	493896..494078	+	60	116515503	-	SPD_0485	-	hypothetical protein
458	 30.50	-2	494075..494215	+	46	116515842	-	SPD_0486	-	hypothetical protein
459	 43.90	0	494516..494761	+	81	116517210	-	SPD_0487	-	hypothetical protein
460	 45.84	+1	494761..496095	+	444	116515574	-	SPD_0488	-	hypothetical protein
461	 41.18	0	496105..496359	+	84	116516960	-	SPD_0489	-	hypothetical protein
462	 40.66	0	496455..496850	+	131	116515740	-	SPD_0490	-	hypothetical protein
463	 42.22	0	497262..497711	+	149	116516878	-	SPD_0491	-	hypothetical protein
464	 46.59	+1	497698..498255	+	185	116517161	-	SPD_0492	-	acetyltransferase, GNAT family protein
465	 28.56	-2	498257..499219	+	320	116515713	-	SPD_0493	-	hypothetical protein
466	 46.27	+1	499231..501882	+	883	116516342	valS	SPD_0494	-	valyl-tRNA synthetase
467	 33.60	-1	501952..502707	+	251	116516856	-	SPD_0495	-	hypothetical protein
468	 38.43	0	502990..503793	+	267	116516013	-	SPD_0496	-	cell filamentation protein Fic-related protein
469	 27.70	-2	504947..505159	-	70	116516401	-	SPD_0499	-	hypothetical protein
470	 29.17	-2	508402..509241	+	279	116516805	licT	SPD_0501	-	transcription antiterminator Lict
471	 34.15	-1	509259..511097	+	612	116515619	-	SPD_0502	-	PTS system, beta-glucosides-specific IIABC components
472	 33.55	-1	511110..512525	+	471	116515964	bglA-2	SPD_0503	-	6-phospho-beta-glucosidase
473	 45.37	+1	513117..514163	+	348	116516862	pheS	SPD_0504	-	phenylalanyl-tRNA synthetase subunit alpha
474	 37.25	0	514163..514672	+	169	116516224	-	SPD_0505	-	acetyltransferase, GNAT family protein
475	 45.82	+1	514749..517151	+	800	116517104	pheT	SPD_0506	-	phenylalanyl-tRNA synthetase subunit beta
476	 34.53	-1	517219..518220	-	333	116515991	-	SPD_0507	-	hypothetical protein
477	 44.57	0	518949..519215	+	88	116515852	-	SPD_0509	-	hypothetical protein
478	 43.42	0	519476..521725	+	749	116516990	metE	SPD_0510	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
479	 43.83	0	521789..522655	+	288	116516593	metF	SPD_0511	-	5,10-methylenetetrahydrofolate reductase
480	 43.90	0	523226..525553	+	775	116515732	pnp	SPD_0512	-	polynucleotide phosphorylase/polyadenylase
481	 48.87	+1	525569..526186	+	205	116516473	cysE	SPD_0513	-	serine O-acetyltransferase
482	 39.77	0	526198..527082	+	294	116515456	-	SPD_0514	-	acetyltransferase, GNAT family protein
483	 44.35	0	527164..528507	+	447	116517189	cysS	SPD_0515	-	cysteinyl-tRNA synthetase
484	 46.25	+1	528500..528886	+	128	116515371	-	SPD_0516	-	hypothetical protein
485	 43.73	0	528890..529774	+	294	116516580	-	SPD_0517	-	hypothetical protein
486	 30.04	-2	529911..530366	+	151	116515354	-	SPD_0518	-	hypothetical protein
487	 37.41	0	530363..530509	+	48	116516174	-	SPD_0519	-	hypothetical protein
488	 41.95	0	530655..530828	+	57	116517009	-	SPD_0520	-	transposase, putative, truncation
489	 40.06	0	531180..532457	+	425	116515844	vex1	SPD_0521	-	ABC transporter, transmembrane protein Vexp1
490	 39.35	0	532470..533117	+	215	116516662	vex2	SPD_0522	-	ABC transporter, ATP-binding protein Vexp2
491	 44.28	0	533169..534548	+	459	116515629	vex3	SPD_0523	-	ABC transporter, transmembrane protein Vexp3
492	 44.44	0	534860..535516	+	218	116516514	vncR	SPD_0524	-	DNA-binding response regulator VncR
493	 43.42	0	535513..536841	+	442	116515343	vncS	SPD_0525	-	sensor histidine kinase VncS
40.03	MEAN

4.59	STD DEV
