IslandPath Analysis: Streptococcus pneumoniae D39

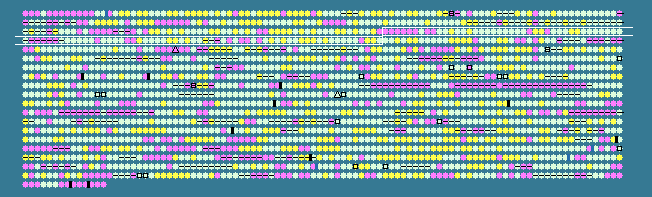

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
261	 35.63	0	274549..275985	+	478	116515365	celA	SPD_0277	-	6-phospho-beta-glucosidase
262	 31.25	-1	276037..276276	+	79	116515676	-	SPD_0278	-	hypothetical protein
263	 36.19	0	276406..276720	+	104	116517077	celB	SPD_0279	-	cellobiose phosphotransferase system IIB component
264	 31.41	-1	276844..278817	+	657	116516527	-	SPD_0280	-	transcriptional regulator, putative
265	 34.29	-1	278827..279141	+	104	116515730	celC	SPD_0281	-	cellobiose phosphotransferase system IIA component
266	 28.99	-2	279160..279666	+	168	116515501	-	SPD_0282	-	hypothetical protein
267	 37.94	0	279746..281092	+	448	116516546	celD	SPD_0283	-	cellobiose phosphotransferase system IIC component
268	 36.16	0	281474..281650	+	58	116515742	-	SPD_0284	-	hypothetical protein
269	 35.82	0	282052..284265	+	737	116516613	-	SPD_0285	-	glycosyl hydrolase, family protein 31
270	 42.77	0	284487..284963	-	158	116516850	-	SPD_0286	-	glutathione peroxidase
271	 40.14	0	285186..288389	+	1067	116515977	-	SPD_0287	-	hyaluronate lyase precursor
272	 45.08	+1	289533..290162	-	209	116515570	eda	SPD_0289	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
273	 42.71	0	290172..291173	-	333	116516452	-	SPD_0290	-	carbohydrate kinase, PfkB family protein
274	 41.12	0	291204..291845	-	213	116515351	-	SPD_0291	-	hypothetical protein
275	 44.12	0	291864..292679	-	271	116516839	-	SPD_0292	-	gluconate 5-dehydrogenase
276	 39.08	0	292950..293384	+	144	116515558	-	SPD_0293	-	PTS system, IIA component
277	 41.06	0	293396..294586	+	396	116517086	-	SPD_0294	-	glucuronyl hydrolase
278	 40.85	0	294597..295088	+	163	116515823	-	SPD_0295	-	PTS system, IIB component
279	 41.67	0	295103..295882	+	259	116515404	-	SPD_0296	-	PTS system, IIC component
280	 39.07	0	295869..296687	+	272	116516087	-	SPD_0297	-	PTS system, IID component
281	 37.41	0	296687..296980	+	97	162139312	yajC-1	SPD_0298	-	preprotein translocase, YajC subunit
282	 36.75	0	297002..297118	+	38	116516830	-	SPD_0299	-	hypothetical protein
283	 40.46	0	297064..298902	+	612	116516834	-	SPD_0300	-	hypothetical protein
284	 39.82	0	298962..299963	+	333	116515692	regR	SPD_0301	-	sugar binding transcriptional regulator RegR
285	 32.10	-1	300409..300651	-	80	116516600	-	SPD_0302	-	hypothetical protein
286	 44.10	0	300667..300861	-	64	116515521	-	SPD_0303	-	transcriptional regulator, putative
287	 43.85	0	301027..301977	+	316	116515442	mraW	SPD_0304	-	S-adenosyl-methyltransferase MraW
288	 35.85	0	301989..302306	+	105	116516218	ftsL	SPD_0305	-	cell division protein FtsL
289	 42.57	0	302310..304562	+	750	116517037	pbpX	SPD_0306	-	penicillin-binding protein 2X
290	 41.28	0	304564..305544	+	326	116515948	mraY	SPD_0307	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
291	 43.21	0	306101..308206	+	701	116515968	clpL	SPD_0308	-	ATP-dependent Clp protease, ATP-binding subunit
292	 45.76	+1	308502..308984	-	160	116516199	luxS	SPD_0309	-	S-ribosylhomocysteinase
293	 43.84	0	309079..310563	-	494	116516184	-	SPD_0310	-	hypothetical protein
294	 42.48	0	310716..312323	+	535	116517011	dexB	SPD_0311	-	glucan 1,6-alpha-glucosidase
295	 37.36	0	312482..312655	+	57	116516728	-	SPD_0313	-	hypothetical protein
296	 38.45	0	313744..315189	+	481	116516963	cps2A	SPD_0315	-	integral membrane regulatory protein Cps2A
297	 41.53	0	315191..315922	+	243	116516159	cps2B	SPD_0316	-	tyrosine-protein phosphatase CpsB
298	 41.99	0	315931..316623	+	230	116517039	cps2C	SPD_0317	-	chain length determinant protein/polysaccharide export protein, MPA1 family protein
299	 39.06	0	316633..317313	+	226	116517023	cps2D	SPD_0318	-	tyrosine-protein kinase Cps2D cytosolic ATPase
300	 37.79	0	317328..318695	+	455	116516773	cps2E	SPD_0319	-	undecaprenylphosphate glucosephosphotransferase Cps2E
301	 40.25	0	318727..319911	+	394	116516453	cps2T	SPD_0320	-	glycosyl transferase, group 1 family protein, putative
302	 32.38	-1	319904..320848	+	314	116516251	cps2F	SPD_0321	-	glycosyl transferase, group 2 family protein
303	 32.66	-1	320864..321910	+	348	116516693	cps2G	SPD_0322	-	glycosyl transferase, group 1 family protein
304	 26.98	-2	321951..323114	+	387	116515655	csp2H	SPD_0323	-	polysaccharide polymerase
305	 29.53	-2	323244..324401	+	385	116516743	cps2I	SPD_0324	-	glycosyl transferase, group 1 family protein, putative
306	 26.38	-2	324398..325807	+	469	116516835	-	SPD_0325	-	hypothetical protein
307	 36.56	0	325843..327081	+	412	116516033	cps2K	SPD_0326	-	UDP-glucose 6-dehydrogenase, putative
308	 37.29	0	327110..327715	+	201	116517147	cps2P	SPD_0327	-	UDP-galactopyranose mutase
309	 42.87	0	327793..328662	+	289	116516051	cps2L	SPD_0328	-	glucose-1-phosphate thymidylyltransferase
310	 41.41	0	328663..329256	+	197	116517185	rfbC	SPD_0329	-	dTDP-4-dehydrorhamnose 3,5-epimerase, putative
311	 42.29	0	329269..330318	+	349	116516812	rfbB	SPD_0330	-	dTDP-glucose 4,6-dehydratase
312	 41.31	0	330384..331235	+	283	116515912	rfbD	SPD_0331	-	dTDP-4-dehydrorhamnose reductase
313	 35.22	-1	332280..332438	+	52	116517053	-	SPD_0333	-	hypothetical protein
314	 39.79	0	332640..334622	+	660	116515982	aliA	SPD_0334	-	oligopeptide ABC transporter, oligopeptide-binding protein AliA
315	 42.70	0	334922..340225	+	1767	116515461	-	SPD_0335	-	cell wall surface anchor family protein
316	 43.19	0	340392..342551	-	719	116516330	pbp1A	SPD_0336	-	penicillin-binding protein 1A
317	 37.52	0	342548..343144	-	198	116515550	recU	SPD_0337	-	Holliday junction-specific endonuclease
318	 35.98	0	343210..343737	+	175	116516898	-	SPD_0338	-	hypothetical protein
319	 36.06	0	343807..344136	+	109	116515799	-	SPD_0339	-	hypothetical protein
320	 44.04	0	344622..345779	+	385	116517216	-	SPD_0341	-	hypothetical protein
321	 40.50	0	345792..347186	+	464	116516323	-	SPD_0342	-	hypothetical protein
322	 43.02	0	347262..348686	+	474	116515453	gnd	SPD_0343	-	6-phosphogluconate dehydrogenase
323	 42.17	0	348698..349387	+	229	116516655	-	SPD_0344	-	DNA-binding response regulator
324	 36.97	0	349485..350501	+	338	116515498	cbpC	SPD_0345	-	choline binding protein C
325	 45.96	+1	350623..351501	+	292	116516899	mvk	SPD_0346	-	mevalonate kinase
326	 43.71	0	351483..352436	+	317	116515775	mvaD	SPD_0347	-	diphosphomevalonate decarboxylase
327	 43.45	0	352423..353430	+	335	116517118	mvaK2	SPD_0348	-	phosphomevalonate kinase
328	 44.02	0	353414..354424	+	336	116515768	fni	SPD_0349	-	isopentenyl pyrophosphate isomerase
329	 39.20	0	354502..355200	+	232	116516981	-	SPD_0350	-	hypothetical protein
330	 43.17	0	355197..356192	+	331	116515827	-	SPD_0351	-	sensor histidine kinase, putative
331	 46.76	+1	356206..356838	+	210	116517140	-	SPD_0352	-	DNA-binding response regulator
332	 36.73	0	356839..356985	+	48	116516086	-	SPD_0353	-	hypothetical protein
333	 33.85	-1	357758..357952	+	64	116516504	-	SPD_0355	-	hypothetical protein
334	 40.56	0	358922..359806	+	294	116515867	cbpF	SPD_0357	-	choline binding protein F
335	 27.23	-2	360868..361080	-	70	116516093	-	SPD_0359	-	hypothetical protein
336	 40.79	0	361289..363058	+	589	116515741	mtlA	SPD_0360	-	PTS system, mannitol-specific IIBC components
337	 35.33	-1	363082..365037	+	651	116516824	-	SPD_0361	-	transcriptional regulator, putative
338	 36.07	0	365039..365476	+	145	116515528	mtlA2	SPD_0362	-	PTS system, mannitol-specific enzyme IIA
339	 36.85	0	365538..366674	+	378	116516528	-	SPD_0363	-	mannitol-1-phosphate 5-dehydrogenase
340	 35.96	0	367056..367169	+	37	116516231	-	SPD_0364	-	ABC-type polar amino acid transport system, ATPase component
341	 41.04	0	367473..368756	+	427	116516755	tig	SPD_0365	-	trigger factor
342	 44.66	+1	368804..371170	-	788	116515818	-	SPD_0366	-	helicase, RecD/TraA family protein
343	 43.41	0	371404..372018	-	204	116515681	lepB	SPD_0367	-	signal peptidase I
344	 45.02	+1	372030..372902	-	290	116516121	rnhC	SPD_0368	-	ribonuclease HIII
345	 38.78	0	372980..373291	+	103	116516919	-	SPD_0369	-	hypothetical protein
346	 42.44	0	373288..373836	+	182	116515394	-	SPD_0370	-	hypothetical protein
347	 45.19	+1	373940..376276	+	778	116517220	-	SPD_0371	-	MutS2 family protein
348	 45.43	+1	376618..377940	+	440	116515323	-	SPD_0372	-	sodium:alanine symporter family protein
349	 43.53	0	378158..378706	+	182	116516508	-	SPD_0373	-	hypothetical protein
350	 42.00	0	378816..379715	+	299	116516614	-	SPD_0374	-	exfoliative toxin, putative
351	 44.16	0	379740..381014	-	424	116516325	serS	SPD_0375	-	seryl-tRNA synthetase
352	 41.94	0	381227..381598	-	123	116516387	-	SPD_0376	-	hypothetical protein
353	 42.64	0	381601..382965	-	454	116515794	-	SPD_0377	-	aspartate kinase
354	 43.13	0	383290..384075	+	261	116516619	-	SPD_0378	-	enoyl-CoA hydratase
355	 39.54	0	384169..384603	+	144	116516027	-	SPD_0379	-	transcriptional regulator, MarR family protein
356	 43.18	0	384603..385577	+	324	116516000	fabH	SPD_0380	-	3-oxoacyl-(acyl carrier protein) synthase III
357	 35.56	0	385637..385861	+	74	116516846	acpP	SPD_0381	-	acyl carrier protein
358	 44.10	0	385980..386954	+	324	116516513	fabK	SPD_0382	-	trans-2-enoyl-ACP reductase II
359	 45.71	+1	386947..387867	+	306	116517048	fabD	SPD_0383	-	acyl-carrier-protein S-malonyltransferase
360	 41.80	0	387901..388632	+	243	116515382	fabG	SPD_0384	-	3-ketoacyl-(acyl-carrier-protein) reductase
40.03	MEAN

4.59	STD DEV
