IslandPath Analysis: Streptococcus pneumoniae D39

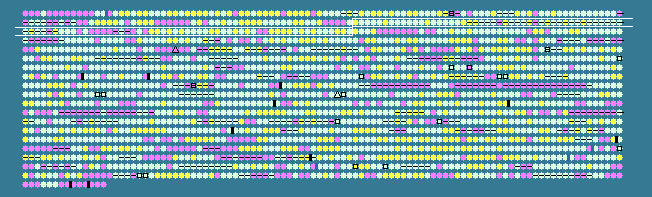

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
156	 46.63	+1	174766..175329	+	187	116516468	tag	SPD_0171	-	DNA-3-methyladenine glycosylase I
157	 36.73	0	175326..176003	+	225	116515703	-	SPD_0172	-	hypothetical protein
158	 41.76	0	176158..177189	-	343	116516516	-	SPD_0173	-	MccC family protein
159	 43.12	0	177444..178148	-	234	116516921	-	SPD_0174	-	hypothetical protein
160	 42.33	0	178139..179083	-	314	116515813	-	SPD_0175	-	magnesium transporter, CorA family protein
161	 47.25	+1	179215..182046	+	943	116517125	uvrA	SPD_0176	-	excinuclease ABC subunit A
162	 43.50	0	182039..183100	+	353	116516135	-	SPD_0177	-	peptidase M24 family protein
163	 39.10	0	183232..183630	+	132	116516433	spxA	SPD_0178	-	transcriptional regulator Spx
164	 38.25	0	183696..184265	+	189	116515403	-	SPD_0179	-	hypothetical protein
165	 37.83	0	184352..184618	+	88	116516360	-	SPD_0180	-	hypothetical protein
166	 41.67	0	184622..185041	+	139	116515819	-	SPD_0181	-	Holliday junction resolvase-like protein
167	 38.89	0	185057..185362	+	101	116516683	-	SPD_0182	-	hypothetical protein
168	 43.91	0	185813..187069	+	418	116516494	folC	SPD_0183	-	folylpolyglutamate synthase
169	 40.97	0	187153..187584	+	143	116515524	-	SPD_0184	-	hypothetical protein
170	 38.42	0	187730..189262	+	510	116516680	-	SPD_0185	-	cardiolipin synthetase
171	 40.03	0	189520..191058	+	512	116515592	-	SPD_0186	-	competence-induced protein Ccs4
172	 43.07	0	191178..193385	+	735	116516887	nrdD	SPD_0187	-	anaerobic ribonucleoside triphosphate reductase
173	 39.72	0	193397..193537	+	46	116515859	-	SPD_0188	-	hypothetical protein
174	 43.98	0	193581..194087	+	168	116517222	-	SPD_0189	-	acetyltransferase, GNAT family protein
175	 43.65	0	194080..194670	+	196	116516445	nrdG	SPD_0190	-	anaerobic ribonucleoside-triphosphate reductase activating protein
176	 44.82	+1	194667..195284	+	205	116516988	-	SPD_0191	-	hypothetical protein
177	 42.07	0	195551..195859	+	102	116516663	rpsJ	SPD_0192	-	30S ribosomal protein S10
178	 43.06	0	196076..196702	+	208	116516725	rplC	SPD_0193	-	50S ribosomal protein L3
179	 43.43	0	196727..197350	+	207	116515366	rplD	SPD_0194	-	50S ribosomal protein L4
180	 36.36	0	197350..197646	+	98	116515830	rplW	SPD_0195	-	50S ribosomal protein L23
181	 44.60	0	197664..198497	+	277	116515638	rplB	SPD_0196	-	50S ribosomal protein L2
182	 40.07	0	198601..198882	+	93	116516112	rpsS	SPD_0197	-	30S ribosomal protein S19
183	 41.45	0	198894..199238	+	114	116517196	rplV	SPD_0198	-	50S ribosomal protein L22
184	 42.97	0	199251..199904	+	217	116515402	rpsC	SPD_0199	-	30S ribosomal protein S3
185	 44.44	0	199908..200321	+	137	116515627	rplP	SPD_0200	-	50S ribosomal protein L16
186	 35.27	-1	200331..200537	+	68	116516938	rpmC	SPD_0201	-	50S ribosomal protein L29
187	 38.70	0	200562..200822	+	86	116515855	rpsQ	SPD_0202	-	30S ribosomal protein S17
188	 44.17	0	200848..201216	+	122	116517026	rplN	SPD_0203	-	50S ribosomal protein L14
189	 39.54	0	201294..201599	+	101	116516050	rplX	SPD_0204	-	50S ribosomal protein L24
190	 40.70	0	201623..202165	+	180	116515434	rplE	SPD_0205	-	50S ribosomal protein L5
191	 44.07	0	202183..202452	+	89	116516311	rpsN	SPD_0206	-	30S ribosomal protein S14
192	 39.10	0	202737..203135	+	132	116515705	rpsH	SPD_0207	-	30S ribosomal protein S8
193	 40.41	0	203327..203863	+	178	116516940	rplF	SPD_0208	-	50S ribosomal protein L6
194	 45.66	+1	203947..204303	+	118	116515871	rplR	SPD_0209	-	50S ribosomal protein L18
195	 43.03	0	204321..204815	+	164	116515495	rpsE	SPD_0210	-	30S ribosomal protein S5
196	 37.16	0	204829..205011	+	60	116516736	rpmD	SPD_0211	-	50S ribosomal protein L30
197	 41.50	0	205156..205596	+	146	116515385	rplO	SPD_0212	-	50S ribosomal protein L15
198	 38.90	0	205609..206919	+	436	116516915	secY	SPD_0213	-	preprotein translocase subunit SecY
199	 39.44	0	207070..207708	+	212	116515877	adk	SPD_0214	-	adenylate kinase
200	 37.44	0	207825..208043	+	72	116517117	infA	SPD_0215	-	translation initiation factor IF-1
201	 41.80	0	208202..208567	+	121	116516047	rpsM	SPD_0216	-	30S ribosomal protein S13
202	 43.75	0	208585..208968	+	127	116515441	rpsK	SPD_0217	-	30S ribosomal protein S11
203	 37.93	0	209011..209946	+	311	116516293	rpoA	SPD_0218	-	DNA-directed RNA polymerase subunit alpha
204	 41.60	0	209958..210344	+	128	116515447	rplQ	SPD_0219	-	50S ribosomal protein L17
205	 32.21	-1	210609..210875	+	88	116516644	-	SPD_0220	-	hypothetical protein
206	 45.60	+1	212467..213159	+	230	116516487	-	SPD_0222	-	phosphoglycerate mutase family protein
207	 37.46	0	213262..214254	-	330	116515628	-	SPD_0223	-	iron(III) ABC transporter, permease protein
208	 39.23	0	214281..214907	-	208	116516726	-	SPD_0224	-	iron(III) ABC transporter, permease protein
209	 40.75	0	214897..215988	-	363	116516814	-	SPD_0225	-	ABC transporter, ATP-binding protein
210	 33.06	-1	216001..216369	-	122	116515816	-	SPD_0226	-	iron ABC transporter, iron-binding protein
211	 37.44	0	216514..216708	-	64	116516973	-	SPD_0227	-	iron(III) ABC transporter, iron-binding protein
212	 33.33	-1	217340..217537	-	65	116516144	-	SPD_0228	-	transcriptional regulator, AraC family protein
213	 30.76	-2	217612..218388	-	258	116517186	-	SPD_0229	-	glycyl-radical enzyme activating protein family protein
214	 31.59	-1	218510..219256	+	248	116516292	-	SPD_0230	-	transcriptional regulator, DeoR family protein
215	 30.48	-2	219269..220249	+	326	116517202	-	SPD_0231	-	transcriptional activator
216	 32.40	-1	220444..220764	+	106	116516692	-	SPD_0232	-	PTS system, IIA component
217	 36.89	0	220810..221118	+	102	116515458	-	SPD_0233	-	PTS system, IIB component
218	 35.95	0	221135..222433	+	432	116516696	-	SPD_0234	-	PTS system, IIC component
219	 36.29	0	222584..225022	+	812	116515577	pfl	SPD_0235	-	pyruvate formate-lyase
220	 36.77	0	225041..225709	+	222	116516937	talC	SPD_0236	-	fructose-6-phosphate aldolase
221	 36.55	0	225727..226815	+	362	116515896	gldA	SPD_0237	-	glycerol dehydrogenase
222	 44.60	0	227270..229771	+	833	116517205	leuS	SPD_0238	-	leucyl-tRNA synthetase
223	 44.68	+1	229965..230660	+	231	116515892	-	SPD_0239	-	acetyltransferase, GNAT family protein
224	 39.57	0	230672..231088	+	138	116517164	-	SPD_0240	-	acetyltransferase, GNAT family protein
225	 45.75	+1	232129..233127	+	332	116515806	ruvB	SPD_0241	-	Holliday junction DNA helicase B
226	 37.17	0	233108..233680	+	190	116516380	-	SPD_0242	-	hypothetical protein
227	 44.01	0	233911..234669	+	252	116515541	uppS	SPD_0243	-	undecaprenyl diphosphate synthase
228	 41.67	0	234678..235481	+	267	116516628	cdsA	SPD_0244	-	phosphatidate cytidylyltransferase
229	 42.54	0	235503..236762	+	419	116515700	eep	SPD_0245	-	zinc metalloprotease Eep
230	 43.04	0	236775..238628	+	617	116515963	proS	SPD_0246	-	prolyl-tRNA synthetase
231	 42.97	0	238728..240107	+	459	116516550	-	SPD_0247	-	glycosyl hydrolase, family protein 1
232	 44.50	0	240299..242107	+	602	116516194	glmS	SPD_0248	-	D-fructose-6-phosphate amidotransferase
233	 46.19	+1	242226..243275	+	349	116515457	-	SPD_0249	-	hypothetical protein
234	 43.12	0	243375..247145	-	1256	116515399	-	SPD_0250	-	pullulanase, extracellular
235	 43.24	0	247562..247975	+	137	116516309	rpsL	SPD_0251	-	30S ribosomal protein S12
236	 44.37	0	247995..248465	+	156	116516917	rpsG	SPD_0252	-	30S ribosomal protein S7
237	 43.28	0	248890..250971	+	693	116516752	fusA	SPD_0253	-	elongation factor G
238	 44.47	0	251075..255466	+	1463	116515846	polC	SPD_0254	-	DNA polymerase III PolC
239	 39.77	0	255568..255831	+	87	116516886	-	SPD_0255	-	hypothetical protein
240	 35.84	0	255824..256102	+	92	116516116	-	SPD_0256	-	hypothetical protein
241	 35.29	-1	256123..256275	+	50	116516451	-	SPD_0257	-	hypothetical protein
242	 46.62	+1	256297..257538	+	413	116516652	pepS	SPD_0258	-	aminopeptidase PepS
243	 43.72	0	257548..257778	+	76	116516350	-	SPD_0259	-	hypothetical protein
244	 44.67	+1	258091..258813	+	240	116516048	rsuA-1	SPD_0260	-	ribosomal small subunit pseudouridine synthase A
245	 43.67	0	259030..260364	+	444	116516913	pepC	SPD_0261	-	aminopeptidase C
246	 41.12	0	260420..261331	-	303	116516955	-	SPD_0262	-	PTS system, mannose/fructose/sorbose family protein, IID component
247	 47.64	+1	261355..262158	-	267	116515863	manM	SPD_0263	-	PTS system, mannose-specific IIC component
248	 42.63	0	262186..263175	-	329	116515792	manL	SPD_0264	-	PTS system, mannose-specific IIAB components
249	 45.98	+1	263408..264427	-	339	116516519	-	SPD_0265	-	alcohol dehydrogenase
250	 40.47	0	264766..265578	-	270	116516403	-	SPD_0266	-	Cof family protein
251	 41.58	0	265768..267186	+	472	116515488	-	SPD_0267	-	xanthine/uracil permease family protein
252	 39.11	0	267255..267947	+	230	116516578	-	SPD_0268	-	hypothetical protein
253	 46.26	+1	268042..269016	+	324	116516653	folP	SPD_0269	-	dihydropteroate synthase
254	 46.11	+1	269018..270340	+	440	116516745	-	SPD_0270	-	folylpolyglutamate synthase
255	 43.06	0	270321..270875	+	184	116515945	folE	SPD_0271	-	GTP cyclohydrolase I
40.03	MEAN

4.59	STD DEV
