IslandPathversion 1.0

IslandPath Analysis: Streptococcus pneumoniae D39

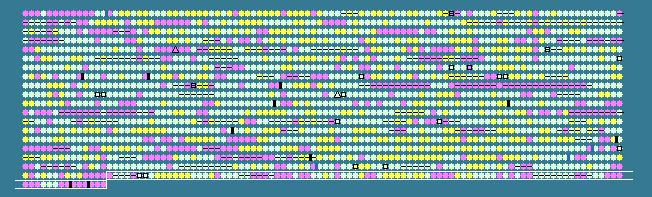

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1815	 32.94	-1	1928905..1930935	-	676	116516429	-	SPD_1961	-	transcriptional regulator, BglG family protein
1816	 41.07	0	1931126..1932133	+	335	116517201	-	SPD_1962	-	hypothetical protein
1817	 41.53	0	1932488..1932670	+	60	116516063	rpmF	SPD_1963	-	50S ribosomal protein L32
1818	 38.00	0	1932686..1932835	+	49	116516908	rpmG	SPD_1964	-	50S ribosomal protein L33
1819	 32.65	-1	1933315..1935357	-	680	116515800	pcpA	SPD_1965	-	choline binding protein PcpA
1820	 37.72	0	1935714..1936283	+	189	116516391	-	SPD_1966	-	IS1381, transposase OrfA
1821	 37.69	0	1936309..1936698	+	129	116515349	-	SPD_1967	-	IS1381, transposase OrfB
1822	 37.92	0	1936750..1937076	-	108	116516408	-	SPD_1968	-	hypothetical protein
1823	 46.15	+1	1937402..1939282	-	626	116515878	-	SPD_1969	-	glycosyl hydrolase-related protein
1824	 47.01	+1	1939276..1940145	-	289	116516983	-	SPD_1970	-	ROK family protein
1825	 44.90	+1	1940229..1942874	-	881	116516168	-	SPD_1971	-	hypothetical protein
1826	 46.14	+1	1942965..1944245	-	426	116517029	-	SPD_1972	-	hypothetical protein
1827	 46.81	+1	1944416..1946500	+	694	116515902	-	SPD_1973	-	alpha-1,2-mannosidase, putative
1828	 46.90	+1	1946540..1948219	-	559	116516956	-	SPD_1974	-	hypothetical protein
1829	 42.28	0	1950271..1951287	+	338	116516173	argF	SPD_1976	-	ornithine carbamoyltransferase
1830	 41.67	0	1951452..1952399	+	315	116517200	arcC	SPD_1977	-	carbamate kinase
1831	 42.72	0	1952608..1954119	+	503	116516100	-	SPD_1978	-	hypothetical protein
1832	 44.82	+1	1954141..1955472	+	443	116516441	-	SPD_1979	-	hypothetical protein
1833	 30.93	-1	1955877..1956167	-	96	116516541	-	SPD_1981	-	hypothetical protein
1834	 38.00	0	1956155..1956304	-	49	116516901	-	SPD_1982	-	hypothetical protein
1835	 41.11	0	1956590..1956769	+	59	116515824	-	SPD_1983	-	hypothetical protein
1836	 42.44	0	1956806..1957705	-	299	116516677	-	SPD_1984	-	hypersensitive-induced reaction protein 4
1837	 41.23	0	1957835..1958986	-	383	116515561	-	SPD_1985	-	alcohol dehydrogenase, iron-containing
1838	 42.22	0	1959132..1960898	-	588	116516456	fucI	SPD_1986	-	L-fucose isomerase
1839	 34.14	-1	1960955..1964071	-	1038	116515536	-	SPD_1987	-	fucolectin-related protein
1840	 33.42	-1	1964081..1966375	-	764	116517212	-	SPD_1988	-	hypothetical protein
1841	 34.71	-1	1966434..1967234	-	266	116516146	-	SPD_1989	-	PTS system, IID component
1842	 37.34	0	1967231..1968004	-	257	116516971	-	SPD_1990	-	PTS system, IIC component
1843	 32.06	-1	1968029..1968499	-	156	116515959	-	SPD_1991	-	PTS system, IIB component
1844	 32.88	-1	1968490..1968933	-	147	116517183	-	SPD_1992	-	PTS system, IIA component
1845	 32.65	-1	1968914..1969354	-	146	116516128	fucU	SPD_1993	-	RbsD/FucU transport protein family protein
1846	 36.78	0	1969366..1970004	-	212	116516769	fucA	SPD_1994	-	L-fuculose phosphate aldolase
1847	 35.75	0	1970119..1971522	-	467	116516651	fucK	SPD_1995	-	L-fuculose kinase FucK, putative
1848	 33.98	-1	1971698..1972471	+	257	116517134	-	SPD_1996	-	fucose operon repressor, putative
1849	 42.63	0	1973600..1975105	-	501	116516060	adcA	SPD_1997	-	zinc ABC transporter, zinc-binding lipoprotein
1850	 43.12	0	1975115..1975921	-	268	116516369	adcB	SPD_1998	-	zinc ABC transporter, permease protein
1851	 45.11	+1	1975914..1976618	-	234	116516242	adcC	SPD_1999	-	zinc ABC transporter, ATP-binding protein
1852	 42.40	0	1976618..1977058	-	146	116516635	adcR	SPD_2000	-	adc operon repressor AdcR
1853	 29.71	-2	1977043..1977180	+	45	116515569	-	SPD_2001	-	hypothetical protein
1854	 40.50	0	1977213..1978481	-	422	116515941	dltD	SPD_2002	-	undecaprenol-phosphate-poly(glycerophosphate subunit) D-alanine transfer protein
1855	 37.50	0	1978474..1978713	-	79	116516809	dltC	SPD_2003	-	D-alanine--poly(phosphoribitol) ligase subunit 2
1856	 41.12	0	1978727..1979971	-	414	116515437	dltB	SPD_2004	-	protein DltB
1857	 44.10	0	1979968..1981518	-	516	116516471	dltA	SPD_2005	-	D-alanine--D-alanyl carrier protein ligase
1858	 35.61	0	1981539..1981670	-	43	116516054	-	SPD_2006	-	hypothetical protein
1859	 33.67	-1	1981984..1983162	-	392	116517160	-	SPD_2007	-	transporter, major facilitator family protein
1860	 37.24	0	1986006..1986593	+	195	116516488	-	SPD_2009	-	hypothetical protein
1861	 44.22	0	1986680..1986826	-	48	116515697	-	SPD_2010	-	hypothetical protein
1862	 46.10	+1	1987074..1987778	-	234	116516308	glpF	SPD_2011	-	glycerol uptake facilitator protein
1863	 44.55	0	1987848..1989674	-	608	116516239	glpO	SPD_2012	-	alpha-glycerophosphate oxidase
1864	 44.14	0	1989716..1991224	-	502	116516212	glpK	SPD_2013	-	glycerol kinase
1865	 40.97	0	1991383..1992810	-	475	116516714	-	SPD_2014	-	hypothetical protein
1866	 45.36	+1	1992975..1993847	+	290	116515969	hslO	SPD_2015	-	Hsp33-like chaperonin
1867	 48.90	+1	1993858..1994814	+	318	116516462	-	SPD_2016	-	TIM-barrel protein, nifR3 family protein, putative
1868	 41.26	0	1995044..1997149	-	701	116515359	cbpA	SPD_2017	-	choline binding protein A
1869	 33.52	-1	1997228..1997755	-	175	116516618	-	SPD_2018	-	hypothetical protein
1870	 34.38	-1	1997838..1999169	-	443	116515721	-	SPD_2019	-	sensor histidine kinase
1871	 36.09	0	1999166..1999819	-	217	116516299	-	SPD_2020	-	DNA-binding response regulator
1872	 33.33	-1	2000108..2000242	-	44	116515451	-	SPD_2021	-	hypothetical protein
1873	 45.50	+1	2000461..2002893	-	810	116516069	-	SPD_2022	-	ATP-dependent Clp protease, ATP-binding subunit
1874	 43.14	0	2002895..2003353	-	152	116516436	ctsR	SPD_2023	-	transcriptional regulator CtsR
1875	 45.68	+1	2003472..2004200	-	242	116517002	-	SPD_2024	-	ABC transporter, ATP-binding protein
1876	 39.88	0	2004200..2005207	-	335	116516189	-	SPD_2025	-	ABC transporter, substrate-binding protein, putative
1877	 42.96	0	2005245..2005961	-	238	116515916	-	SPD_2026	-	ABC transporter, permease protein
1878	 42.27	0	2005966..2006256	-	96	116516871	-	SPD_2027	-	hypothetical protein
1879	 38.98	0	2006512..2007858	-	448	116516664	cbpD	SPD_2028	-	choline binding protein D
1880	 34.46	-1	2007947..2008213	-	88	116515580	-	SPD_2029	-	hypothetical protein
1881	 41.46	0	2008215..2009567	-	450	116516432	dnaB	SPD_2030	-	replicative DNA helicase
1882	 36.42	0	2009611..2010063	-	150	116515335	rplI	SPD_2031	-	50S ribosomal protein L9
1883	 37.89	0	2010060..2012033	-	657	116516911	-	SPD_2032	-	DHH subfamily 1 protein
1884	 34.06	-1	2012169..2012717	-	182	116516918	yfiA	SPD_2033	-	ribosomal subunit interface protein
1885	 36.20	0	2012797..2013459	-	220	116515869	-	SPD_2034	-	competence protein ComF, putative
1886	 40.11	0	2013456..2014754	-	432	116516737	-	SPD_2035	-	helicase, putative
1887	 39.94	0	2014810..2015445	+	211	116515439	-	SPD_2036	-	hypothetical protein
1888	 41.15	0	2015730..2016650	+	306	116516389	cysK	SPD_2037	-	cysteine synthase A
1889	 39.26	0	2016847..2017116	-	89	116515632	-	SPD_2038	-	hypothetical protein
1890	 41.11	0	2018234..2019274	-	346	116516076	tsf	SPD_2041	-	elongation factor Ts
1891	 41.92	0	2019340..2020119	-	259	116517128	rpsB	SPD_2042	-	30S ribosomal protein S2
1892	 39.61	0	2020343..2021521	-	392	116516590	-	SPD_2043	-	secreted 45 kDa protein precursor
1893	 32.93	-1	2021615..2022109	-	164	116515493	-	SPD_2044	-	rod shpae-determining protein MreD, putative
1894	 35.65	0	2022109..2022927	-	272	116516374	mreC	SPD_2045	-	rod shape-determining protein MreC
1895	 37.99	0	2022986..2023780	-	264	116516262	-	SPD_2046	-	cobalt ABC transporter, permease protein
1896	 40.48	0	2023773..2024612	-	279	116517082	cbiO1	SPD_2047	-	cobalt transporter ATP-binding subunit
1897	 39.01	0	2024597..2025424	-	275	116515987	cbiO2	SPD_2048	-	cobalt transporter ATP-binding subunit
1898	 34.80	-1	2025421..2025966	-	181	116516876	pgsA	SPD_2049	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1899	 35.16	-1	2025977..2026798	-	273	116515748	-	SPD_2050	-	hypothetical protein
1900	 34.50	-1	2026840..2028123	-	427	116516624	-	SPD_2051	-	peptidase, M16 family protein
1901	 34.37	-1	2028120..2029370	-	416	116515448	-	SPD_2052	-	hypothetical protein
1902	 36.31	0	2029529..2029897	+	122	116515378	-	SPD_2053	-	hypothetical protein
1903	 34.34	-1	2029900..2030997	+	365	116516540	recF	SPD_2054	-	recombination protein F
1904	 41.18	0	2031048..2032526	-	492	116515965	guaB	SPD_2055	-	inositol-5-monophosphate dehydrogenase
1905	 38.79	0	2032678..2033703	-	341	116516810	trpS	SPD_2056	-	tryptophanyl-tRNA synthetase II
1906	 38.69	0	2033909..2035531	+	540	116515858	-	SPD_2057	-	ABC transporter, ATP-binding protein
1907	 32.82	-1	2035593..2038145	+	850	116516813	-	SPD_2058	-	ABC transporter, permease protein, putative
1908	 32.78	-1	2039957..2040499	+	180	116516592	-	SPD_2060	-	transcriptional regulator, TetR family protein
1909	 30.68	-2	2040742..2041494	-	250	116515497	comE	SPD_2063	-	response regulator
1910	 32.13	-1	2041491..2042816	-	441	116515505	comD	SPD_2064	-	putative sensor histidine kinase ComD
1911	 30.16	-2	2042837..2042962	-	41	116517067	comC1	SPD_2065	-	competence-stimulating peptide type 1
1912	 33.33	-1	2043244..2043723	-	159	116515560	-	SPD_2067	-	SPOUT methyltransferase superfamily protein
1913	 36.55	0	2043906..2045087	+	393	116516698	-	SPD_2068	-	serine protease
1914	 35.05	-1	2045145..2045903	+	252	116515747	-	SPD_2069	-	SpoJ protein
40.03	MEAN

4.59	STD DEV
