IslandPathversion 1.0

IslandPath Analysis: Streptococcus pneumoniae D39

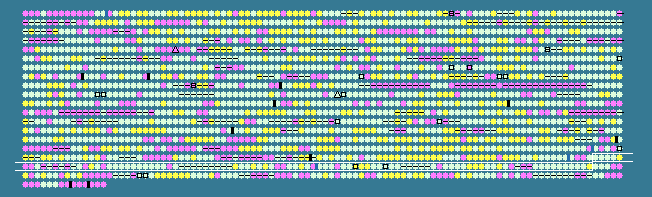

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1696	 39.61	0	1806543..1807418	+	291	116515727	-	SPD_1822	-	ribosomal large subunit pseudouridine synthase, RluD subfamily protein
1697	 42.36	0	1807486..1808493	-	335	116516442	gap	SPD_1823	-	glyceraldehyde-3-phosphate dehydrogenase
1698	 37.49	0	1808670..1809632	-	320	116515615	-	SPD_1824	-	hypothetical protein
1699	 41.92	0	1810656..1811528	-	290	116516875	nadC	SPD_1826	-	nicotinate-nucleotide pyrophosphorylase
1700	 43.71	0	1811765..1813075	+	436	116517036	-	SPD_1827	-	hypothetical protein
1701	 31.06	-1	1813441..1813572	-	43	116515923	-	SPD_1828	-	hypothetical protein
1702	 35.12	-1	1814095..1814823	-	242	116516507	-	SPD_1829	-	transcriptional regulator, GntR family protein
1703	 38.58	0	1814981..1816390	+	469	116515373	-	SPD_1830	-	glycosyl hydrolase, family protein 1
1704	 34.88	-1	1816408..1817703	+	431	116515645	-	SPD_1831	-	PTS system, IIC component
1705	 36.57	0	1817708..1818016	+	102	116515596	-	SPD_1832	-	PTS system, IIB component
1706	 36.25	0	1818013..1818321	+	102	116516943	-	SPD_1833	-	PTS system, IIA component
1707	 42.53	0	1819229..1821880	-	883	116515886	-	SPD_1834	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
1708	 35.51	0	1822083..1822220	-	45	116517194	-	SPD_1835	-	hypothetical protein
1709	 38.69	0	1822180..1822590	-	136	116516602	-	SPD_1836	-	hypothetical protein
1710	 38.69	0	1822592..1823020	-	142	116517142	-	SPD_1837	-	phosphotyrosine protein phosphatase
1711	 36.00	0	1823067..1823366	-	99	116516333	yajC	SPD_1838	-	preprotein translocase subunit YajC
1712	 44.31	0	1823483..1825459	-	658	116515729	tkt	SPD_1839	-	transketolase
1713	 40.57	0	1825573..1826664	-	363	116516032	-	SPD_1840	-	putative L-ascorbate 6-phosphate lactonase
1714	 33.15	-1	1826776..1828449	-	557	116515617	-	SPD_1841	-	transcriptional regulator, BglG family protein
1715	 42.84	0	1828628..1829332	-	234	116515625	araD	SPD_1842	-	L-ribulose-5-phosphate 4-epimerase
1716	 40.16	0	1829334..1830197	-	287	116515477	-	SPD_1843	-	putative L-xylulose 5-phosphate 3-epimerase
1717	 43.39	0	1830201..1830866	-	221	116516297	ulaD	SPD_1844	-	3-keto-L-gulonate-6-phosphate decarboxylase
1718	 39.92	0	1830883..1831368	-	161	116515791	-	SPD_1845	-	PTS system, IIA component
1719	 37.94	0	1831445..1831726	-	93	116516606	-	SPD_1846	-	PTS system, IIB component
1720	 39.92	0	1831749..1833206	-	485	116516701	-	SPD_1847	-	ascorbate-specific PTS system enzyme IIC
1721	 42.31	0	1833337..1833960	-	207	116515843	-	SPD_1848	-	hypothetical protein
1722	 39.51	0	1834011..1834997	-	328	116516984	-	SPD_1849	-	protein jag (SpoIIIJ-associated protein ), putative
1723	 41.52	0	1835016..1835846	-	276	116516129	-	SPD_1850	-	SpoIIIJ family protein
1724	 37.90	0	1835815..1836186	-	123	116515893	rnpA	SPD_1851	-	ribonuclease P
1725	 27.27	-2	1836203..1836334	-	43	116516968	-	SPD_1852	-	hypothetical protein
1726	 40.39	0	1836335..1837525	-	396	116515857	ackA	SPD_1853	-	acetate kinase
1727	 41.51	0	1837576..1838529	-	317	116516707	-	SPD_1854	-	hypothetical protein
1728	 39.63	0	1838590..1838970	-	126	116515648	-	SPD_1855	-	hypothetical protein
1729	 42.08	0	1839002..1839184	-	60	116516495	-	SPD_1856	-	hypothetical protein
1730	 38.41	0	1839321..1839734	-	137	116515421	-	SPD_1857	-	hypothetical protein
1731	 43.29	0	1839712..1840173	-	153	116516153	-	SPD_1858	-	hypothetical protein
1732	 43.30	0	1840136..1840396	-	86	116516170	-	SPD_1859	-	hypothetical protein
1733	 42.22	0	1840401..1840805	-	134	116516816	clgD	SPD_1860	-	competence protein CglD
1734	 37.61	0	1840798..1841124	-	108	116515910	cglC	SPD_1861	-	competence protein CglC
1735	 42.04	0	1841126..1841998	-	290	116515992	cglB	SPD_1862	-	competence protein CglB
1736	 44.90	+1	1842090..1843031	-	313	116516783	cglA	SPD_1863	-	competence protein CglA
1737	 39.07	0	1843107..1843472	-	121	116515909	-	SPD_1864	-	hypothetical protein
1738	 40.98	0	1843623..1844681	-	352	116517097	-	SPD_1865	-	alcohol dehydrogenase, zinc-containing
1739	 44.53	0	1844844..1845995	-	383	116516233	nagA	SPD_1866	-	N-acetylglucosamine-6-phosphate deacetylase
1740	 41.64	0	1846148..1847965	-	605	116516353	-	SPD_1867	-	hypothetical protein
1741	 44.62	0	1848063..1849205	-	380	116515515	tgt	SPD_1868	-	queuine tRNA-ribosyltransferase
1742	 40.09	0	1849335..1850192	+	285	116515894	-	SPD_1869	-	hypothetical protein
1743	 33.00	-1	1851003..1851302	-	99	116517003	-	SPD_1871	-	hypothetical protein
1744	 28.95	-2	1851734..1851847	-	37	116515344	-	SPD_1873	-	hypothetical protein
1745	 42.78	0	1852057..1853199	-	380	116515770	-	SPD_1874	-	LysM domain-containing protein
1746	 42.03	0	1853365..1853985	-	206	116516634	-	SPD_1875	-	hydrolase, haloacid dehalogenase-like family protein
1747	 44.11	0	1853989..1855269	-	426	116515917	-	SPD_1876	-	MATE efflux family protein
1748	 41.95	0	1855330..1856814	-	494	116516763	thrC	SPD_1877	-	threonine synthase
1749	 36.31	0	1856890..1858167	-	425	116515452	-	SPD_1878	-	hypothetical protein
1750	 40.23	0	1864631..1865065	-	144	116515341	-	SPD_1895	-	cytidine/deoxycytidylate deaminase family protein
1751	 40.86	0	1865079..1866539	-	486	116516946	gltX	SPD_1896	-	glutamyl-tRNA synthetase
1752	 41.56	0	1866663..1868012	-	449	116516610	pgi	SPD_1897	-	glucose-6-phosphate isomerase
1753	 28.89	-2	1867999..1868178	-	59	116516772	-	SPD_1898	-	hypothetical protein
1754	 42.39	0	1868182..1868910	-	242	116516367	-	SPD_1899	-	glutamine amidotransferase, class 1
1755	 42.11	0	1869010..1870776	-	588	116515530	-	SPD_1900	-	ABC transporter, ATP-binding/permease protein
1756	 43.81	0	1871024..1871233	+	69	116516118	-	SPD_1901	-	transposase, putative
1757	 44.60	0	1871563..1873257	-	564	116517181	-	SPD_1902	-	ABC transporter, ATP-binding/permease protein
1758	 45.96	+1	1873404..1875938	-	844	116515831	mutS	SPD_1903	-	DNA mismatch repair protein
1759	 37.36	0	1875989..1876435	-	148	116516959	argR	SPD_1904	-	arginine repressor
1760	 42.38	0	1876583..1878274	+	563	116516539	argS	SPD_1905	-	arginyl-tRNA synthetase
1761	 37.44	0	1878589..1878978	-	129	116516479	-	SPD_1906	-	IS1381, transposase OrfB
1762	 40.46	0	1879142..1879618	+	158	116515391	-	SPD_1907	-	hypothetical protein
1763	 41.38	0	1879702..1880409	+	235	116516111	-	SPD_1908	-	response regulator
1764	 42.19	0	1880410..1881741	+	443	116515950	pnpS	SPD_1909	-	sensor histidine kinase PnpS
1765	 39.95	0	1881908..1882783	+	291	116516790	pstS	SPD_1910	-	phosphate ABC transporter, phosphate-binding protein
1766	 40.62	0	1882901..1883764	+	287	116515718	pstC	SPD_1911	-	phosphate ABC transporter, permease protein PstC
1767	 39.71	0	1883757..1884572	+	271	116516568	pstA	SPD_1912	-	phosphate ABC transporter, permease protein PstA
1768	 39.58	0	1884574..1885326	+	250	116516574	pstB	SPD_1913	-	phosphate ABC transporter, ATP-binding protein
1769	 40.55	0	1885341..1885991	+	216	116515544	phoU	SPD_1914	-	phosphate transport system regulatory protein PhoU
1770	 33.79	-1	1886598..1887038	-	146	116517050	-	SPD_1916	-	transcriptional regulator
1771	 36.59	0	1887129..1887251	-	40	116516288	-	SPD_1917	-	hypothetical protein
1772	 42.77	0	1887250..1888266	+	338	116516995	gpsA	SPD_1918	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
1773	 43.11	0	1888288..1889187	+	299	116516192	galU	SPD_1919	-	UTP-glucose-1-phosphate uridylyltransferase
1774	 42.92	0	1889254..1889931	-	225	116516863	-	SPD_1920	-	hypothetical protein
1775	 43.52	0	1889915..1890454	-	179	116515920	-	SPD_1921	-	5-formyltetrahydrofolate cyclo-ligase family protein
1776	 47.04	+1	1890466..1891596	-	376	116515584	-	SPD_1922	-	peptidase, M20/M25/M40 family protein
1777	 46.49	+1	1891664..1892362	-	232	116516648	-	SPD_1923	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase, putative
1778	 40.35	0	1892592..1893503	-	303	116515670	-	SPD_1924	-	hypothetical protein
1779	 42.90	0	1893568..1896033	-	821	116516492	pbp1B	SPD_1925	-	penicillin-binding protein 1B
1780	 43.75	0	1896175..1897431	+	418	116516055	tyrS	SPD_1926	-	tyrosyl-tRNA synthetase
1781	 37.89	0	1897509..1899572	-	687	116517091	-	SPD_1927	-	cation-transporting ATPase, E1-E2 family protein
1782	 34.94	-1	1899574..1899885	-	103	116515549	-	SPD_1928	-	hypothetical protein
1783	 42.05	0	1900004..1900852	+	282	116516682	rrmA	SPD_1929	-	rRNA (guanine-N1-)-methyltransferase
1784	 29.47	-2	1901368..1901574	-	68	116516684	-	SPD_1930	-	hypothetical protein
1785	 34.55	-1	1901651..1902223	+	190	116515564	-	SPD_1931	-	hypothetical protein
1786	 41.21	0	1903268..1905526	-	752	116515958	malP	SPD_1932	-	maltodextrin phosphorylase
1787	 43.41	0	1905552..1907069	-	505	116516849	malQ	SPD_1933	-	4-alpha-glucanotransferase
1788	 40.80	0	1907619..1908890	+	423	116517172	malX	SPD_1934	-	maltose/maltodextrin ABC transporter, maltose/maltodextrin-binding protein
1789	 41.45	0	1909001..1910293	+	430	116515389	malC	SPD_1935	-	maltodextrin ABC transporter, permease protein
1790	 42.94	0	1910295..1911137	+	280	116517158	malD	SPD_1936	-	maltodextrin ABC transporter, permease protein
1791	 39.83	0	1911390..1912190	+	266	116516009	malA	SPD_1937	-	maltodextrose utilization protein MalA
1792	 42.55	0	1912200..1913186	+	328	116516891	malR	SPD_1938	-	maltose operon transcriptional repressor
1793	 37.84	0	1913253..1913474	+	73	116515796	-	SPD_1939	-	hypothetical protein
1794	 40.76	0	1913478..1914419	-	313	116517145	-	SPD_1940	-	hypothetical protein
1795	 45.63	+1	1914397..1916160	-	587	116516137	aspS	SPD_1941	-	aspartyl-tRNA synthetase
40.03	MEAN

4.59	STD DEV
