IslandPath Analysis: Streptococcus pneumoniae D39

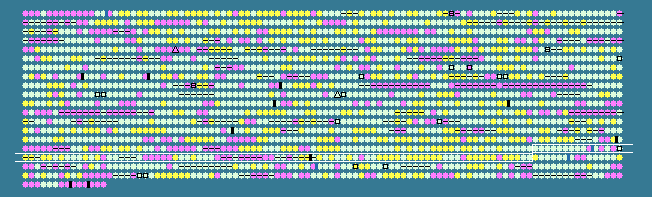

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1586	 38.99	0	1684525..1686504	-	659	116515355	amiA	SPD_1671	-	oligopeptide ABC transporter, oligopeptide-binding protein AmiA
1587	 37.86	0	1687191..1688384	-	397	116516720	-	SPD_1672	-	hypothetical protein
1588	 38.12	0	1688522..1689964	-	480	116515647	gtfA	SPD_1673	-	sucrose phosphorylase
1589	 42.26	0	1690148..1690315	-	55	116516930	-	SPD_1674	-	hypothetical protein
1590	 42.57	0	1690322..1691155	-	277	116516219	rafG	SPD_1675	-	sugar ABC transporter, permease protein
1591	 41.98	0	1691169..1692035	-	288	116517088	rafF	SPD_1676	-	sugar ABC transporter, permease protein
1592	 43.17	0	1692049..1693308	-	419	116516419	rafE	SPD_1677	-	sugar ABC transporter, sugar-binding protein
1593	 37.26	0	1693400..1695562	-	720	116515396	aga	SPD_1678	-	alpha-galactosidase AgaN
1594	 36.70	0	1695670..1696530	+	286	116516533	msmR	SPD_1679	-	msm operon regulatory protein MsmR
1595	 36.11	0	1696527..1697462	+	311	116515717	-	SPD_1680	-	biotin--protein ligase
1596	 37.83	0	1705095..1706450	-	451	116516423	rumA-2	SPD_1704	-	23S rRNA (uracil-5-)-methyltransferase RumA
1597	 35.52	0	1706488..1707264	+	258	116516281	recX	SPD_1705	-	recombination regulator RecX
1598	 38.01	0	1707353..1707886	+	177	116516443	-	SPD_1706	-	hypothetical protein
1599	 22.22	-2	1708240..1708446	-	68	116515970	-	SPD_1707	-	hypothetical protein
1600	 37.15	0	1708606..1709835	+	409	116516793	-	SPD_1708	-	IS1167, transposase
1601	 44.42	0	1709934..1711556	-	540	116516636	groEL	SPD_1709	-	chaperonin GroEL
1602	 44.56	0	1711572..1711856	-	94	116516929	groES	SPD_1710	-	co-chaperonin GroES
1603	 42.93	0	1712012..1712407	-	131	116515814	-	SPD_1711	-	single-strand DNA-binding protein
1604	 45.14	+1	1712485..1713246	-	253	116516362	-	SPD_1712	-	oxidoreductase, short chain dehydrogenase/reductase family protein
1605	 44.50	0	1713279..1713905	-	208	116515611	-	SPD_1713	-	hypothetical protein
1606	 41.19	0	1713921..1714238	-	105	116517084	-	SPD_1714	-	thioredoxin family protein
1607	 44.33	0	1714235..1714534	-	99	116516247	-	SPD_1715	-	hypothetical protein
1608	 36.98	0	1714871..1715062	-	63	116515657	-	SPD_1716	-	hypothetical protein
1609	 40.44	0	1715223..1715897	-	224	116516511	-	SPD_1717	-	hypothetical protein
1610	 42.73	0	1715903..1716349	-	148	116515993	-	SPD_1718	-	hypothetical protein
1611	 44.44	0	1716463..1716966	-	167	116516557	-	SPD_1719	-	PAP2 family protein
1612	 41.87	0	1716963..1717325	-	120	116515659	-	SPD_1720	-	hypothetical protein
1613	 43.90	0	1717391..1718422	-	343	116516021	-	SPD_1721	-	ABC transporter, ATP-binding protein
1614	 34.21	-1	1719267..1719380	-	37	116516096	-	SPD_1723	-	hypothetical protein
1615	 42.68	0	1719860..1720576	-	238	116517178	-	SPD_1725	-	hypothetical protein
1616	 42.02	0	1721457..1722872	-	471	116515376	ply	SPD_1726	-	pneumolysin
1617	 38.93	0	1722883..1723293	-	136	116516591	-	SPD_1727	-	hypothetical protein
1618	 40.39	0	1723286..1723894	-	202	116515483	-	SPD_1728	-	hypothetical protein
1619	 41.39	0	1723907..1724365	-	152	116515874	-	SPD_1729	-	hypothetical protein
1620	 37.16	0	1725654..1725914	-	86	116516597	-	SPD_1731	-	hypothetical protein
1621	 34.78	-1	1725973..1726524	-	183	116516601	-	SPD_1732	-	hypothetical protein
1622	 32.83	-1	1726514..1726711	-	65	116516964	-	SPD_1733	-	hypothetical protein
1623	 33.84	-1	1726715..1727509	-	264	116517008	-	SPD_1734	-	hypothetical protein
1624	 33.10	-1	1727917..1728342	-	141	116516198	-	SPD_1735	-	hypothetical protein
1625	 32.78	-1	1728471..1728830	-	119	116516167	-	SPD_1736	-	hypothetical protein
1626	 46.39	+1	1729601..1730557	-	318	116516777	lytA	SPD_1737	-	autolysin/N-acetylmuramoyl-L-alanine amidase
1627	 41.72	0	1730933..1732303	-	456	116517012	dinF	SPD_1738	-	MATE efflux family protein DinF
1628	 41.82	0	1732610..1733776	-	388	116516275	recA	SPD_1739	-	recombinase A
1629	 45.03	+1	1733831..1735087	-	418	116515783	cinA	SPD_1740	-	competence damage-inducible protein A
1630	 38.35	0	1735172..1736188	-	338	116516376	-	SPD_1741	-	transcriptional regulator, putative
1631	 41.43	0	1736196..1736714	-	172	116516759	-	SPD_1742	-	acetyltransferase, GNAT family protein
1632	 39.86	0	1736704..1737147	-	147	116515913	-	SPD_1743	-	hypothetical protein
1633	 35.27	-1	1737233..1737853	-	206	116516234	-	SPD_1744	-	hypothetical protein
1634	 33.10	-1	1738236..1739099	-	287	116517204	-	SPD_1745	-	transcriptional regulator PlcR, putative
1635	 32.75	-1	1739291..1739461	+	56	116516150	-	SPD_1746	-	hypothetical protein
1636	 38.22	0	1739564..1739788	+	74	116516307	-	SPD_1747	-	hypothetical protein
1637	 34.39	-1	1739795..1739983	+	62	116515563	-	SPD_1748	-	hypothetical protein
1638	 29.09	-2	1740099..1743089	+	996	116516640	-	SPD_1749	-	bacteriocin formation protein, putative
1639	 31.06	-1	1743439..1744143	+	234	116516852	wrbA	SPD_1750	-	hypothetical protein
1640	 27.10	-2	1744124..1745053	+	309	116516025	-	SPD_1751	-	hypothetical protein
1641	 28.31	-2	1745050..1747158	+	702	116516806	-	SPD_1752	-	toxin secretion ABC transporter, ATP-binding/permease protein
1642	 29.48	-2	1747182..1748921	+	579	116515961	-	SPD_1753	-	serine protease, subtilase family protein
1643	 39.58	0	1748972..1749739	+	255	116517021	-	SPD_1754	-	hypothetical protein
1644	 40.60	0	1749741..1750373	+	210	116516211	-	SPD_1755	-	ABC transporter, ATP-binding protein
1645	 28.40	-2	1750531..1750692	+	53	116516632	-	SPD_1756	-	hypothetical protein
1646	 42.03	0	1751319..1751732	-	137	116516942	ndk	SPD_1757	-	nucleoside diphosphate kinase
1647	 46.17	+1	1751843..1755520	-	1225	116515724	rpoC	SPD_1758	-	DNA-directed RNA polymerase subunit beta'
1648	 44.60	0	1755553..1759164	-	1203	116516435	rpoB	SPD_1759	-	DNA-directed RNA polymerase subunit beta
1649	 40.17	0	1759848..1761179	-	443	116515537	-	SPD_1761	-	CBS domain-containing protein
1650	 43.64	0	1761408..1762232	-	274	116516431	-	SPD_1762	-	DNA-entry nuclease
1651	 38.65	0	1762271..1762477	-	68	116516278	-	SPD_1763	-	hypothetical protein
1652	 46.81	+1	1762452..1763735	-	427	116516843	murA-2	SPD_1764	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1653	 41.71	0	1764047..1765084	-	345	116516010	-	SPD_1765	-	hypothetical protein
1654	 39.47	0	1765068..1765556	-	162	116515643	coaD	SPD_1766	-	phosphopantetheine adenylyltransferase
1655	 45.00	+1	1765546..1766085	-	179	116516705	-	SPD_1767	-	type II DNA modification methyltransferase, putative
1656	 43.40	0	1766150..1767142	-	330	116515784	asnA	SPD_1768	-	asparagine synthetase AsnA
1657	 28.93	-2	1767122..1767280	+	52	116515931	-	SPD_1770	-	hypothetical protein
1658	 42.80	0	1767254..1767961	-	235	116516865	-	SPD_1769	-	hypothetical protein
1659	 42.11	0	1767993..1768733	-	246	116516909	-	SPD_1771	-	SpoU rRNA methylase family protein
1660	 43.56	0	1768782..1769045	+	87	116516230	-	SPD_1772	-	acylphosphatase, putative
1661	 44.23	0	1769123..1770049	+	308	116517062	-	SPD_1773	-	OxaA-like protein precursor
1662	 44.15	0	1770124..1770918	-	264	116516256	pflA	SPD_1774	-	pyruvate formate-lyase activating enzyme
1663	 45.16	+1	1771044..1772294	-	416	116516303	lysA	SPD_1775	-	diaminopimelate decarboxylase
1664	 42.27	0	1772361..1773188	-	275	116515481	purR	SPD_1776	-	purine operon repressor
1665	 44.76	+1	1773455..1774408	-	317	116516594	cbf1	SPD_1777	-	cmp-binding-factor 1
1666	 45.74	+1	1774386..1775642	-	418	116516808	-	SPD_1778	-	hypothetical protein
1667	 45.10	+1	1775644..1776306	-	220	116516589	-	SPD_1779	-	hypothetical protein
1668	 44.90	+1	1776269..1776925	-	218	116515540	rpe	SPD_1780	-	ribulose-phosphate 3-epimerase
1669	 43.57	0	1776936..1777814	-	292	116516502	rsgA	SPD_1781	-	ribosome-associated GTPase
1670	 46.39	+1	1777816..1778688	-	290	116515767	ksgA	SPD_1782	-	dimethyladenosine transferase
1671	 39.81	0	1778819..1779127	-	102	116517198	-	SPD_1783	-	hypothetical protein
1672	 39.41	0	1779120..1779761	-	213	116515516	-	SPD_1784	-	ABC transporter, ATP-binding protein
1673	 43.38	0	1779763..1781793	-	676	116516767	-	SPD_1785	-	immunity protein, putative
1674	 33.56	-1	1782062..1782961	-	299	116516188	-	SPD_1786	-	transcriptional regulator PlcR, putative
1675	 47.06	+1	1783033..1783593	-	186	116515737	-	SPD_1787	-	primase-related protein
1676	 45.48	+1	1783593..1784366	-	257	116516605	-	SPD_1788	-	hydrolase, TatD family protein
1677	 43.99	0	1784672..1785337	-	221	116516291	-	SPD_1789	-	cell wall surface anchor family protein
1678	 46.67	+1	1785600..1785734	-	44	116517079	rpmH	SPD_1790	-	50S ribosomal protein L34
1679	 44.61	0	1785879..1787093	-	404	116516203	-	SPD_1791	-	aminotransferase AlaT
1680	 33.67	-1	1787249..1787542	-	97	116516320	-	SPD_1792	-	hypothetical protein
1681	 46.14	+1	1787704..1788156	+	150	116515416	-	SPD_1793	-	universal stress protein family protein
1682	 43.77	0	1788191..1789579	-	462	116516548	-	SPD_1794	-	Cof family protein
1683	 45.79	+1	1789645..1790607	+	320	116515808	-	SPD_1796	-	L-asparaginase, putative
1684	 42.64	0	1790604..1790732	-	42	116515675	-	SPD_1795	-	hypothetical protein
1685	 40.75	0	1790859..1791869	-	336	116517109	ccpA	SPD_1797	-	catabolite control protein A
40.03	MEAN

4.59	STD DEV
