IslandPath Analysis: Streptococcus pneumoniae D39

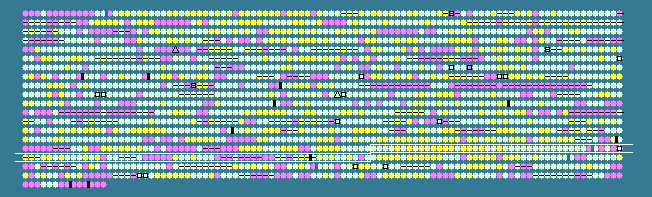

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1559	 42.11	0	1658026..1658754	-	242	116515426	proV	SPD_1643	-	choline transporter
1560	 41.83	0	1658769..1659533	-	254	116516425	-	SPD_1644	-	hypothetical protein
1561	 40.32	0	1659537..1659980	-	147	116516067	-	SPD_1645	-	transcriptional regulator, MarR family protein
1562	 42.42	0	1660662..1660958	-	98	116516799	-	SPD_1646	-	hypothetical protein
1563	 46.01	+1	1660980..1662044	-	354	116516201	pepA	SPD_1647	-	glutamyl aminopeptidase PepA
1564	 40.74	0	1662445..1663146	+	233	116515575	-	SPD_1648	-	NAD-dependent epimerase/dehydratase family protein
1565	 46.04	+1	1663569..1664528	+	319	116515914	-	SPD_1649	-	iron-compound ABC transporter, permease protein
1566	 43.26	0	1664518..1665474	+	318	116517018	-	SPD_1650	-	iron-compound ABC transporter, permease protein
1567	 44.89	+1	1665471..1666223	+	250	116515957	-	SPD_1651	-	iron-compound ABC transporter, ATP-binding protein
1568	 42.65	0	1666319..1667284	+	321	116515347	-	SPD_1652	-	iron-compound ABC transporter, iron-compound-binding protein
1569	 43.62	0	1667509..1667751	-	80	116516197	-	SPD_1653	-	hypothetical protein
1570	 45.64	+1	1667751..1668473	-	240	116515785	rluB	SPD_1654	-	ribosomal large subunit pseudouridine synthase B
1571	 44.74	+1	1668460..1669029	-	189	116516630	scpB	SPD_1655	-	segregation and condensation protein B
1572	 45.40	+1	1669048..1669776	-	242	116516005	scpA	SPD_1656	-	segregation and condensation protein A
1573	 42.65	0	1669776..1670516	-	246	116517040	xerD	SPD_1657	-	site-specific tyrosine recombinase XerD-like protein
1574	 45.45	+1	1670507..1670968	-	153	116515694	-	SPD_1658	-	CBS domain-containing protein
1575	 47.13	+1	1670965..1671486	-	173	116516789	-	SPD_1659	-	hypothetical protein
1576	 42.59	0	1671462..1672433	-	323	116515496	-	SPD_1660	-	fused deoxyribonucleotide triphosphate pyrophosphatase/unknown domain-containing protein
1577	 48.30	+1	1672430..1673224	-	264	116516596	murI	SPD_1661	-	glutamate racemase
1578	 38.55	0	1673431..1673679	-	82	116516372	-	SPD_1662	-	hypothetical protein
1579	 41.51	0	1673821..1675446	-	541	116515529	treC	SPD_1663	-	alpha,alpha-phosphotrehalase
1580	 44.41	0	1675624..1677591	-	655	116517080	-	SPD_1664	-	PTS system, trehalose-specific IIABC components
1581	 41.77	0	1677776..1678486	+	236	116515994	treR	SPD_1665	-	trehalose operon repressor
1582	 40.88	0	1680023..1680949	-	308	116516555	amiF	SPD_1667	-	oligopeptide ABC transporter, ATP-binding protein AmiF
1583	 42.51	0	1680960..1682027	-	355	116515459	amiE	SPD_1668	-	oligopeptide ABC transporter, ATP-binding protein AmiE
1584	 39.91	0	1682036..1682962	-	308	116516298	amiD	SPD_1669	-	oligopeptide ABC transporter, permease protein AmiD
1585	 39.28	0	1682962..1684458	-	498	116517087	amiC	SPD_1670	-	oligopeptide ABC transporter, permease protein AmiC
1586	 38.99	0	1684525..1686504	-	659	116515355	amiA	SPD_1671	-	oligopeptide ABC transporter, oligopeptide-binding protein AmiA
1587	 37.86	0	1687191..1688384	-	397	116516720	-	SPD_1672	-	hypothetical protein
1588	 38.12	0	1688522..1689964	-	480	116515647	gtfA	SPD_1673	-	sucrose phosphorylase
1589	 42.26	0	1690148..1690315	-	55	116516930	-	SPD_1674	-	hypothetical protein
1590	 42.57	0	1690322..1691155	-	277	116516219	rafG	SPD_1675	-	sugar ABC transporter, permease protein
1591	 41.98	0	1691169..1692035	-	288	116517088	rafF	SPD_1676	-	sugar ABC transporter, permease protein
1592	 43.17	0	1692049..1693308	-	419	116516419	rafE	SPD_1677	-	sugar ABC transporter, sugar-binding protein
1593	 37.26	0	1693400..1695562	-	720	116515396	aga	SPD_1678	-	alpha-galactosidase AgaN
1594	 36.70	0	1695670..1696530	+	286	116516533	msmR	SPD_1679	-	msm operon regulatory protein MsmR
1595	 36.11	0	1696527..1697462	+	311	116515717	-	SPD_1680	-	biotin--protein ligase
1596	 37.83	0	1705095..1706450	-	451	116516423	rumA-2	SPD_1704	-	23S rRNA (uracil-5-)-methyltransferase RumA
1597	 35.52	0	1706488..1707264	+	258	116516281	recX	SPD_1705	-	recombination regulator RecX
1598	 38.01	0	1707353..1707886	+	177	116516443	-	SPD_1706	-	hypothetical protein
1599	 22.22	-2	1708240..1708446	-	68	116515970	-	SPD_1707	-	hypothetical protein
1600	 37.15	0	1708606..1709835	+	409	116516793	-	SPD_1708	-	IS1167, transposase
1601	 44.42	0	1709934..1711556	-	540	116516636	groEL	SPD_1709	-	chaperonin GroEL
1602	 44.56	0	1711572..1711856	-	94	116516929	groES	SPD_1710	-	co-chaperonin GroES
1603	 42.93	0	1712012..1712407	-	131	116515814	-	SPD_1711	-	single-strand DNA-binding protein
1604	 45.14	+1	1712485..1713246	-	253	116516362	-	SPD_1712	-	oxidoreductase, short chain dehydrogenase/reductase family protein
1605	 44.50	0	1713279..1713905	-	208	116515611	-	SPD_1713	-	hypothetical protein
1606	 41.19	0	1713921..1714238	-	105	116517084	-	SPD_1714	-	thioredoxin family protein
1607	 44.33	0	1714235..1714534	-	99	116516247	-	SPD_1715	-	hypothetical protein
1608	 36.98	0	1714871..1715062	-	63	116515657	-	SPD_1716	-	hypothetical protein
1609	 40.44	0	1715223..1715897	-	224	116516511	-	SPD_1717	-	hypothetical protein
1610	 42.73	0	1715903..1716349	-	148	116515993	-	SPD_1718	-	hypothetical protein
1611	 44.44	0	1716463..1716966	-	167	116516557	-	SPD_1719	-	PAP2 family protein
1612	 41.87	0	1716963..1717325	-	120	116515659	-	SPD_1720	-	hypothetical protein
1613	 43.90	0	1717391..1718422	-	343	116516021	-	SPD_1721	-	ABC transporter, ATP-binding protein
1614	 34.21	-1	1719267..1719380	-	37	116516096	-	SPD_1723	-	hypothetical protein
1615	 42.68	0	1719860..1720576	-	238	116517178	-	SPD_1725	-	hypothetical protein
1616	 42.02	0	1721457..1722872	-	471	116515376	ply	SPD_1726	-	pneumolysin
1617	 38.93	0	1722883..1723293	-	136	116516591	-	SPD_1727	-	hypothetical protein
1618	 40.39	0	1723286..1723894	-	202	116515483	-	SPD_1728	-	hypothetical protein
1619	 41.39	0	1723907..1724365	-	152	116515874	-	SPD_1729	-	hypothetical protein
1620	 37.16	0	1725654..1725914	-	86	116516597	-	SPD_1731	-	hypothetical protein
1621	 34.78	-1	1725973..1726524	-	183	116516601	-	SPD_1732	-	hypothetical protein
1622	 32.83	-1	1726514..1726711	-	65	116516964	-	SPD_1733	-	hypothetical protein
1623	 33.84	-1	1726715..1727509	-	264	116517008	-	SPD_1734	-	hypothetical protein
1624	 33.10	-1	1727917..1728342	-	141	116516198	-	SPD_1735	-	hypothetical protein
1625	 32.78	-1	1728471..1728830	-	119	116516167	-	SPD_1736	-	hypothetical protein
1626	 46.39	+1	1729601..1730557	-	318	116516777	lytA	SPD_1737	-	autolysin/N-acetylmuramoyl-L-alanine amidase
1627	 41.72	0	1730933..1732303	-	456	116517012	dinF	SPD_1738	-	MATE efflux family protein DinF
1628	 41.82	0	1732610..1733776	-	388	116516275	recA	SPD_1739	-	recombinase A
1629	 45.03	+1	1733831..1735087	-	418	116515783	cinA	SPD_1740	-	competence damage-inducible protein A
1630	 38.35	0	1735172..1736188	-	338	116516376	-	SPD_1741	-	transcriptional regulator, putative
1631	 41.43	0	1736196..1736714	-	172	116516759	-	SPD_1742	-	acetyltransferase, GNAT family protein
1632	 39.86	0	1736704..1737147	-	147	116515913	-	SPD_1743	-	hypothetical protein
1633	 35.27	-1	1737233..1737853	-	206	116516234	-	SPD_1744	-	hypothetical protein
1634	 33.10	-1	1738236..1739099	-	287	116517204	-	SPD_1745	-	transcriptional regulator PlcR, putative
1635	 32.75	-1	1739291..1739461	+	56	116516150	-	SPD_1746	-	hypothetical protein
1636	 38.22	0	1739564..1739788	+	74	116516307	-	SPD_1747	-	hypothetical protein
1637	 34.39	-1	1739795..1739983	+	62	116515563	-	SPD_1748	-	hypothetical protein
1638	 29.09	-2	1740099..1743089	+	996	116516640	-	SPD_1749	-	bacteriocin formation protein, putative
1639	 31.06	-1	1743439..1744143	+	234	116516852	wrbA	SPD_1750	-	hypothetical protein
1640	 27.10	-2	1744124..1745053	+	309	116516025	-	SPD_1751	-	hypothetical protein
1641	 28.31	-2	1745050..1747158	+	702	116516806	-	SPD_1752	-	toxin secretion ABC transporter, ATP-binding/permease protein
1642	 29.48	-2	1747182..1748921	+	579	116515961	-	SPD_1753	-	serine protease, subtilase family protein
1643	 39.58	0	1748972..1749739	+	255	116517021	-	SPD_1754	-	hypothetical protein
1644	 40.60	0	1749741..1750373	+	210	116516211	-	SPD_1755	-	ABC transporter, ATP-binding protein
1645	 28.40	-2	1750531..1750692	+	53	116516632	-	SPD_1756	-	hypothetical protein
1646	 42.03	0	1751319..1751732	-	137	116516942	ndk	SPD_1757	-	nucleoside diphosphate kinase
1647	 46.17	+1	1751843..1755520	-	1225	116515724	rpoC	SPD_1758	-	DNA-directed RNA polymerase subunit beta'
1648	 44.60	0	1755553..1759164	-	1203	116516435	rpoB	SPD_1759	-	DNA-directed RNA polymerase subunit beta
1649	 40.17	0	1759848..1761179	-	443	116515537	-	SPD_1761	-	CBS domain-containing protein
1650	 43.64	0	1761408..1762232	-	274	116516431	-	SPD_1762	-	DNA-entry nuclease
1651	 38.65	0	1762271..1762477	-	68	116516278	-	SPD_1763	-	hypothetical protein
1652	 46.81	+1	1762452..1763735	-	427	116516843	murA-2	SPD_1764	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1653	 41.71	0	1764047..1765084	-	345	116516010	-	SPD_1765	-	hypothetical protein
1654	 39.47	0	1765068..1765556	-	162	116515643	coaD	SPD_1766	-	phosphopantetheine adenylyltransferase
1655	 45.00	+1	1765546..1766085	-	179	116516705	-	SPD_1767	-	type II DNA modification methyltransferase, putative
1656	 43.40	0	1766150..1767142	-	330	116515784	asnA	SPD_1768	-	asparagine synthetase AsnA
1657	 28.93	-2	1767122..1767280	+	52	116515931	-	SPD_1770	-	hypothetical protein
1658	 42.80	0	1767254..1767961	-	235	116516865	-	SPD_1769	-	hypothetical protein
40.03	MEAN

4.59	STD DEV
