IslandPath Analysis: Streptococcus pneumoniae D39

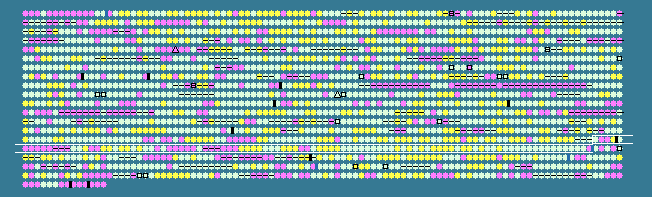

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1496	 38.19	0	1594876..1595328	-	150	116515428	-	SPD_1577	-	hypothetical protein
1497	 32.78	-1	1595681..1595860	-	59	116516279	-	SPD_1578	-	hypothetical protein
1498	 29.58	-2	1596025..1596264	-	79	116515699	-	SPD_1579	-	hypothetical protein
1499	 48.19	+1	1596534..1597805	+	423	116516731	-	SPD_1580	-	recombination factor protein RarA
1500	 40.00	0	1598352..1599671	-	439	116517206	-	SPD_1582	-	sucrose-6-phosphate hydrolase, putative
1501	 34.16	-1	1599681..1600526	-	281	116516106	-	SPD_1583	-	ABC transporter, permease protein
1502	 33.33	-1	1600528..1601430	-	300	116515702	-	SPD_1584	-	ABC transporter, permease protein
1503	 35.62	0	1601526..1602836	-	436	116516945	-	SPD_1585	-	ABC transporter, sugar-binding protein
1504	 30.52	-2	1602963..1603958	-	331	116515545	-	SPD_1586	-	sugar-binding transcriptional regulator, LacI family protein
1505	 30.03	-2	1604320..1605801	-	493	116516300	-	SPD_1587	-	transcriptional activator, putative
1506	 31.75	-1	1606491..1607057	+	188	116516127	-	SPD_1588	-	hypothetical protein
1507	 33.92	-1	1607069..1607239	+	56	116515552	-	SPD_1589	-	hypothetical protein
1508	 36.45	0	1607278..1607886	+	202	116515908	-	SPD_1590	-	general stress protein 24, putative
1509	 36.76	0	1607917..1608120	+	67	116515903	-	SPD_1591	-	hypothetical protein
1510	 38.26	0	1608647..1609093	-	148	116516977	-	SPD_1592	-	acetyltransferase, GNAT family protein
1511	 44.85	+1	1609163..1609822	+	219	116516208	-	SPD_1593	-	type IV prepilin peptidase, putative
1512	 32.29	-1	1609874..1611025	-	383	116516126	-	SPD_1594	-	transcriptional regulator
1513	 31.97	-1	1611040..1611771	-	243	116517126	-	SPD_1595	-	hypothetical protein
1514	 45.30	+1	1612073..1612849	-	258	116515328	trpA	SPD_1596	-	tryptophan synthase subunit alpha
1515	 48.53	+1	1612842..1614065	-	407	116516622	trpB	SPD_1597	-	tryptophan synthase subunit beta
1516	 43.50	0	1614043..1614642	-	199	116515967	trpF	SPD_1598	-	N-(5'-phosphoribosyl)anthranilate isomerase
1517	 46.61	+1	1614629..1615396	-	255	116516838	trpC	SPD_1599	-	indole-3-glycerol-phosphate synthase
1518	 43.98	0	1615393..1616397	-	334	116516280	trpD	SPD_1600	-	anthranilate phosphoribosyltransferase
1519	 43.21	0	1616408..1616974	-	188	116516075	trpG	SPD_1601	-	anthranilate synthase component II
1520	 43.91	0	1616971..1618332	-	453	116516925	trpE	SPD_1602	-	anthranilate synthase component I
1521	 42.31	0	1618467..1618622	-	51	116515981	-	SPD_1603	-	hypothetical protein
1522	 41.67	0	1618626..1618745	-	39	116515832	-	SPD_1604	-	hypothetical protein
1523	 31.34	-1	1619519..1620520	-	333	116516729	-	SPD_1605	-	sugar-binding transcriptional regulator, LacI family protein
1524	 36.57	0	1621092..1621802	-	236	116515634	-	SPD_1606	-	MgtC/SapB family protein
1525	 32.74	-1	1621805..1623496	-	563	116516480	-	SPD_1607	-	ABC transporter, permease protein
1526	 33.04	-1	1623508..1624518	-	336	116516345	-	SPD_1608	-	ABC transporter ATP-binding protein
1527	 34.36	-1	1624621..1625688	-	355	116515427	-	SPD_1609	-	ABC transporter, substrate-binding protein
1528	 31.67	-1	1625713..1626372	-	219	116516088	-	SPD_1610	-	hypothetical protein
1529	 29.82	-2	1626500..1626613	-	37	116517152	-	SPD_1611	-	hypothetical protein
1530	 37.10	0	1626582..1627562	-	326	116515568	galE-2	SPD_1612	-	UDP-glucose 4-epimerase
1531	 33.94	-1	1627575..1629050	-	491	116516923	galT-1	SPD_1613	-	galactose-1-phosphate uridylyltransferase
1532	 25.23	-2	1629063..1629704	-	213	116516347	-	SPD_1614	-	phosphate transport system regulatory protein PhoU, putative
1533	 28.08	-2	1629762..1630256	-	164	116515595	-	SPD_1615	-	hypothetical protein
1534	 27.95	-2	1630317..1630613	-	98	116516072	-	SPD_1616	-	hypothetical protein
1535	 31.55	-1	1630597..1632723	-	708	116515361	-	SPD_1617	-	cell wall surface anchor family protein
1536	 35.03	-1	1633669..1633845	+	58	116517214	-	SPD_1618	-	hypothetical protein
1537	 44.09	0	1633887..1635113	-	408	116516120	-	SPD_1619	-	capsular polysaccharide biosynthesis protein, putative
1538	 45.60	+1	1635156..1635848	-	230	116516993	-	SPD_1620	-	glycosyl transferase, putative
1539	 44.46	0	1636021..1637772	-	583	116516065	-	SPD_1621	-	ABC transporter, ATP-binding/permease protein
1540	 45.76	+1	1637762..1639507	-	581	116515751	-	SPD_1622	-	ABC transporter, ATP-binding/permease protein
1541	 41.43	0	1639635..1640165	-	176	116515837	-	SPD_1623	-	hypothetical protein
1542	 39.26	0	1640162..1640431	-	89	116515487	-	SPD_1624	-	hypothetical protein
1543	 38.16	0	1640391..1640618	-	75	116516579	-	SPD_1625	-	hypothetical protein
1544	 45.29	+1	1640752..1641579	+	275	116516049	xth	SPD_1626	-	exodeoxyribonuclease III
1545	 44.16	0	1642851..1643432	+	193	116515812	xpt	SPD_1628	-	xanthine phosphoribosyltransferase
1546	 45.84	+1	1643432..1644694	+	420	116516978	pbuX	SPD_1629	-	xanthine permease
1547	 34.63	-1	1644745..1645206	-	153	116515864	-	SPD_1630	-	hypothetical protein
1548	 32.55	-1	1645203..1645967	-	254	116516583	-	SPD_1631	-	Dam-replacing family protein
1549	 42.96	0	1646148..1646552	-	134	116516006	-	SPD_1632	-	hypothetical protein
1550	 45.21	+1	1646622..1648103	-	493	116517165	galT-2	SPD_1633	-	galactose-1-phosphate uridylyltransferase
1551	 44.02	0	1648122..1649300	-	392	116516140	galK	SPD_1634	-	galactokinase
1552	 46.23	+1	1649464..1650471	+	335	116515548	galR	SPD_1635	-	galactose operon repressor
1553	 44.80	+1	1650517..1651554	-	345	116516381	-	SPD_1636	-	alcohol dehydrogenase, zinc-containing
1554	 39.27	0	1651555..1651908	-	117	116515738	-	SPD_1637	-	transcriptional regulator, MerR family protein
1555	 40.85	0	1652152..1653042	-	296	116516957	-	SPD_1638	-	cation efflux system protein
1556	 42.46	0	1653175..1653711	+	178	116516665	-	SPD_1639	-	transcriptional regulator, TetR family protein
1557	 41.88	0	1653878..1654684	-	268	116515309	pnuC	SPD_1640	-	nicotinamide mononucleotide transporter PnuC, putative
1558	 43.46	0	1656513..1658033	-	506	116516671	proWX	SPD_1642	-	choline transporter (glycine betaine transport system permease protein)
1559	 42.11	0	1658026..1658754	-	242	116515426	proV	SPD_1643	-	choline transporter
1560	 41.83	0	1658769..1659533	-	254	116516425	-	SPD_1644	-	hypothetical protein
1561	 40.32	0	1659537..1659980	-	147	116516067	-	SPD_1645	-	transcriptional regulator, MarR family protein
1562	 42.42	0	1660662..1660958	-	98	116516799	-	SPD_1646	-	hypothetical protein
1563	 46.01	+1	1660980..1662044	-	354	116516201	pepA	SPD_1647	-	glutamyl aminopeptidase PepA
1564	 40.74	0	1662445..1663146	+	233	116515575	-	SPD_1648	-	NAD-dependent epimerase/dehydratase family protein
1565	 46.04	+1	1663569..1664528	+	319	116515914	-	SPD_1649	-	iron-compound ABC transporter, permease protein
1566	 43.26	0	1664518..1665474	+	318	116517018	-	SPD_1650	-	iron-compound ABC transporter, permease protein
1567	 44.89	+1	1665471..1666223	+	250	116515957	-	SPD_1651	-	iron-compound ABC transporter, ATP-binding protein
1568	 42.65	0	1666319..1667284	+	321	116515347	-	SPD_1652	-	iron-compound ABC transporter, iron-compound-binding protein
1569	 43.62	0	1667509..1667751	-	80	116516197	-	SPD_1653	-	hypothetical protein
1570	 45.64	+1	1667751..1668473	-	240	116515785	rluB	SPD_1654	-	ribosomal large subunit pseudouridine synthase B
1571	 44.74	+1	1668460..1669029	-	189	116516630	scpB	SPD_1655	-	segregation and condensation protein B
1572	 45.40	+1	1669048..1669776	-	242	116516005	scpA	SPD_1656	-	segregation and condensation protein A
1573	 42.65	0	1669776..1670516	-	246	116517040	xerD	SPD_1657	-	site-specific tyrosine recombinase XerD-like protein
1574	 45.45	+1	1670507..1670968	-	153	116515694	-	SPD_1658	-	CBS domain-containing protein
1575	 47.13	+1	1670965..1671486	-	173	116516789	-	SPD_1659	-	hypothetical protein
1576	 42.59	0	1671462..1672433	-	323	116515496	-	SPD_1660	-	fused deoxyribonucleotide triphosphate pyrophosphatase/unknown domain-containing protein
1577	 48.30	+1	1672430..1673224	-	264	116516596	murI	SPD_1661	-	glutamate racemase
1578	 38.55	0	1673431..1673679	-	82	116516372	-	SPD_1662	-	hypothetical protein
1579	 41.51	0	1673821..1675446	-	541	116515529	treC	SPD_1663	-	alpha,alpha-phosphotrehalase
1580	 44.41	0	1675624..1677591	-	655	116517080	-	SPD_1664	-	PTS system, trehalose-specific IIABC components
1581	 41.77	0	1677776..1678486	+	236	116515994	treR	SPD_1665	-	trehalose operon repressor
1582	 40.88	0	1680023..1680949	-	308	116516555	amiF	SPD_1667	-	oligopeptide ABC transporter, ATP-binding protein AmiF
1583	 42.51	0	1680960..1682027	-	355	116515459	amiE	SPD_1668	-	oligopeptide ABC transporter, ATP-binding protein AmiE
1584	 39.91	0	1682036..1682962	-	308	116516298	amiD	SPD_1669	-	oligopeptide ABC transporter, permease protein AmiD
1585	 39.28	0	1682962..1684458	-	498	116517087	amiC	SPD_1670	-	oligopeptide ABC transporter, permease protein AmiC
1586	 38.99	0	1684525..1686504	-	659	116515355	amiA	SPD_1671	-	oligopeptide ABC transporter, oligopeptide-binding protein AmiA
1587	 37.86	0	1687191..1688384	-	397	116516720	-	SPD_1672	-	hypothetical protein
1588	 38.12	0	1688522..1689964	-	480	116515647	gtfA	SPD_1673	-	sucrose phosphorylase
1589	 42.26	0	1690148..1690315	-	55	116516930	-	SPD_1674	-	hypothetical protein
1590	 42.57	0	1690322..1691155	-	277	116516219	rafG	SPD_1675	-	sugar ABC transporter, permease protein
1591	 41.98	0	1691169..1692035	-	288	116517088	rafF	SPD_1676	-	sugar ABC transporter, permease protein
1592	 43.17	0	1692049..1693308	-	419	116516419	rafE	SPD_1677	-	sugar ABC transporter, sugar-binding protein
1593	 37.26	0	1693400..1695562	-	720	116515396	aga	SPD_1678	-	alpha-galactosidase AgaN
1594	 36.70	0	1695670..1696530	+	286	116516533	msmR	SPD_1679	-	msm operon regulatory protein MsmR
1595	 36.11	0	1696527..1697462	+	311	116515717	-	SPD_1680	-	biotin--protein ligase
40.03	MEAN

4.59	STD DEV
