IslandPath Analysis: Streptococcus pneumoniae D39

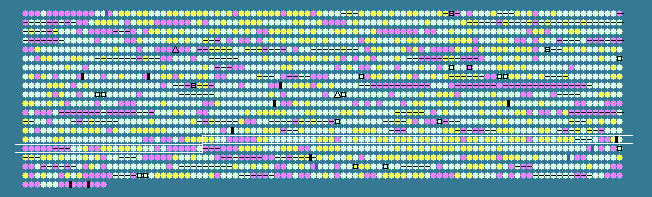

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1431	 46.83	+1	1531370..1531732	-	120	116515875	acpS	SPD_1509	-	4'-phosphopantetheinyl transferase
1432	 44.19	0	1531777..1532808	-	343	116516181	-	SPD_1510	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1433	 40.99	0	1532810..1533841	-	343	116517167	-	SPD_1511	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1434	 43.16	0	1533922..1536435	-	837	116515410	secA	SPD_1512	-	preprotein translocase subunit SecA
1435	 32.72	-1	1536881..1537531	-	216	116516316	-	SPD_1514	-	ABC transporter, ATP-binding protein
1436	 34.38	-1	1537535..1538110	-	191	116515682	-	SPD_1515	-	hypothetical protein
1437	 32.83	-1	1538169..1538960	-	263	116516608	-	SPD_1516	-	hypothetical protein
1438	 34.86	-1	1538982..1539374	-	130	116516969	-	SPD_1517	-	hypothetical protein
1439	 31.46	-1	1539701..1540552	+	283	116516974	-	SPD_1518	-	transcriptional activator, Rgg/GadR/MutR family protein
1440	 43.63	0	1541688..1542998	-	436	116515879	engA	SPD_1519	-	GTP-binding protein EngA
1441	 45.24	+1	1543012..1543725	-	237	116517075	-	SPD_1520	-	nitroreductase family protein
1442	 40.58	0	1543722..1544618	-	298	116516206	dnaI	SPD_1521	-	primosomal protein DnaI
1443	 40.77	0	1544619..1545788	-	389	116515470	-	SPD_1522	-	hypothetical protein
1444	 42.41	0	1545789..1546262	-	157	116516730	-	SPD_1523	-	transcriptional regulator NrdR
1445	 41.53	0	1546402..1546767	+	121	116516792	-	SPD_1524	-	transcriptional regulator, GntR family protein
1446	 42.39	0	1546772..1547467	+	231	116515972	-	SPD_1525	-	ABC transporter, ATP-binding protein
1447	 38.54	0	1547484..1548251	+	255	116515966	-	SPD_1526	-	hypothetical protein
1448	 39.58	0	1548664..1549863	-	399	116516998	-	SPD_1527	-	hypothetical protein
1449	 41.83	0	1549860..1550753	-	297	116516180	-	SPD_1528	-	ABC transporter, ATP-binding protein
1450	 46.44	+1	1552062..1552679	+	205	116515885	-	SPD_1530	-	hypothetical protein
1451	 44.14	0	1552999..1553886	-	295	116516735	scrK	SPD_1531	-	fructokinase
1452	 44.06	0	1554035..1555918	-	627	116517116	-	SPD_1532	-	PTS system IIABC components
1453	 26.77	-2	1556045..1556242	-	65	116515797	-	SPD_1533	-	hypothetical protein
1454	 42.68	0	1556295..1557749	+	484	116516412	scrB	SPD_1534	-	sucrose-6-phosphate hydrolase
1455	 42.44	0	1557730..1558695	+	321	116516061	scrR	SPD_1535	-	sucrose operon repressor
1456	 49.33	+2	1558730..1560004	-	424	116516718	-	SPD_1536	-	hydroxymethylglutaryl-CoA reductase, degradative
1457	 42.11	0	1560004..1561200	-	398	116515383	mvaS	SPD_1537	-	hydroxymethylglutaryl-CoA synthase
1458	 39.24	0	1561307..1561594	-	95	116515856	-	SPD_1538	-	hypothetical protein
1459	 41.78	0	1562311..1562760	-	149	116516534	-	SPD_1540	-	hypothetical protein
1460	 45.19	+1	1562762..1563520	-	252	116516263	-	SPD_1541	-	hypothetical protein
1461	 43.74	0	1563635..1565614	-	659	116517182	-	SPD_1542	-	serine/threonine protein kinase
1462	 42.38	0	1565611..1566351	-	246	116515932	-	SPD_1543	-	phosphatase, putative
1463	 44.37	0	1566366..1567679	-	437	116517030	sun	SPD_1544	-	ribosomal RNA small subunit methyltransferase B
1464	 45.94	+1	1567672..1568607	-	311	116515769	fmt	SPD_1545	-	methionyl-tRNA formyltransferase
1465	 46.56	+1	1568620..1571016	-	798	116516961	priA	SPD_1546	-	primosome assembly protein PriA
1466	 40.00	0	1571082..1571396	-	104	116515579	-	SPD_1547	-	DNA-directed RNA polymerase subunit omega
1467	 44.02	0	1571421..1572047	-	208	116516658	gmk	SPD_1548	-	guanylate kinase
1468	 44.42	0	1572177..1573790	-	537	116516869	-	SPD_1549	-	hypothetical protein
1469	 37.25	0	1573981..1574235	-	84	116515838	-	SPD_1550	-	hypothetical protein
1470	 41.76	0	1574239..1574499	-	86	116516949	-	SPD_1551	-	hypothetical protein
1471	 45.17	+1	1574731..1575828	-	365	116516082	-	SPD_1552	-	hypothetical protein
1472	 44.58	0	1575838..1576584	-	248	116517052	-	SPD_1553	-	hypothetical protein
1473	 44.92	+1	1576687..1577040	-	117	116515553	-	SPD_1554	-	iojap-related protein
1474	 35.33	-1	1577053..1577553	-	166	116516727	-	SPD_1555	-	isochorismatase family protein
1475	 44.61	0	1577554..1578147	-	197	116515369	-	SPD_1556	-	hypothetical protein
1476	 47.14	+1	1578147..1578776	-	209	116515834	nadD	SPD_1557	-	nicotinic acid mononucleotide adenylyltransferase
1477	 38.78	0	1578828..1579139	-	103	116515641	-	SPD_1558	-	hypothetical protein
1478	 44.35	0	1579354..1580460	-	368	116516270	-	SPD_1559	-	GTP-binding protein YqeH
1479	 44.51	0	1580463..1580990	-	175	116517207	-	SPD_1560	-	hypothetical protein
1480	 42.03	0	1581005..1581901	-	298	116516142	-	SPD_1561	-	magnesium transporter, CorA family protein, putative
1481	 38.69	0	1581958..1582554	-	198	116516950	-	SPD_1562	-	small conductance mechanosensitive ion channel (MscS) family protein
1482	 44.06	0	1582907..1583866	+	319	116516711	-	SPD_1563	-	dicarboxylate/amino acid:cation (Na+ or H+) symporter (DAACS) family protein
1483	 44.97	+1	1583934..1584887	+	317	116517163	-	SPD_1564	-	hypothetical protein
1484	 44.88	+1	1585031..1585411	+	126	116516515	-	SPD_1565	-	transcriptional regulator, putative
1485	 35.97	0	1585429..1585731	+	100	116515687	-	SPD_1566	-	hypothetical protein
1486	 40.00	0	1585748..1586062	+	104	116516780	trx	SPD_1567	-	thioredoxin
1487	 45.80	+1	1586556..1586900	+	114	116515904	-	SPD_1568	-	GTP cyclohydrolase, putative
1488	 45.14	+1	1587380..1588048	-	222	116515733	-	SPD_1569	-	aquaporin
1489	 36.58	0	1588159..1588713	-	184	116515449	-	SPD_1570	-	hypothetical protein
1490	 45.69	+1	1588959..1590755	-	598	116516584	-	SPD_1571	-	oligoendopeptidase F, putative
1491	 44.49	0	1590766..1591509	-	247	116515693	-	SPD_1572	-	hypothetical protein
1492	 48.37	+1	1591511..1592461	-	316	116516647	prmA	SPD_1573	-	ribosomal protein L11 methyltransferase
1493	 41.49	0	1592599..1593027	-	142	116515601	-	SPD_1574	-	MutT/nudix family protein
1494	 40.31	0	1592993..1594096	-	367	116517094	-	SPD_1575	-	hypothetical protein
1495	 41.19	0	1594115..1594585	-	156	116515833	-	SPD_1576	-	hypothetical protein
1496	 38.19	0	1594876..1595328	-	150	116515428	-	SPD_1577	-	hypothetical protein
1497	 32.78	-1	1595681..1595860	-	59	116516279	-	SPD_1578	-	hypothetical protein
1498	 29.58	-2	1596025..1596264	-	79	116515699	-	SPD_1579	-	hypothetical protein
1499	 48.19	+1	1596534..1597805	+	423	116516731	-	SPD_1580	-	recombination factor protein RarA
1500	 40.00	0	1598352..1599671	-	439	116517206	-	SPD_1582	-	sucrose-6-phosphate hydrolase, putative
1501	 34.16	-1	1599681..1600526	-	281	116516106	-	SPD_1583	-	ABC transporter, permease protein
1502	 33.33	-1	1600528..1601430	-	300	116515702	-	SPD_1584	-	ABC transporter, permease protein
1503	 35.62	0	1601526..1602836	-	436	116516945	-	SPD_1585	-	ABC transporter, sugar-binding protein
1504	 30.52	-2	1602963..1603958	-	331	116515545	-	SPD_1586	-	sugar-binding transcriptional regulator, LacI family protein
1505	 30.03	-2	1604320..1605801	-	493	116516300	-	SPD_1587	-	transcriptional activator, putative
1506	 31.75	-1	1606491..1607057	+	188	116516127	-	SPD_1588	-	hypothetical protein
1507	 33.92	-1	1607069..1607239	+	56	116515552	-	SPD_1589	-	hypothetical protein
1508	 36.45	0	1607278..1607886	+	202	116515908	-	SPD_1590	-	general stress protein 24, putative
1509	 36.76	0	1607917..1608120	+	67	116515903	-	SPD_1591	-	hypothetical protein
1510	 38.26	0	1608647..1609093	-	148	116516977	-	SPD_1592	-	acetyltransferase, GNAT family protein
1511	 44.85	+1	1609163..1609822	+	219	116516208	-	SPD_1593	-	type IV prepilin peptidase, putative
1512	 32.29	-1	1609874..1611025	-	383	116516126	-	SPD_1594	-	transcriptional regulator
1513	 31.97	-1	1611040..1611771	-	243	116517126	-	SPD_1595	-	hypothetical protein
1514	 45.30	+1	1612073..1612849	-	258	116515328	trpA	SPD_1596	-	tryptophan synthase subunit alpha
1515	 48.53	+1	1612842..1614065	-	407	116516622	trpB	SPD_1597	-	tryptophan synthase subunit beta
1516	 43.50	0	1614043..1614642	-	199	116515967	trpF	SPD_1598	-	N-(5'-phosphoribosyl)anthranilate isomerase
1517	 46.61	+1	1614629..1615396	-	255	116516838	trpC	SPD_1599	-	indole-3-glycerol-phosphate synthase
1518	 43.98	0	1615393..1616397	-	334	116516280	trpD	SPD_1600	-	anthranilate phosphoribosyltransferase
1519	 43.21	0	1616408..1616974	-	188	116516075	trpG	SPD_1601	-	anthranilate synthase component II
1520	 43.91	0	1616971..1618332	-	453	116516925	trpE	SPD_1602	-	anthranilate synthase component I
1521	 42.31	0	1618467..1618622	-	51	116515981	-	SPD_1603	-	hypothetical protein
1522	 41.67	0	1618626..1618745	-	39	116515832	-	SPD_1604	-	hypothetical protein
1523	 31.34	-1	1619519..1620520	-	333	116516729	-	SPD_1605	-	sugar-binding transcriptional regulator, LacI family protein
1524	 36.57	0	1621092..1621802	-	236	116515634	-	SPD_1606	-	MgtC/SapB family protein
1525	 32.74	-1	1621805..1623496	-	563	116516480	-	SPD_1607	-	ABC transporter, permease protein
1526	 33.04	-1	1623508..1624518	-	336	116516345	-	SPD_1608	-	ABC transporter ATP-binding protein
1527	 34.36	-1	1624621..1625688	-	355	116515427	-	SPD_1609	-	ABC transporter, substrate-binding protein
1528	 31.67	-1	1625713..1626372	-	219	116516088	-	SPD_1610	-	hypothetical protein
1529	 29.82	-2	1626500..1626613	-	37	116517152	-	SPD_1611	-	hypothetical protein
1530	 37.10	0	1626582..1627562	-	326	116515568	galE-2	SPD_1612	-	UDP-glucose 4-epimerase
40.03	MEAN

4.59	STD DEV
