IslandPathversion 1.0

IslandPath Analysis: Streptococcus pneumoniae D39

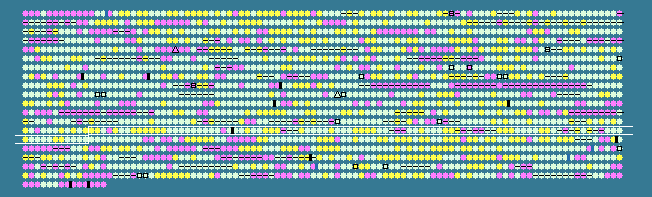

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.03 STD DEV: 4.59
Streptococcus pneumoniae D39, complete genome - 1..2046115
1914 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1312	 44.05	0	1407472..1408656	-	394	116517000	-	SPD_1386	-	tRNA CCA-pyrophosphorylase
1313	 45.83	+1	1408668..1409435	-	255	116515624	dapB	SPD_1387	-	dihydrodipicolinate reductase
1314	 42.17	0	1409712..1410560	-	282	116516817	-	SPD_1388	-	DegV family protein
1315	 36.53	0	1410562..1410936	-	124	116515411	-	SPD_1389	-	hypothetical protein
1316	 44.35	0	1411010..1412362	-	450	116516422	-	SPD_1390	-	phosphoglucomutase/phosphomannomutase family protein
1317	 39.62	0	1412386..1413165	-	259	116517073	-	SPD_1391	-	hypothetical protein
1318	 39.83	0	1413152..1413967	-	271	116516268	-	SPD_1392	-	hypothetical protein
1319	 44.69	+1	1414145..1415113	+	322	116516331	-	SPD_1393	-	pyridine nucleotide-disulphide oxidoreductase family protein
1320	 45.18	+1	1415147..1416058	-	303	116515514	-	SPD_1394	-	hypothetical protein
1321	 45.40	+1	1416055..1417032	-	325	116516455	-	SPD_1395	-	hypothetical protein
1322	 44.11	0	1417029..1417919	-	296	116515346	-	SPD_1396	-	hypothetical protein
1323	 43.57	0	1417971..1418351	-	126	116516493	-	SPD_1397	-	endoribonuclease L-PSP
1324	 44.05	0	1418362..1418949	-	195	116515393	-	SPD_1398	-	GTPase EngB
1325	 43.15	0	1418958..1420190	-	410	116517127	clpX	SPD_1399	-	ATP-dependent protease ATP-binding subunit
1326	 39.77	0	1420222..1420392	-	56	116516044	-	SPD_1400	-	hypothetical protein
1327	 42.80	0	1420392..1420898	-	168	116516966	folA	SPD_1401	-	dihydrofolate reductase
1328	 41.43	0	1421028..1421546	-	172	116515815	-	SPD_1402	-	non-heme iron-containing ferritin
1329	 39.31	0	1422042..1423514	-	490	116515853	lytC	SPD_1403	-	1,4-beta-N-acetylmuramidase, putative
1330	 42.82	0	1423585..1424343	-	252	116516798	tpiA	SPD_1404	-	triosephosphate isomerase
1331	 43.07	0	1424441..1425118	-	225	116516031	-	SPD_1405	-	hypothetical protein
1332	 41.48	0	1425127..1426071	-	314	116516883	metA	SPD_1406	-	homoserine O-succinyltransferase
1333	 41.24	0	1426253..1426783	-	176	116516257	apt	SPD_1407	-	adenine phosphoribosyltransferase
1334	 36.50	0	1426853..1427611	-	252	116517093	-	SPD_1408	-	hypothetical protein
1335	 41.03	0	1428112..1429242	-	376	116515506	-	SPD_1409	-	sugar ABC transporter, ATP-binding protein
1336	 39.76	0	1429692..1430267	-	191	116516385	-	SPD_1411	-	isochorismatase family protein
1337	 40.30	0	1430267..1431055	-	262	116515749	codY	SPD_1412	-	transcriptional repressor CodY
1338	 43.56	0	1431319..1432893	-	524	116516011	-	SPD_1413	-	ATP-dependent RNA helicase, putative
1339	 40.59	0	1433092..1434318	-	408	116516469	-	SPD_1414	-	oxalate:formate antiporter
1340	 41.61	0	1434508..1435824	+	438	116515420	-	SPD_1415	-	pyridine nucleotide-disulfide oxidoreductase
1341	 44.27	0	1435923..1437266	+	447	116516543	-	SPD_1416	-	hypothetical protein
1342	 44.32	0	1437266..1438048	+	260	116515943	-	SPD_1417	-	hypothetical protein
1343	 43.95	0	1438174..1439256	+	360	116516123	pepQ	SPD_1418	-	proline dipeptidase PepQ
1344	 34.80	-1	1439249..1439452	+	67	116517192	-	SPD_1419	-	hypothetical protein
1345	 41.34	0	1441071..1441532	-	153	116515766	-	SPD_1422	-	hypothetical protein
1346	 42.51	0	1441510..1442283	-	257	116516841	-	SPD_1423	-	phosphomethylpyrimidine kinase
1347	 43.87	0	1442273..1443022	-	249	116516785	truA	SPD_1424	-	tRNA pseudouridine synthase A
1348	 43.06	0	1443335..1444486	-	383	116515935	-	SPD_1425	-	transporter, major facilitator family protein
1349	 38.25	0	1444726..1445355	-	209	116516383	-	SPD_1426	-	hypothetical protein
1350	 41.59	0	1445358..1445696	-	112	116516386	phnA	SPD_1427	-	PhnA protein
1351	 42.11	0	1445827..1446498	-	223	116515618	cmk	SPD_1428	-	cytidylate kinase
1352	 44.44	0	1446507..1446983	-	158	116516758	-	SPD_1429	-	hypothetical protein
1353	 41.06	0	1447035..1447241	+	68	116515900	fer	SPD_1430	-	ferredoxin
1354	 42.03	0	1447303..1448256	-	317	116515490	-	SPD_1431	-	glycosyl transferase, group 2 family protein
1355	 43.43	0	1448258..1449277	-	339	116516336	galE-1	SPD_1432	-	UDP-glucose 4-epimerase
1356	 45.92	+1	1449578..1450681	-	367	116516255	-	SPD_1433	-	FAD dependent oxidoreductase
1357	 44.24	0	1450698..1451495	-	265	116517031	-	SPD_1434	-	hypothetical protein
1358	 44.10	0	1451482..1452159	-	225	116515616	-	SPD_1435	-	hypothetical protein
1359	 46.64	+1	1452261..1454597	-	778	116515937	-	SPD_1436	-	cation-transporting ATPase, E1-E2 family protein
1360	 42.80	0	1454730..1455479	+	249	116515478	-	SPD_1437	-	acyltransferase domain-containing protein
1361	 37.56	0	1455772..1456386	-	204	116516294	-	SPD_1438	-	cadmium resistance transporter, putative
1362	 41.48	0	1457120..1457389	-	89	116517150	rpsO	SPD_1439	-	30S ribosomal protein S15
1363	 35.71	0	1457530..1458159	-	209	116516085	-	SPD_1440	-	hypothetical protein
1364	 23.58	-2	1458222..1458344	+	40	116516356	-	SPD_1441	-	hypothetical protein
1365	 41.06	0	1458963..1459169	+	68	116515517	-	SPD_1442	-	hypothetical protein
1366	 37.85	0	1459176..1459352	+	58	116517071	-	SPD_1443	-	hypothetical protein
1367	 45.42	+1	1459410..1461353	+	647	116515338	thrS	SPD_1444	-	threonyl-tRNA synthetase
1368	 41.03	0	1461402..1462376	-	324	116516868	-	SPD_1445	-	sensor histidine kinase
1369	 42.77	0	1462369..1463046	-	225	116516130	-	SPD_1446	-	DNA-binding response regulator
1370	 42.74	0	1463202..1464275	+	357	116516926	-	SPD_1447	-	hypothetical protein
1371	 43.61	0	1464737..1465174	-	145	116515825	-	SPD_1448	-	Rrf2 family protein
1372	 46.74	+1	1465250..1466092	-	280	116515688	-	SPD_1449	-	hypothetical protein
1373	 43.93	0	1466204..1466854	+	216	116516746	-	SPD_1450	-	iron-dependent transcriptional regulator
1374	 28.07	-2	1466835..1467005	+	56	116517144	-	SPD_1451	-	hypothetical protein
1375	 43.00	0	1467156..1467548	+	130	116516107	-	SPD_1452	-	hypothetical protein
1376	 34.02	-1	1467807..1468244	+	145	116516358	-	SPD_1454	-	hypothetical protein
1377	 35.09	-1	1469540..1469653	+	37	116515424	-	SPD_1455	-	hypothetical protein
1378	 41.98	0	1469793..1469954	+	53	116516460	-	SPD_1456	-	hypothetical protein
1379	 41.44	0	1469993..1470436	-	147	116515633	dtd	SPD_1457	-	D-tyrosyl-tRNA deacylase
1380	 45.61	+1	1470466..1472688	-	740	116516708	relA	SPD_1458	-	GTP pyrophosphokinase
1381	 47.62	+1	1473683..1474312	+	209	116515803	-	SPD_1459	-	metallo-beta-lactamase superfamily protein
1382	 44.64	+1	1474435..1476327	-	630	116517102	pepO	SPD_1460	-	endopeptidase O
1383	 43.02	0	1476618..1477340	+	240	116515895	psaB	SPD_1461	-	manganese ABC transporter, ATP-binding protein
1384	 41.81	0	1477337..1478185	+	282	116516771	psaC	SPD_1462	-	manganese ABC transporter, permease protein, putative
1385	 37.10	0	1478217..1479146	+	309	116515973	-	SPD_1463	-	ABC transporter, substrate binding lipoprotein
1386	 43.50	0	1479269..1479760	+	163	116517151	tpx	SPD_1464	-	thiol peroxidase
1387	 43.71	0	1479856..1482564	-	902	116516046	-	SPD_1465	-	hypothetical protein
1388	 45.16	+1	1482566..1483267	-	233	116516416	-	SPD_1466	-	ABC transporter, ATP-binding protein
1389	 42.99	0	1483517..1485928	-	803	116515332	-	SPD_1467	-	hypothetical protein
1390	 41.99	0	1485981..1486673	-	230	116516661	-	SPD_1468	-	phosphoglyceromutase
1391	 29.10	-2	1486724..1486912	-	62	116515642	-	SPD_1469	-	hypothetical protein
1392	 38.30	0	1487288..1487428	-	46	116516001	-	SPD_1470	-	hypothetical protein
1393	 44.44	0	1487432..1487548	-	38	116517203	-	SPD_1471	-	hypothetical protein
1394	 42.68	0	1487996..1490788	-	930	116515942	ileS	SPD_1472	-	isoleucyl-tRNA synthetase
1395	 43.59	0	1491041..1491157	-	38	116516779	-	SPD_1473	-	hypothetical protein
1396	 39.92	0	1491136..1491924	-	262	116515933	divIVA	SPD_1474	-	cell division protein DivIVA
1397	 35.24	-1	1491933..1492718	-	261	116516882	ylmH	SPD_1475	-	YlmH protein
1398	 42.80	0	1492715..1492978	-	87	116516690	ylmG	SPD_1476	-	YlmG protein
1399	 37.96	0	1492978..1493517	-	179	116515526	ylmF	SPD_1477	-	YlmF protein
1400	 38.84	0	1493527..1494198	-	223	116516370	ylmE	SPD_1478	-	YlmE protein
1401	 44.52	0	1494203..1495462	-	419	116516283	ftsZ	SPD_1479	-	cell division protein FtsZ
1402	 43.09	0	1495479..1496852	-	457	116516996	ftsA	SPD_1480	-	cell division protein FtsA
1403	 39.01	0	1497071..1497775	-	234	116515691	-	SPD_1481	-	hypothetical protein
1404	 40.52	0	1497866..1498477	-	203	116516551	-	SPD_1482	-	MutT/nudix family protein
1405	 41.85	0	1498464..1499837	-	457	116515757	murF	SPD_1483	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2, 6-diaminopimelate--D-alanyl-D-alanyl ligase
1406	 44.92	+1	1499921..1500964	-	347	116516832	ddl	SPD_1484	-	D-alanyl-alanine synthetase A
1407	 44.05	0	1501140..1501736	-	198	116516007	recR	SPD_1485	-	recombination protein RecR
1408	 41.84	0	1501747..1503804	-	685	116517156	penA	SPD_1486	-	penicillin-binding protein 2B
1409	 40.96	0	1504004..1504855	+	283	116516240	-	SPD_1487	-	phosphosugar-binding transcriptional regulator, putative
1410	 43.39	0	1504871..1505755	-	294	116515474	-	SPD_1488	-	ROK family protein
1411	 43.17	0	1505773..1506504	-	243	116516552	-	SPD_1489	-	N-acetylneuraminate lyase, putative
40.03	MEAN

4.59	STD DEV
